MIRROR (EXT): OUTER MIRROR SWITCH: INSTALLATION

1. INSTALL OUTER MIRROR SWITCH ASSEMBLY






(a) Install the mirror switch with the 3 screws.

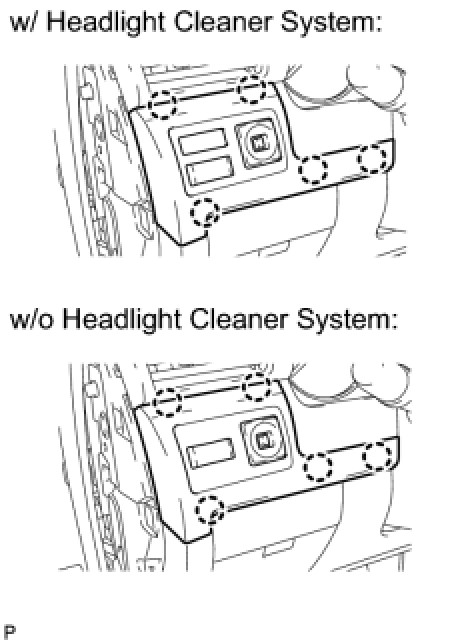

2. INSTALL NO. 1 SWITCH HOLE BASE






(a) Connect the 2 connectors.
(b) Attach the 5 claws to install the switch hole base.
3. INSTALL INSTRUMENT SIDE PANEL LH Installation
