Installation

DOOR LOCK: DOOR CONTROL SWITCH: INSTALLATION


1. INSTALL DOOR CONTROL SWITCH ASSEMBLY

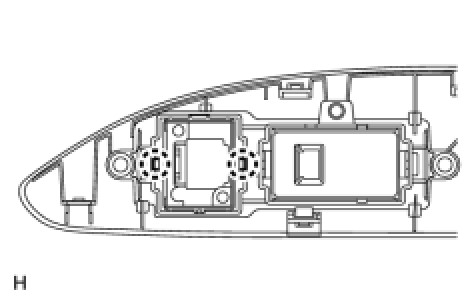

(a) Attach the 2 claws to install the control switch.
2. INSTALL FRONT UPPER ARMREST BASE PANEL RH

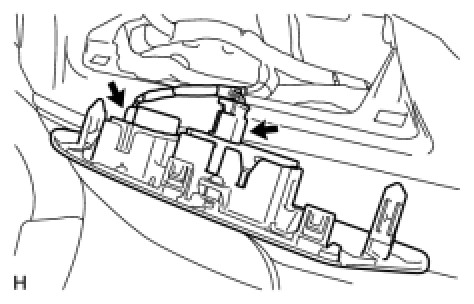

(a) Connect the 2 connectors.

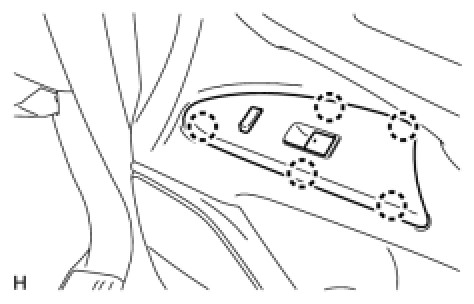

(b) Attach the 5 claws to install the front upper armrest base panel RH.
