INTERIOR PANELS / TRIM: ROOF HEADLINING: INSTALLATION (Continued)

46. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER Installation

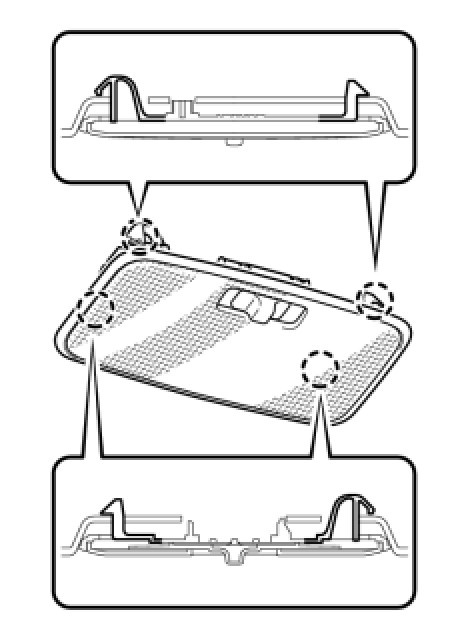

47. INSTALL CENTER VISOR ASSEMBLY LH

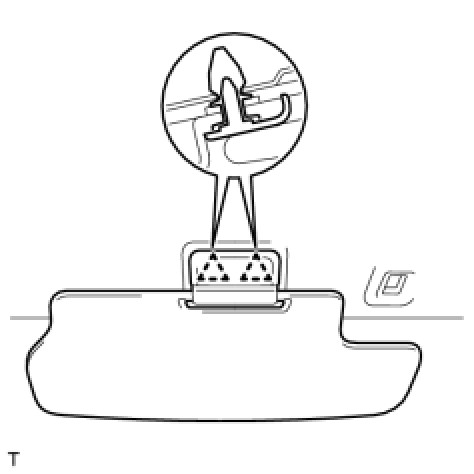

(a) Attach the 2 clips to install the center visor.
48. INSTALL CENTER VISOR ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.

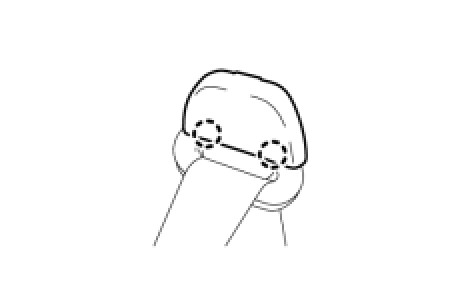

49. INSTALL VISOR HOLDER
HINT:
Use the same procedures to install the visor holder on the other side.

(a) Attach the 2 claws.
(b) Push in the visor holder to install it.

50. INSTALL VISOR ASSEMBLY LH

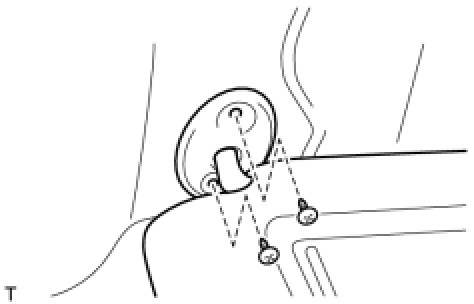

(a) Install the visor with the 2 screws.
51. INSTALL VISOR ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.

52. INSTALL VISOR BRACKET COVER
HINT:
Use the same procedure to install the visor bracket cover on the other side.

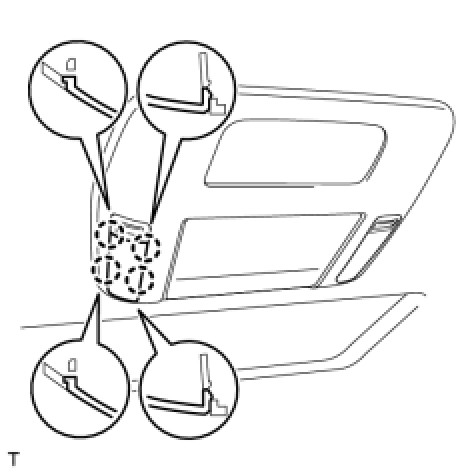

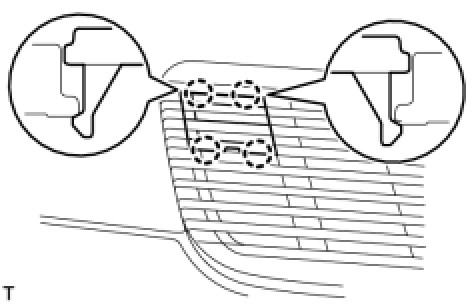

(a) Attach the 4 claws to install the visor bracket cover.
53. INSTALL NO. 3 ROOM LIGHT ASSEMBLY

(a) Install the 2 covers.

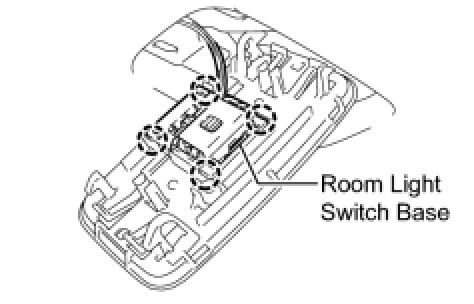

(b) Attach the 4 claws to install the room light lens.

(d) Attach the 4 claws to install the room light.

54. INSTALL NO. 1 ROOM LIGHT ASSEMBLY (w/o Rear Seat Entertainment System)
(a) Connect the connector.

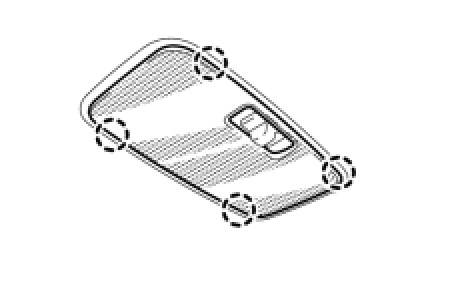

(b) Attach the 4 clips to install the room light.

55. INSTALL ROOF CONSOLE BOX ASSEMBLY (w/ Rear Seat Entertainment System)
(a) Connect the connector.
(b) Attach the 4 clips and 2 claws to install the roof console box.
(c) Install the 2 bolts.

56. INSTALL NO. 1 ROOF LINING TRIM COVER (w/ Rear Seat Entertainment System)
(a) Attach the 4 claws to install the cover.

57. INSTALL NO. 2 ROOF LINING TRIM COVER (w/ Rear Seat Entertainment System)
(a) Attach the 4 claws to install the cover.

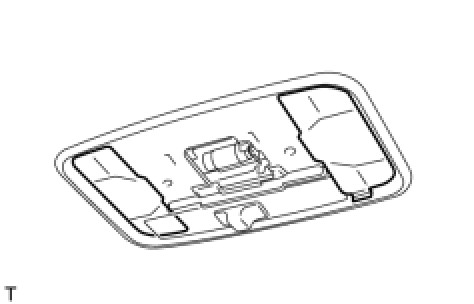

58. INSTALL MAP LIGHT ASSEMBLY
(a) Connect the 2 connectors.

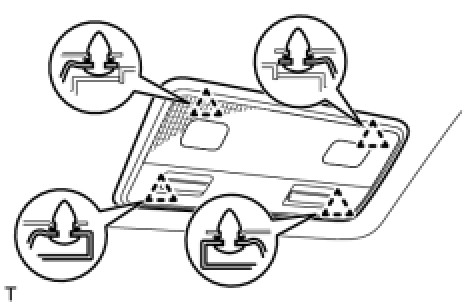

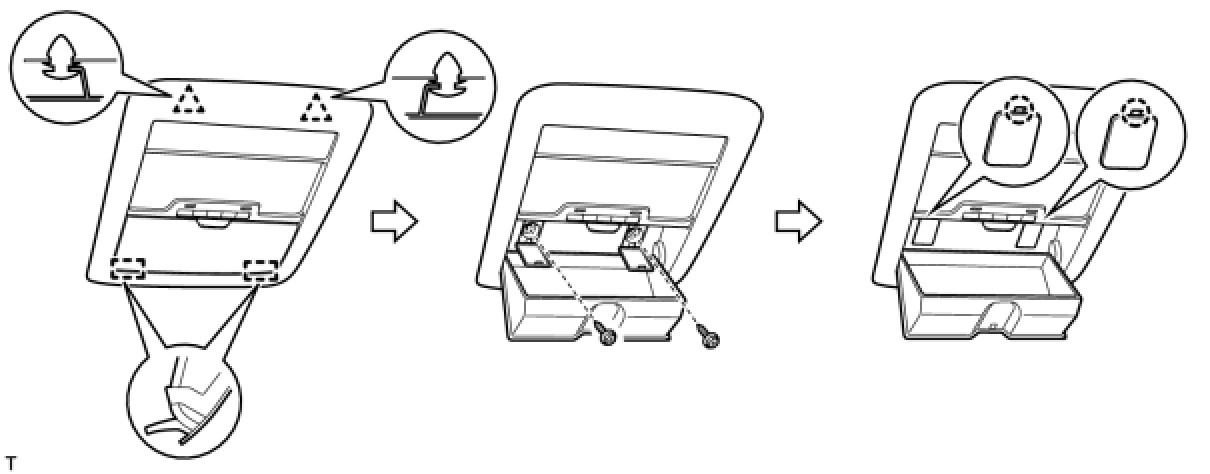

(b) Attach the 2 clips and 2 guides to install the map light.

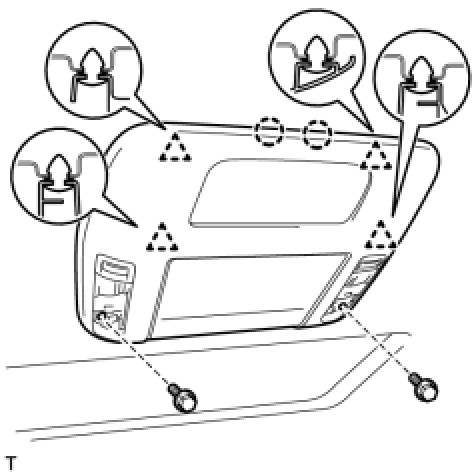

(c) Install the 2 screws.
(d) Attach the 2 claws to close the 2 covers.

59. INSTALL REAR UPPER PILLAR GARNISH LH

(a) Attach the 5 clips to install the rear upper pillar garnish.

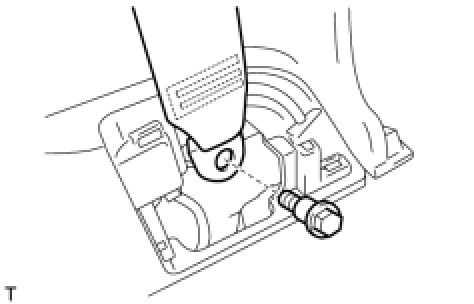

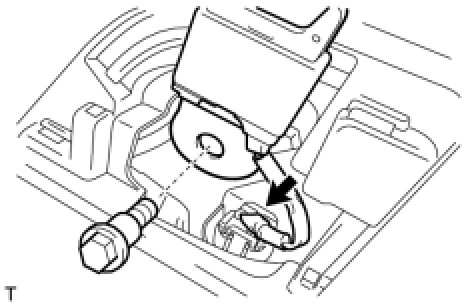

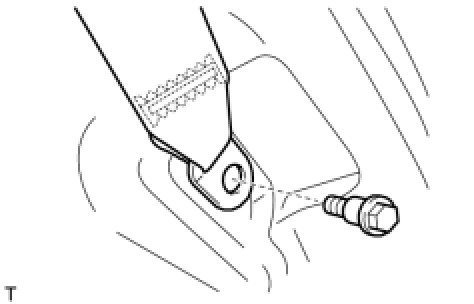

(b) Install the seat belt shoulder anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)

(a) w/o Power Back Door:
(1) Attach the 5 clips to install the rear upper pillar garnish.

(b) w/ Power Back Door:

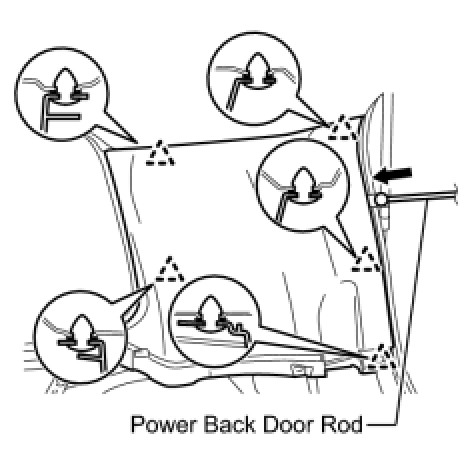

(1) Pass the power back door rod through the rear upper pillar garnish.
(2) Attach the 5 clips to install the rear upper pillar garnish.

(d) Attach the 2 claws to close the seat belt shoulder anchor cover.
61. INSTALL BACK DOOR SERVICE HOLE COVER RH (w/ Power Back Door) Reassembly

62. INSTALL BACK DOOR SIDE GARNISH RH (w/ Power Back Door) Reassembly

63. INSTALL CENTER BACK DOOR GARNISH (w/ Power Back Door) Reassembly

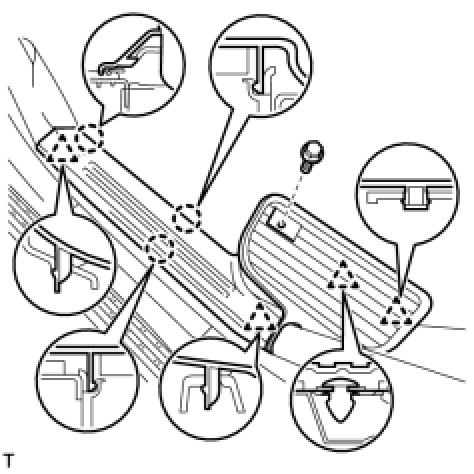

64. INSTALL REAR FRONT QUARTER TRIM GARNISH LH

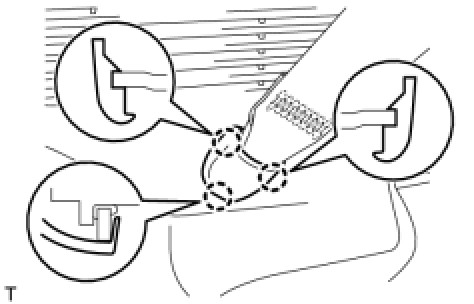

(a) Pass the seat belt anchor through the quarter trim garnish.
(b) Attach the clip and 2 guides to install the quarter trim garnish.
(c) Install the screw.
65. INSTALL REAR FRONT QUARTER TRIM GARNISH RH
HINT:
Use the same procedures described for the LH side.

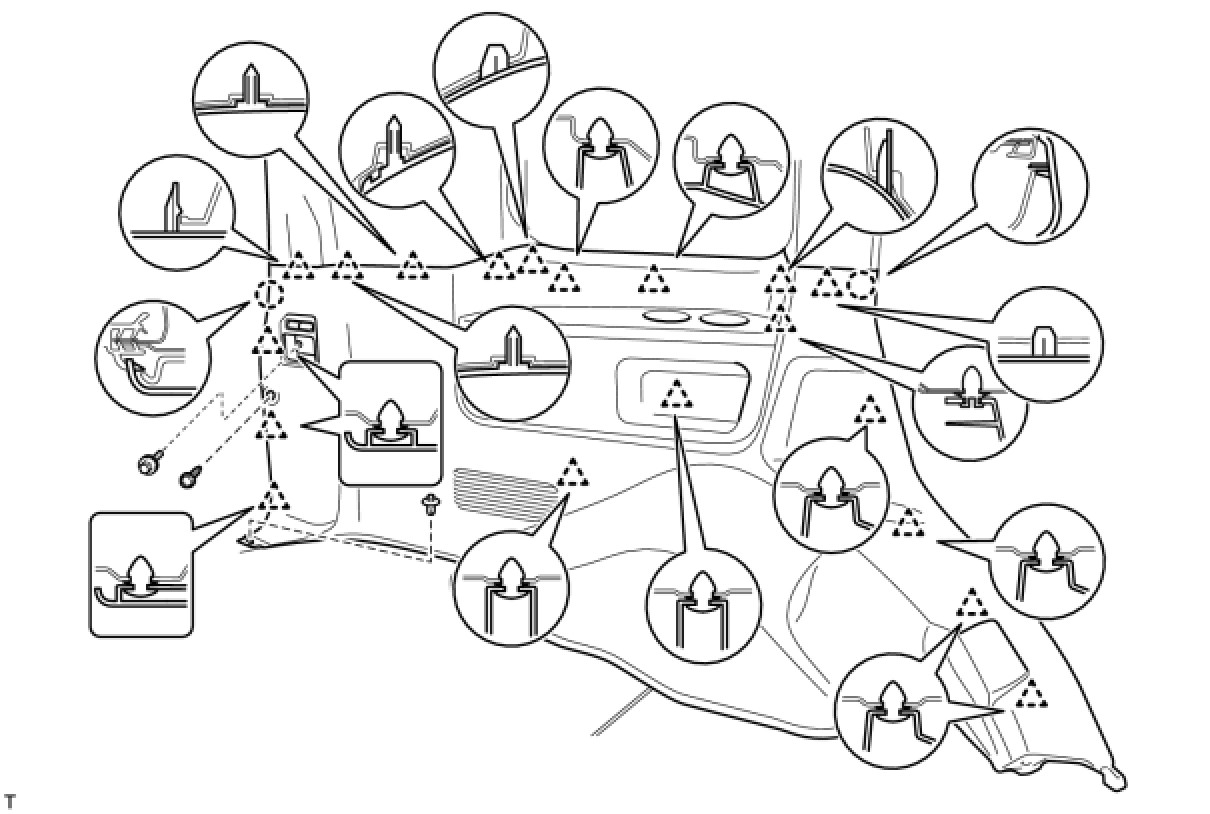

66. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH

HINT:

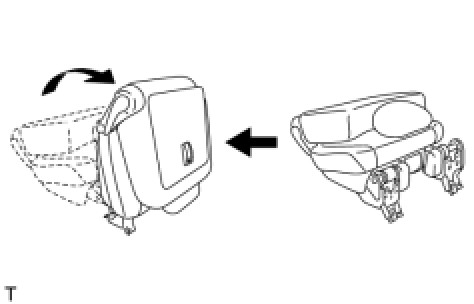

When installing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

(a) for Rear No. 2 Seat with Manual Folding-up Function:
(1) Connect the thermistor connector, power outlet socket connector and rear seat lock control lever cable.

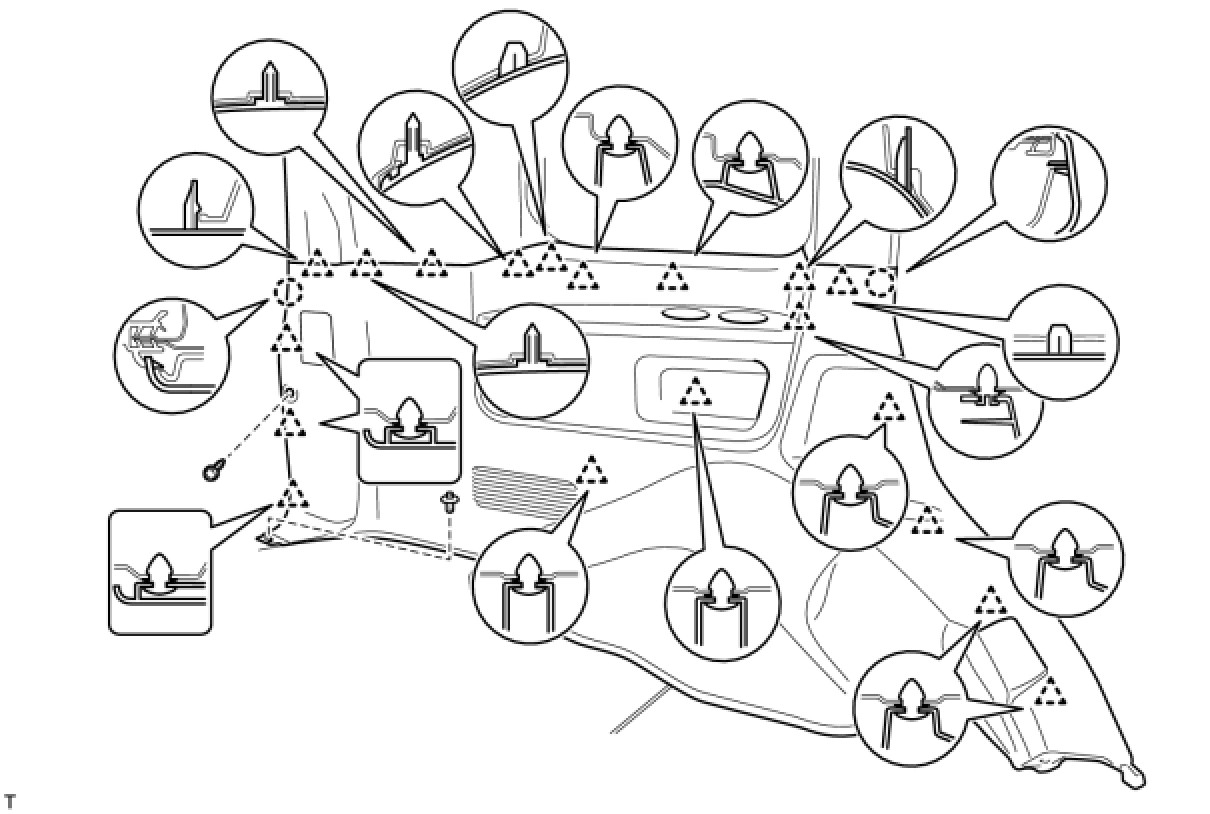

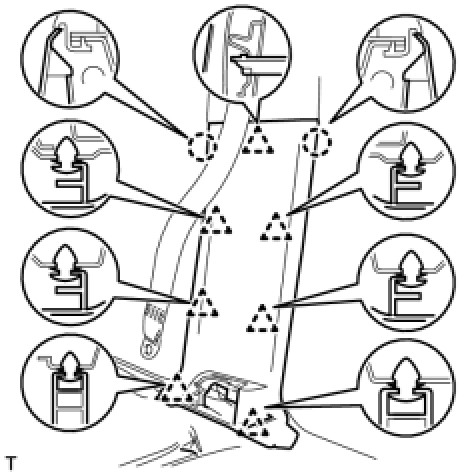

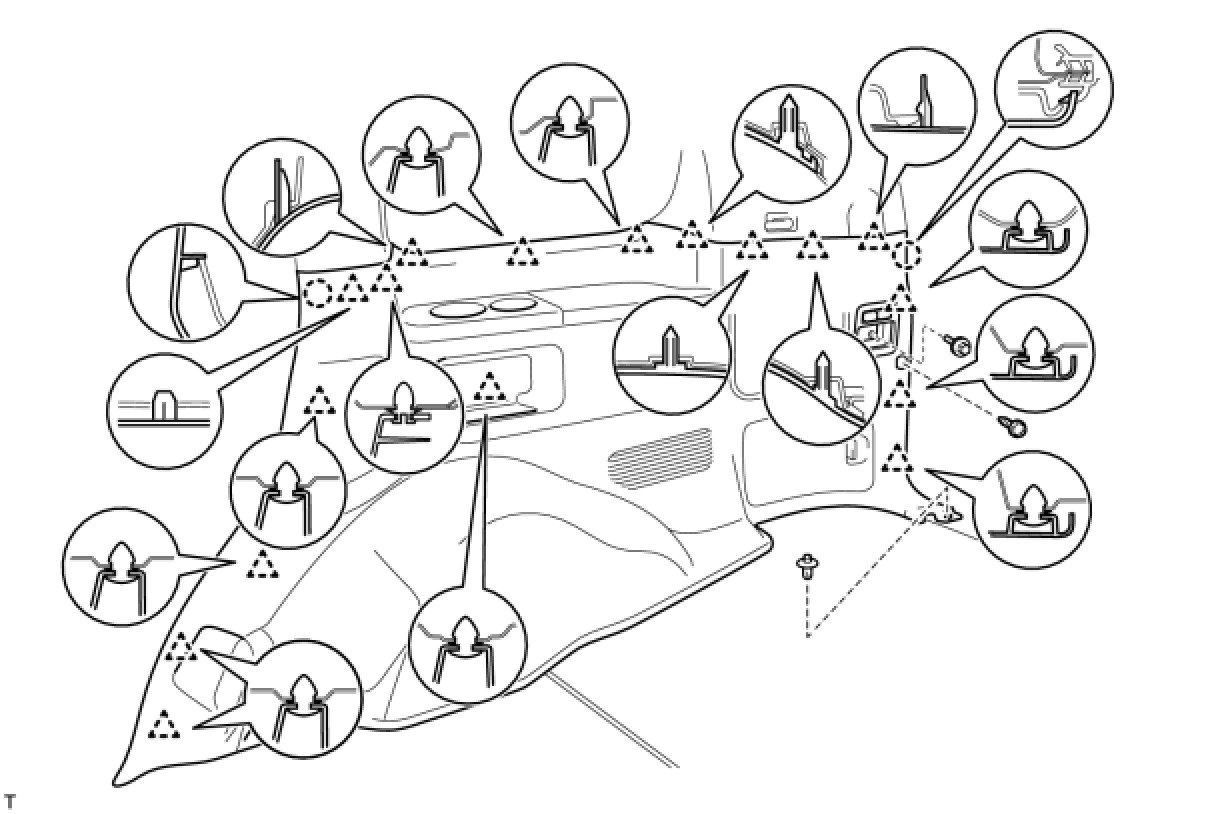

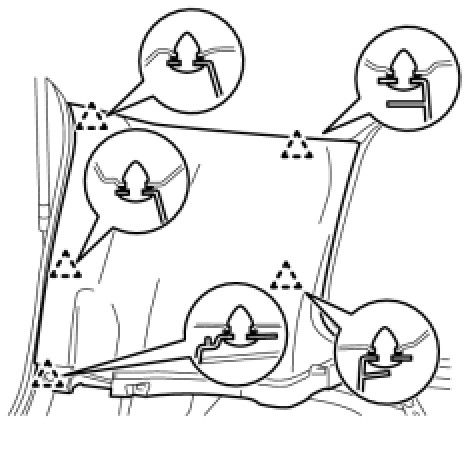

(2) Attach the 19 clips and 2 claws to install the quarter trim panel.
(3) Install the screw, clip and bolt.
for bolt - Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)

(b) for Rear No. 2 Seat with Automatic Folding-up Function:
(1) Connect the thermistor connector and power outlet socket connector.
(2) Attach the 19 clips and 2 claws to install the quarter trim panel.
(3) Install the screw and clip.

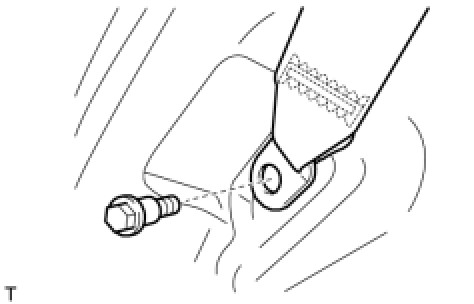

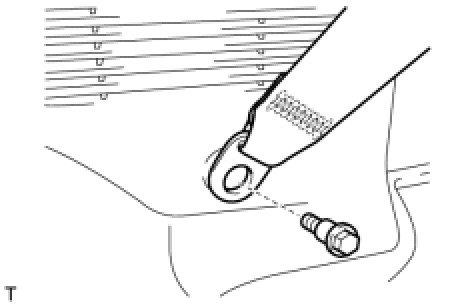

(c) Install the rear No. 2 seat belt anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTICE:

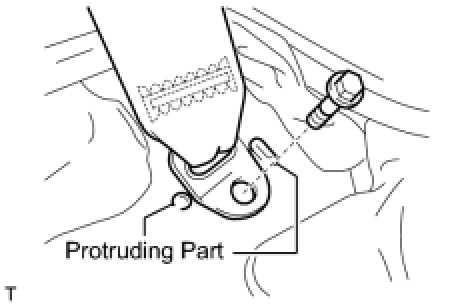

Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.

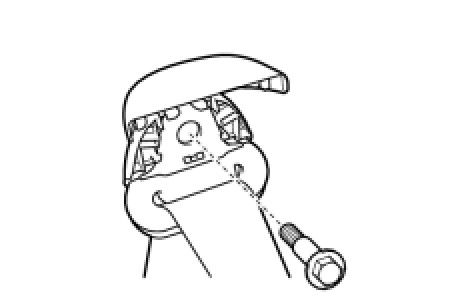

(d) Install the rear No. 1 seat belt anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)

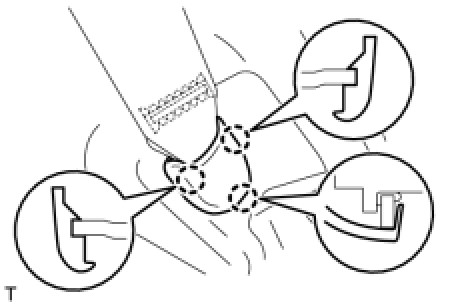

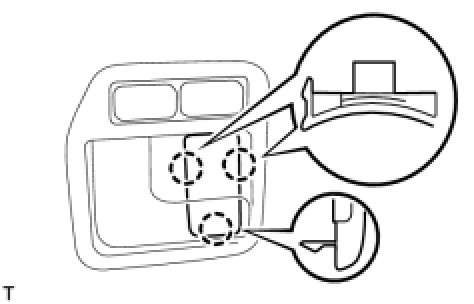

(e) Attach the 3 claws to install the cover.
67. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH

HINT:
When installing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

(a) for Rear No. 2 Seat with Manual Folding-up Function:
(1) Connect the thermistor connector and rear seat lock control lever cable.

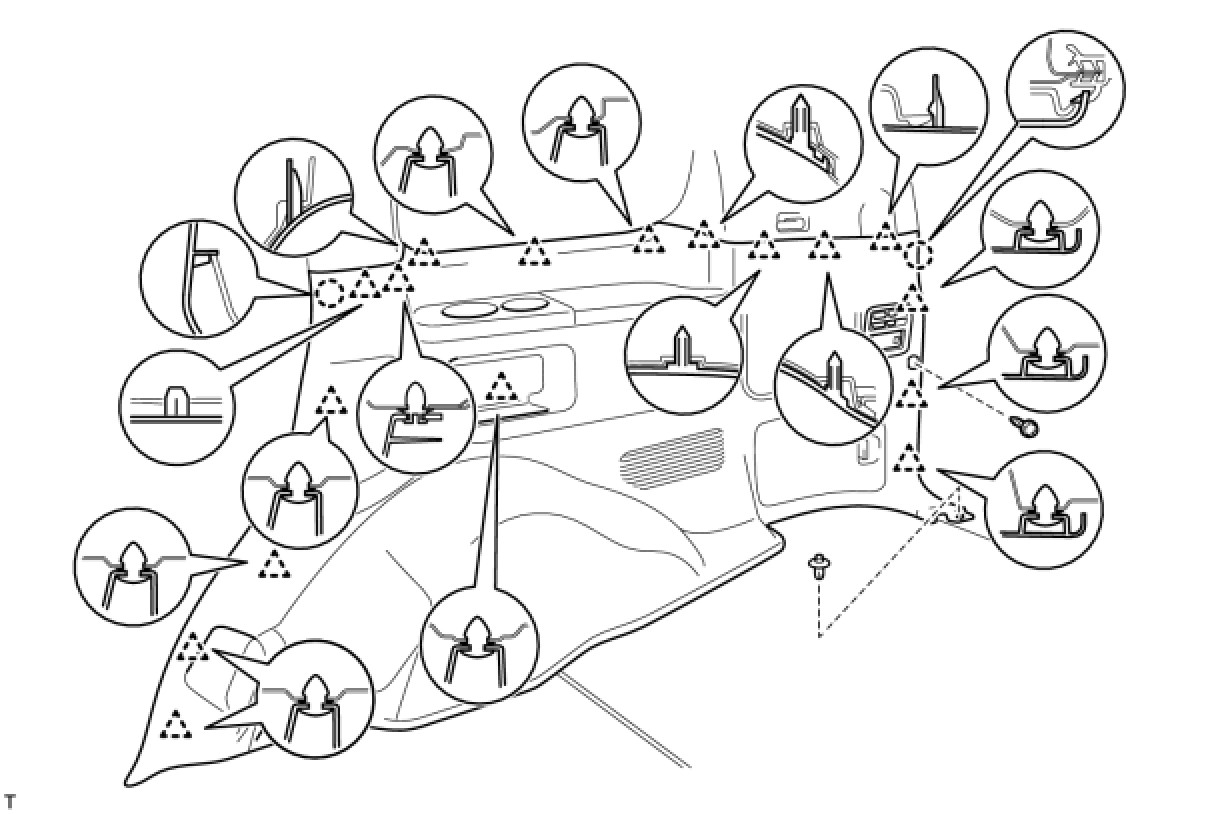

(2) Attach the 17 clips and 2 claws to install the quarter trim panel.
(3) Install the screw, clip and bolt.
for bolt - Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)

(b) for Rear No. 2 Seat with Automatic Folding-up Function:
(1) Connect the thermistor connector.
(2) Attach the 17 clips and 2 claws to install the quarter trim panel.
(3) Install the screw and clip.

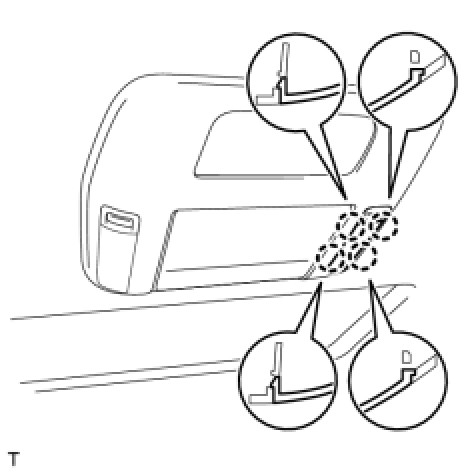

(d) Attach the 3 claws to install the cover.

(e) Install the rear No. 1 seat belt anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)

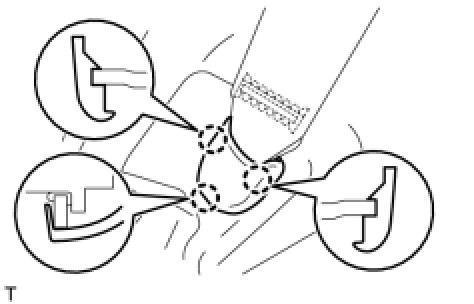

(f) Attach the 3 claws to install the cover.

68. INSTALL REAR SEAT COVER CAP (for Rear No. 2 Seat with Manual Folding-up Function)
HINT:
Use the same procedures to install the rear seat cover cap on the other side.

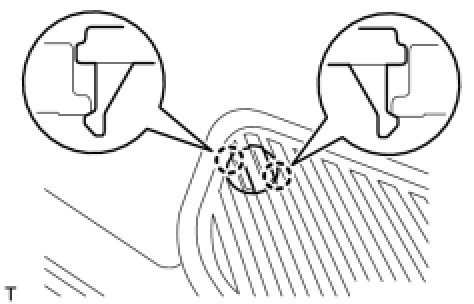

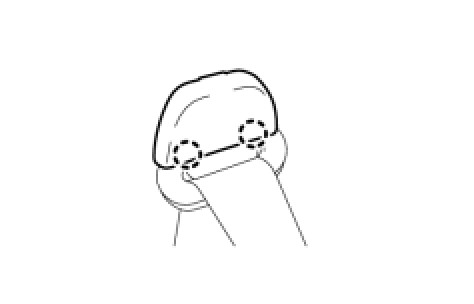

(a) Attach the 3 claws to install the rear seat cover cap.

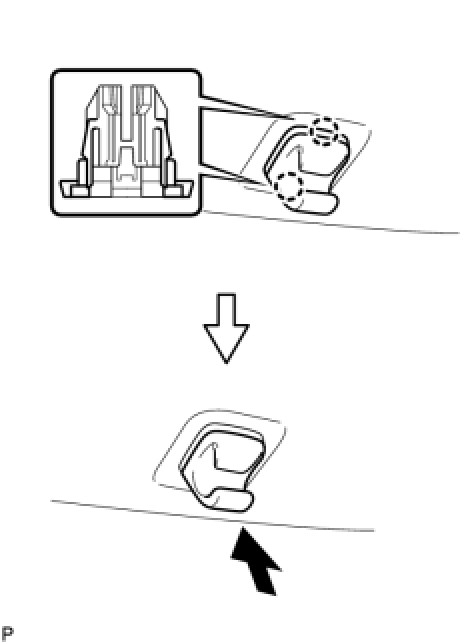

69. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
HINT:
Use the same procedure to install the luggage compartment trim hook on the other side.

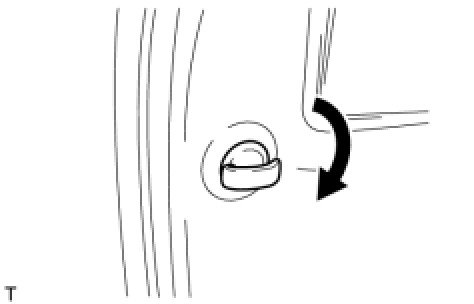

(a) Install the luggage compartment trim hook by turning it clockwise.

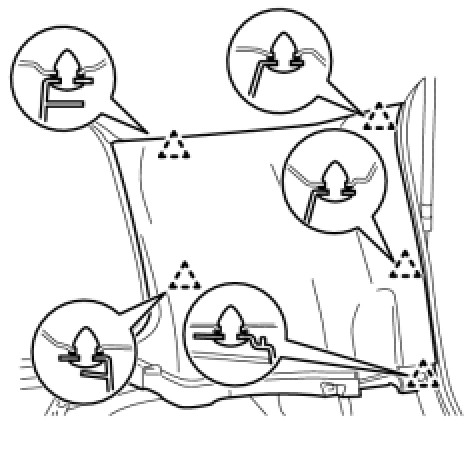

70. INSTALL CENTER PILLAR GARNISH LH
(a) Pass the seat belt anchor through the center pillar garnish.

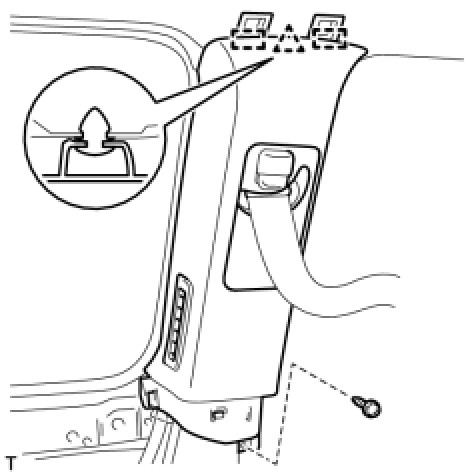

(b) Attach the 2 clips and 2 guides to install the center pillar garnish.
(c) Install the bolt.
71. INSTALL CENTER PILLAR GARNISH RH
HINT:
Use the same procedures described for the LH side.

72. INSTALL REAR ASSIST GRIP ASSEMBLY

HINT:
Use the same procedure to install the rear assist grip on the other side.

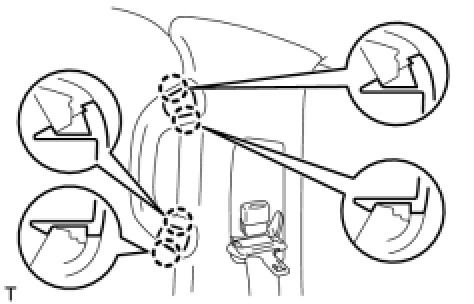

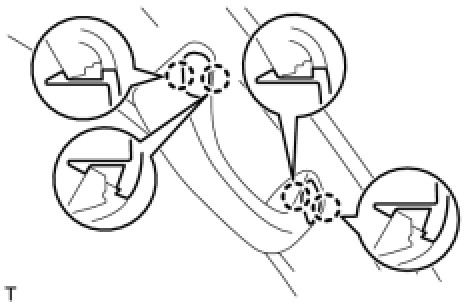

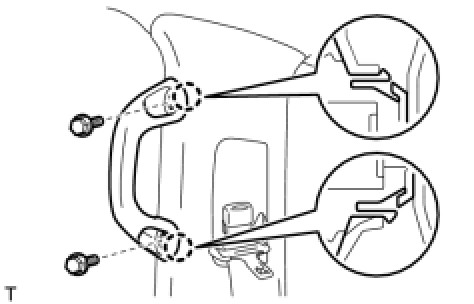

(a) Attach the 2 claws to install the rear assist grip.
(b) Install the 2 bolts.

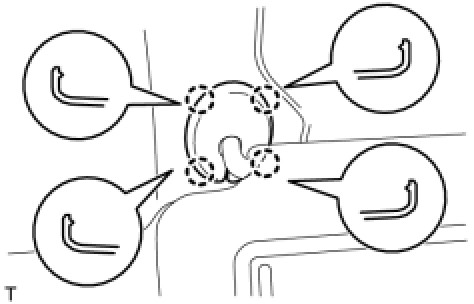

(c) Attach the 4 claws to install the 2 assist grip plugs.
73. INSTALL CENTER LOWER PILLAR GARNISH LH
HINT:
- When installing the center lower pillar garnish, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.

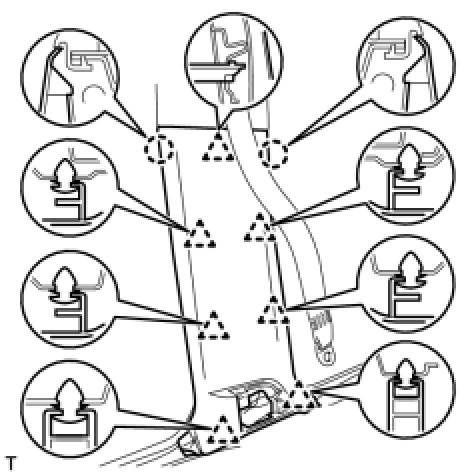

(a) Attach the 2 claws and 7 clips to install the center lower pillar garnish.

(b) Install the seat belt anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
74. INSTALL CENTER LOWER PILLAR GARNISH RH
HINT:
- When installing the center lower pillar garnish, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.

(a) Attach the 2 claws and 7 clips to install the center lower pillar garnish.

(b) Install the seat belt anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
(c) Connect the connector.
75. INSTALL CENTER PILLAR GARNISH COVER LH
HINT:
- When installing the center pillar garnish cover, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
- After moving the front seat, disconnect the cable from the negative (-) battery terminal.

(a) Attach the 2 clips and 2 guides to install the cover.
76. INSTALL CENTER PILLAR GARNISH COVER RH
HINT:
Use the same procedures described for the LH side.

77. INSTALL FRONT PILLAR GARNISH LH
(a) Connect the speaker connector.

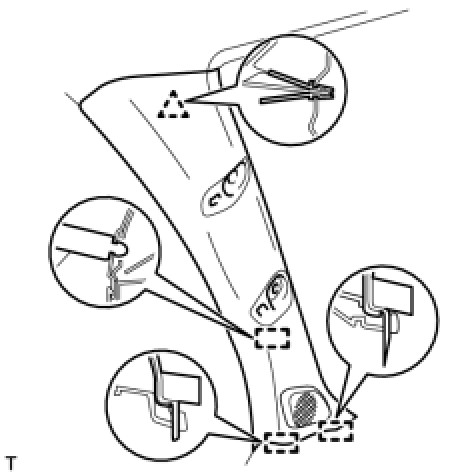

(b) Attach the clip and 3 guides to install the front pillar garnish.
78. INSTALL FRONT PILLAR GARNISH RH
HINT:
Use the same procedures described for the LH side.

79. INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY

HINT:
Use the same procedure to install the front assist grip on the other side.

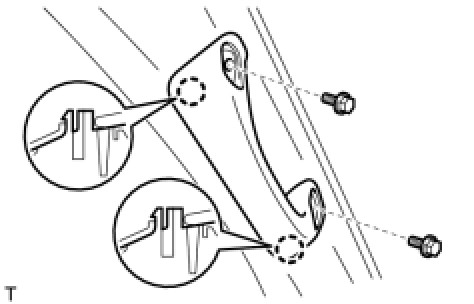

(a) Attach the 2 claws to install the front assist grip.
(b) Install the 2 bolts.

80. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE

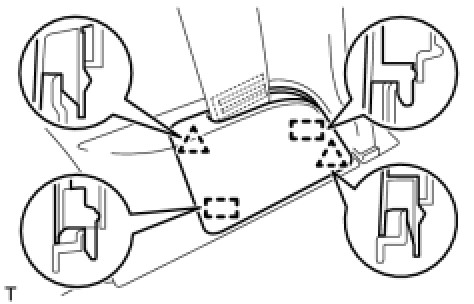

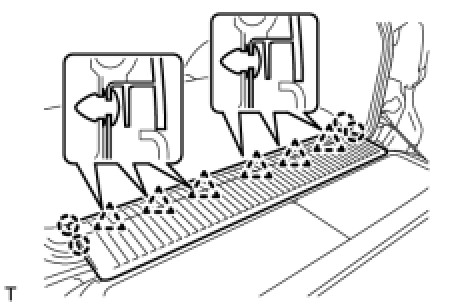

(a) Attach the 6 clips and 4 claws to install the support plate.
81. INSTALL REAR DOOR SCUFF PLATE LH

(a) w/o Illumination Type Front Door Scuff Plate:

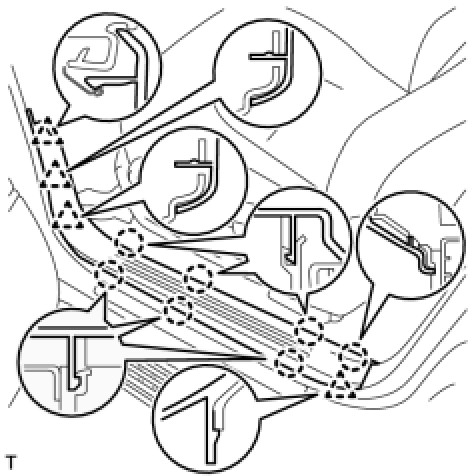

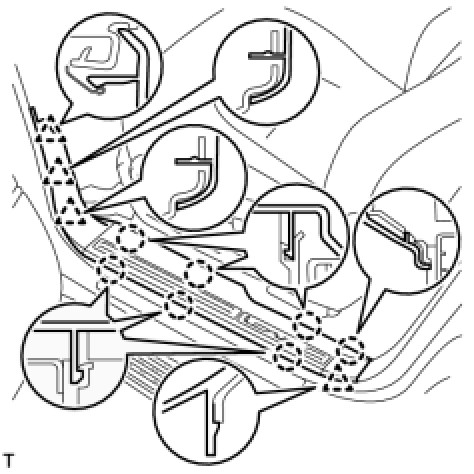

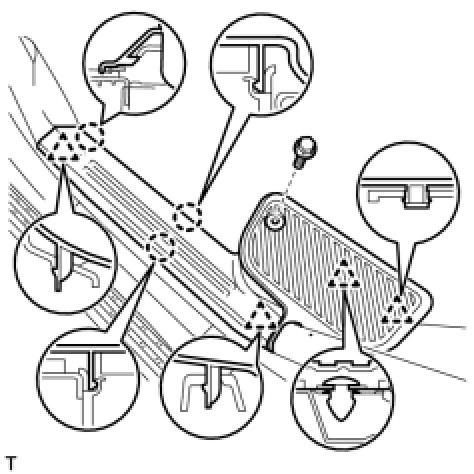

(1) Attach the 3 claws and 4 clips to install the scuff plate.
(2) Install the screw.

(b) w/ Illumination Type Front Door Scuff Plate:
(1) Attach the 3 claws and 4 clips to install the scuff plate.
(2) Install the screw.
82. INSTALL REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.

83. INSTALL REAR STEP COVER
HINT:
Use the same procedure to install the step cover on the other side.

(a) w/o Illumination Type Front Door Scuff Plate:
Attach the 2 claws to install the step cover.

(b) w/ Illumination Type Front Door Scuff Plate:
Attach the 4 claws to install the step cover.
84. INSTALL FRONT DOOR SCUFF PLATE LH

(a) w/o Illumination:
(1) Attach the 7 claws and 4 clips to install the scuff plate.

(b) w/ Illumination:
(1) Connect the connector.
(2) Attach the 7 claws and 4 clips to install the scuff plate.
85. INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.

86. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
(a) w/ Manual Folding-up Function:

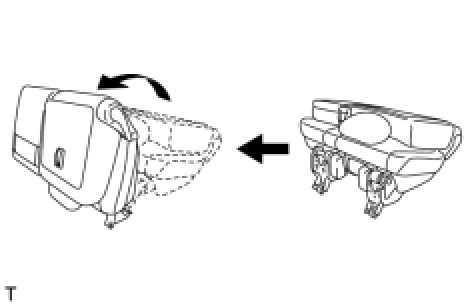

Install the rear No. 2 seat assembly LH Installation.
(b) w/ Automatic Folding-up Function:
Install the rear No. 2 seat assembly LH Installation.
87. INSTALL REAR NO. 2 SEAT ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.

88. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
