Disassembly

INTERIOR PANELS / TRIM: ROOF HEADLINING: DISASSEMBLY





1. REMOVE NO. 2 AIR OUTLET GRILLE ASSEMBLY
HINT:
Use the same procedures to remove the air outlet grille on the other side.

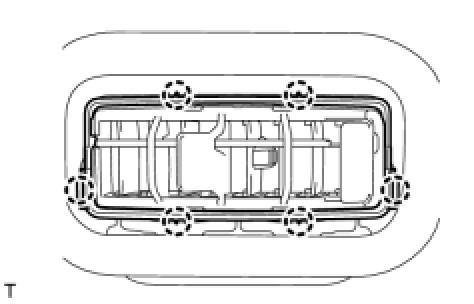

(a) Detach 6 claws and remove the air outlet grille.
2. REMOVE NO. 1 AIR OUTLET GRILLE ASSEMBLY
HINT:
Use the same procedures described for the No. 2 air outlet grille.

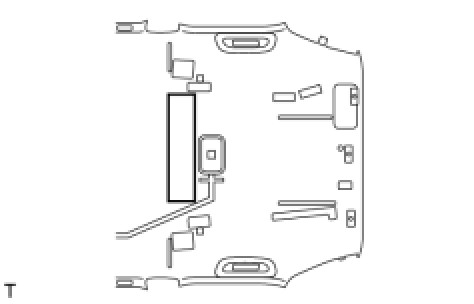

3. REMOVE NO. 1 ROOF SILENCER PAD
(a) Remove the roof silencer pad.

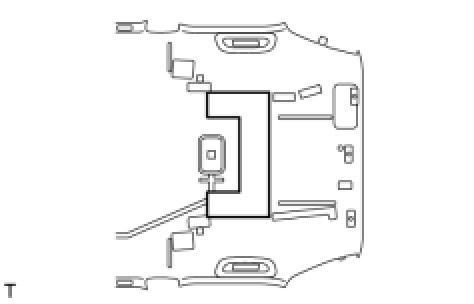

4. REMOVE NO. 4 ROOF SILENCER PAD
(a) Remove the roof silencer pad.
5. REMOVE NO. 1 ROOF WIRE

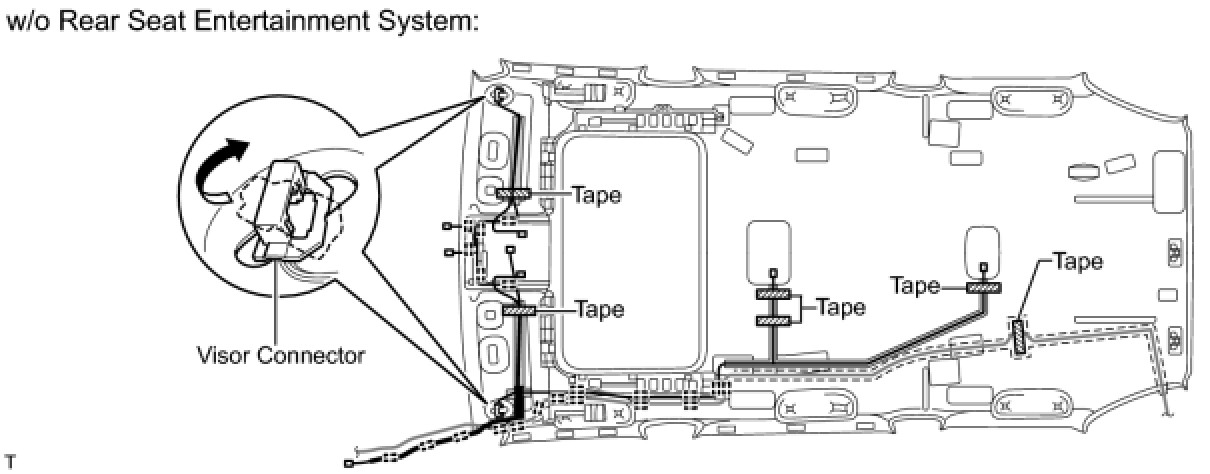

(a) w/o Rear Seat Entertainment System:
Remove the No. 1 roof wire.
(1) Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.
(2) Remove the 6 pieces of tape from the roof headlining.
(3) Detach each clamp, and remove the roof wire and washer hose.
(4) Remove the double-sided tape remaining on the headlining.

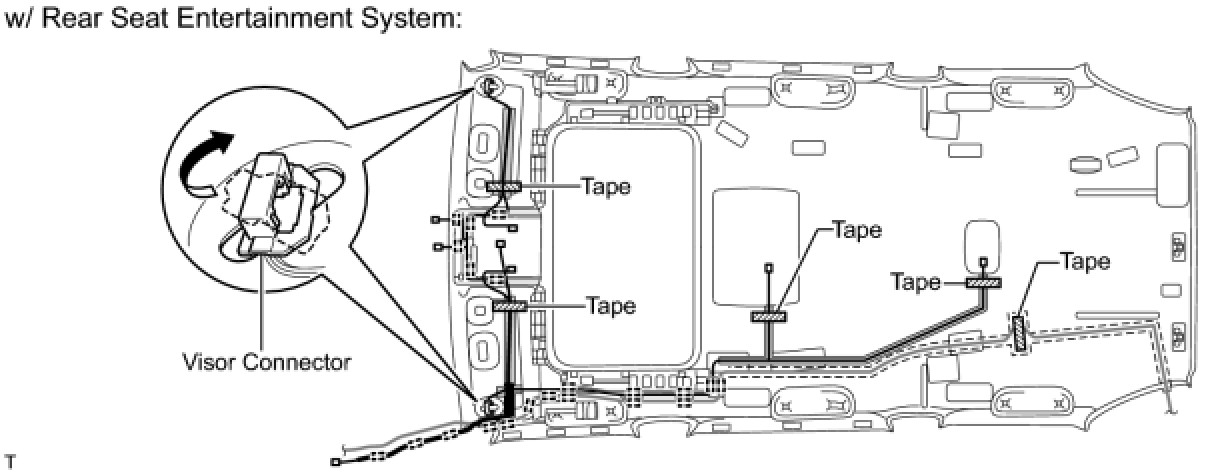

(b) w/ Rear Seat Entertainment System:
Remove the No. 1 roof wire.
(1) Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining.
(2) Remove the 5 pieces of tape from the roof headlining.
(3) Detach each clamp, and remove the roof wire and washer hose.
(4) Remove the double-sided tape remaining on the headlining.





6. REMOVE ANTENNA CORD SUB-ASSEMBLY Removal
