Installation

INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/o Cool Box): INSTALLATION

HINT:
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

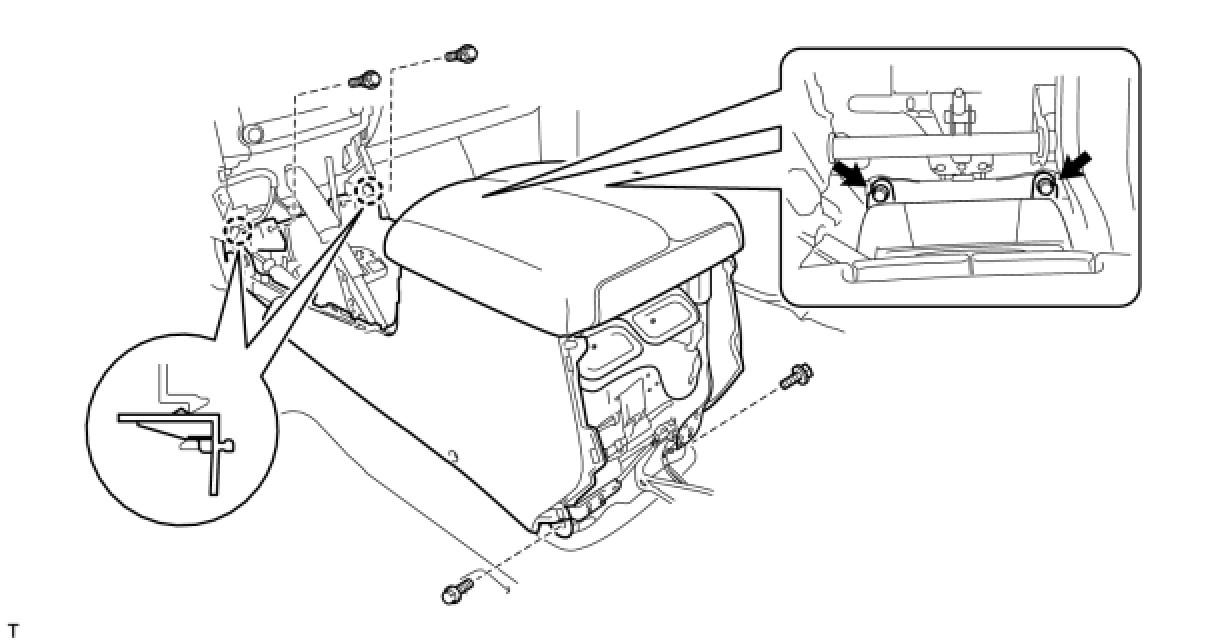

1. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY





(a) Attach the 2 claws.
(b) Install the console box with the 4 bolts and 2 screws.
2. INSTALL TELEPHONE ECU ASSEMBLY WITH BRACKET (w/ LEXUS Link System) Installation

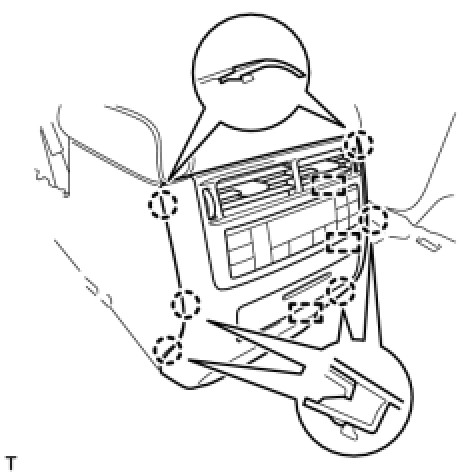

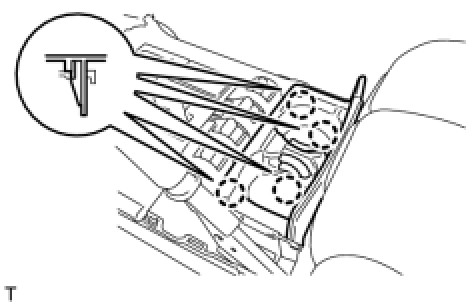

3. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY






(a) Connect the connectors and 3 clamps.
(b) Attach the 6 claws to install the end panel.

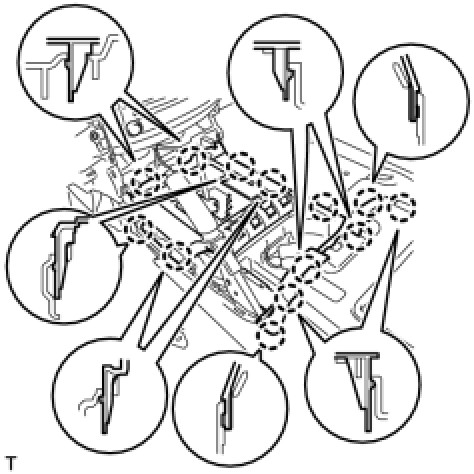

4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY






(a) Connect the connectors.
(b) Attach the 13 claws to install the console panel.
5. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY






(a) Attach the 4 claws to install the box.
6. INSTALL PARKING BRAKE HOLE COVER






(a) Attach the 6 claws to install the cover.

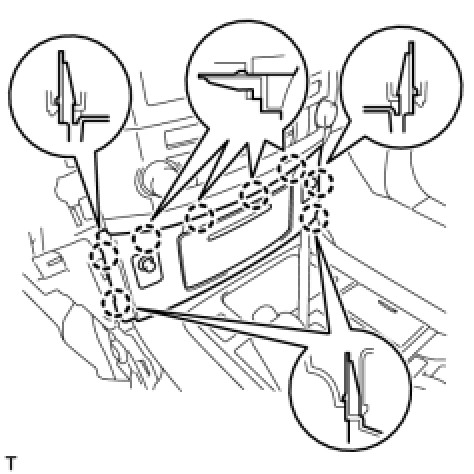

7. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY






(a) Connect the connectors.
(b) Attach the 8 claws to install the panel.

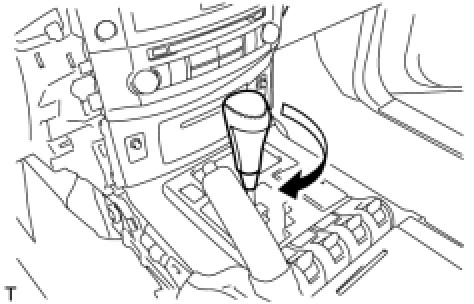

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY






(a) Install the shift lever knob and twist it in the direction indicated by the arrow.

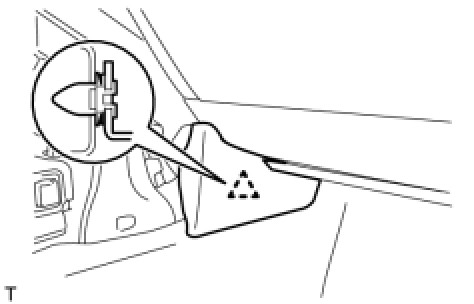

9. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH






(a) Attach the clip to install the cover.

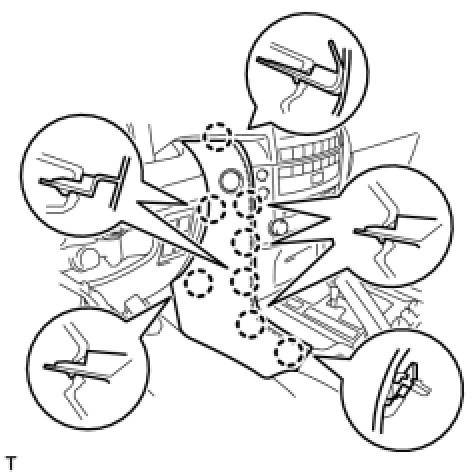

10. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH






(a) Attach the 9 claws to install the panel pad.

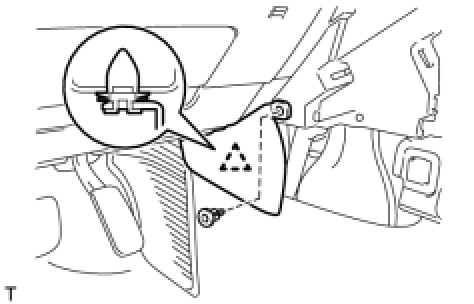

11. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH






(a) Attach the clip to install the cover.
(b) Install the clip.
12. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH






(a) Connect the connector.
(b) Attach the 8 claws to install the panel pad.
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ LEXUS Link System)
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

14. INSTALL ENGINE ROOM SIDE COVER LH (w/ LEXUS Link System) Installation
