Power Back Door Control Switch (for Back Door)

DOOR / HATCH: POWER BACK DOOR CONTROL SWITCH (for Back Door): INSPECTION

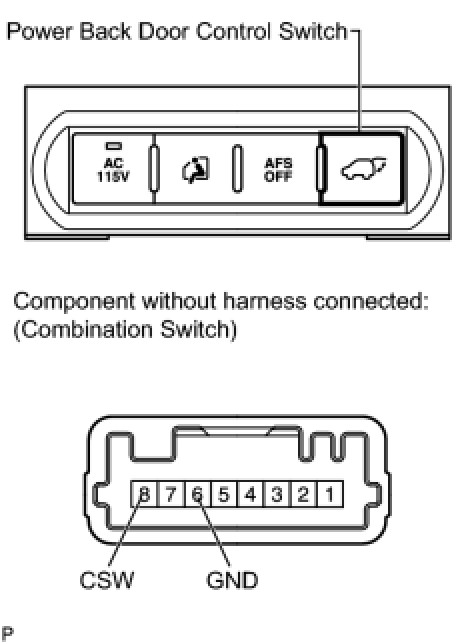

1. INSPECT COMBINATION SWITCH ASSEMBLY (POWER BACK DOOR CONTROL SWITCH)

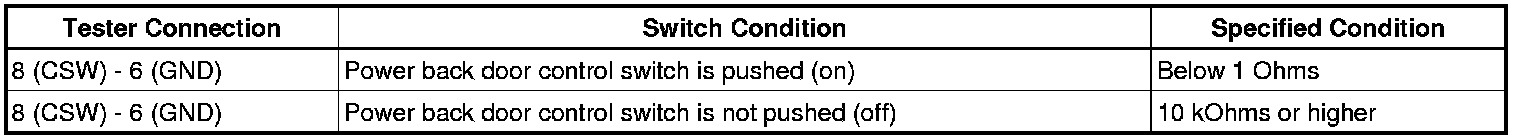

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the combination switch assembly.
