Power Back Door Closer Switch

DOOR / HATCH: POWER BACK DOOR CLOSER SWITCH: INSPECTION





1. INSPECT BACK DOOR CONTROL SWITCH
(a) Measure the resistance according to the value(s) in the table below.

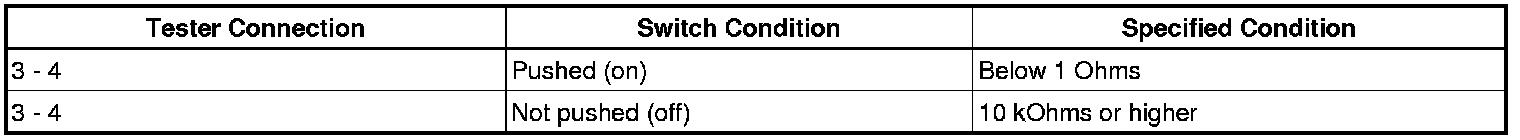

Standard Resistance:





If the result is not as specified, replace the back door control switch.
