Cellular Phone cannot Send/Receive

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: Cellular Phone cannot Send/Receive

Cellular Phone cannot Send/Receive

INSPECTION PROCEDURE
HINT:
If the vehicle has a navigation system, "multi-display" refers to the "display and navigation module display".

PROCEDURE

1. CHECK "BLUETOOTH" SETTING
(a) Check if the "Bluetooth" settings are correct.
OK:
"Bluetooth" settings are correct.
NG -- SET SETTINGS CORRECTLY
OK -- Continue to next step.
2. CHECK CELLULAR PHONE
(a) Check if the cellular phone is "Bluetooth" compatible.
HINT:
Some versions of "Bluetooth" compatible cellular phones may not function.

OK:
Phone is "Bluetooth" compatible.
NG -- END (ONLY A "BLUETOOTH" COMPATIBLE CELLULAR PHONE CAN BE USED)
OK -- Continue to next step.
3. CHECK SETTING
(a) Check if the cellular phone functions.
HINT:
The cellular phone is unable to call under any of the following conditions.
- The cellular phone is locked.
- The directory is being transferred.
- The line is crossed.
- Transmission is regulated.
- The engine is off.
- The cellular phone is not connected to "Bluetooth" ("Bluetooth" mark is displayed while connected).
OK:
Above conditions do not exist.

NG -- SET CORRECTLY
OK -- Continue to next step.
4. CHECK CELLULAR PHONE
(a) Check if the cellular phone can make calls.
HINT:
When the battery is low, calls cannot be made or received.

OK:
Cellular phone can make calls.
NG -- REPLACE CELLULAR PHONE
OK -- Continue to next step.
5. CHECK RECEPTION
(a) Set the cellular phone so that it can receive calls.
(b) Place the cellular phone close to the multi-display.
(c) Check if the cellular phone has reception according to the multi-display.
OK:
Cellular phone has reception.

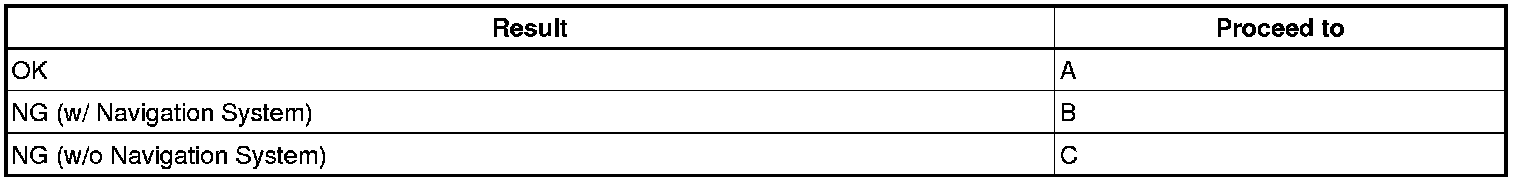

Result





C -- REPLACE MULTI-DISPLAY ASSEMBLY
B -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
A -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
