Sound Signal Circuit Between Video Terminal And Multi-Display Controller

AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: Sound Signal Circuit between Video Terminal and Multi-display Controller

Sound Signal Circuit between Video Terminal and Multi-display Controller

DESCRIPTION

This is the sound signal circuit from the video (video adapter) terminal to the multi-display selector.
HINT:
"Multi-display Controller" refers to the multi-display selector.

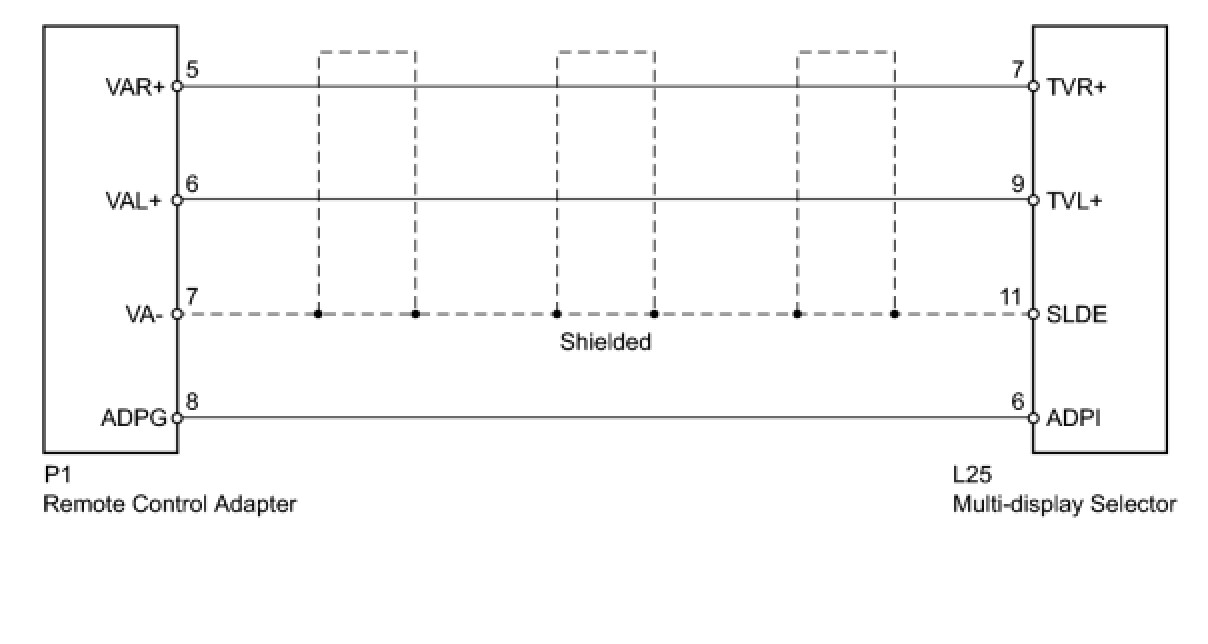

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK MULTI-DISPLAY SELECTOR

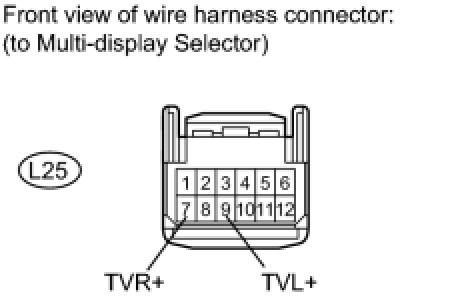

(a) Disconnect the L25 selector connector.

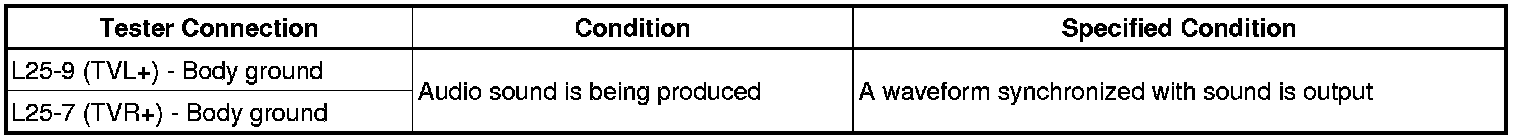

(b) Using an oscilloscope, check the signal waveform between each terminal and the body ground according to the conditions shown in the chart below.
OK:






NG -- CHECK HARNESS AND CONNECTOR (REMOTE CONTROL ADAPTER - MULTI-DISPLAY SELECTOR)
OK -- REPLACE MULTI-DISPLAY SELECTOR
2. CHECK HARNESS AND CONNECTOR (REMOTE CONTROL ADAPTER - MULTI-DISPLAY SELECTOR)

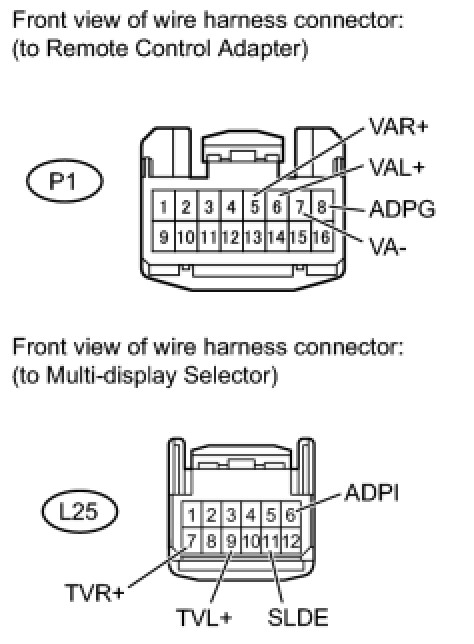

(a) Disconnect the P1 adapter connector.
(b) Disconnect the L25 selector connector.

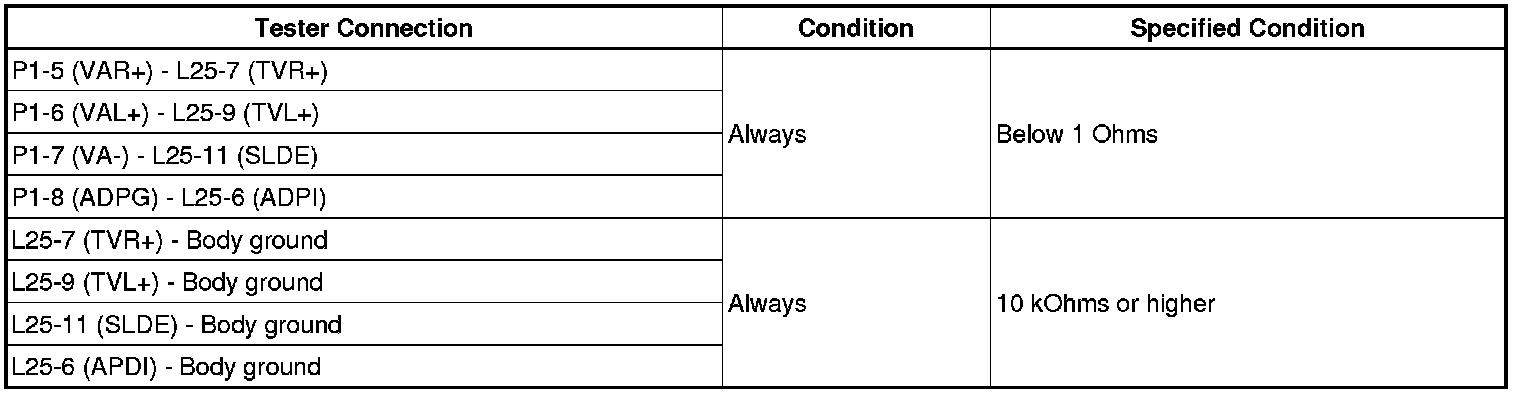

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE REMOTE CONTROL ADAPTER ASSEMBLY
