Mute Signal Circuit Between Radio Receiver And Multi-Display Controller

AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: Mute Signal Circuit between Radio Receiver and Multi-display Controller

Mute Signal Circuit between Radio Receiver and Multi-display Controller

DESCRIPTION

The multi-display selector controls the volume according to the mute signal from the radio receiver.
The mute signal is sent to reduce noise and a popping sound generated when switching the mode, etc.
HINT:
"Multi-display Controller" refers to the multi-display selector.

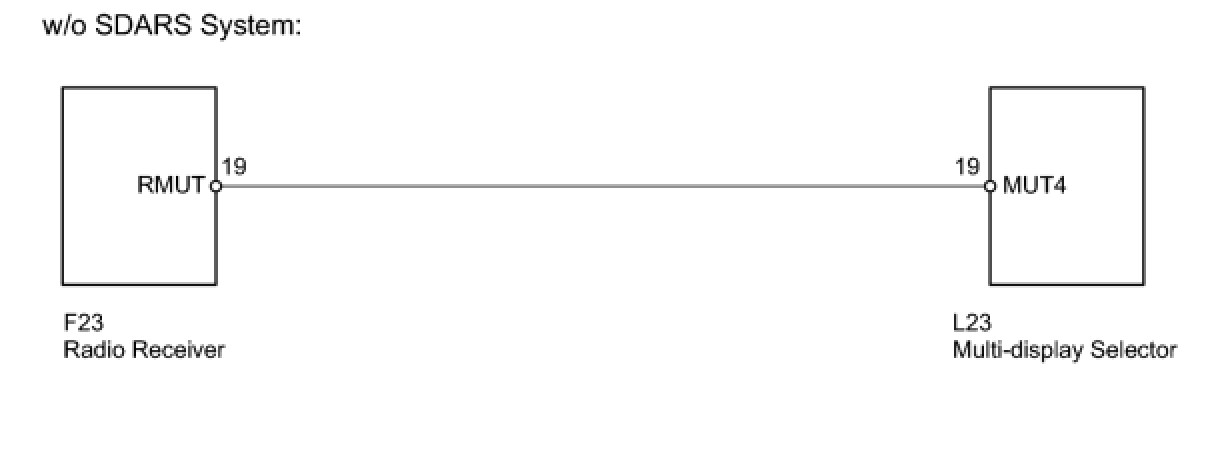

WIRING DIAGRAM









INSPECTION PROCEDURE

PROCEDURE

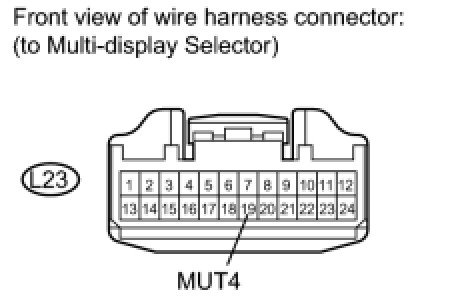

1. CHECK MULTI-DISPLAY SELECTOR





(a) Disconnect the L23 selector connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- CHECK VEHICLE EQUIPMENT
OK -- REPLACE MULTI-DISPLAY SELECTOR
2. CHECK VEHICLE EQUIPMENT
(a) Check if the SDARS system is equipped on the vehicle.

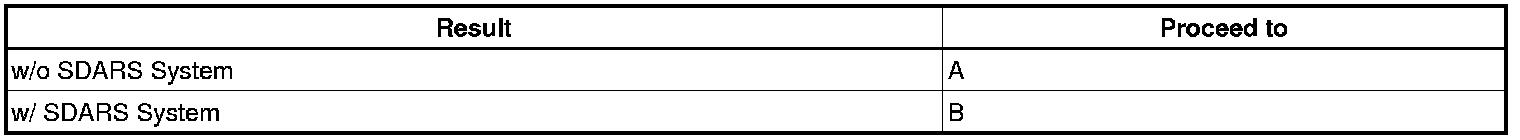

Result





B -- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT TUNER)
A -- Continue to next step.

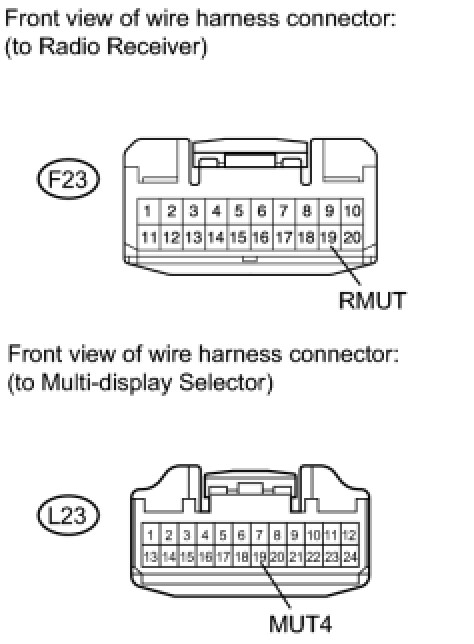

3. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - MULTI-DISPLAY SELECTOR)





(a) Disconnect the F23 receiver connector.
(b) Disconnect the L23 selector connector.

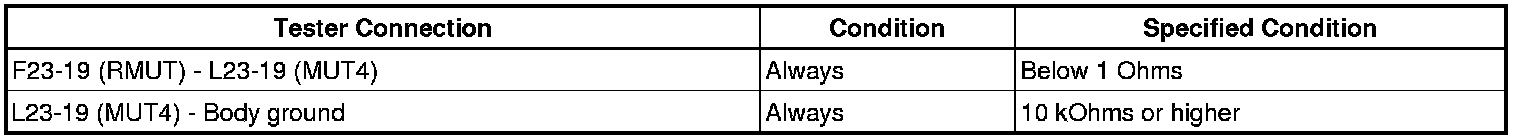

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE RADIO RECEIVER ASSEMBLY

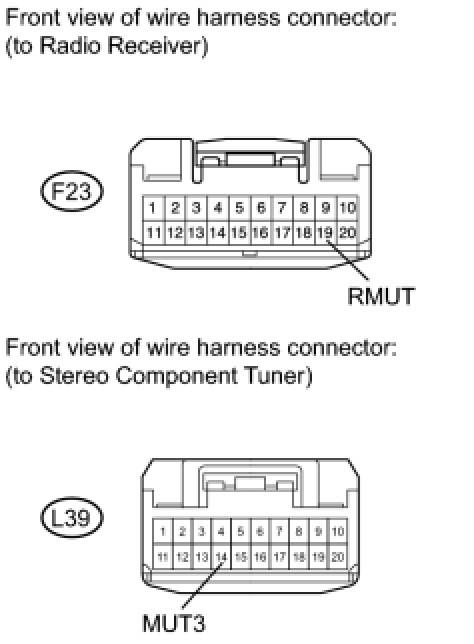

4. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT TUNER)





(a) Disconnect the F23 receiver connector.
(b) Disconnect the L39 tuner connector.

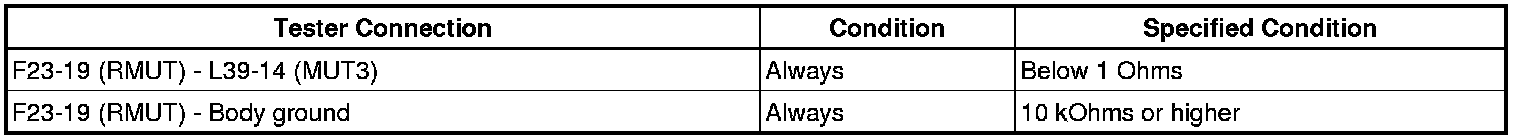

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

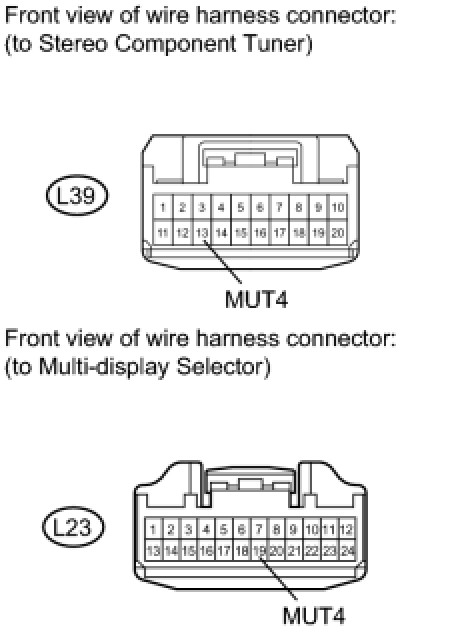

5. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT TUNER - MULTI-DISPLAY SELECTOR)





(a) Disconnect the L39 tuner connector.
(b) Disconnect the L23 selector connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
6. REPLACE STEREO COMPONENT TUNER WITH NORMAL ONE AND CHECK
(a) Replace the stereo component tuner with a normal one and check if the same problem occurs again Removal.
OK:
Same problem does not occur.
NG -- REPLACE RADIO RECEIVER ASSEMBLY
OK -- END (STEREO COMPONENT TUNER IS DEFECTIVE)
