Installation

THEFT DETERRENT / KEYLESS ENTRY: ENGINE HOOD COURTESY SWITCH: INSTALLATION

1. INSTALL HOOD LOCK ASSEMBLY

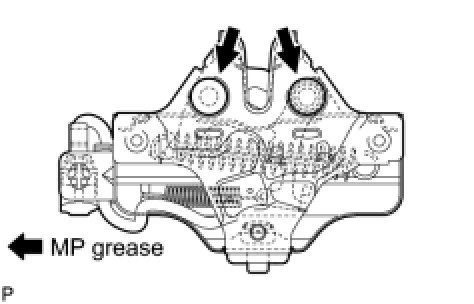

(a) Apply MP grease to the sliding areas of the lock.






(b) Connect the hood lock control cable.






(c) Connect the connector.
(d) Install the hood lock with the 2 bolts and nut.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(e) Install a new hood lock nut cap.






2. INSTALL HOOD LOCK CONTROL CABLE COVER
(a) Attach the claw to install the cover.
(b) Install the 3 screws.
3. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) Installation

4. INSTALL RADIATOR GRILLE ASSEMBLY Installation

5. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

6. INSTALL ENGINE ROOM SIDE COVER RH Installation

7. INSTALL ENGINE ROOM SIDE COVER LH Installation

8. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
(a) Adjust millimeter wave radar sensor assembly Adjustments.
