Dynamic Radar Cruise Control System

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: P0575: Cruise Control Input Circuit

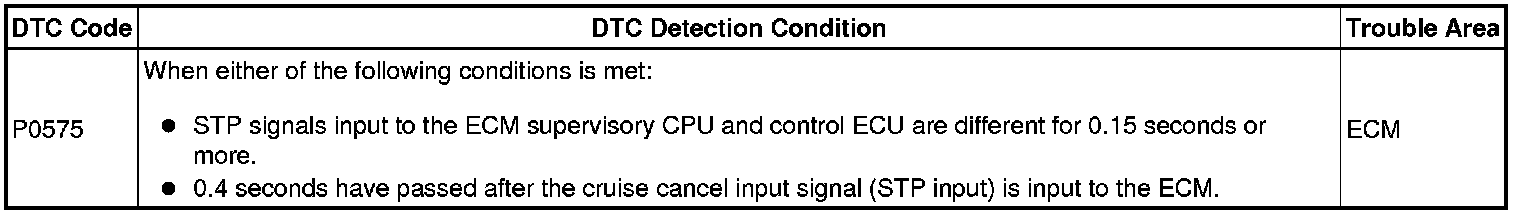

DTC P0575 - Cruise Control Input Circuit

DESCRIPTION

This DTC indicates internal abnormalities of the ECM.





HINT:
If DTC P0575 is stored while the dynamic radar cruise control is in operation, the master cylinder solenoid (skid control ECU) clears the stored vehicle speed in the ECM and cancels the dynamic radar cruise control operation. At the same time, the CRUISE main indicator light blinks to inform the driver of the malfunction. When this trouble code is stored, fail-safe remains on until the engine switch is turned off.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC (DYNAMIC RADAR CRUISE CONTROL SYSTEM)
(a) Using the Techstream, enter the following menus: Powertrain / Radar Cruise / Trouble Code.
(b) Clear the DTCs Dynamic Radar Cruise Control System.
(c) Recheck for DTCs Dynamic Radar Cruise Control System.
OK:
DTC P0575 is not output.
NG -- REPLACE ECM
OK -- USE SIMULATION METHOD TO CHECK
