Engine Immobilizer System

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILIZER SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

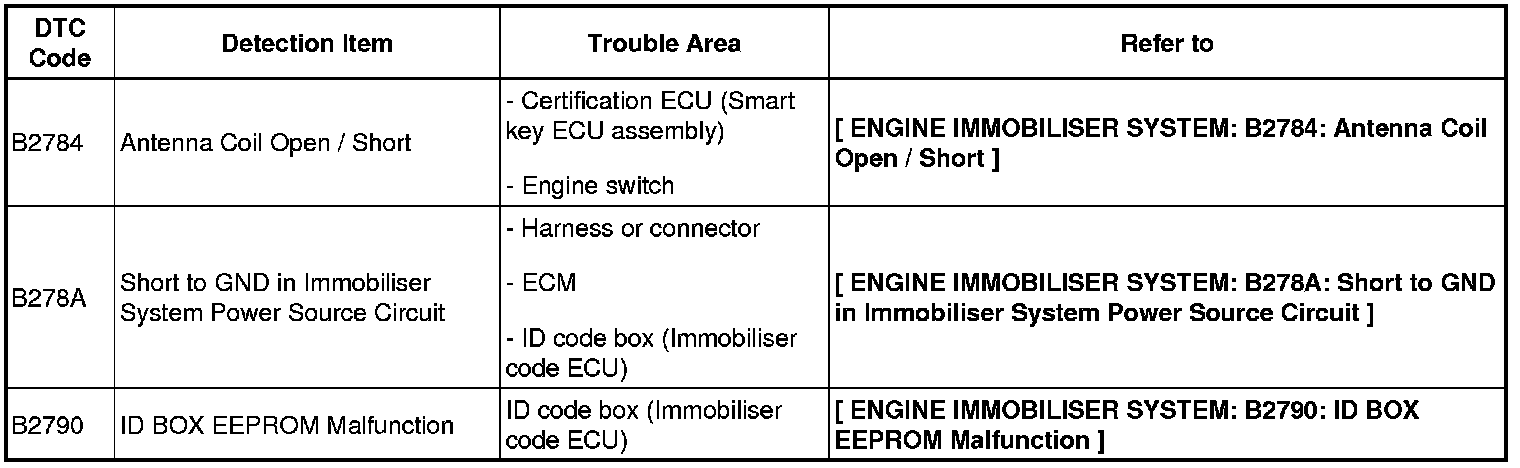

1. CERTIFICATION ECU DTC CHART
HINT:
If a trouble code is output during the DTC check, check the circuit listed for that code in the table below. Then proceed to the "See page" below.

Certification ECU

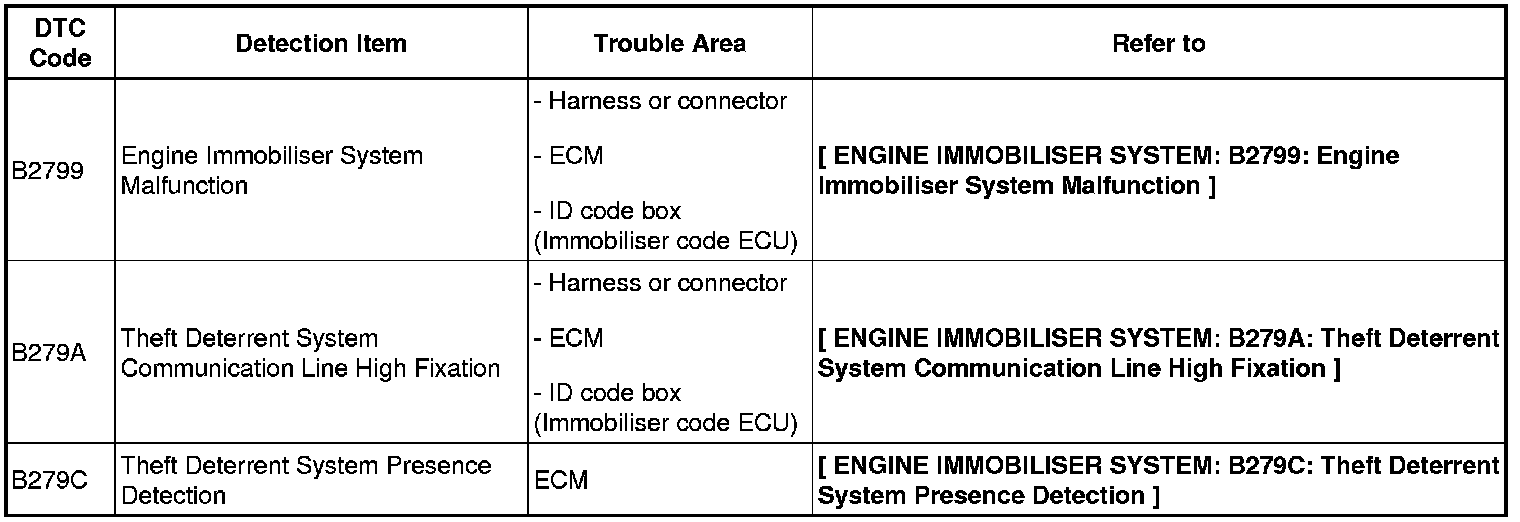

2. ECM DTC CHART
HINT:
The DTCs for the engine immobilizer system are specified above. If other codes are output, check the DTC chart for the ECM.

ECM
