Audio and Visual System

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT:
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

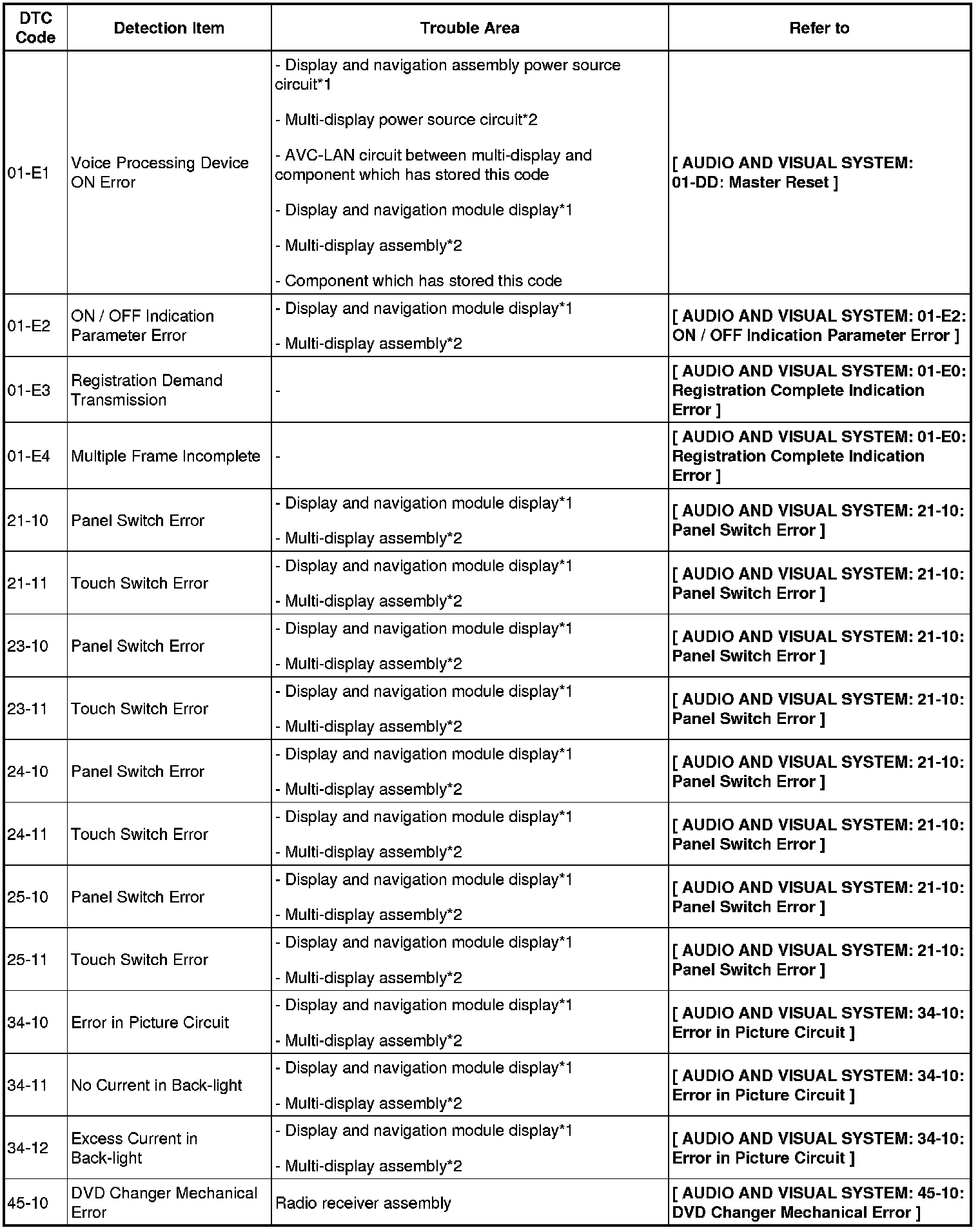

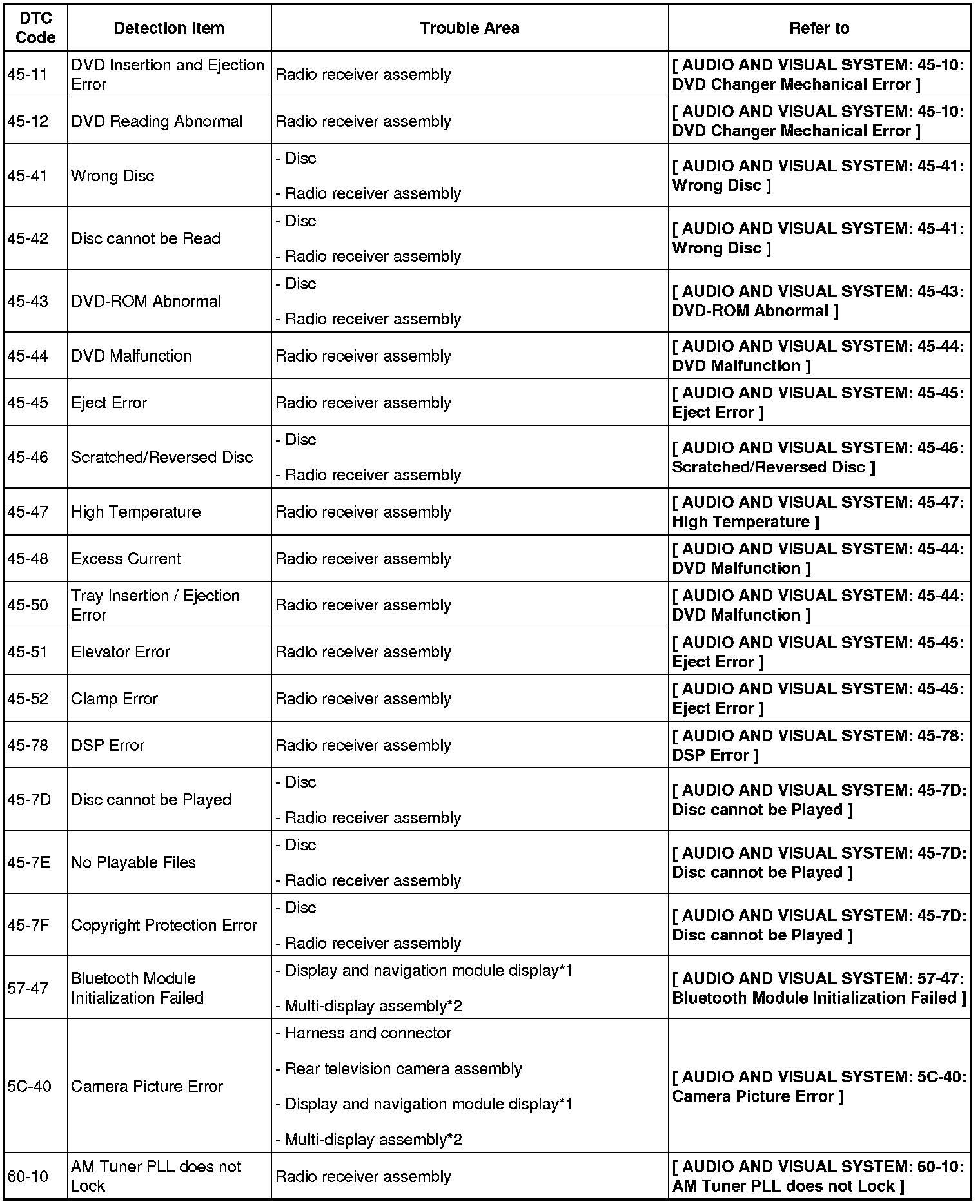

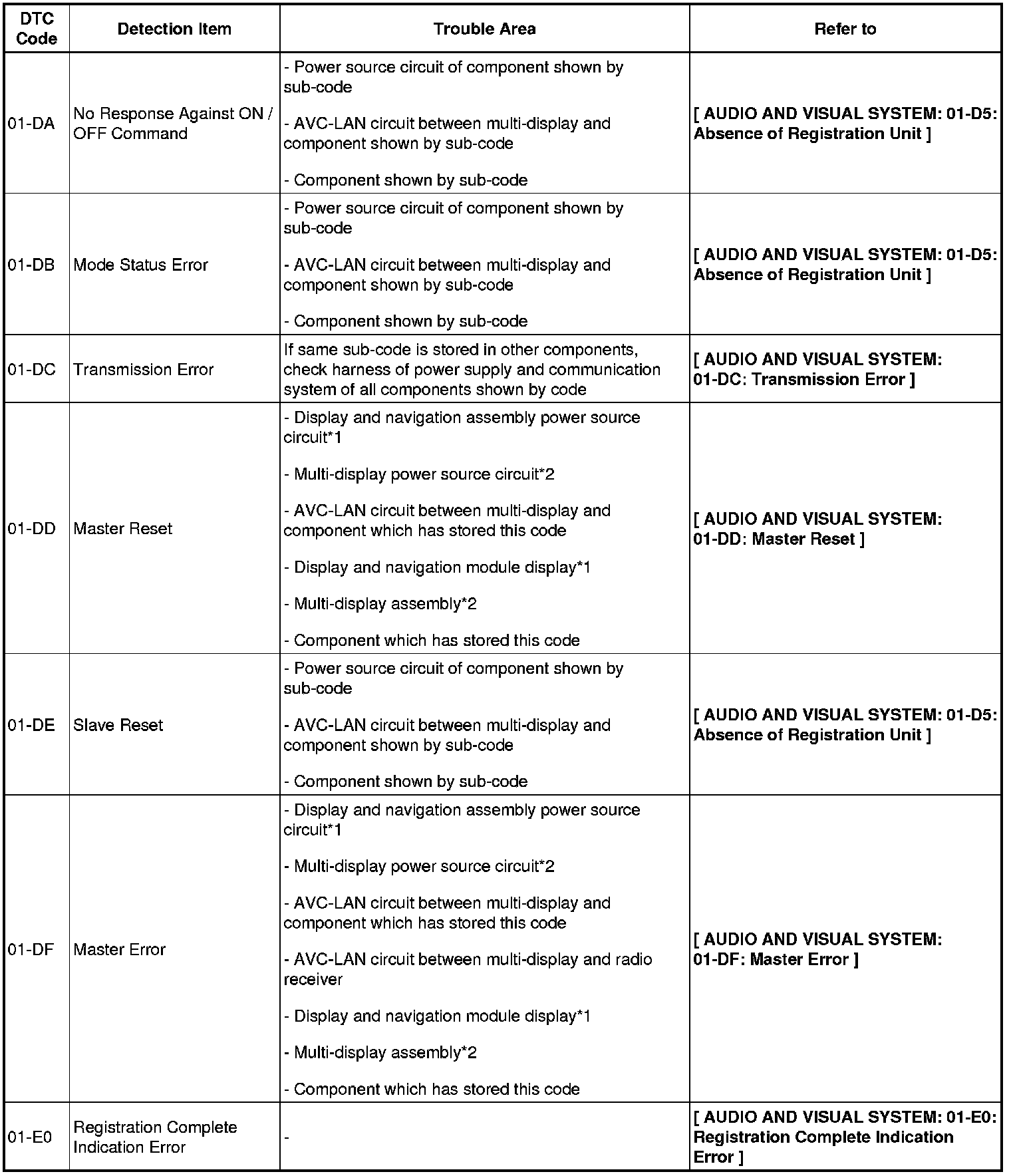

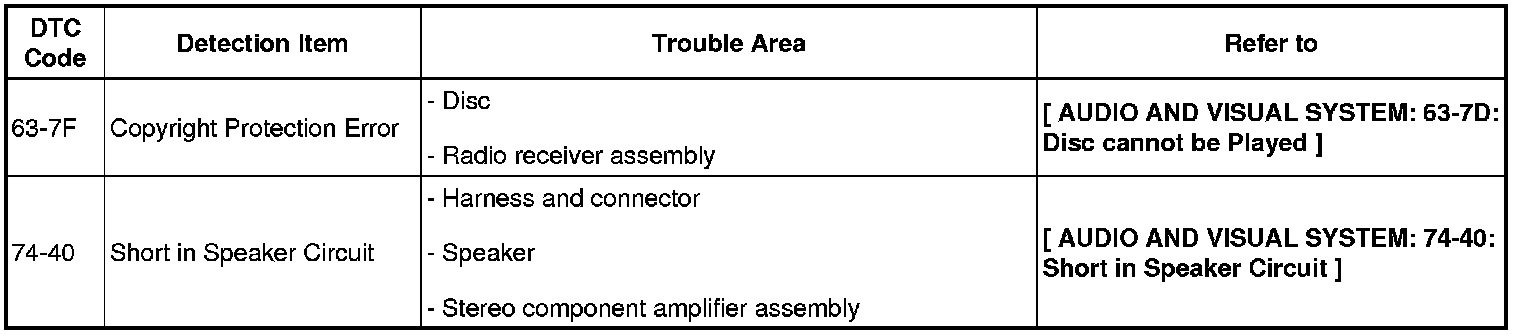

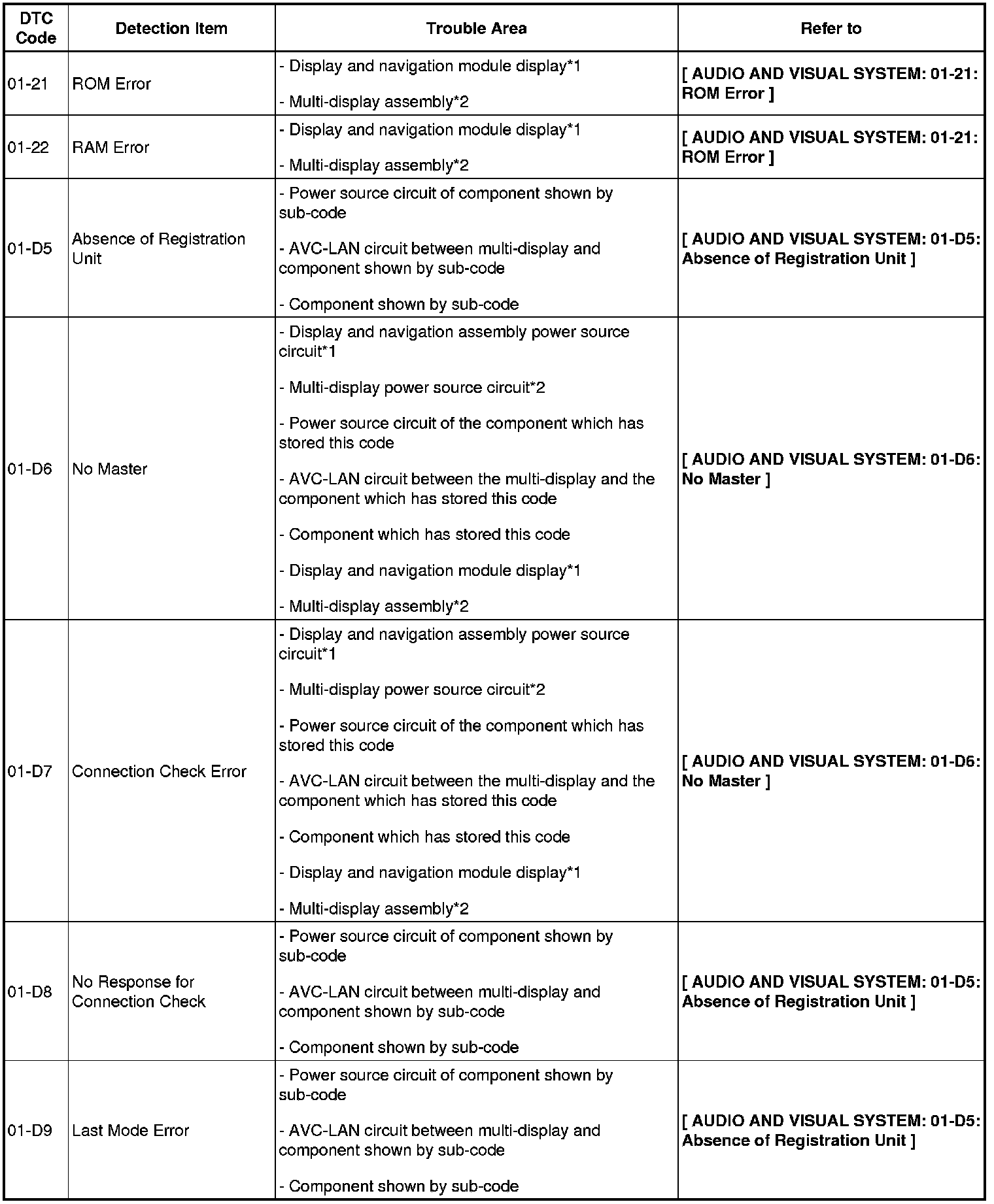

Audio and Visual System

























- *1: w/ Navigation System
- *2: w/o Navigation System
