Installation

A750F AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY:

INSTALLATION

1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

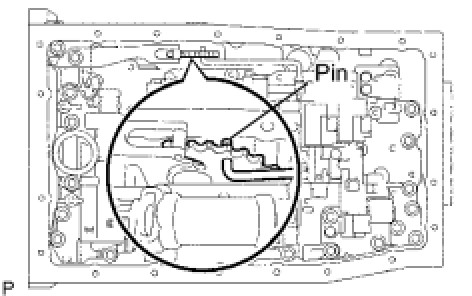

(a) Insert the pin of the lever into the hole of the manual valve.
(b) Install 3 new drum seal gaskets onto the transmission case.






(c) Install the 19 bolts.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)

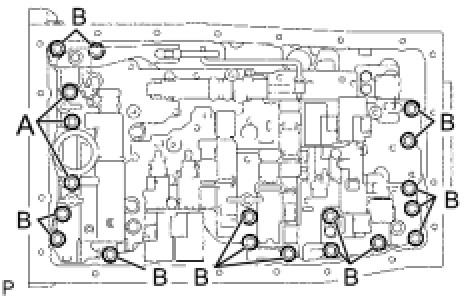

HINT: Each bolt length is indicated below.

Standard bolt length:
36 mm (1.42 in.) for bolt A
25 mm (0.98 in.) for bolt B
2. CONNECT TRANSMISSION WIRE






(a) Connect the 7 connectors to the solenoid valves.
(b) Install the clamp with the 2 bolts.
Torque: 10 Nm (100 kgf-cm, 7 in-lbf)for bolt A
Torque: 11 Nm (110 kgf-cm, 8 in-lbf)for bolt B
HINT: Each bolt length is indicated below.

Standard bolt length:
12 mm (0.47 in.) for bolt A
36 mm (1.42 in.) for bolt B
(c) Connect the ATF temperature sensor.

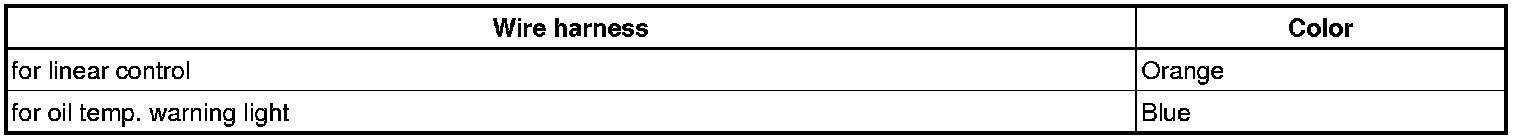

Sensor wire harness:





3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY






(a) Install a new O-ring and the oil strainer with the 4 bolts.
Torque: 10 Nm (100 kgf-cm, 7 ft-lbf)
4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
HINT: Remove the gasket and be careful not to spill oil on the contacting surfaces of the transmission case and oil pan.





(a) Install the new gasket and the oil pan with the 20 bolts.
Torque: 4.4 Nm (45 kgf-cm, 39 in-lbf)
5. ADD AUTOMATIC TRANSMISSION FLUID
HINT: Procedures

6. INSPECT AUTOMATIC TRANSMISSION FLUID
HINT: Procedures
