Lexus Truck
>>
2008
>>
GX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Components
Components

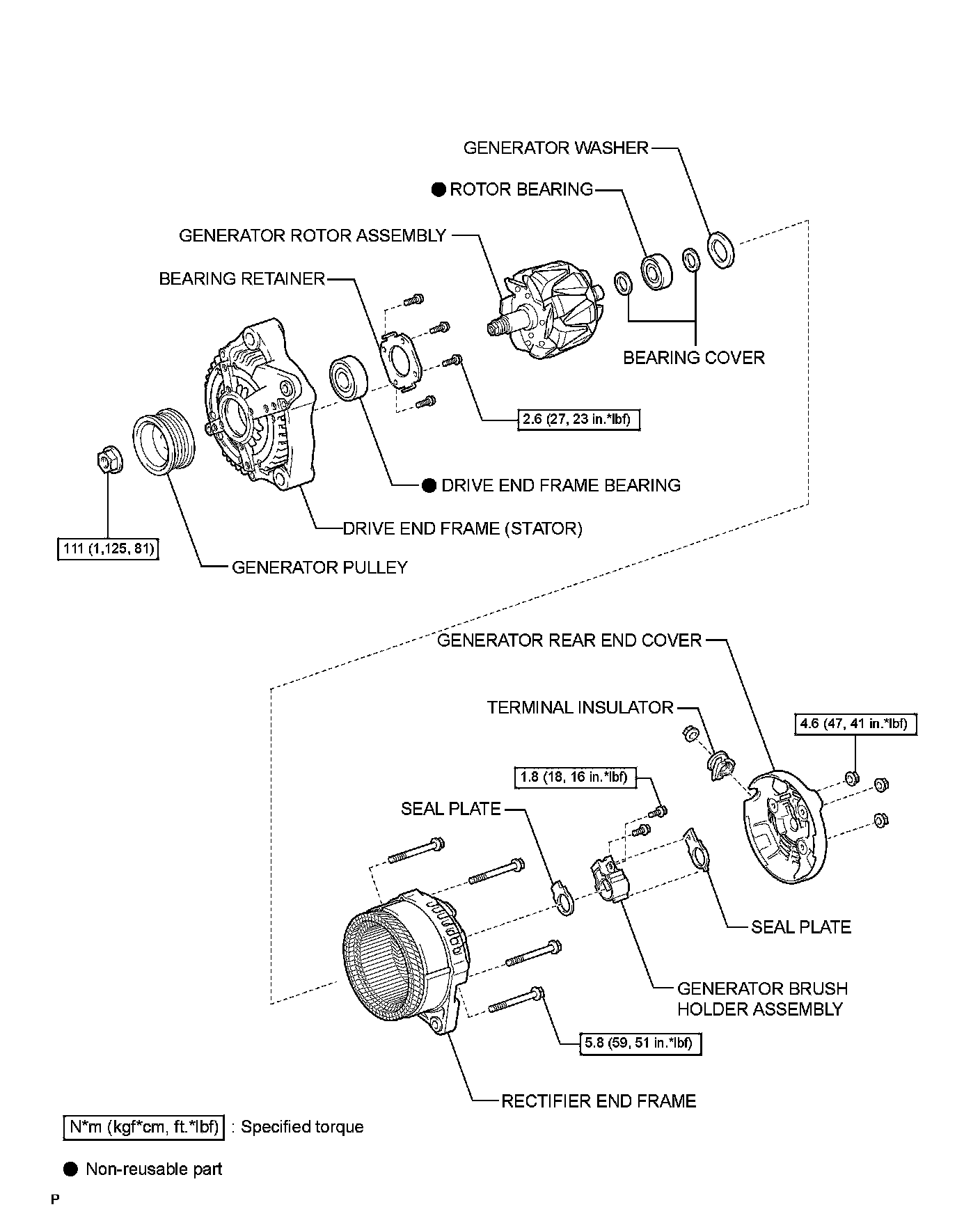

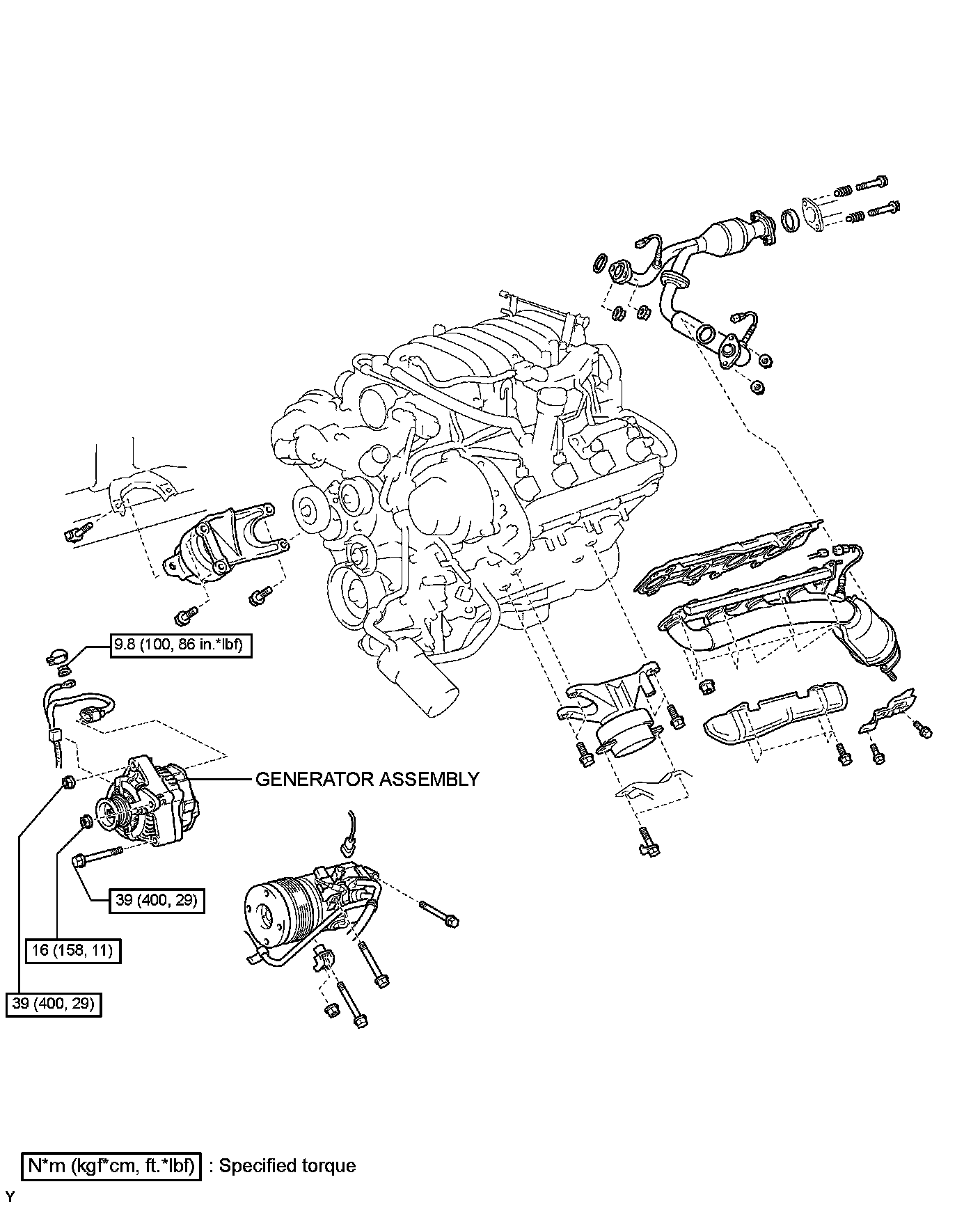

2UZ-FE CHARGING: GENERATOR:
COMPONENTS
