Camshaft Bearing

Camshaft Bearing RH

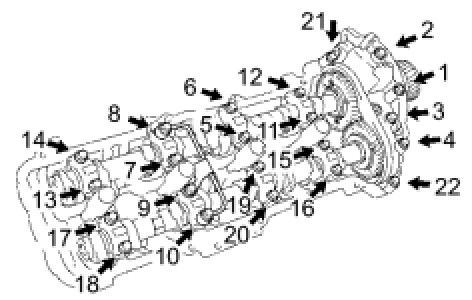

Uniformly tighten the 22 bearing cap bolts in several steps, in the order shown in the illustration.
For bolt C - Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)
For others - Torque 16 Nm (163 kgf-cm, 12 ft-lbf)





Camshaft Bearing LH

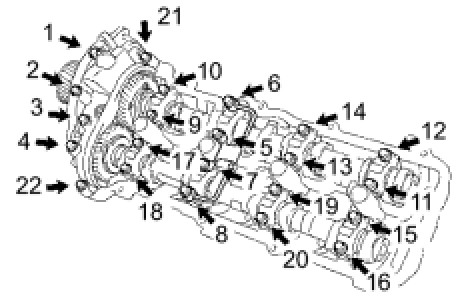

Uniformly tighten the 22 bearing cap bolts in several steps, in the order shown in the illustration.
For bolt C - Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)
For others - Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
