Installation

2UZ-FE EMISSION CONTROL: CANISTER:

INSTALLATION

1. INSTALL CHARCOAL CANISTER ASSEMBLY
(a) Install the charcoal canister with the 3 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the purge line hose to the charcoal canister.
(c) Connect the connector to the pump module.
(d) Connect the canister outlet hose No. 2 to the charcoal canister.
(e) Connect the fuel tank hose to the charcoal canister.

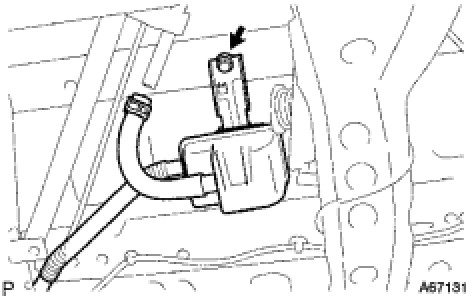

2. INSTALL CHARCOAL CANISTER FILTER SUB-ASSEMBLY






(a) Install the charcoal canister with a bolt.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the canister outlet hose to the fuel tank filler pipe.
(c) Connect the canister outlet hose No. 2 to the charcoal canister.
3. INSTALL SPARE TIRE
