Installation

LIGHTING: BACK-UP LIGHT ASSEMBLY:

INSTALLATION

1. INSTALL BACK-UP LIGHT ASSEMBLY






(a) Connect each connector.

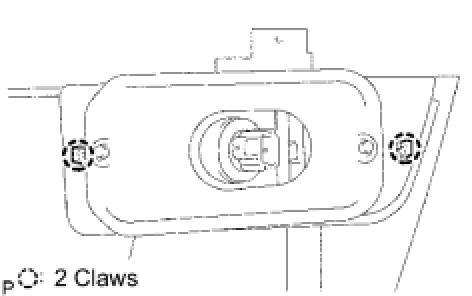

(b) Install the back-up light assembly.
2. INSTALL BACK DOOR OUTSIDE GARNISH
3. INSTALL LICENSE REAR LIGHT COVER
4. INSTALL BACK DOOR SERVICE HOLE COVER
5. INSTALL BACK DOOR TRIM BOARD
6. INSTALL DOOR PULL HANDLE SUB-ASSEMBLY
7. INSTALL TOOL BOX PANEL SUB-ASSEMBLY UPPER
8. INSTALL BACK DOOR SIDE GARNISH LH
9. INSTALL BACK DOOR SIDE GARNISH RH
10. INSTALL BACK DOOR GARNISH CENTER
