Reassembly

AIR CONDITIONING PANEL: REASSEMBLY

REASSEMBLY

1. INSTALL HEATER CONTROL KNOB (w/o Navigation System)
2. INSTALL AIR CONDITIONING CONTROL BULB (w/o Navigation System)
3. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY (w/o Navigation System)

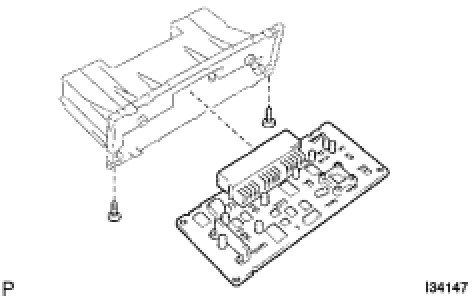

(a) Install the 2 screws and the air conditioning amplifier.

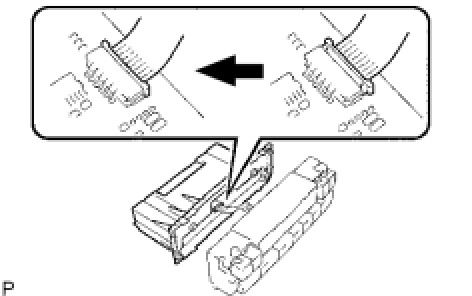

(b) Connect the cable and connector.






(c) Install the heater control housing with the 6 screws and the 4 claws.
