Disassembly

BRAKE: BRAKE PEDAL: DISASSEMBLY

DISASSEMBLY

1. REMOVE BRAKE PEDAL LEVER

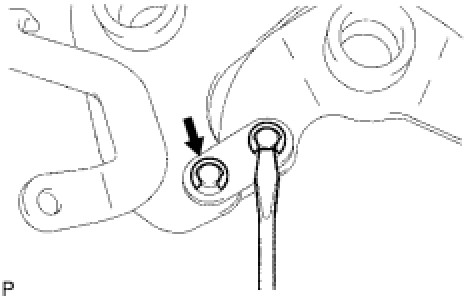

(a) Using a screwdriver, remove the 2 E-rings from the brake pedal link pin.
(b) Remove the 2 brake pedal link pins, 2 brake pedal shaft collars and 2 brake pedal link.
(c) Remove the brake pedal lever from brake pedal sub-assembly.
