Installation

BRAKE CONTROL: REAR SPEED SENSOR:

INSTALLATION

1. INSTALL SPEED SENSOR REAR LH

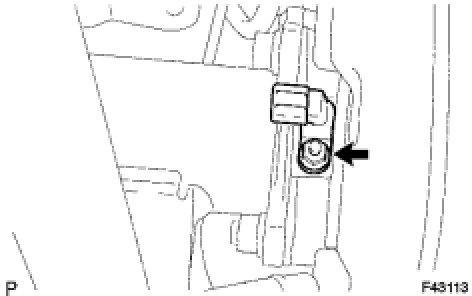

(a) Install the rear speed sensor with the nut to the axle hub.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)
NOTE: Make sure the sensor tip is clean.





(b) Connect the speed sensor connector.
2. INSTALL REAR WHEEL
Torque: 112 Nm (1137 kgf-cm, 82 ft-lbf)
3. CHECK SPEED SENSOR SIGNAL
HINT: Test Mode Procedure
