Installation

BRAKE CONTROL: FRONT SPEED SENSOR:

INSTALLATION

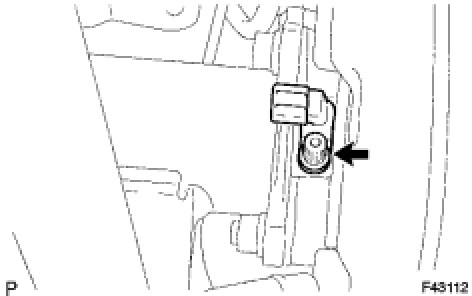

1. INSTALL SPEED SENSOR FRONT LH






(a) Using a hexagon wrench (5 mm), install the front speed sensor with the bolt to the steering knuckle.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)
NOTE: Make sure the sensor tip is clean.





(b) Connect the speed sensor connector.
2. INSTALL FRONT WHEEL
Torque: 112 Nm (1137 kgf-cm, 82 ft-lbf)
3. CHECK SPEED SENSOR SIGNAL
HINT: Test Mode Procedure
