Lexus Truck
>>
2008
>>
GX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Service and Repair
>>
Front Seat Assembly (for LH Side)
>>
Components
Components

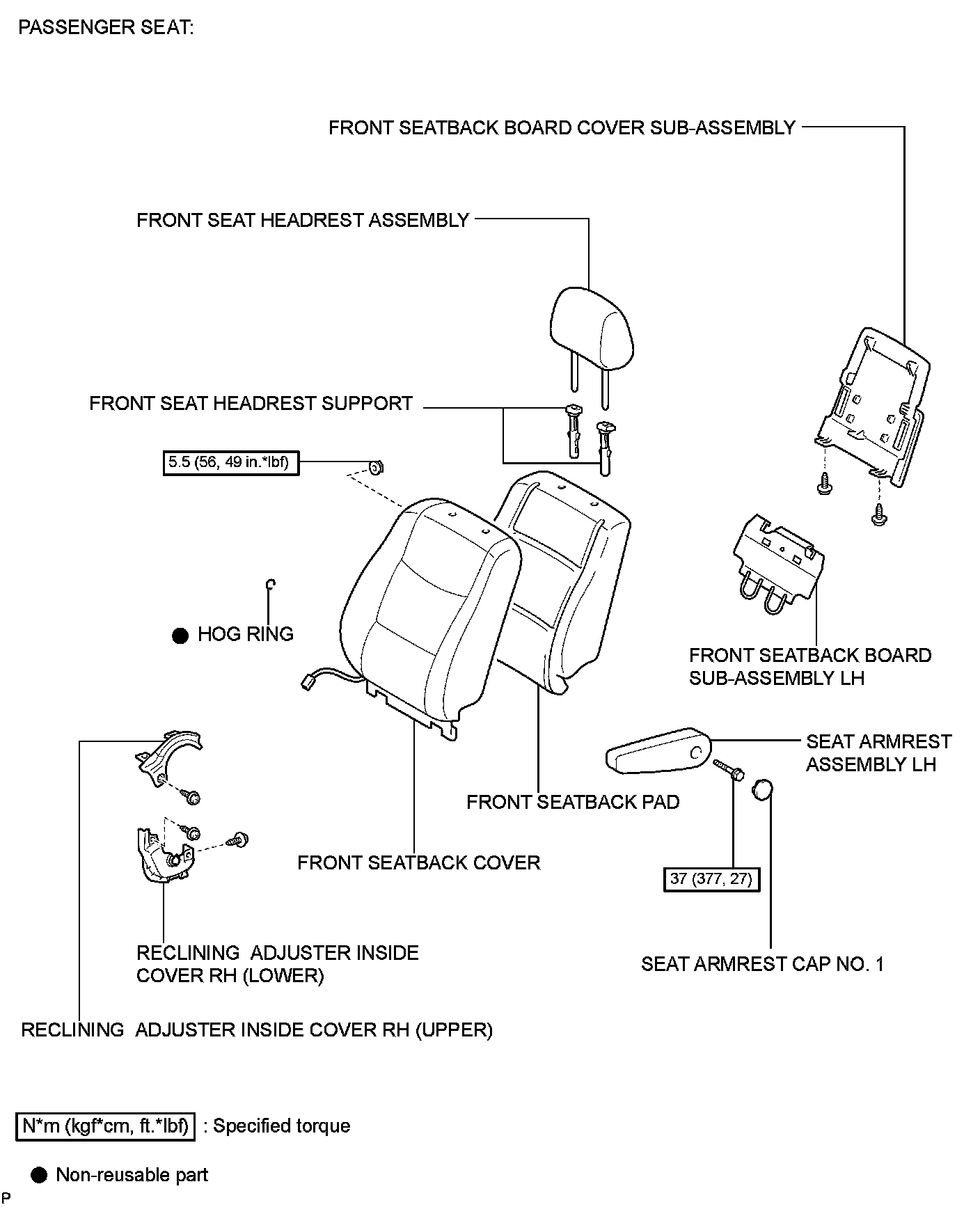

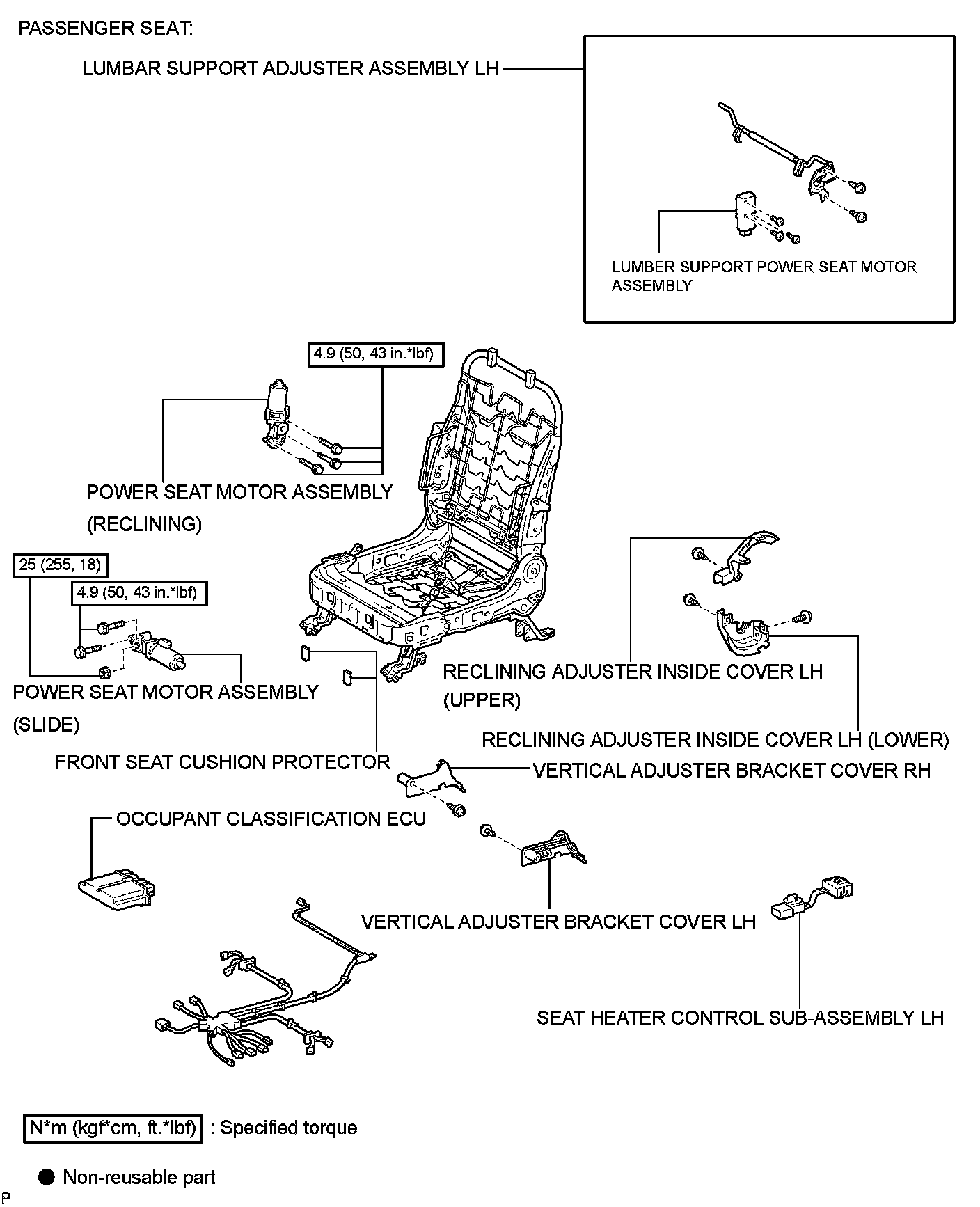

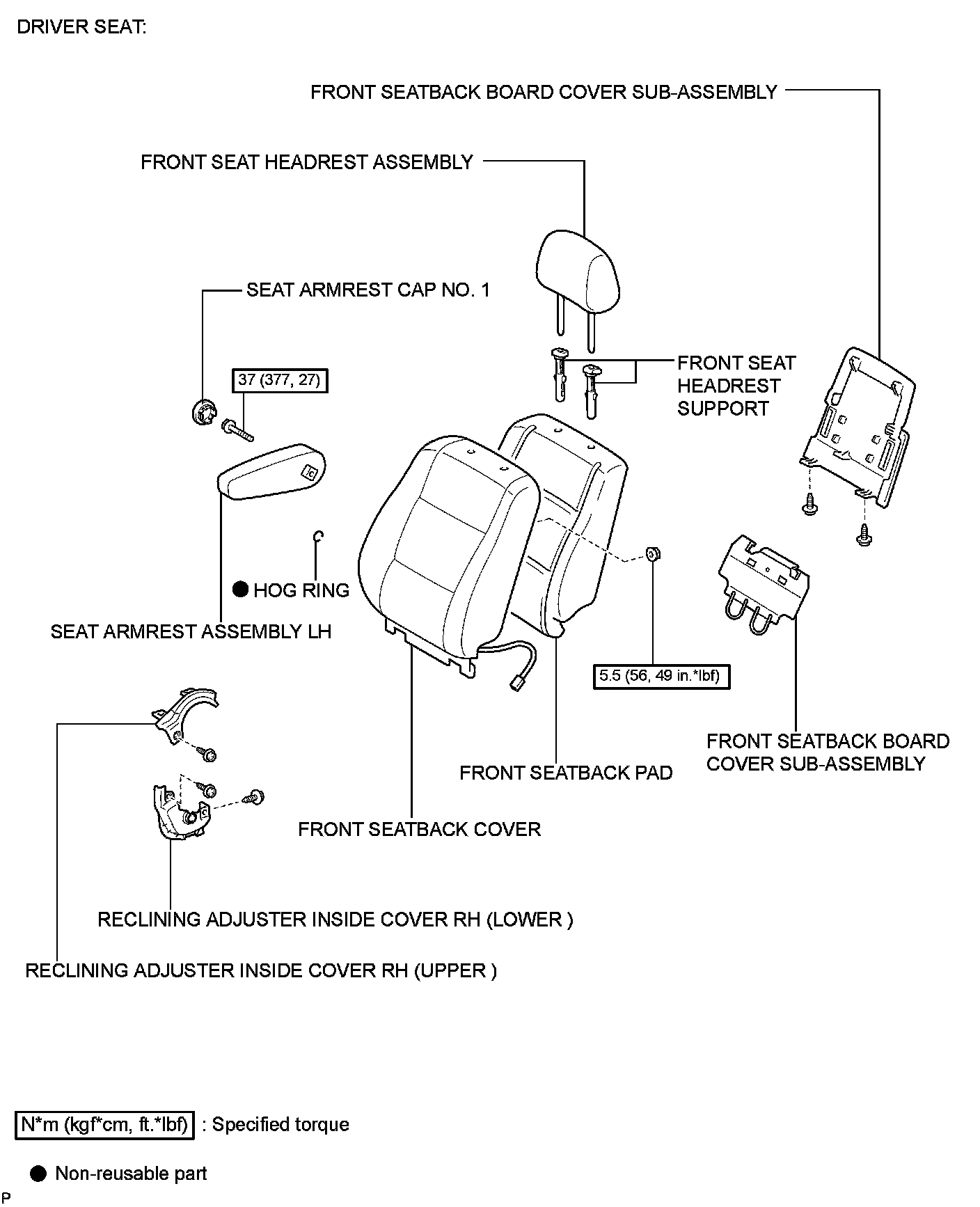

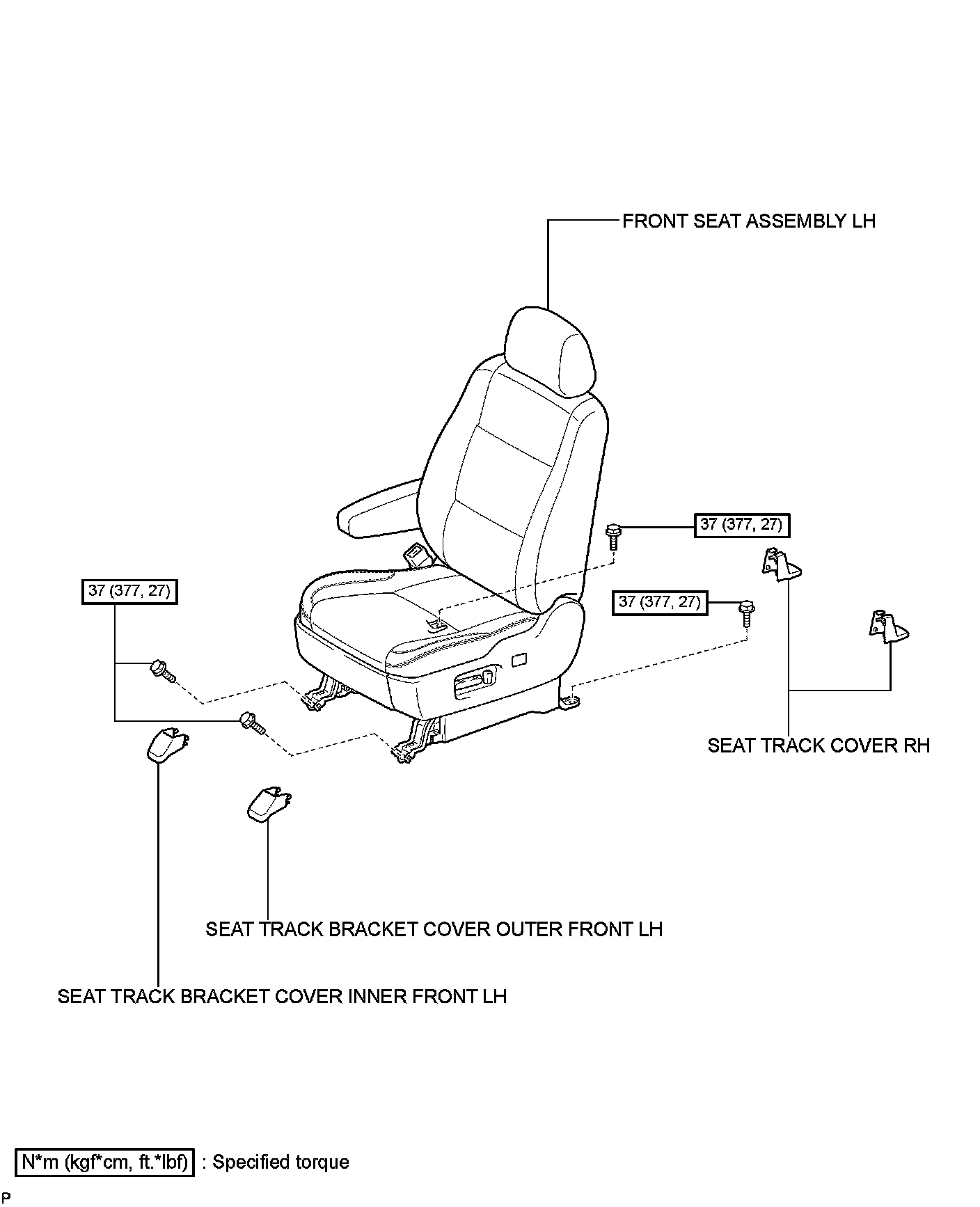

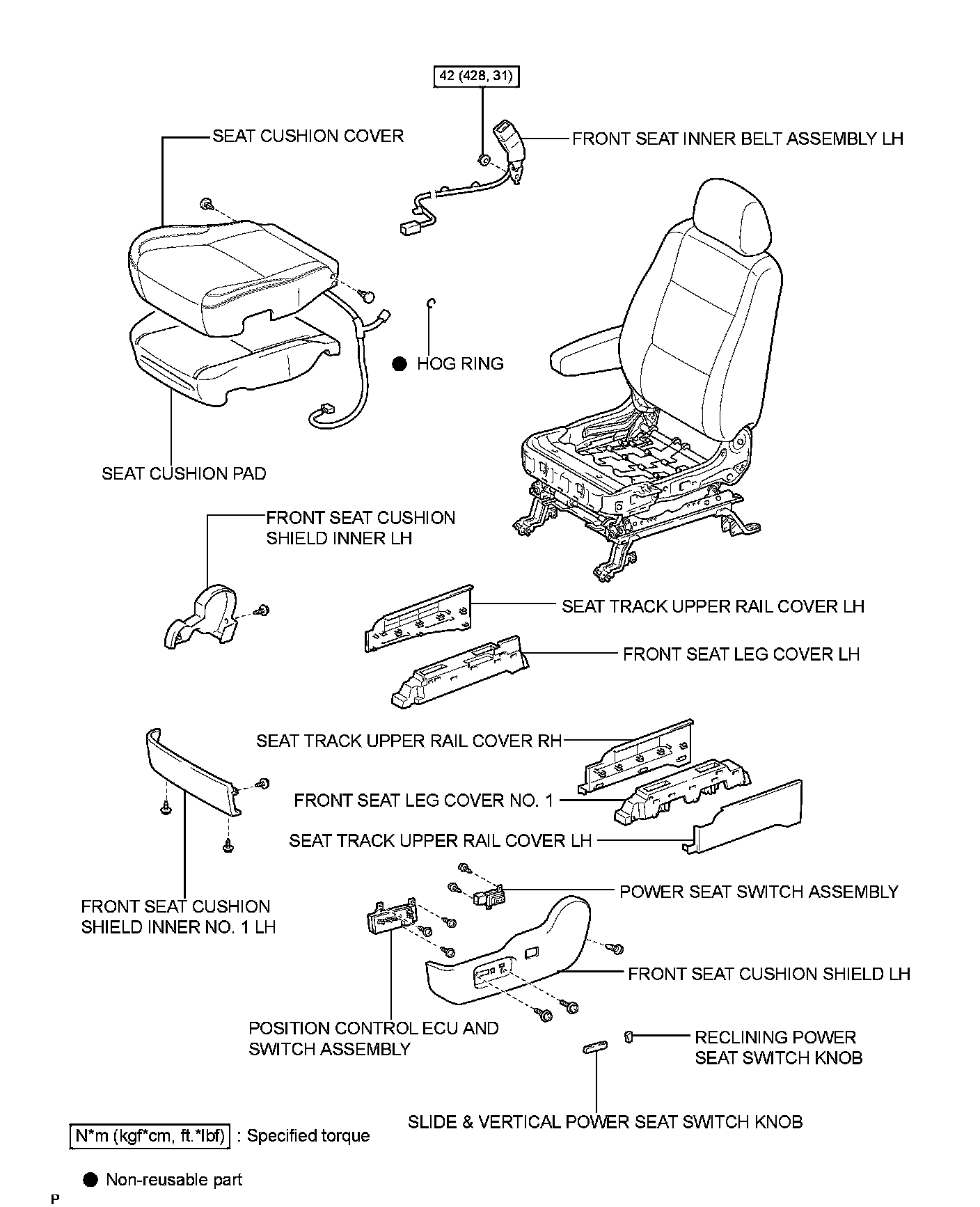

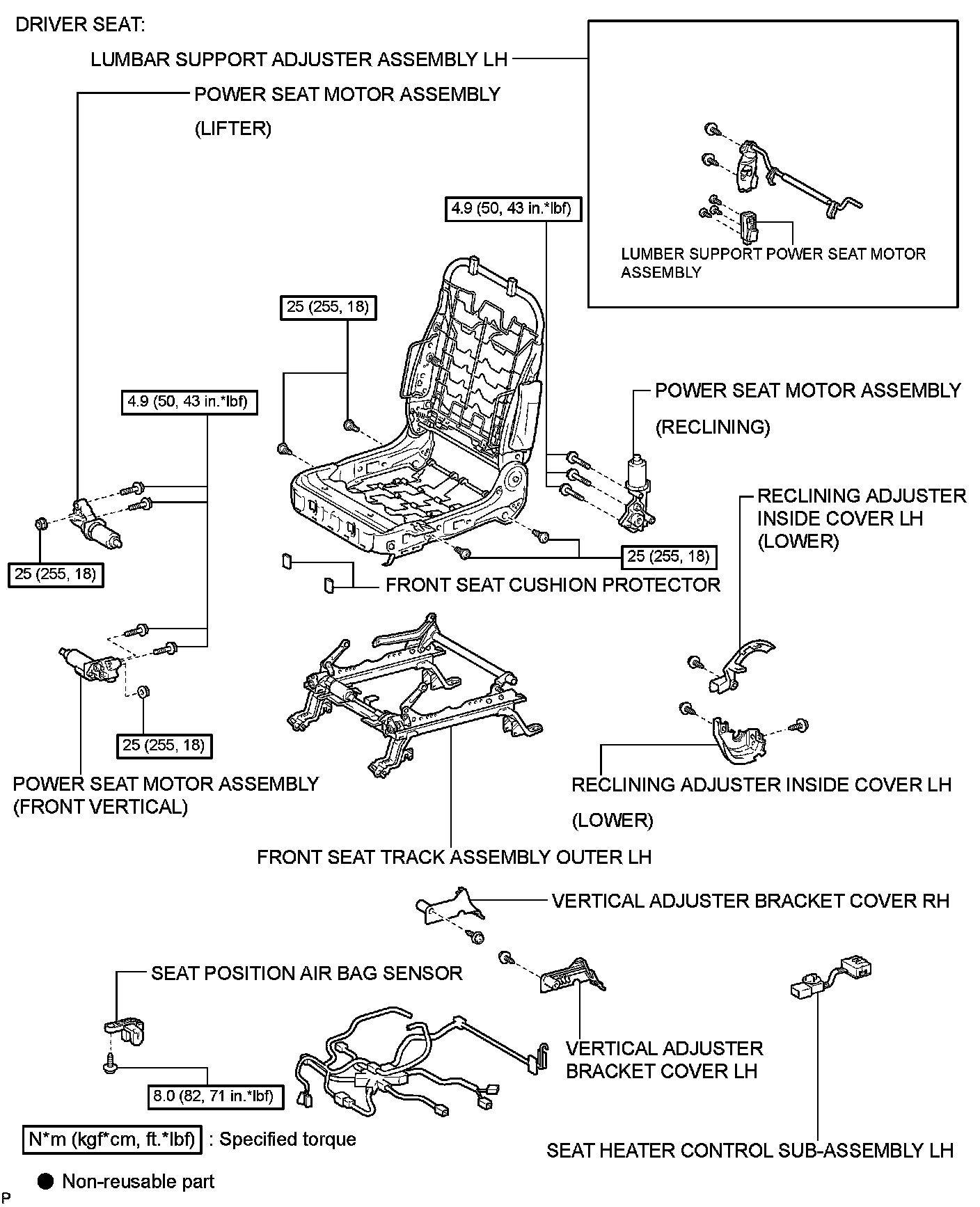

SEAT: FRONT SEAT ASSEMBLY (for LH Side):
COMPONENTS
