Driver Side Power Window Motor Circuit

Driver Side Power Window Motor Circuit

DESCRIPTION
This circuit transmits signals from the multiplex network master switch to power window regulator motor.

WIRING DIAGRAM

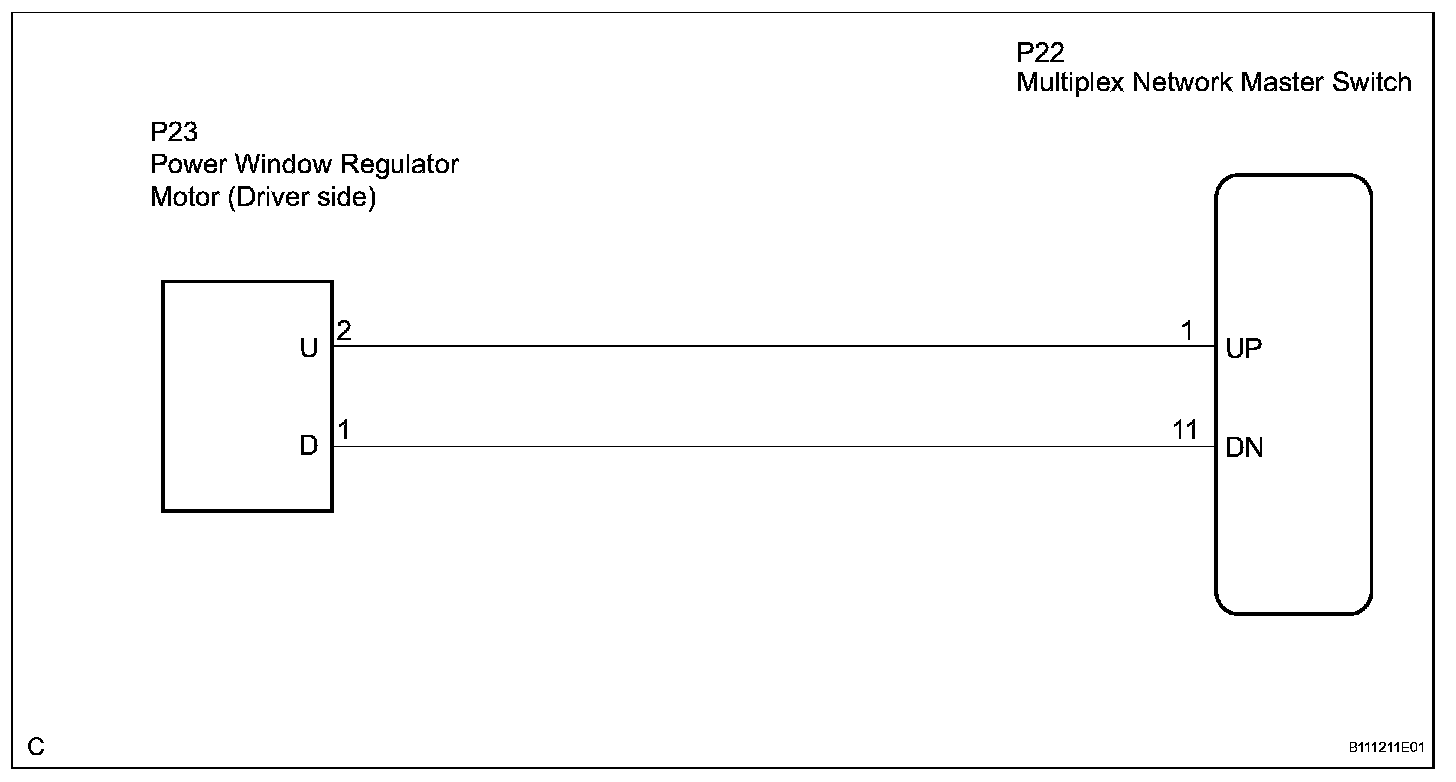

Wiring Diagram:





INSPECTION PROCEDURE

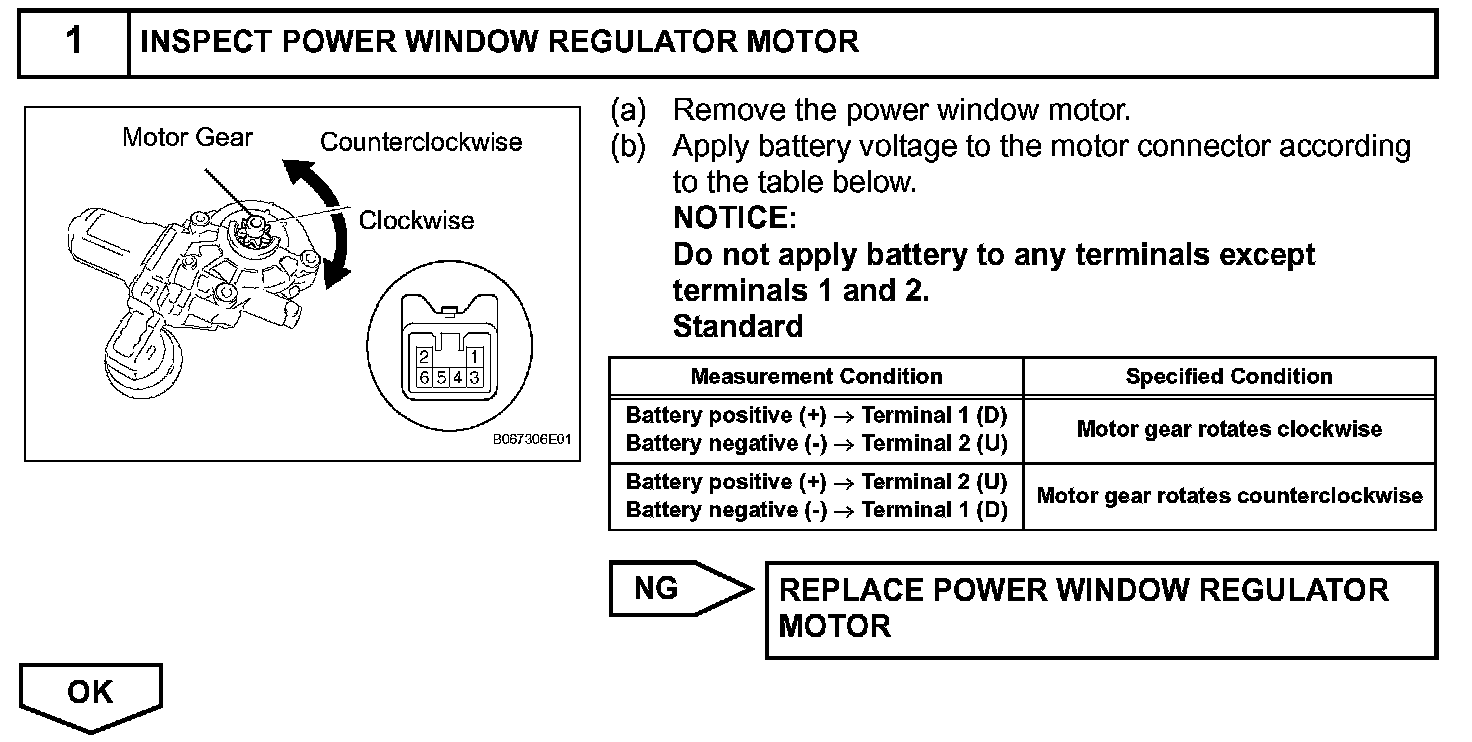

Step 1:




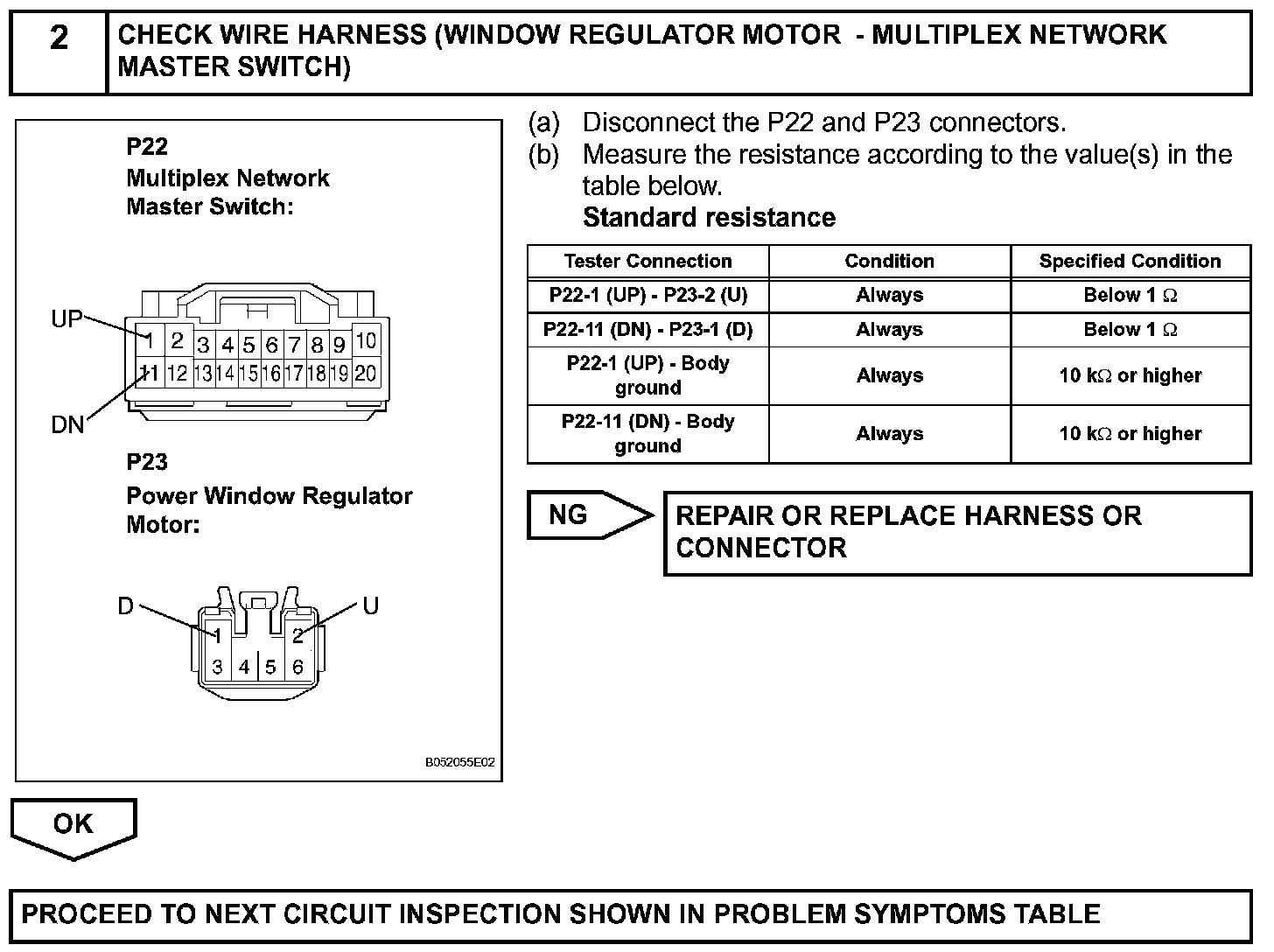

Step 2:
