Fluid Pump: Service and Repair

OIL PUMP ASSEMBLY

Components:

REMOVAL
1. REMOVE FRONT BUMPER ASSEMBLY
2. DRAIN HYBRID TRANSAXLE FLUID

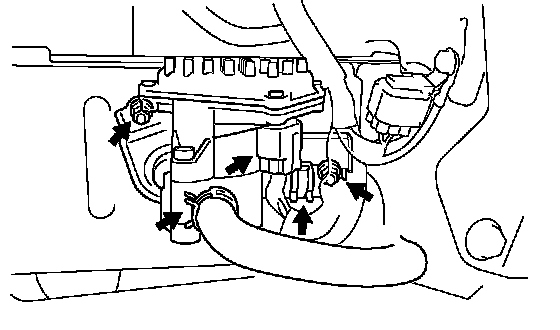

3. REMOVE OIL PUMP ASSEMBLY
a. Disconnect the oil pump connector.
b. Disconnect the 2 oil cooler hoses.
c. Remove the 2 nuts and oil pump assembly.

INSTALLATION

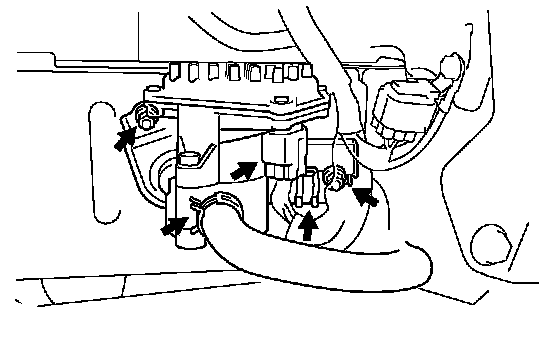

1. INSTALL OIL PUMP ASSEMBLY
a. Install the oil pump assembly with the 2 nuts.
Torque: 7.0 Nm (71 kgf-cm, 62 inch lbs.)
b. Connect the 2 oil cooler hoses.
c. Connect the oil cooler connector.

2. INSTALL FRONT BUMPER ASSEMBLY
3. ADD AND INSPECT HYBRID TRANSAXLE FLUID
