Home >> Lexus Truck >> 2007 >> RX 400h FWD V6-3.3L (3MZ-FE) Hybrid >> Repair and Diagnosis >> Technical Service Bulletins >> Recalls >> Generals >> Campaign - EPS Steering Gear Replacement >> Technical Instructions For Various 2006 and 2007 GS and IS Models >> VI. Power Steering Link Assembly Replacement >> A. Remove Power Steering Link Assembly 2WD Models

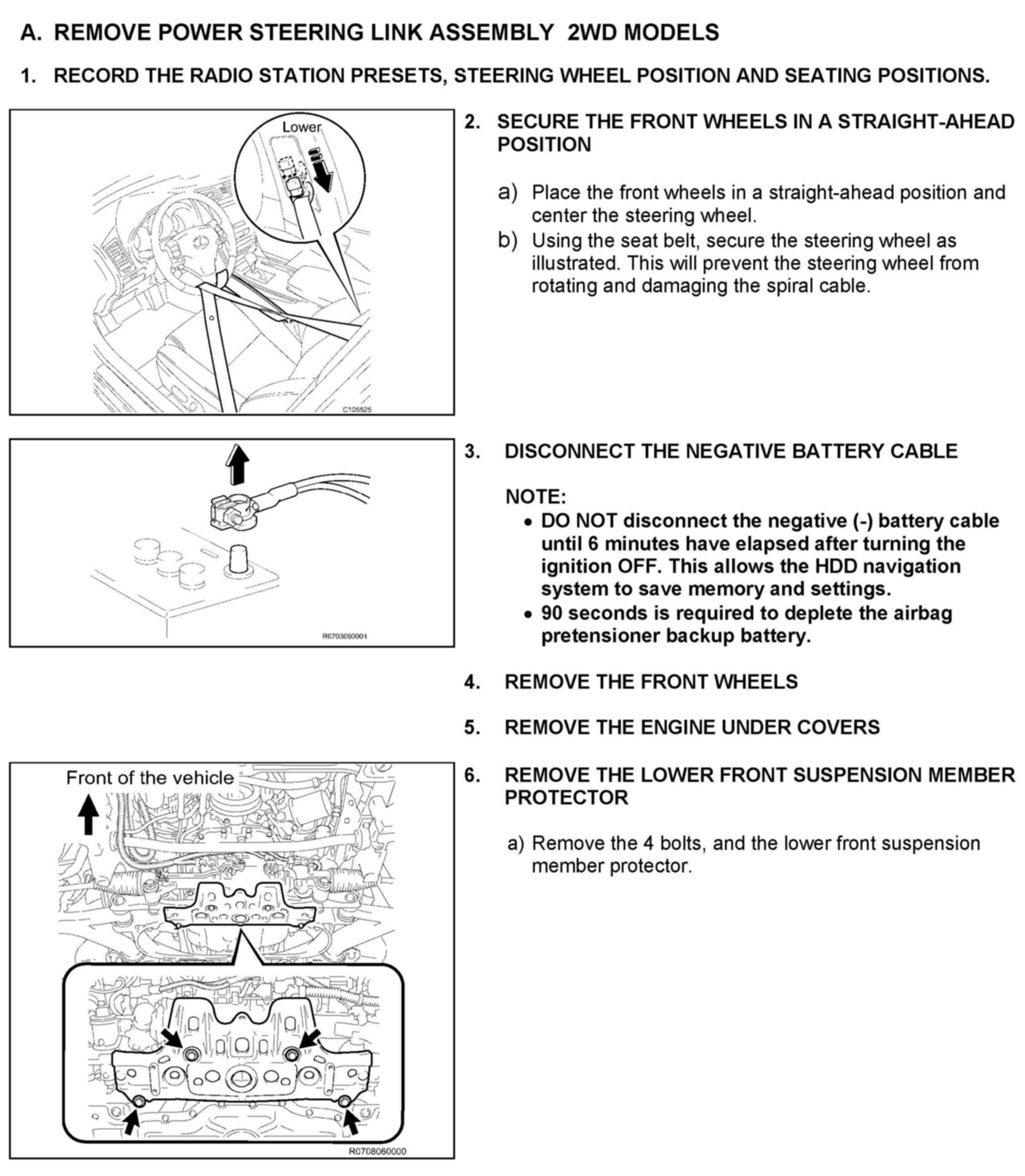

A. Remove Power Steering Link Assembly 2WD Models
