Data List / Active Test

DATA LIST / ACTIVE TEST
1. DATA LIST
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch on.
(c) Operate the intelligent tester according to the steps on the display and select "Data List".

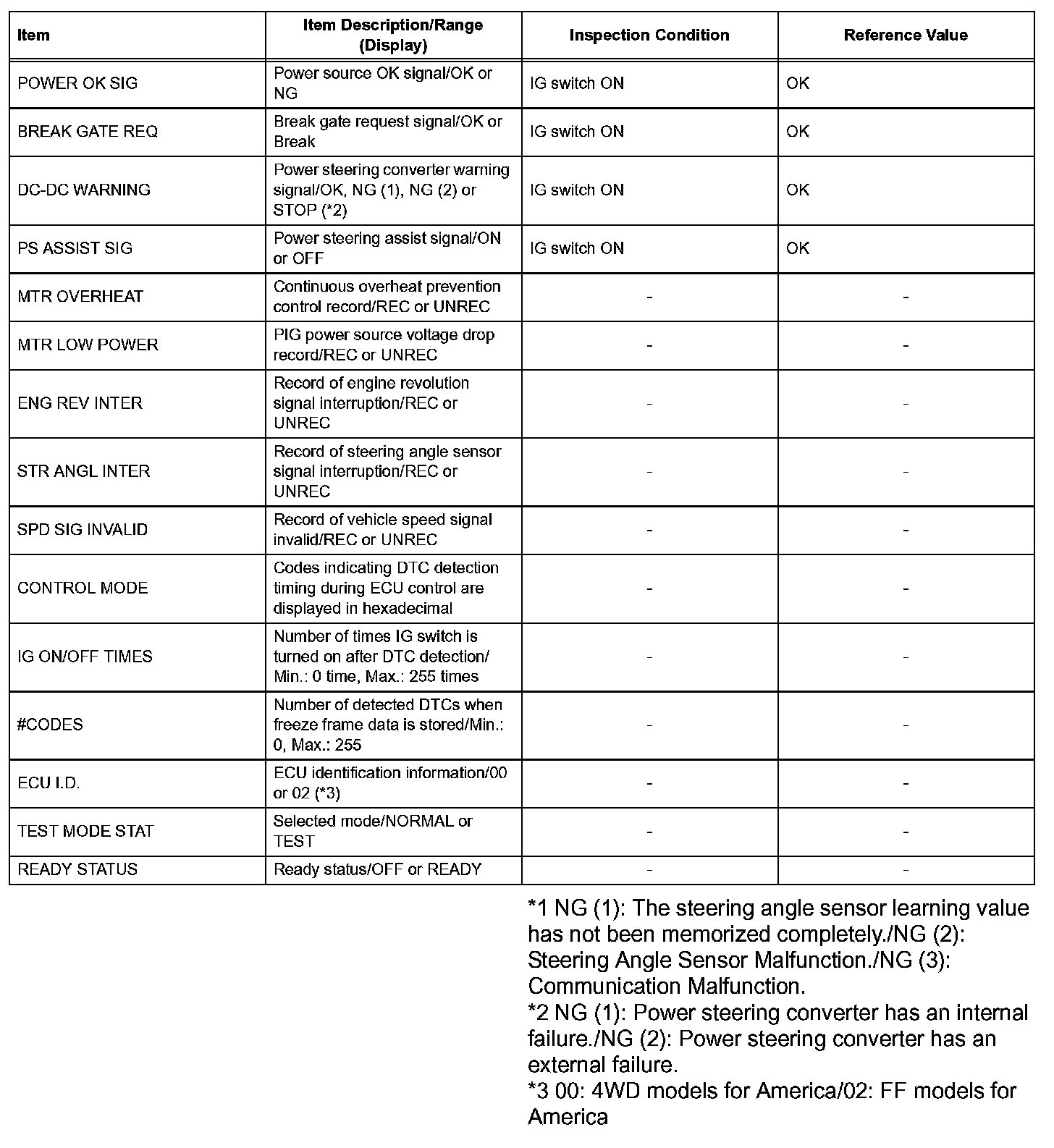

Part 1:

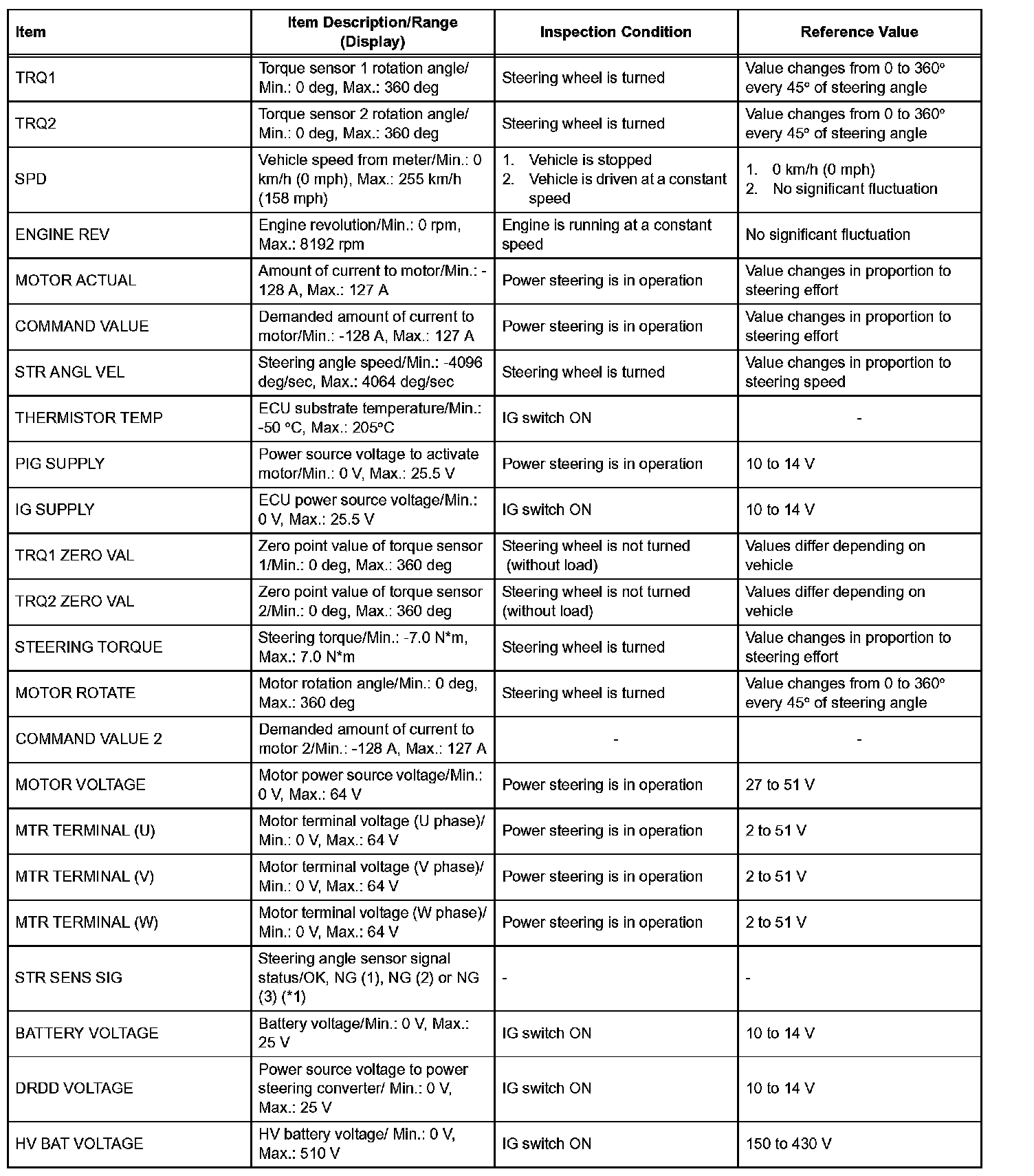

Part 2:
