Steering Mounted Controls Transmitter: Testing and Inspection
INSPECTION1. INSPECT STEERING PAD SWITCH RH

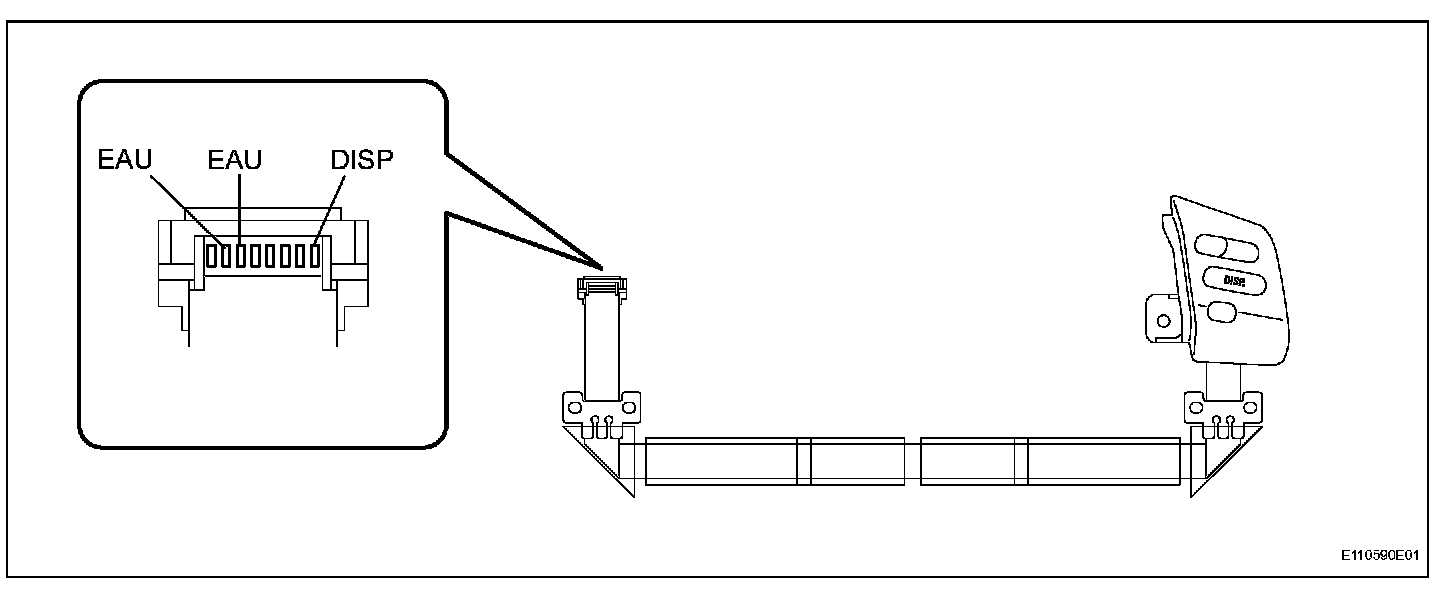

a. Remove the steering pad switch LH connector with the steering pad switch RH and spiral cable still connected.

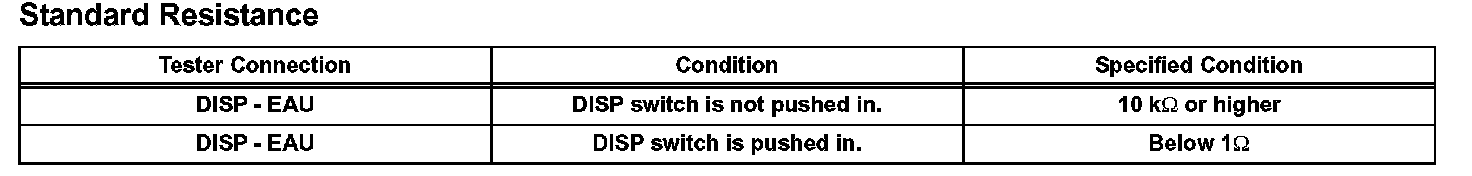

b. Measure the resistance according to the value(s) in the table.
HINT: If the value is not as specified, replace the steering pad switch RH.
