Data List/Active Test

DATA LIST / ACTIVE TEST
1. DATA LIST
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position and turn the intelligent tester on.
(c) Select "TILT & TELESCOPIC".
(d) Select the following items.

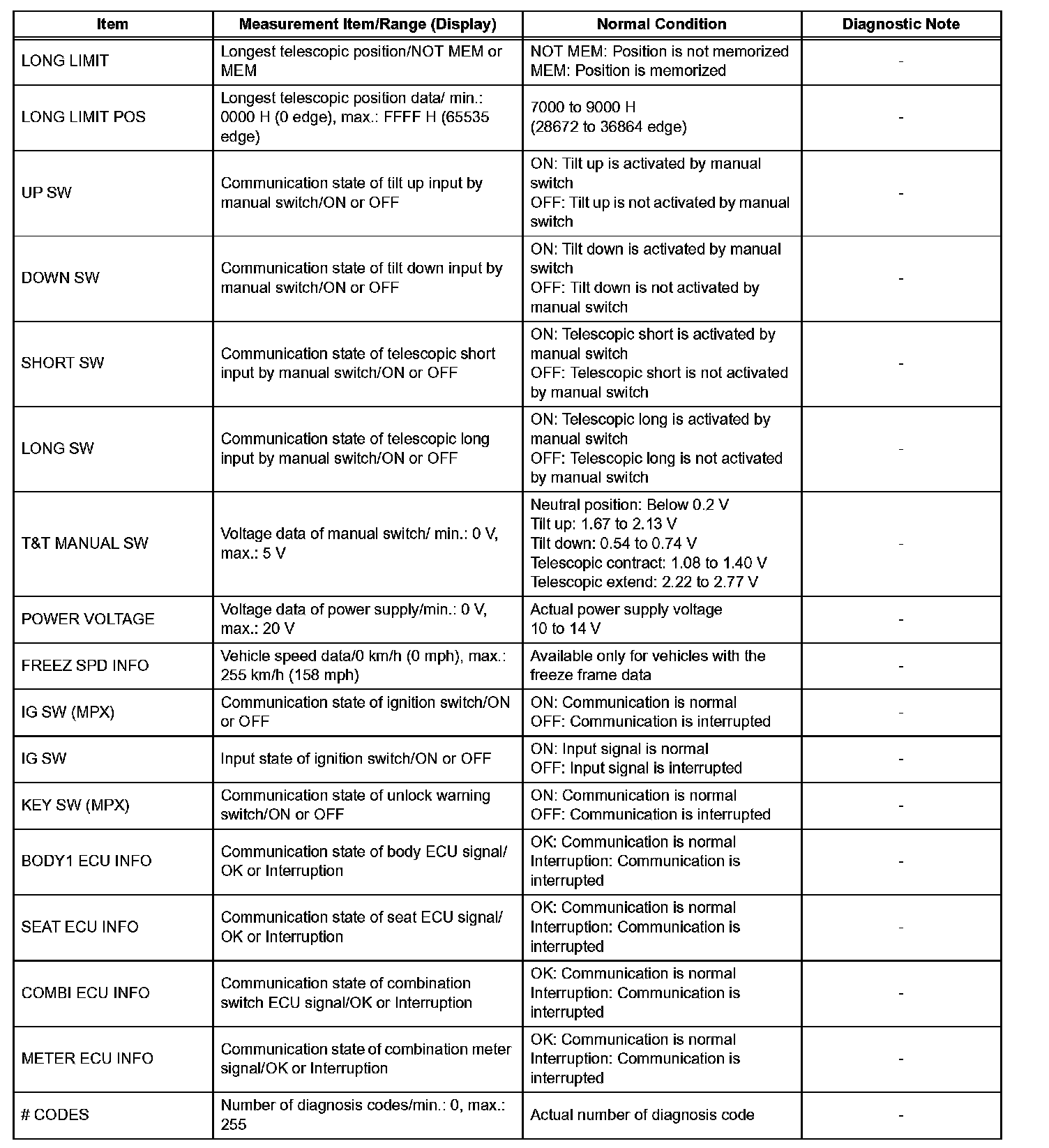

Tilt & Telescopic (Part 1):




Tilt & Telescopic (Part 2):





2. ACTIVE TEST
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position and turn the intelligent tester on.
(c) Select "TILT & TELESCOPIC".

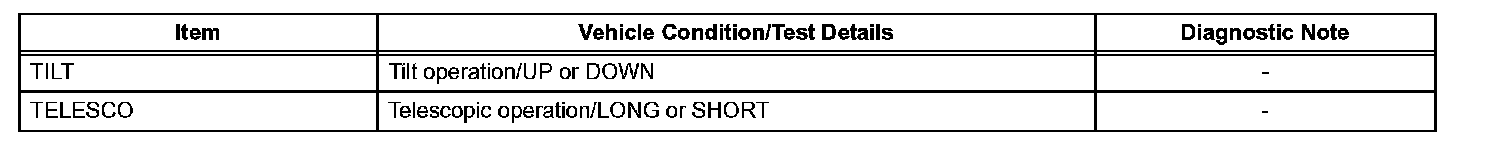

(d) Select the following items:
