Hybrid Systems - MIL ON/DTC P0A78/Info Codes 286/287
L-SB-0168-08December 16, 2008
M.I.L. "ON" DTC P0A78 with Information Codes 286, 287
Service Category
Engine/Hybrid System
Section
Hybrid/Battery Control System
Market
USA

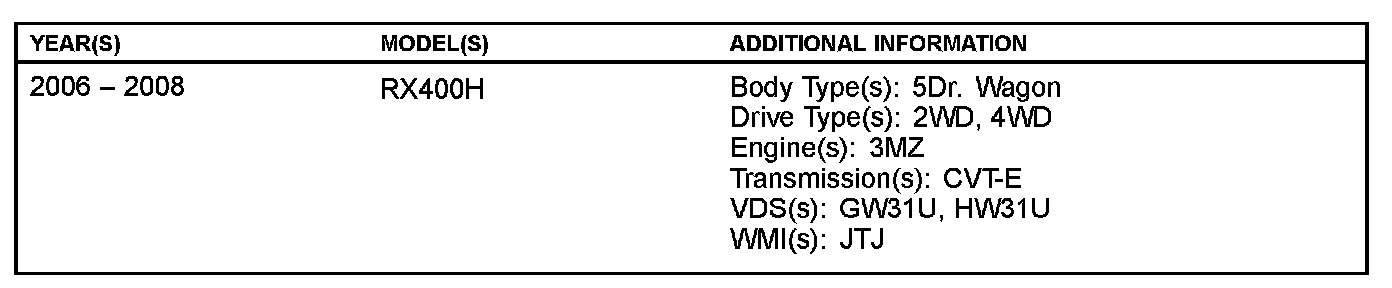

Applicability
Introduction
Some customers with 2006 2008 model year RX 400h vehicles may experience a M.I.L. "ON" condition with DTC P0A78 with information codes 286 and/or 287 (Drive Motor A Inverter Performance). The inverter with converter assembly has been improved to address this condition.
NOTE
This TSIB applies ONLY if information codes 286 AND/OR 287 are present.
Production Change Information
This TSIB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

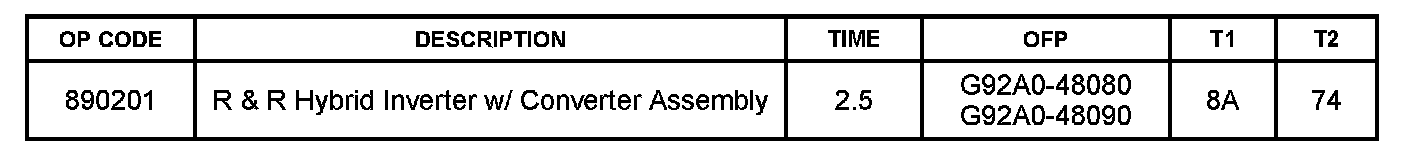

Warranty Information
APPLICABLE WARRANTY
^ This repair is covered under the Lexus Hybrid System Warranty. This warranty is in effect for 96 months or 100,000 miles, whichever occurs first, from the vehicle's in-service date.
^ Warranty application is limited to correction of a problem based upon a customer's specific complaint.

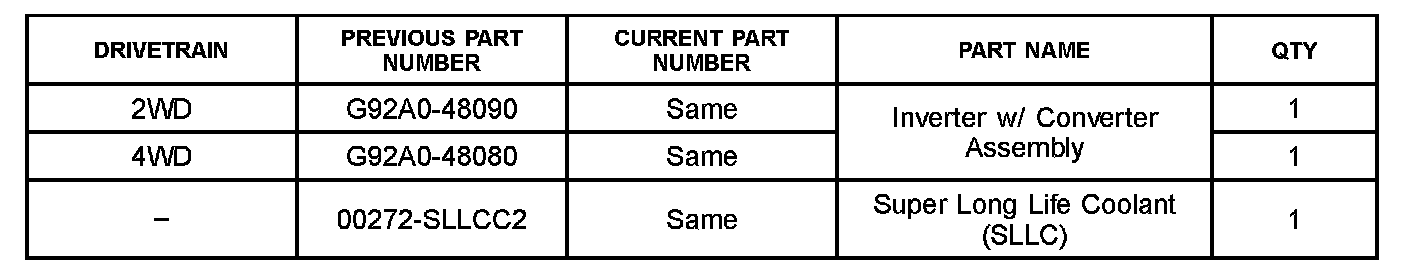

Parts Information
Required Tools & Equipment
NOTE
Additional TIS Techstream units may be ordered by calling Approved Dealer Equipment (ADE).
NOTE
Additional SSTs may be ordered by calling SPX/OTC.
Repair Procedure
Remove and replace the inverter with converter assembly.
Refer to the Technical Information System (TIS), applicable model year RX400h Repair Manual:
^ 2006 RX 400h:
Engine/Hybrid System Hybrid/Battery Control System "Inverter with Converter: Removal / Installation"
^ 2007 RX 400h:
Engine/Hybrid System Hybrid/Battery Control System "Inverter with Converter: Removal / Installation"
^ 2008 RX 400h:
Power Source/Network Battery/Charging "Inverter with Converter: Removal / Installation"
