Pinout Values and Diagnostic Parameters

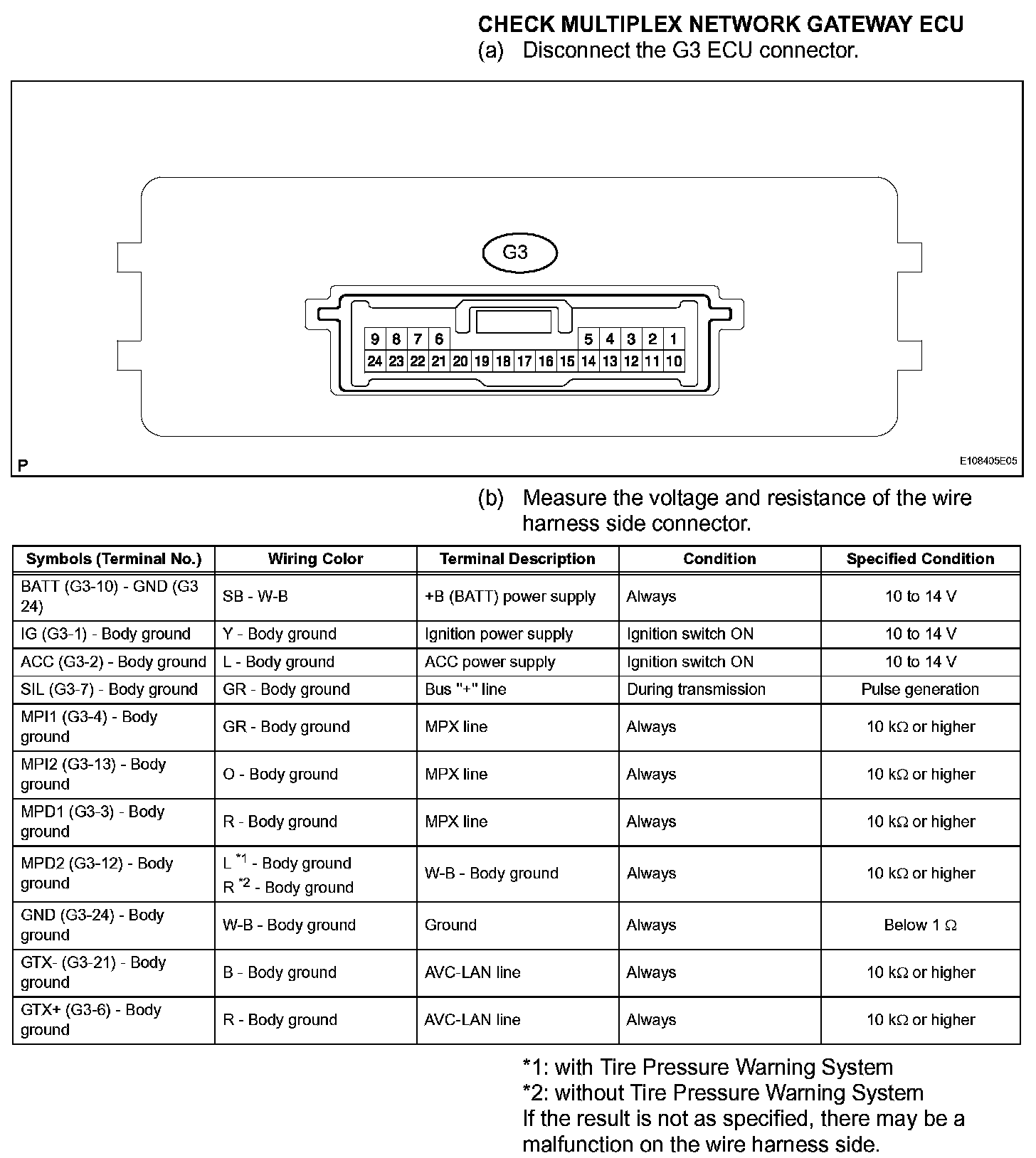

Terminals Of Control Module/Pinouts - Check Multiplex Network Gateway ECU (Part 1):

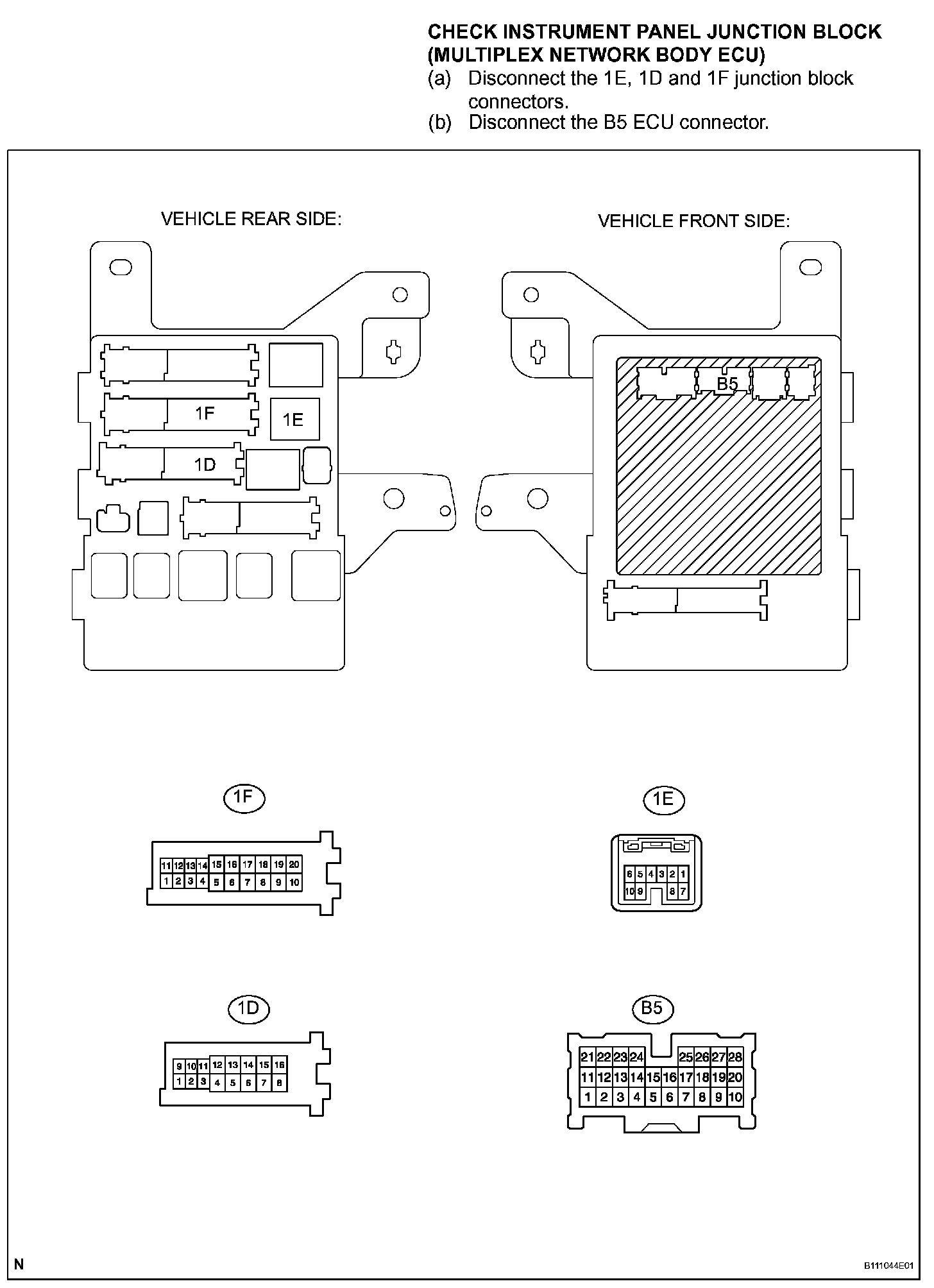

Terminals Of Control Module/Pinouts - Check Instrument Panel Junction Block (Multiplex Network Body ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Instrument Panel Junction Block (Multiplex Network Body ECU) (Part 2):

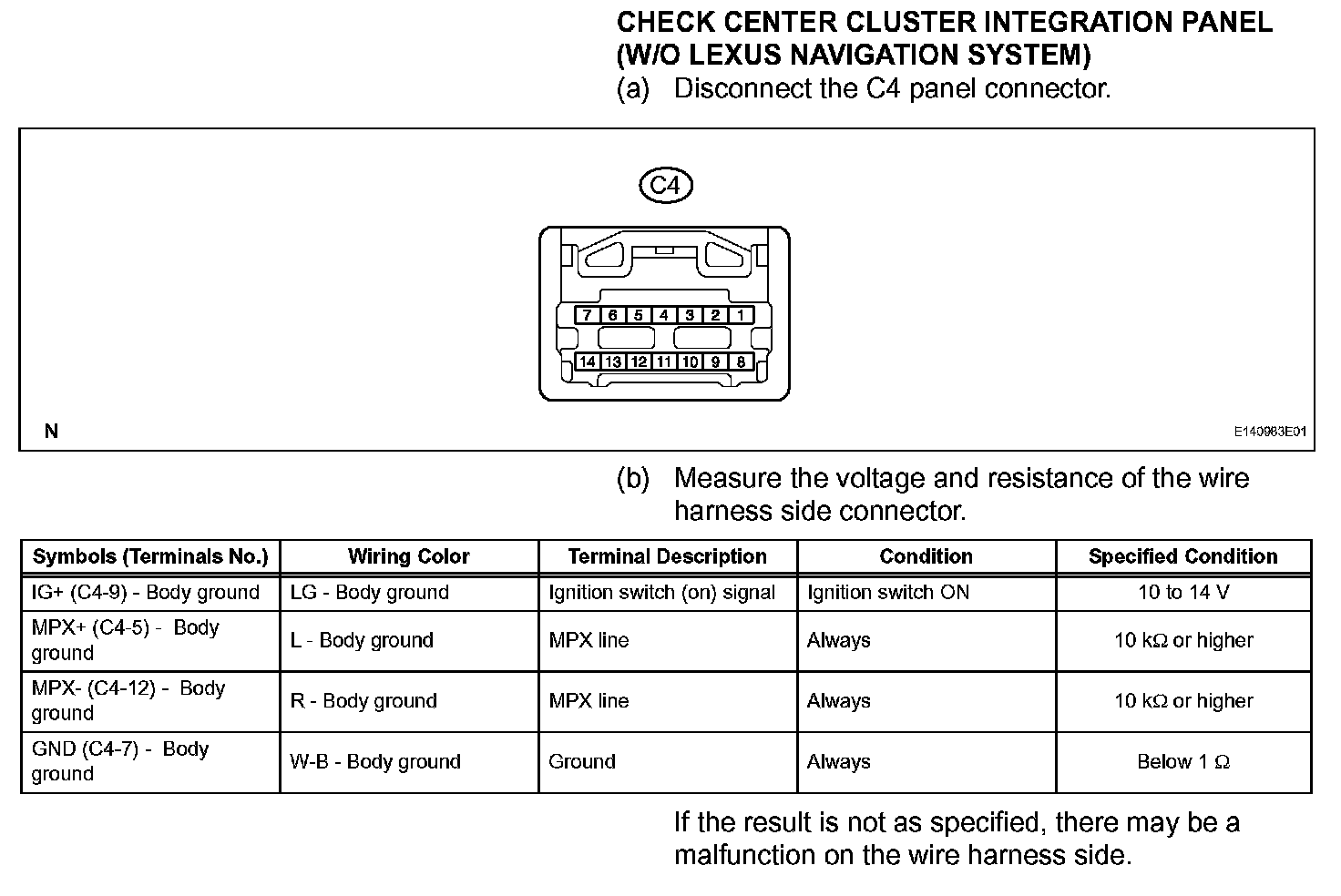

Terminals Of Control Module/Pinouts - Check Center Cluster Integration Panel (W/O Lexus Navigation System):

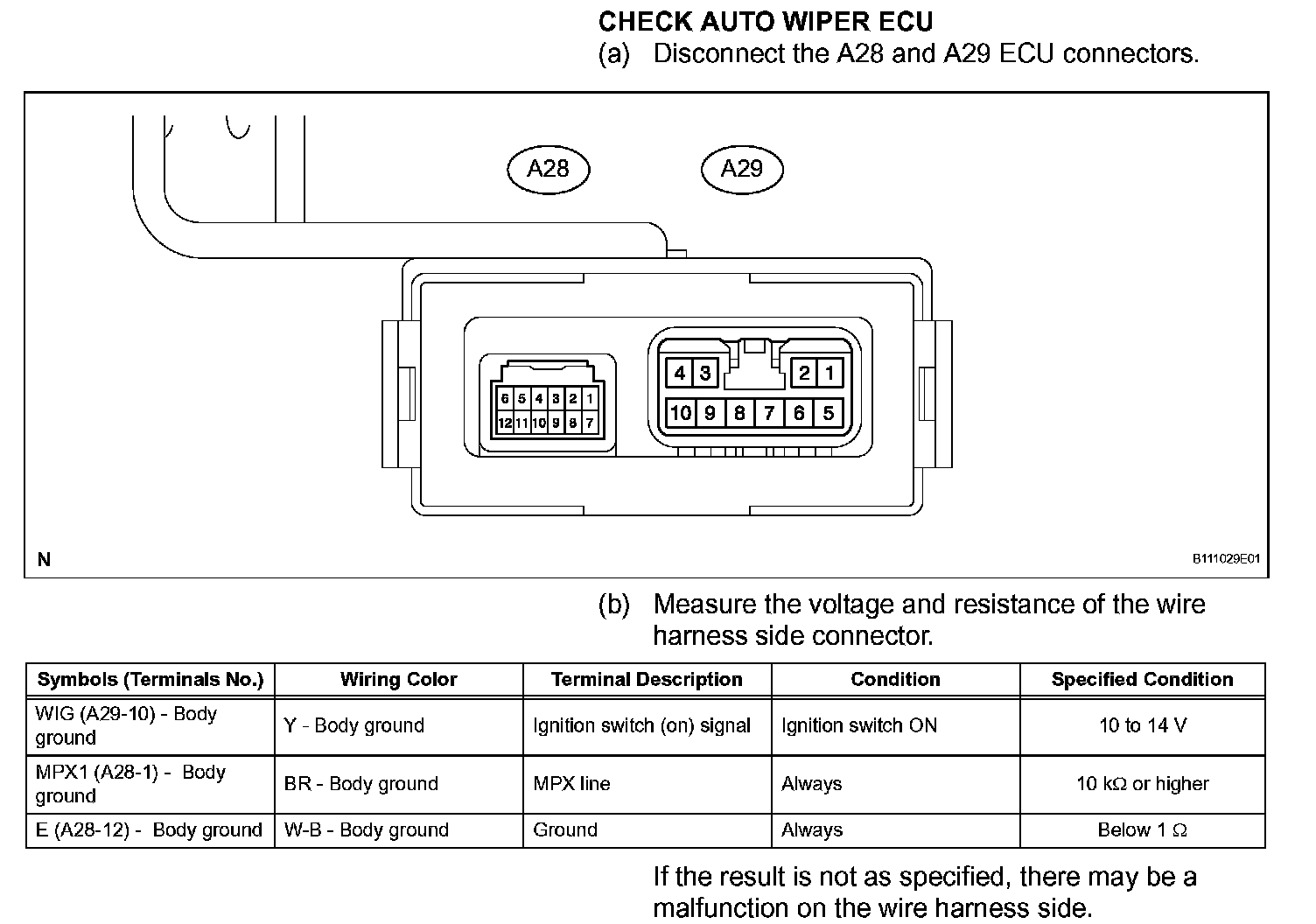

Terminals Of Control Module/Pinouts - Check Auto Wiper ECU:

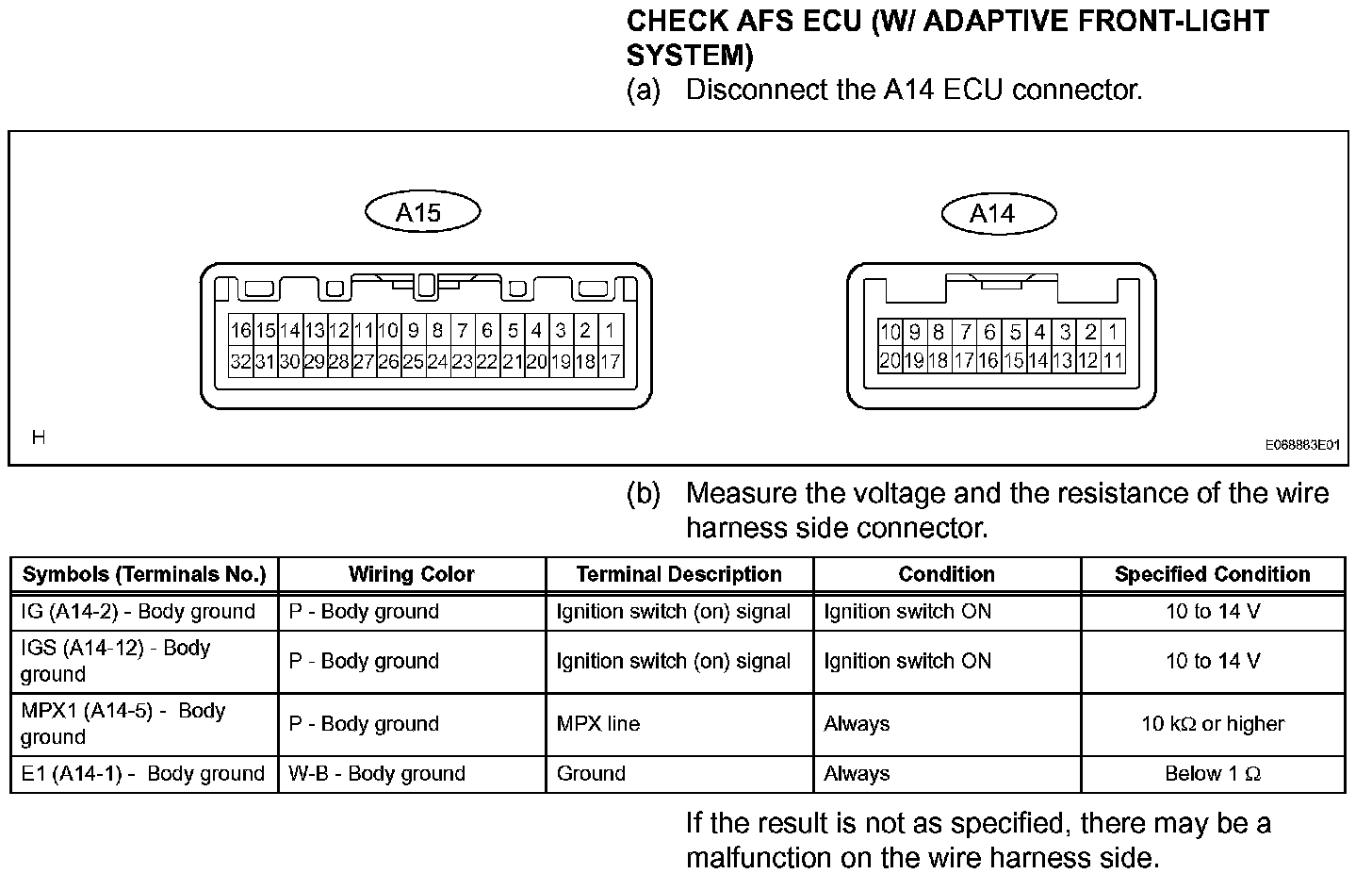

Terminals Of Control Module/Pinouts - Check AFS ECU (W/Adaptive Front -Light System):

Terminals Of Control Module/Pinouts - Check Position Control ECU And Switch Assembly (W/Driving Position Memory):

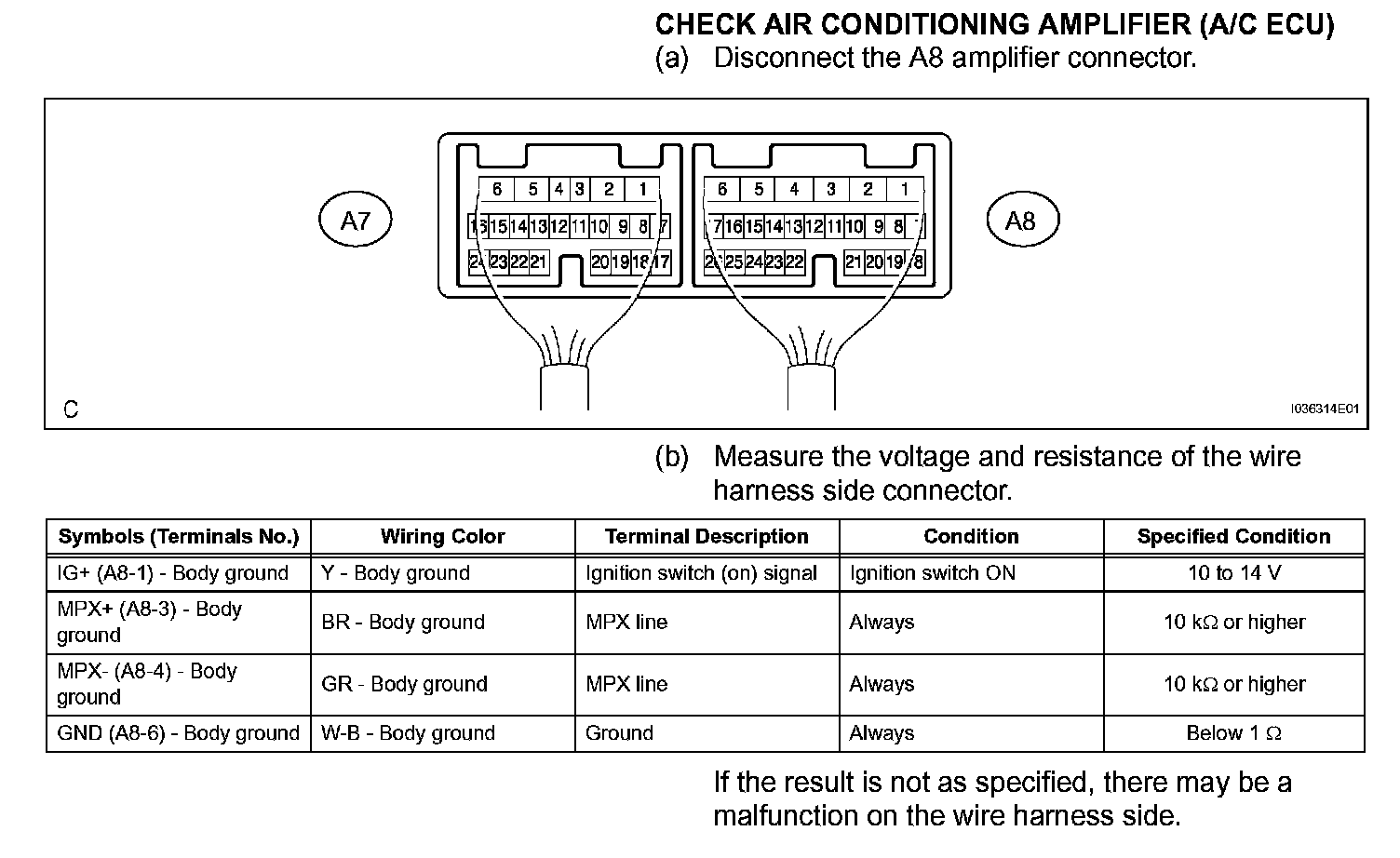

Terminals Of Control Module/Pinouts - Check Air Conditioning Amplifier (A/C ECU):

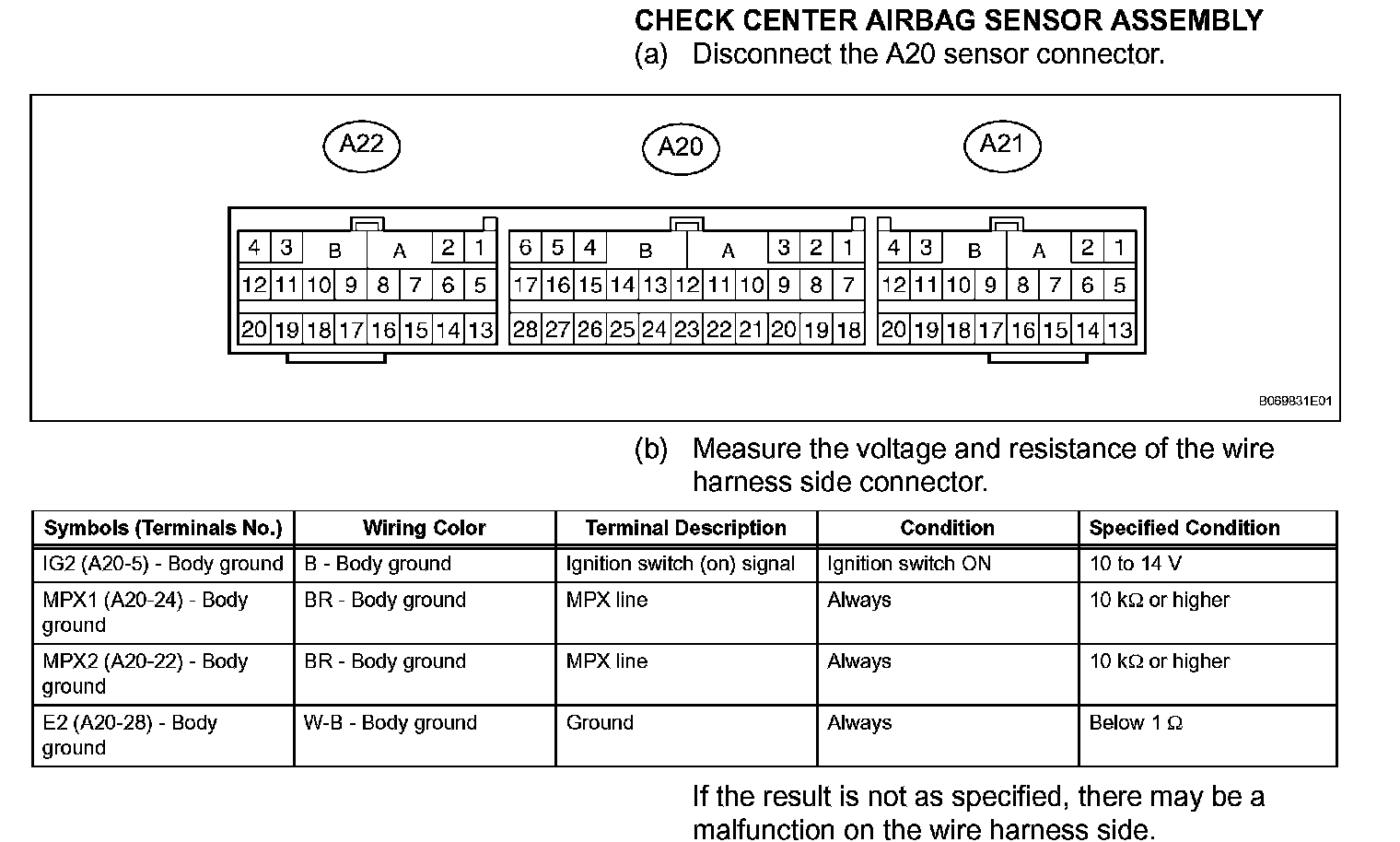

Terminals Of Control Module/Pinouts - Check Center Airbag Sensor Assembly:

Terminals Of Control Module/Pinouts - Check Combination Meter Assembly (Meter ECU):

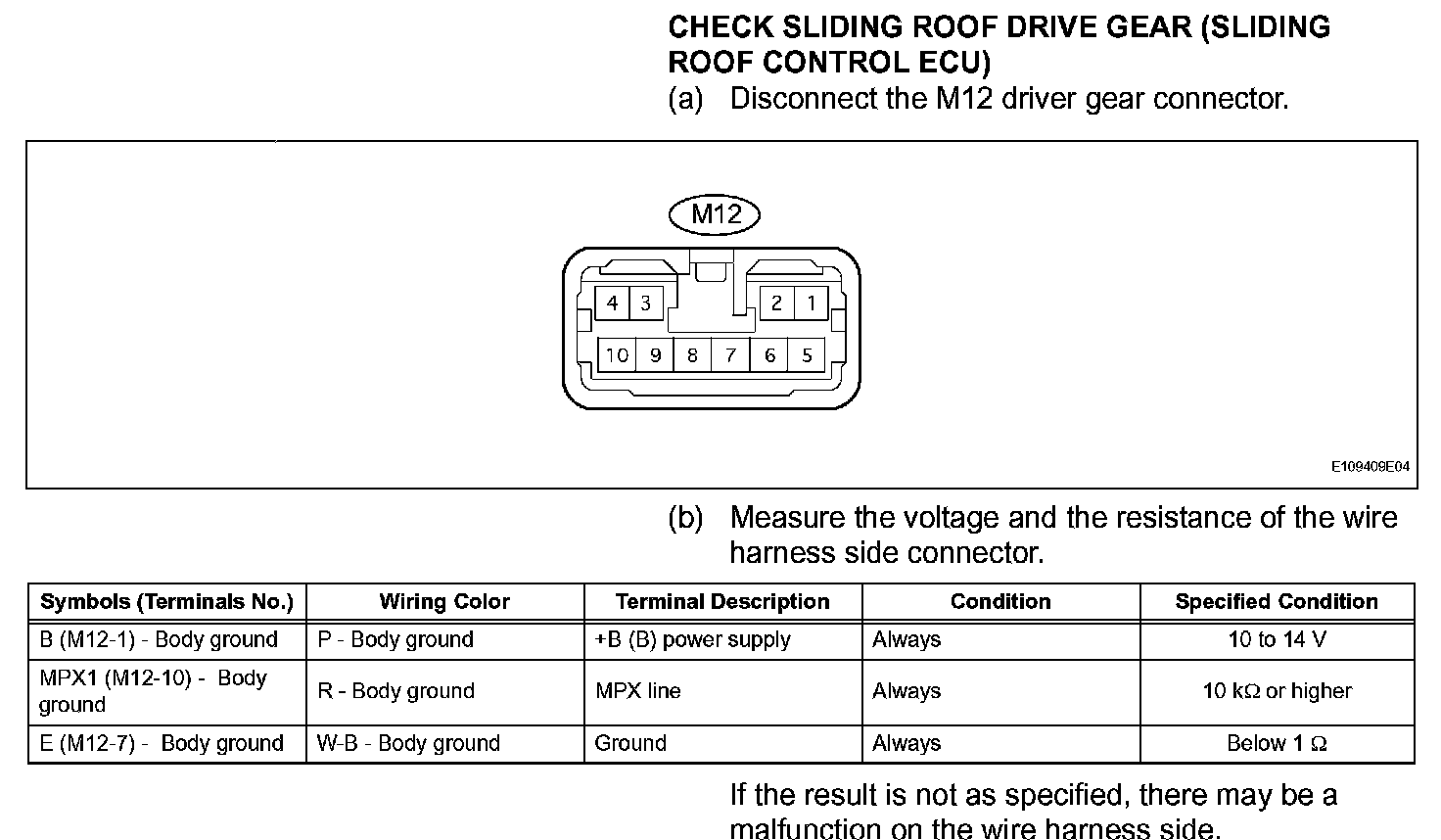

Terminals Of Control Module/Pinouts - Check Sliding Roof Drive Gear (sliding Roof Control ECU):

Terminals Of Control Module/Pinouts - Check Multiplex Tilt And Telescopic ECU (W/Driving Position Memory):

Terminals Of Control Module/Pinouts - Check Rain Sensor:

Terminals Of Control Module/Pinouts - Check Multiplex Network Master Switch:

Terminals Of Control Module/Pinouts - Check Multiplex Back Door ECU:

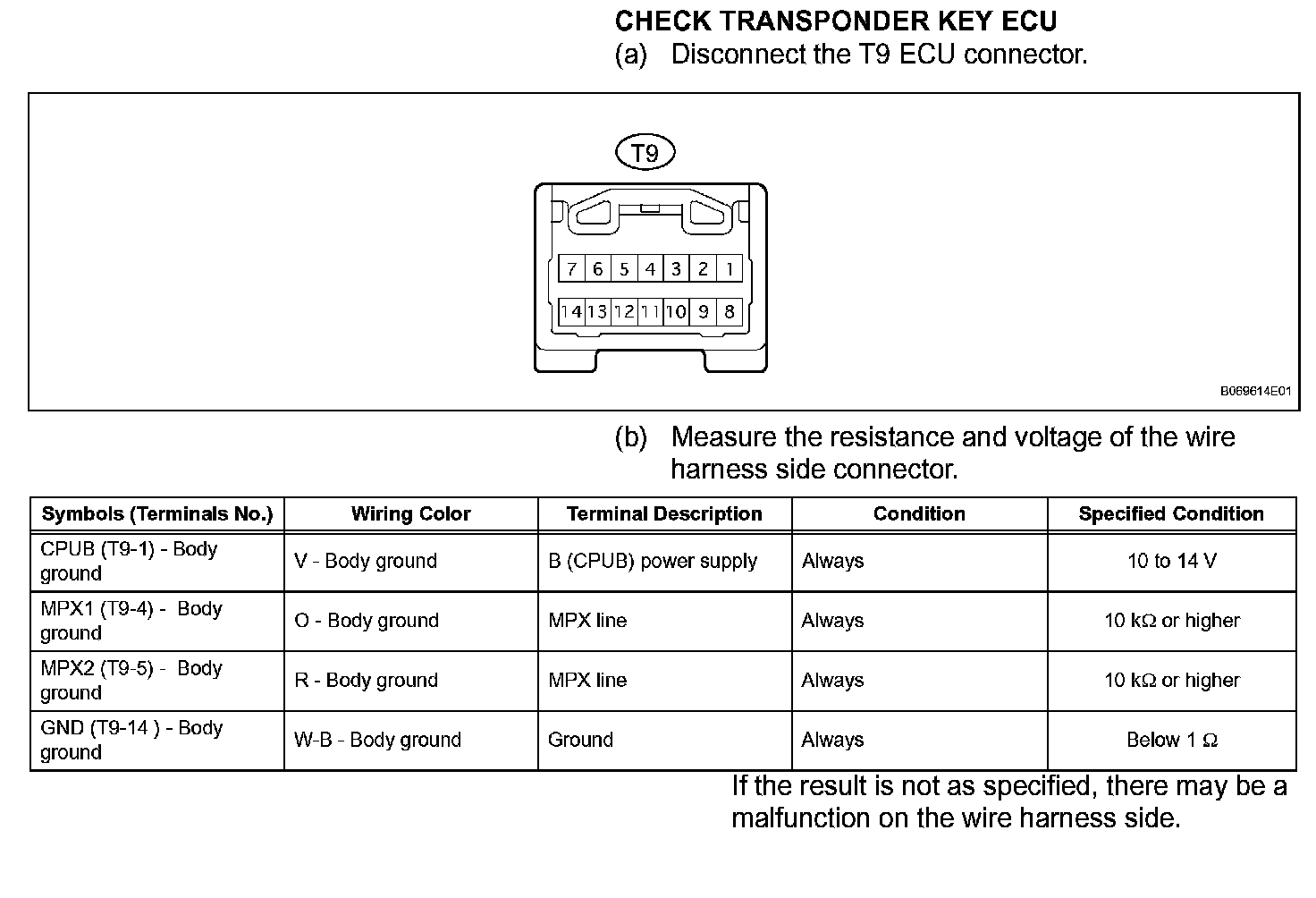

Terminals Of Control Module/Pinouts - Check Transponder KEY ECU:

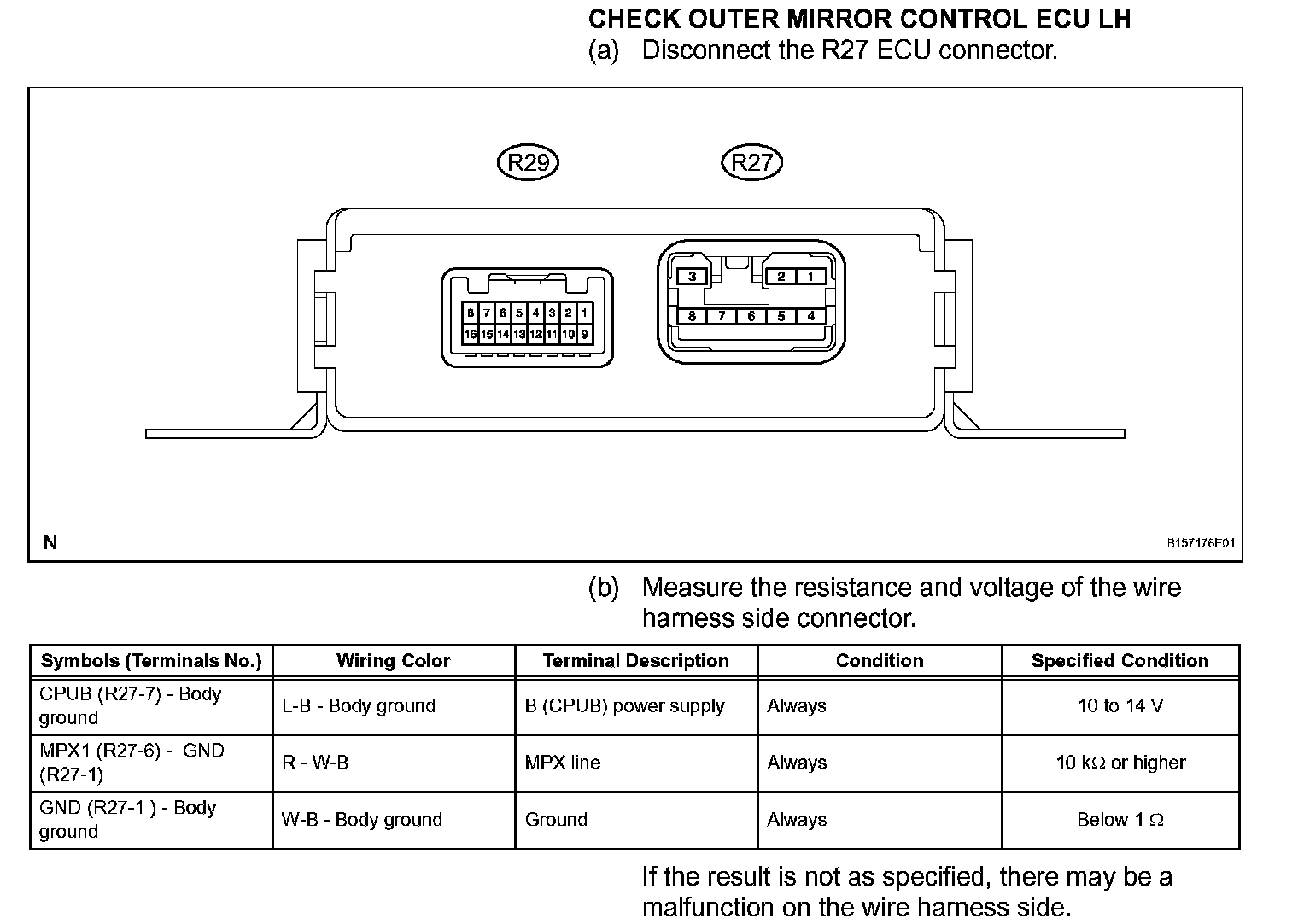

Terminals Of Control Module/Pinouts - Check Outer Mirror Control ECU LH:

Terminals Of Control Module/Pinouts - Check Outer Mirror Control ECU RH (Part 1):

Terminals Of Control Module/Pinouts - Check Outer Mirror Control ECU RH (Part 2):

Terminals Of Control Module/Pinouts - Check Tire Pressure Warning ECU:

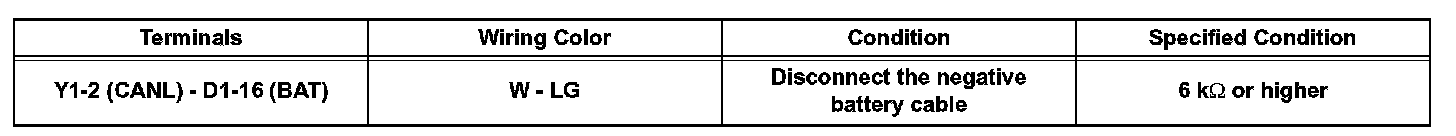

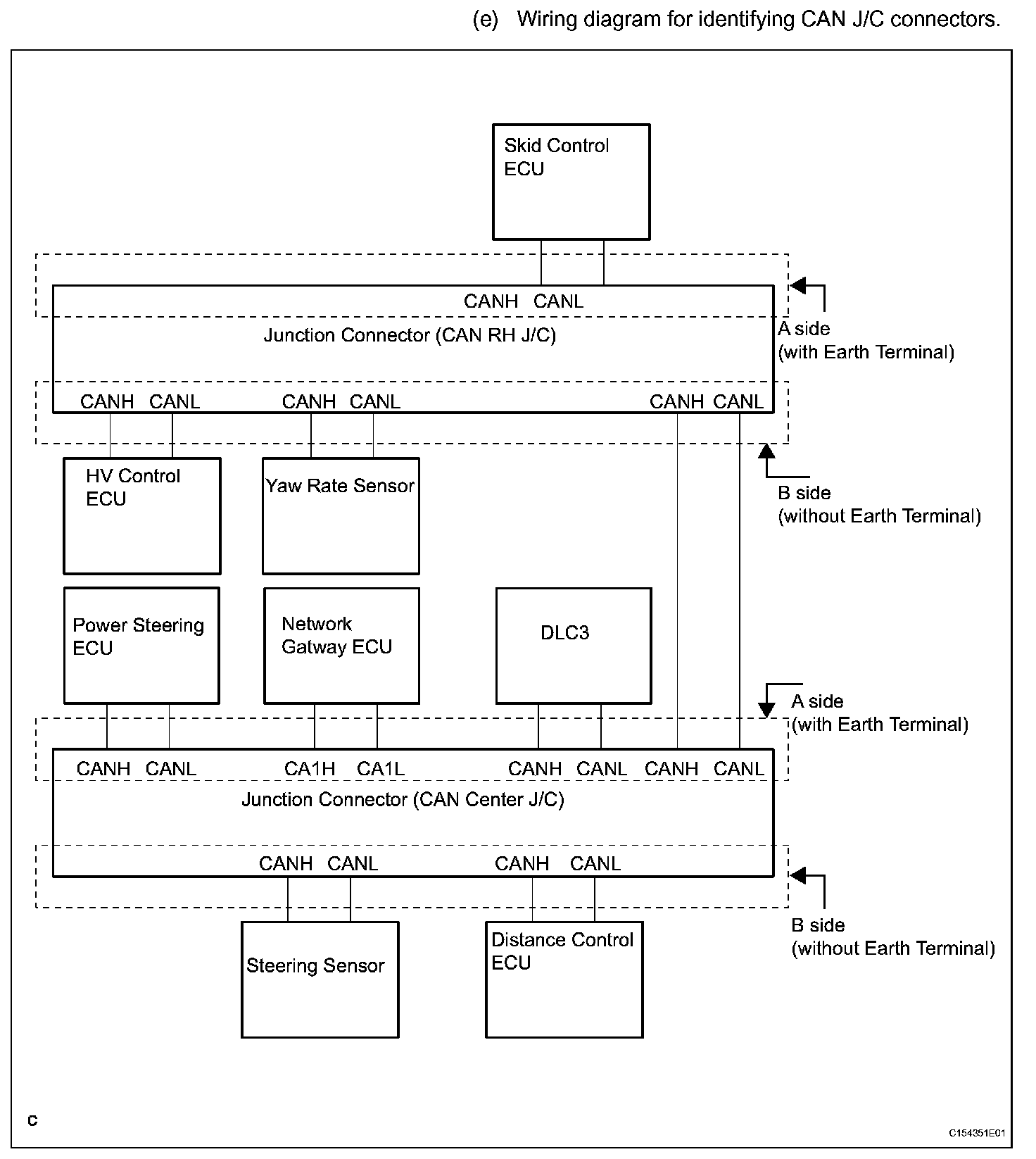

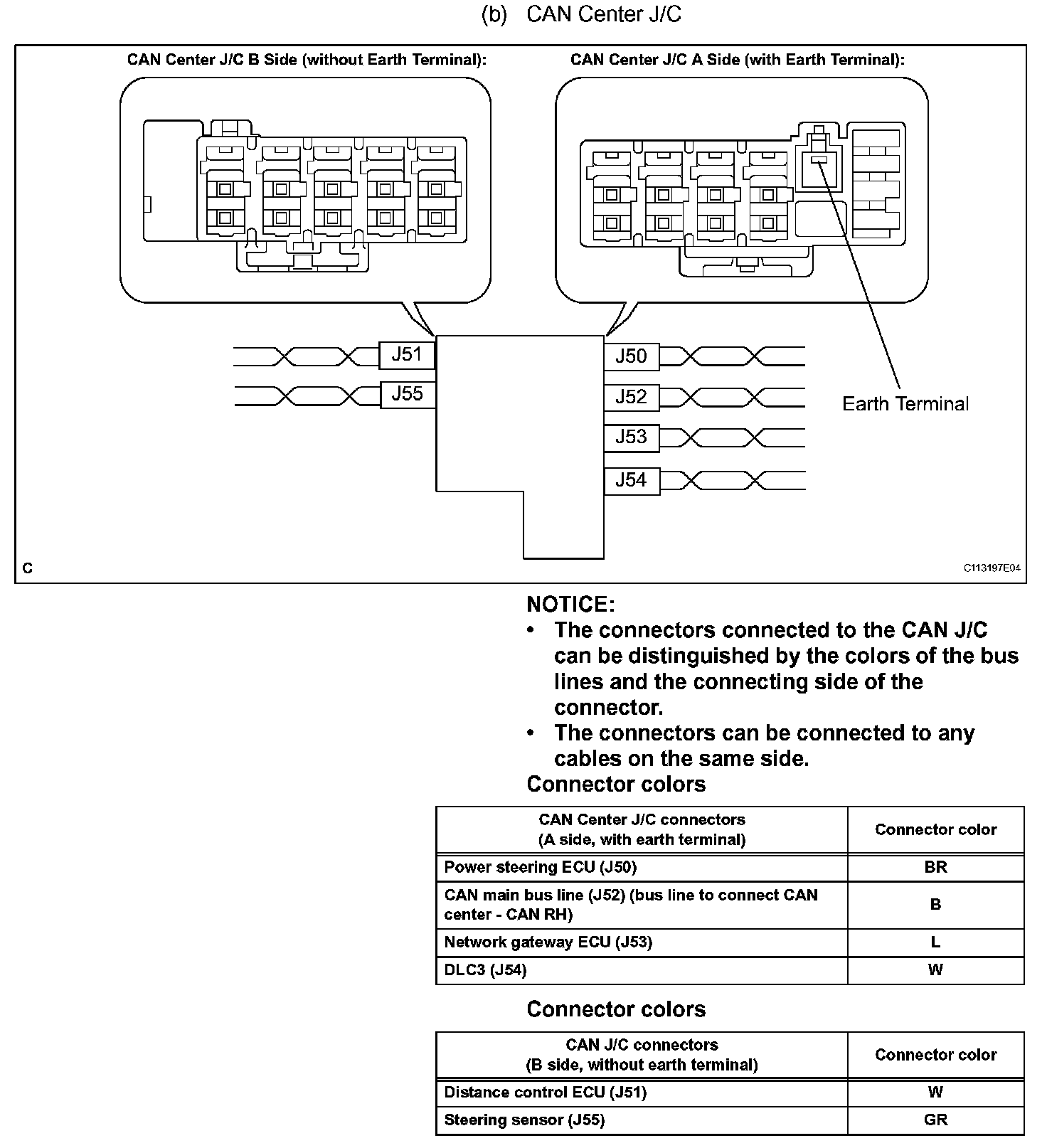

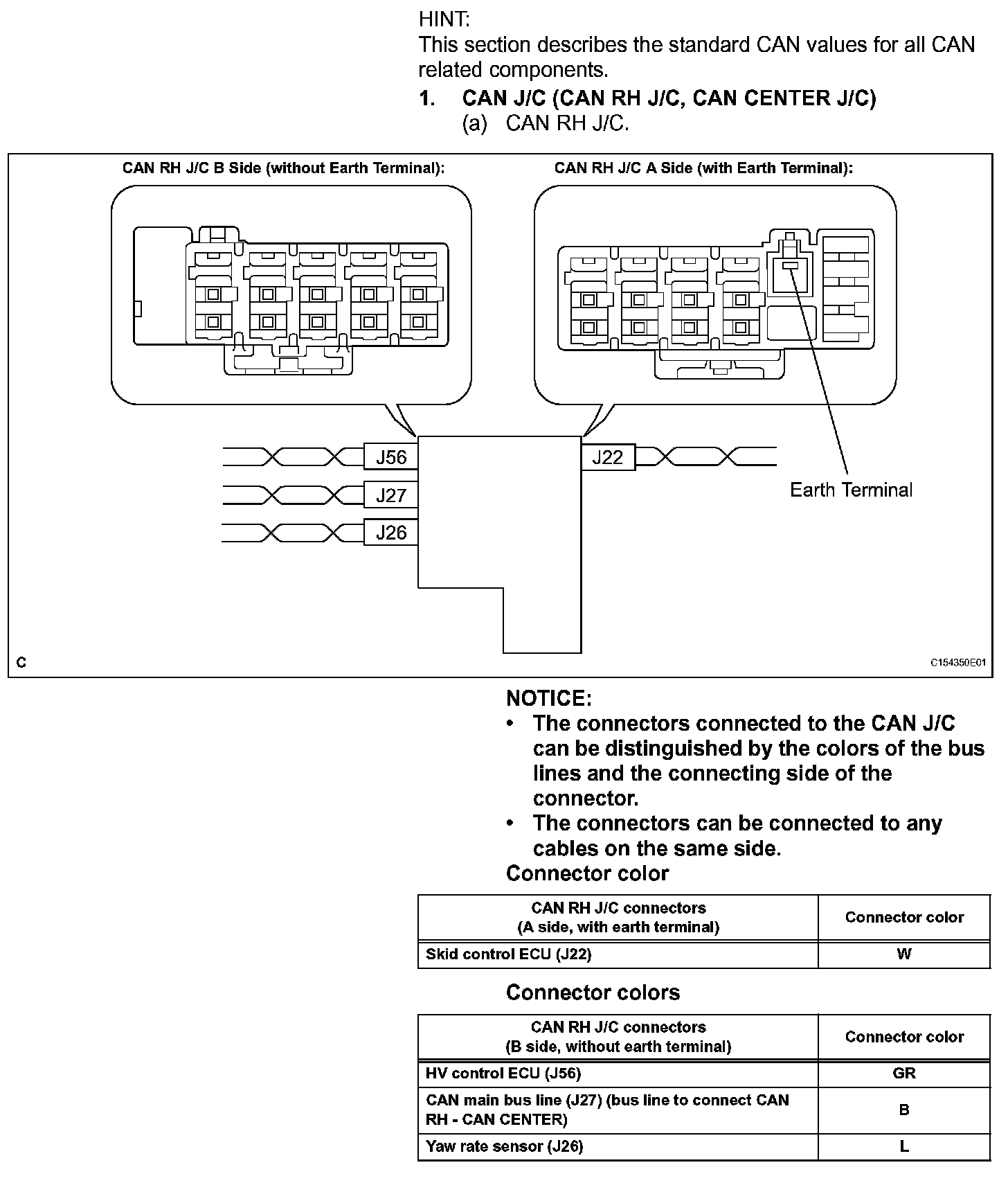

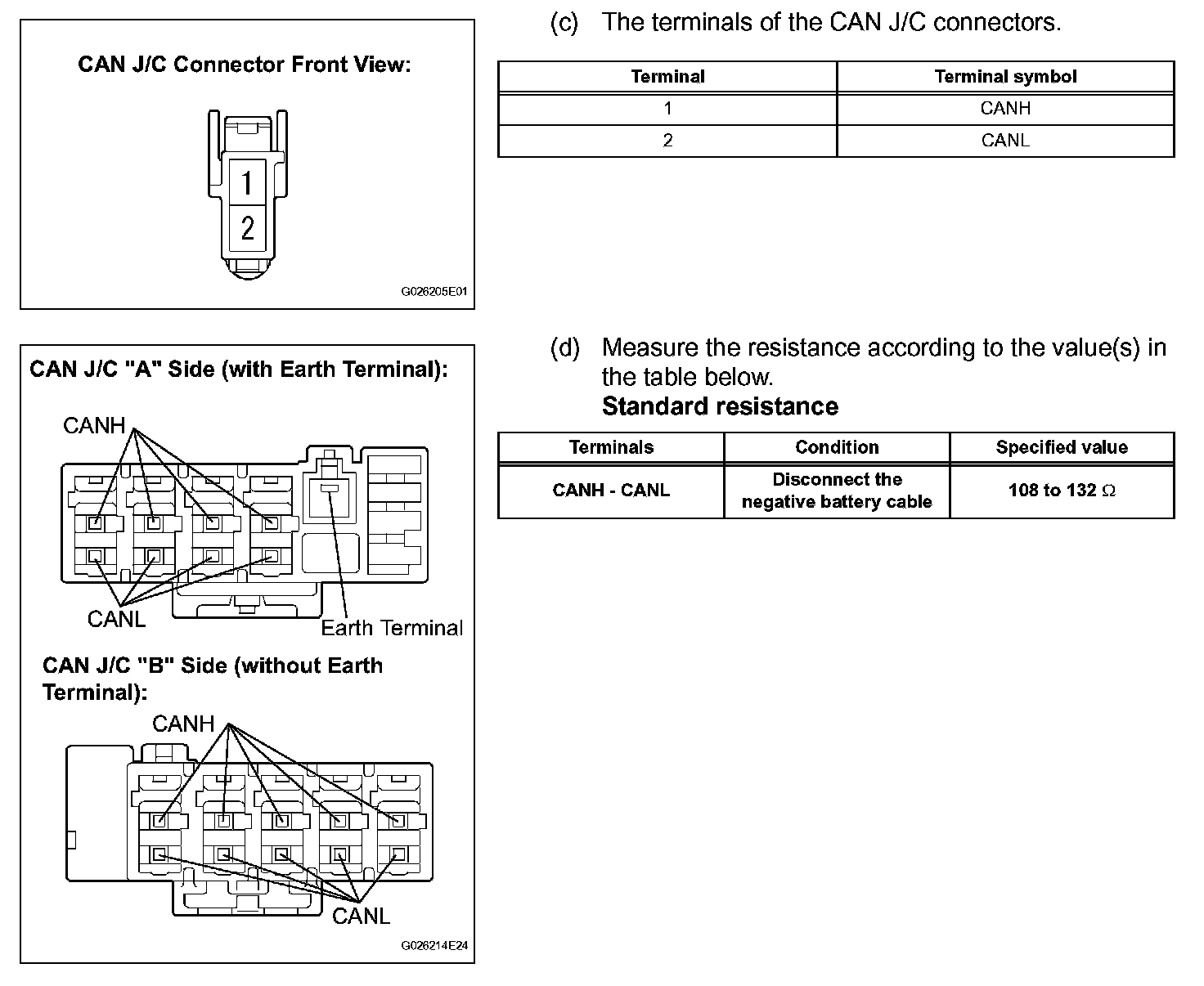

Terminals Of Control Module/Pinouts - CAN J/C (CAN RH J/C, CAN Center J/C) (Part 1):

Terminals Of Control Module/Pinouts - CAN J/C (CAN RH J/C, CAN Center J/C) (Part 2):

Terminals Of Control Module/Pinouts - CAN J/C (CAN RH J/C, CAN Center J/C) (Part 3):

Terminals Of Control Module/Pinouts - CAN J/C (CAN RH J/C, CAN Center J/C) (Part 4):

Terminals Of Control Module/Pinouts - DLC3:

Terminals Of Control Module/Pinouts - Skid Control ECU:

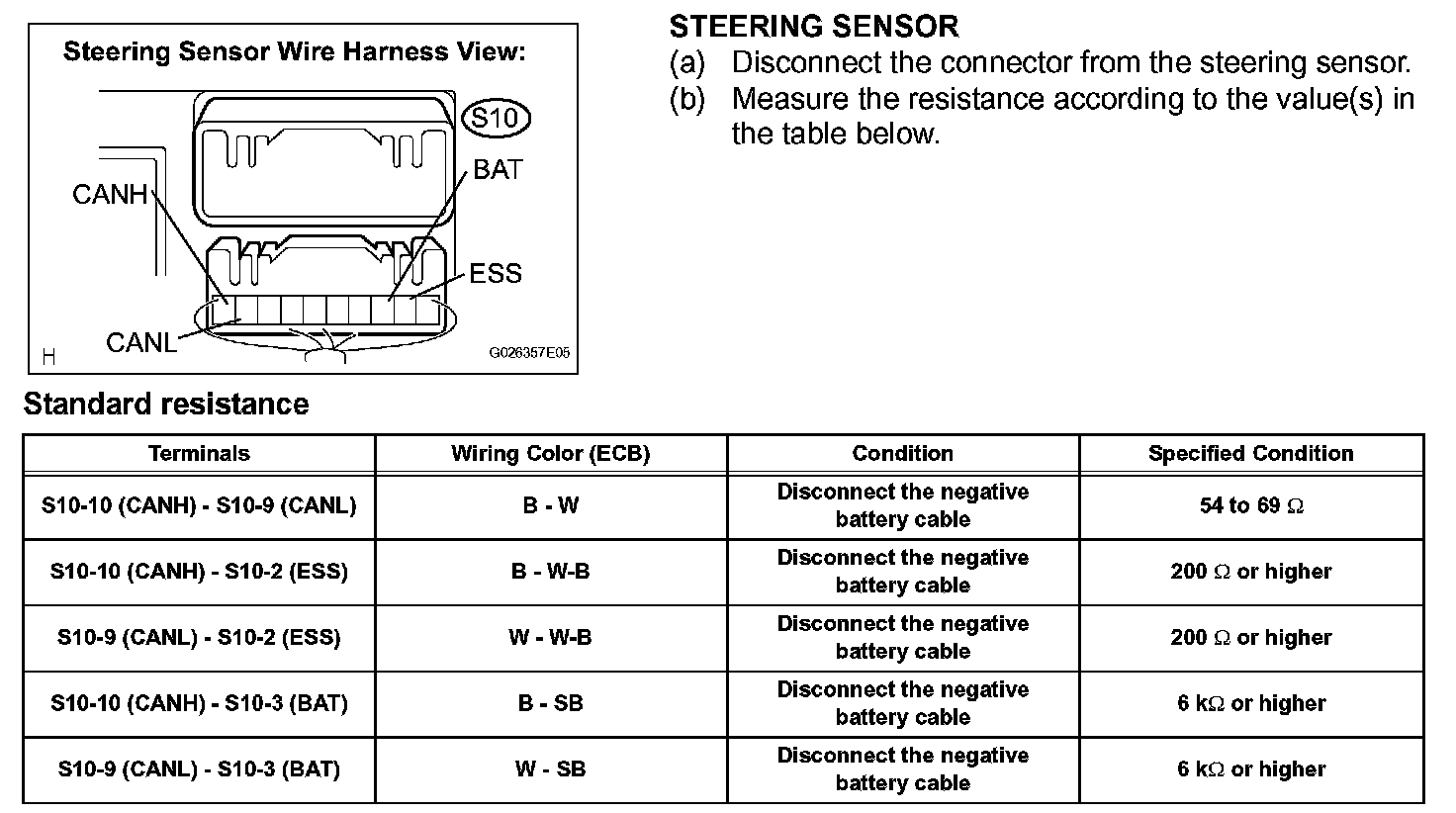

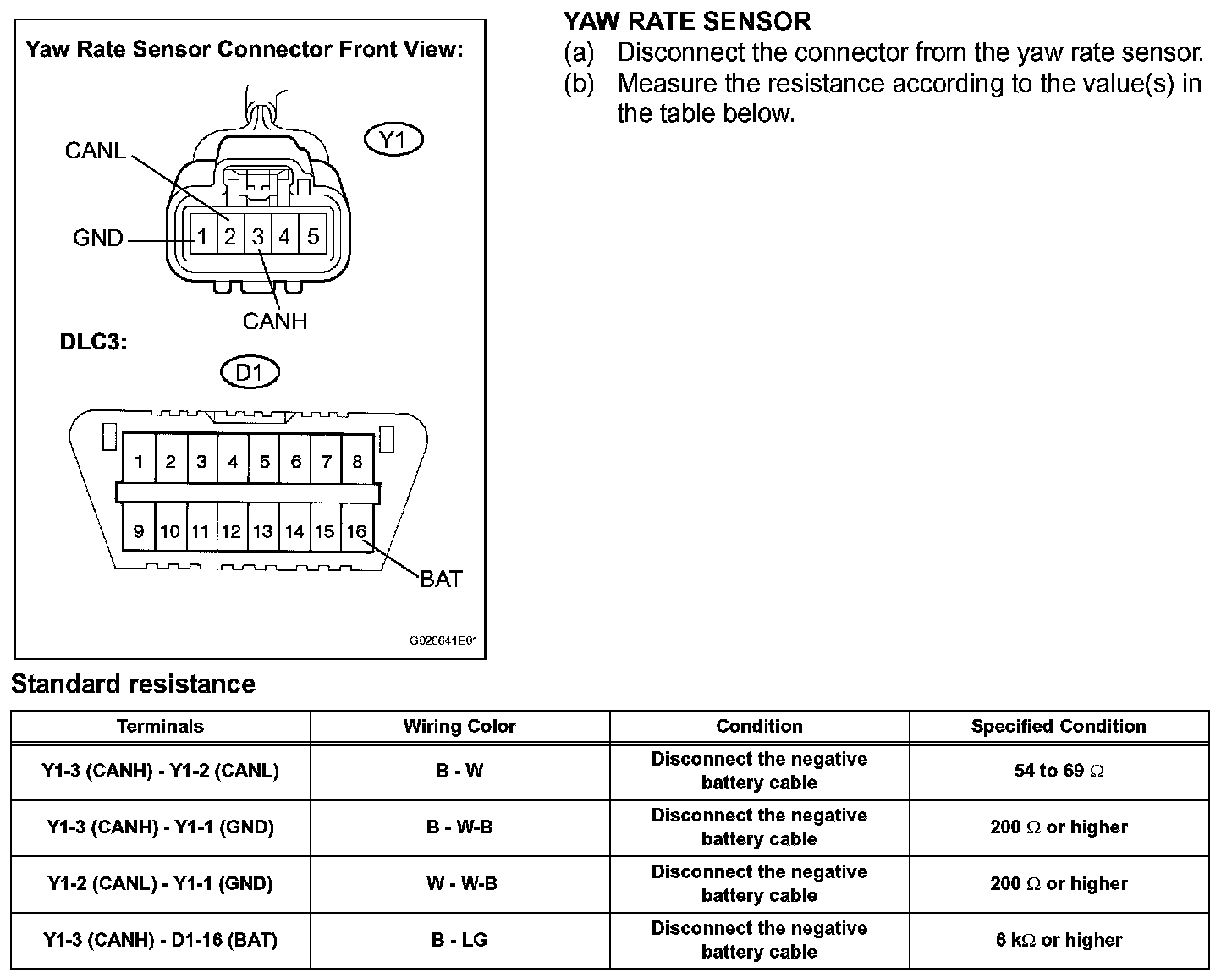

Terminals Of Control Module/Pinouts - Steering Sensor:

Terminals Of Control Module/Pinouts - Yaw Rate Sensor (Part 1):

Terminals Of Control Module/Pinouts - Yaw Rate Sensor (Part 2):

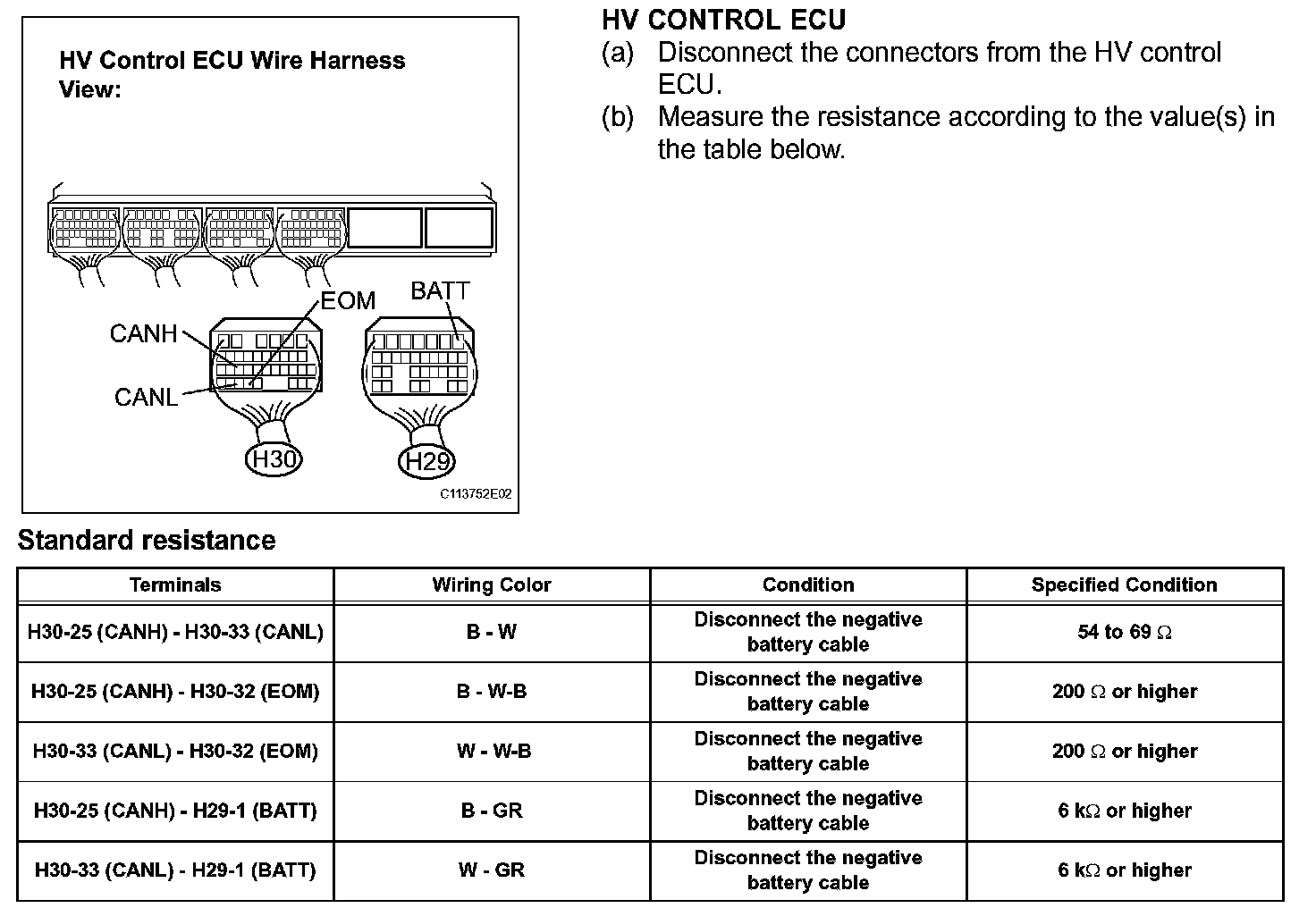

Terminals Of Control Module/Pinouts - HV Control ECU:

Terminals Of Control Module/Pinouts - Power Steering ECU:

Terminals Of Control Module/Pinouts - Gateway ECU:

Terminals Of Control Module/Pinouts - Distance Control ECU (Part 1):

Terminals Of Control Module/Pinouts - Distance Control ECU (Part 2):
