Skid Control ECU Communication Stop Mode

Skid Control ECU Communication Stop Mode

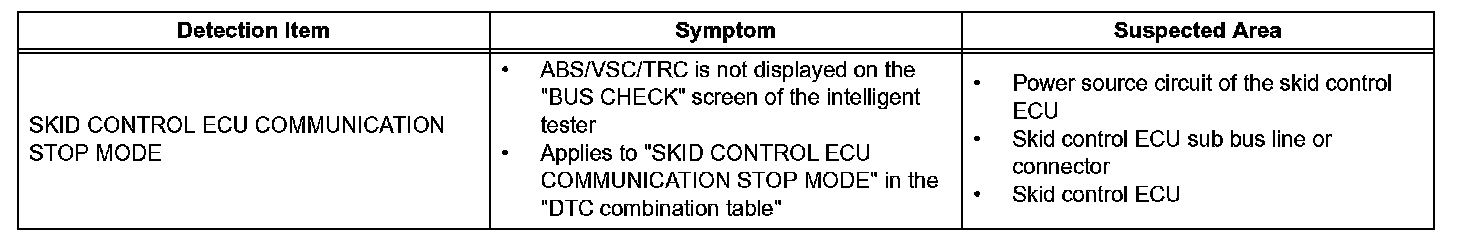

DESCRIPTION

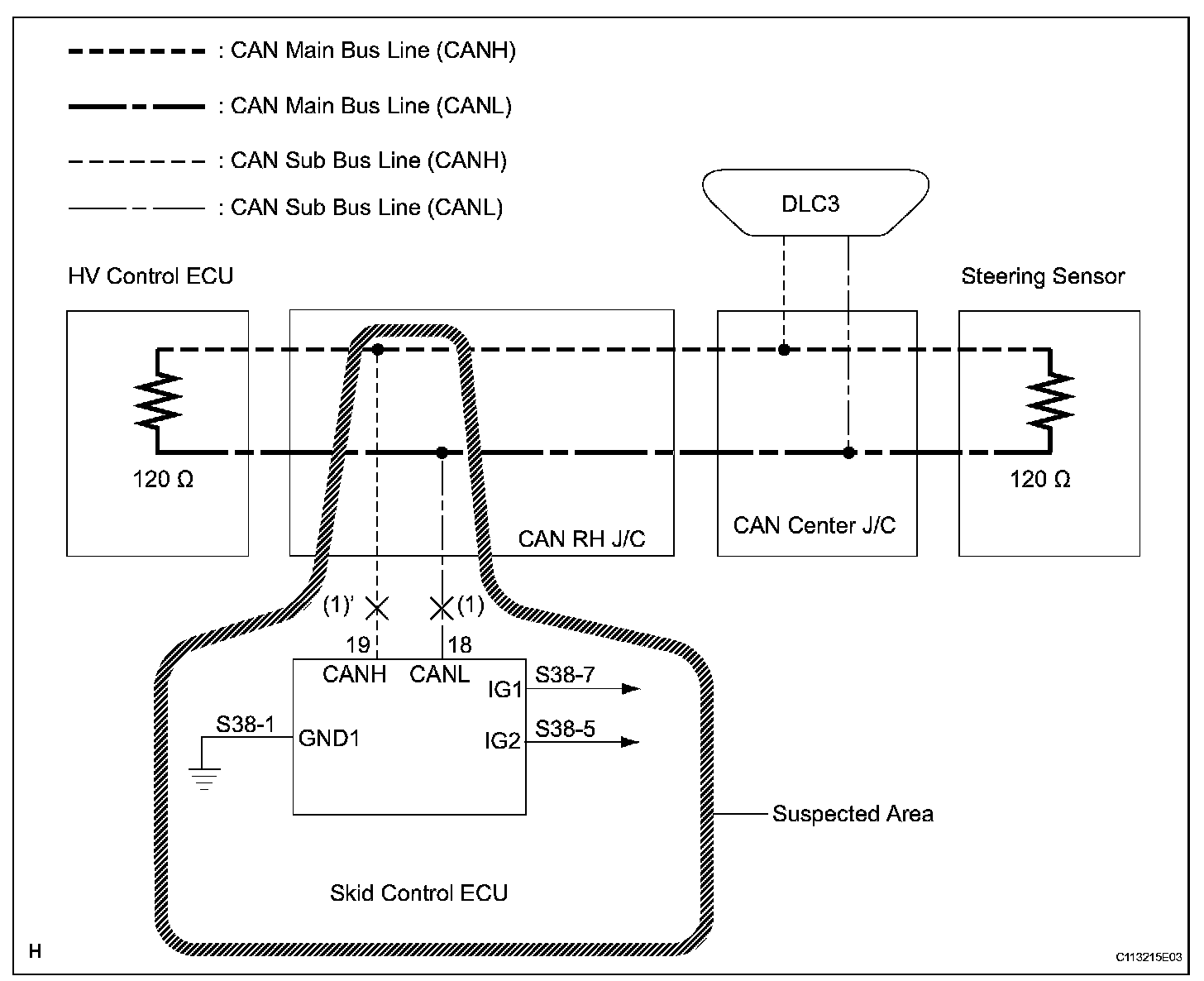

Wiring Diagram:

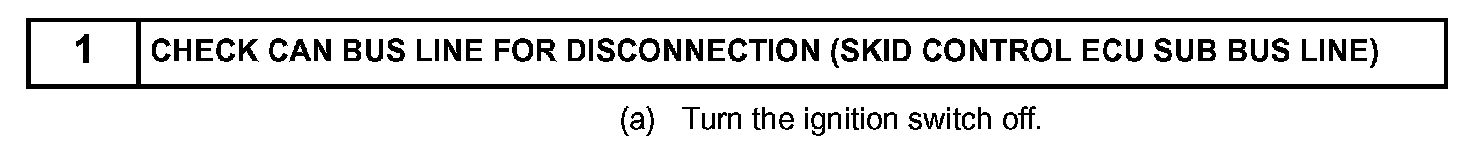

Step 1:

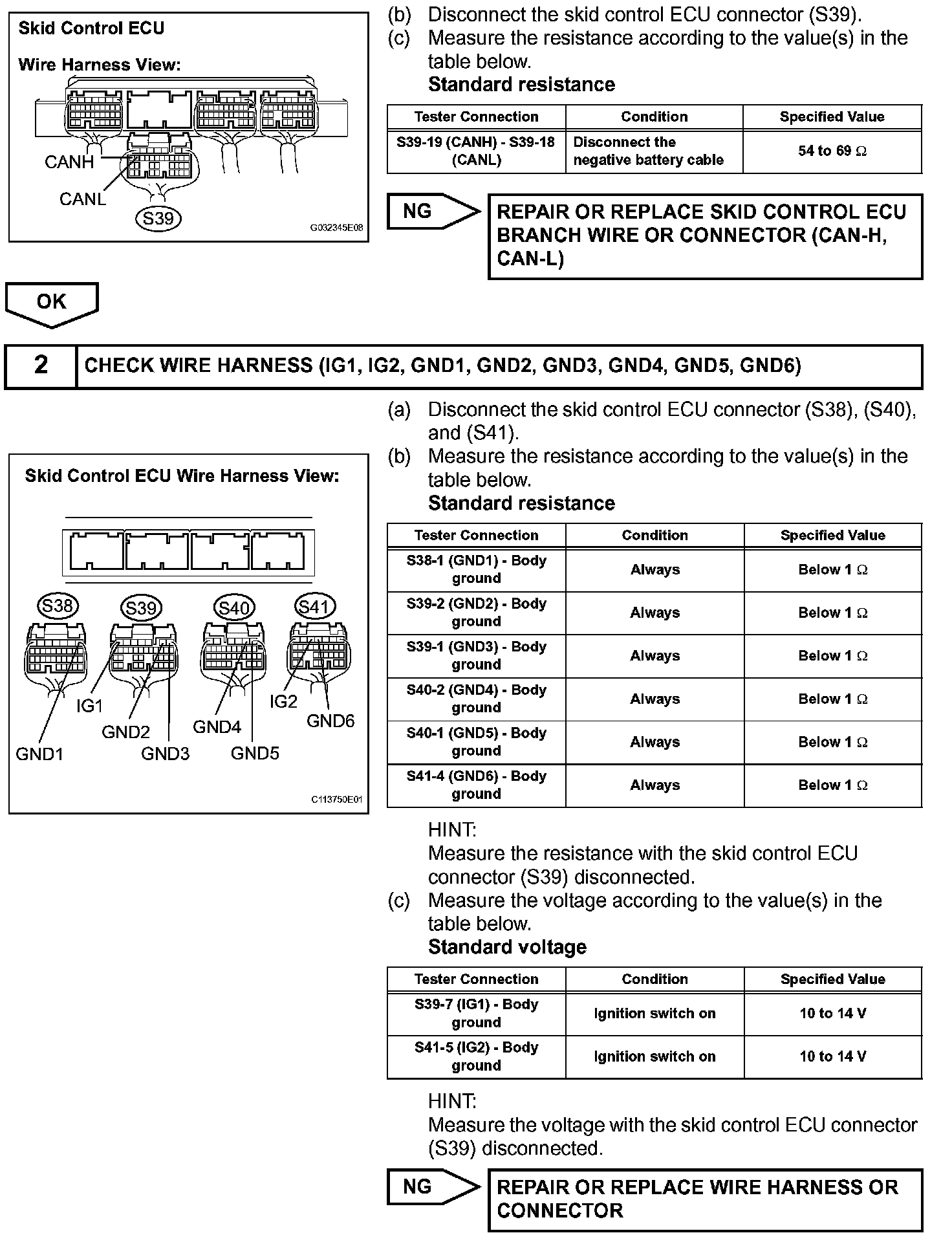

Step 1 (Continued)-2:

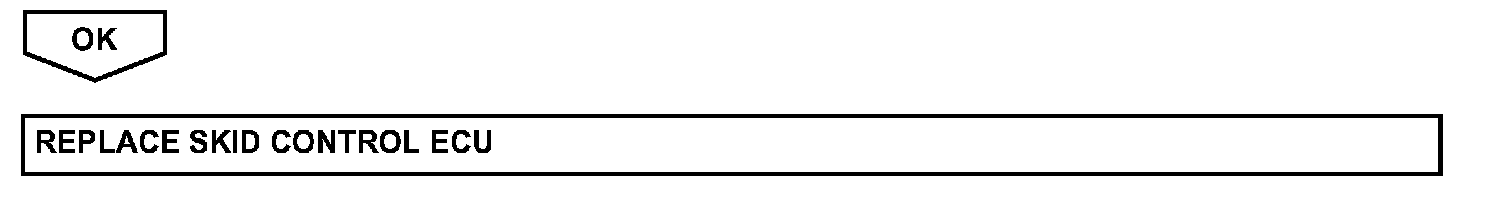

Step 2 (Continued):




INSPECTION PROCEDURE
