Short to B+ in CAN Bus Line
Short to B+ in CAN Bus LineDESCRIPTION
There may be a short circuit between the CAN bus line and B+ if there is continuity between terminals 6 (CANH) and 16 (BAT), or terminals 14 (CANL) and 16 (BAT) of the DLC3.
Wiring Diagram:

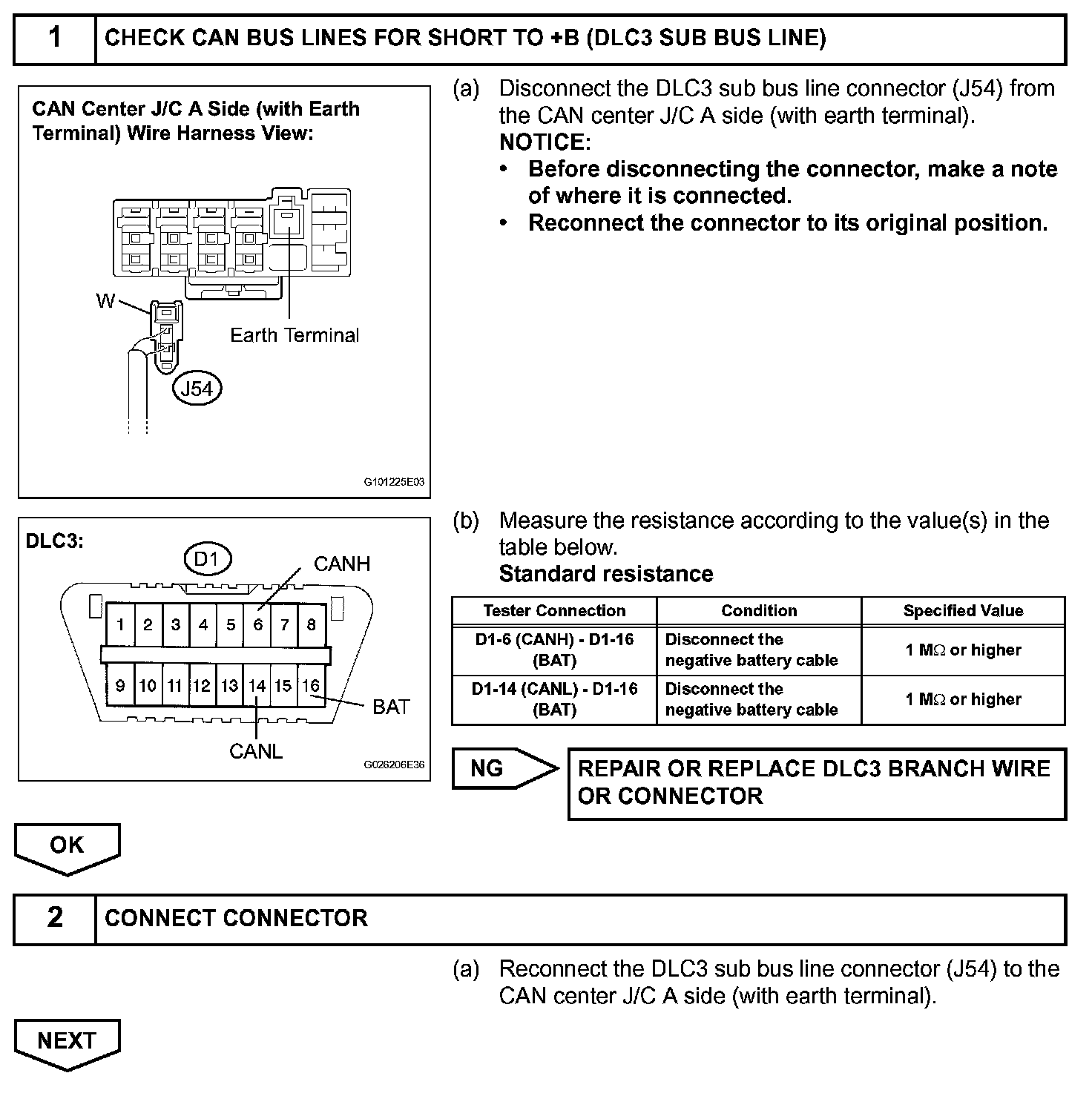

Step 1-2:

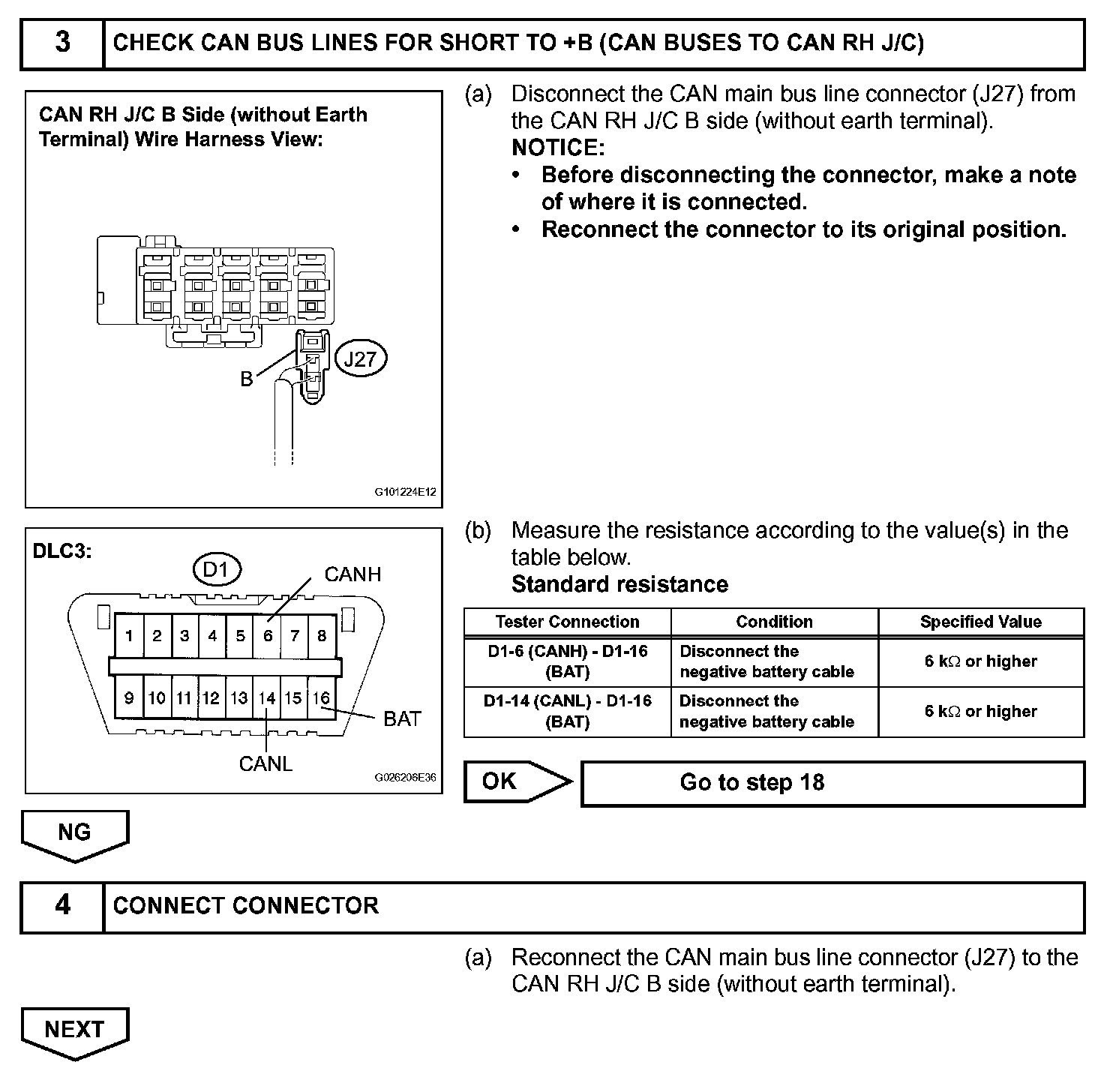

Step 3-4:

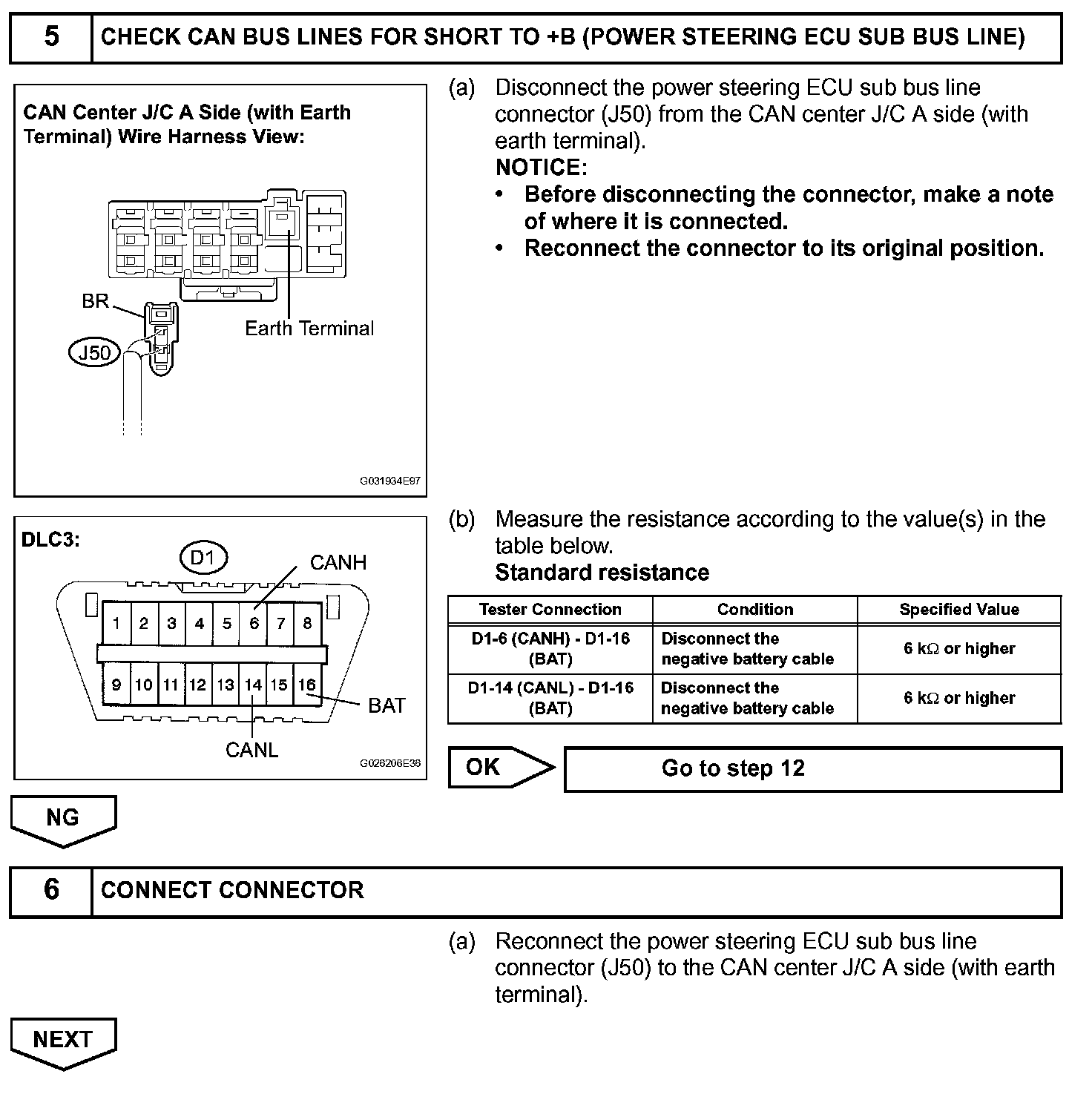

Step 5-6:

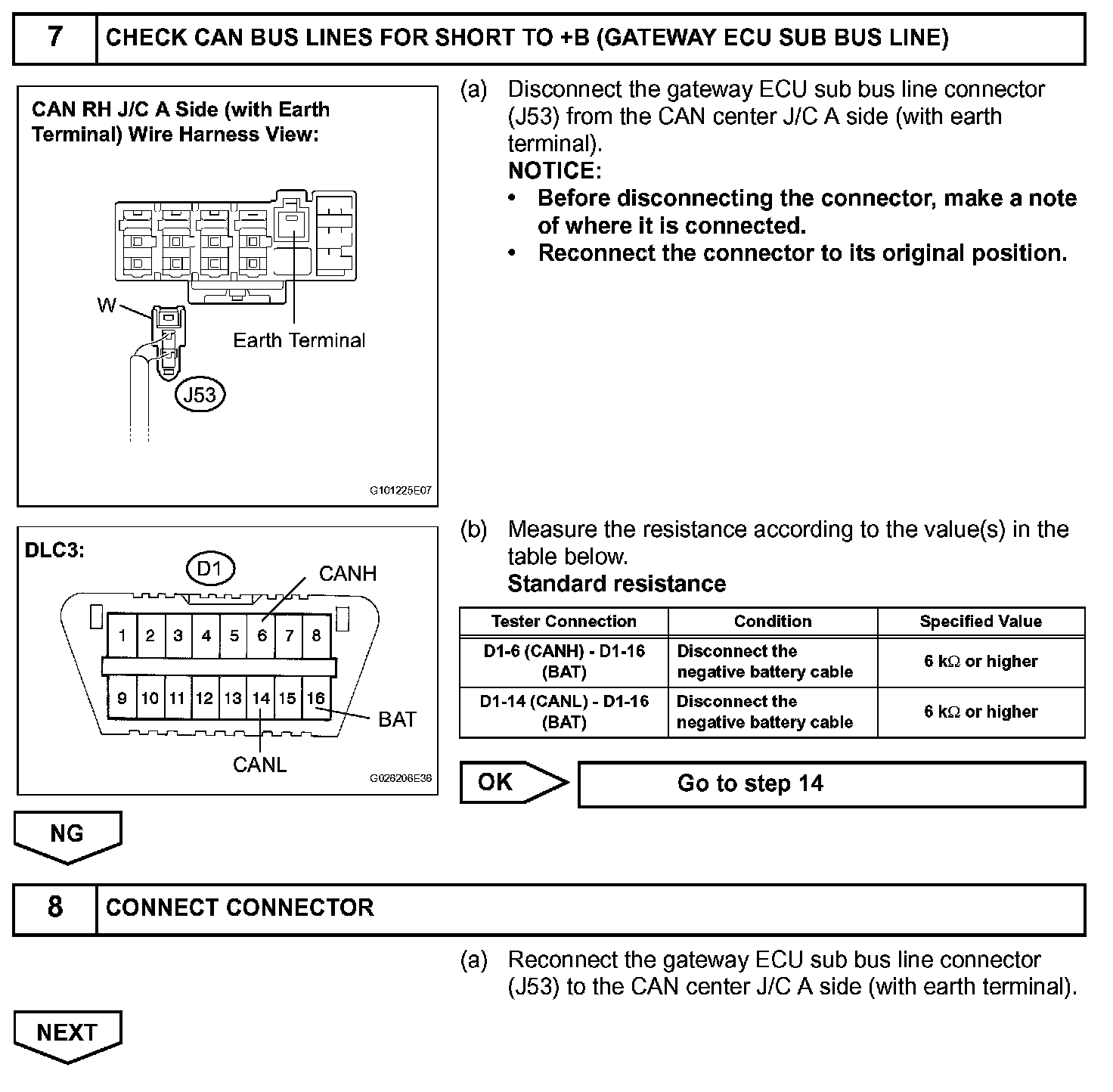

Step 7-8:

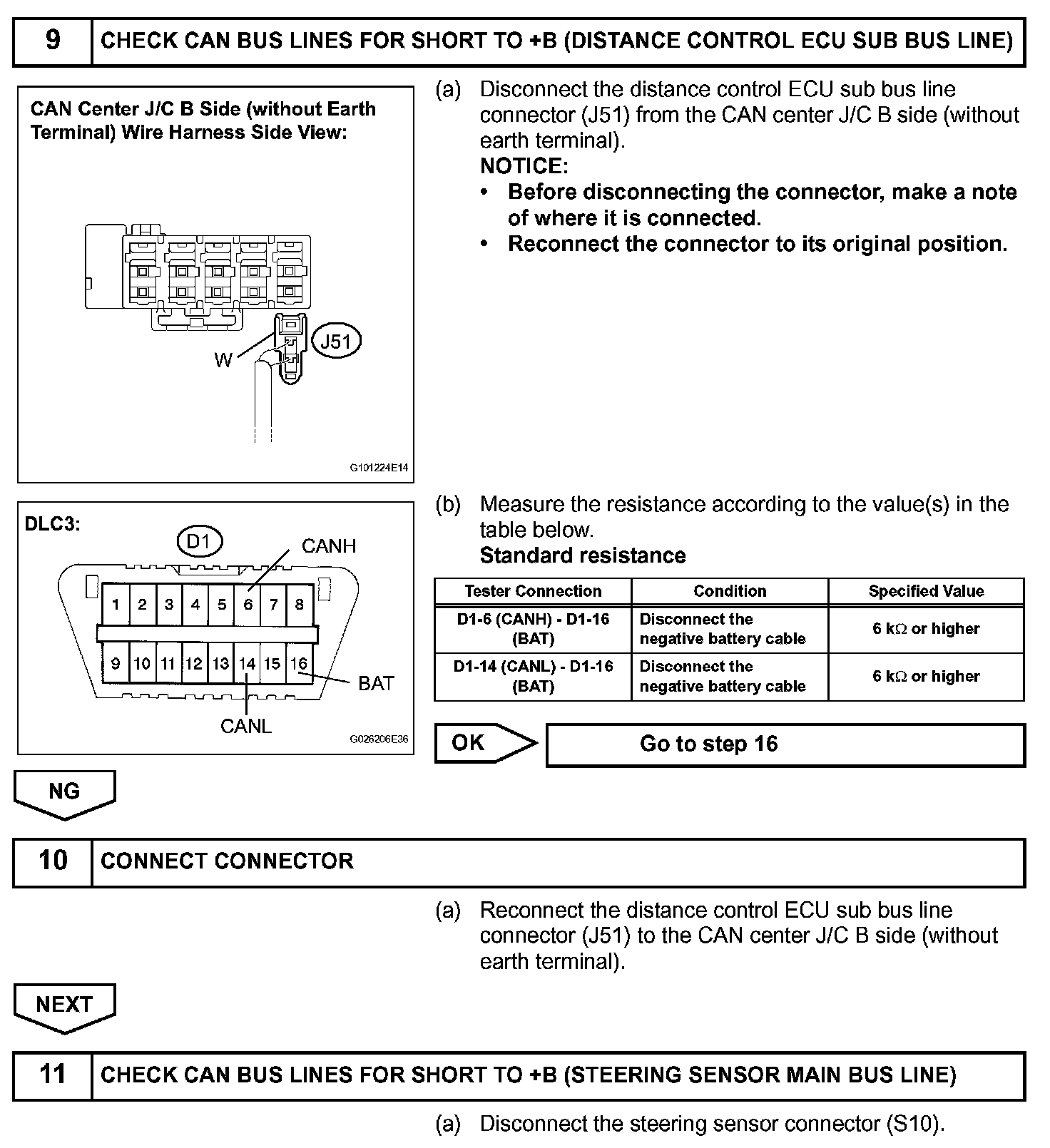

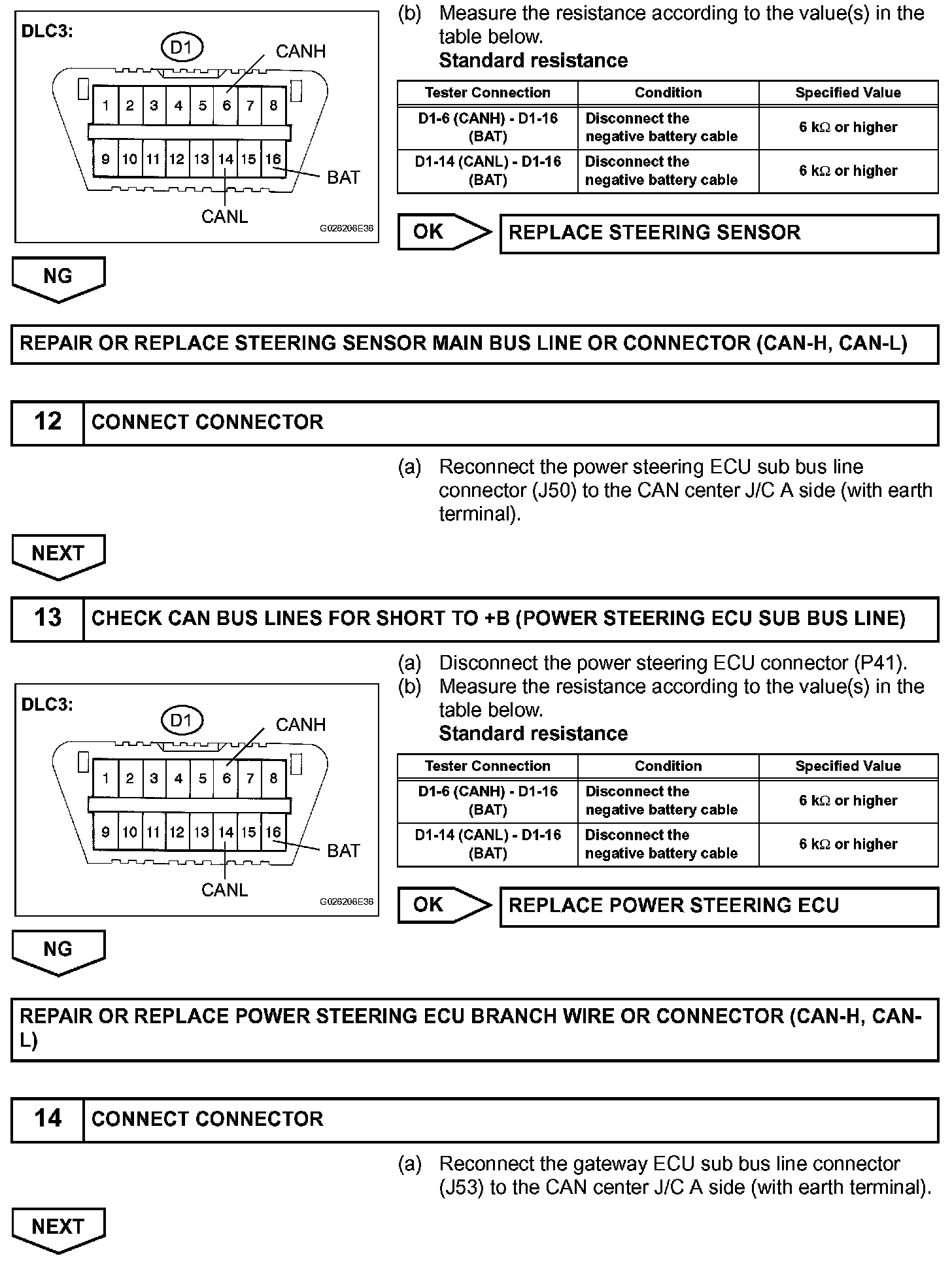

Step 9-11:
Step 11 (Continued)-14:

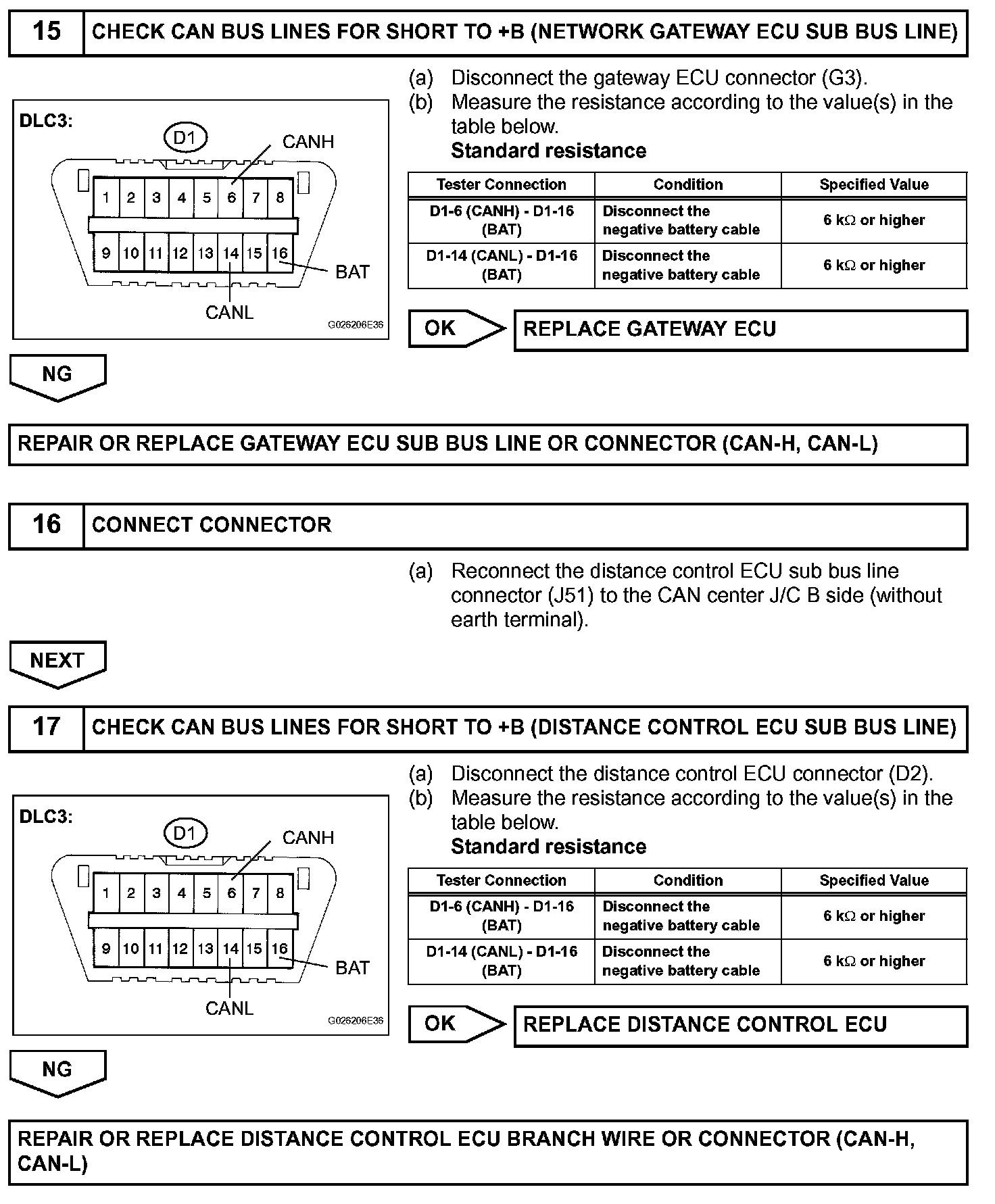

Step 15-17:

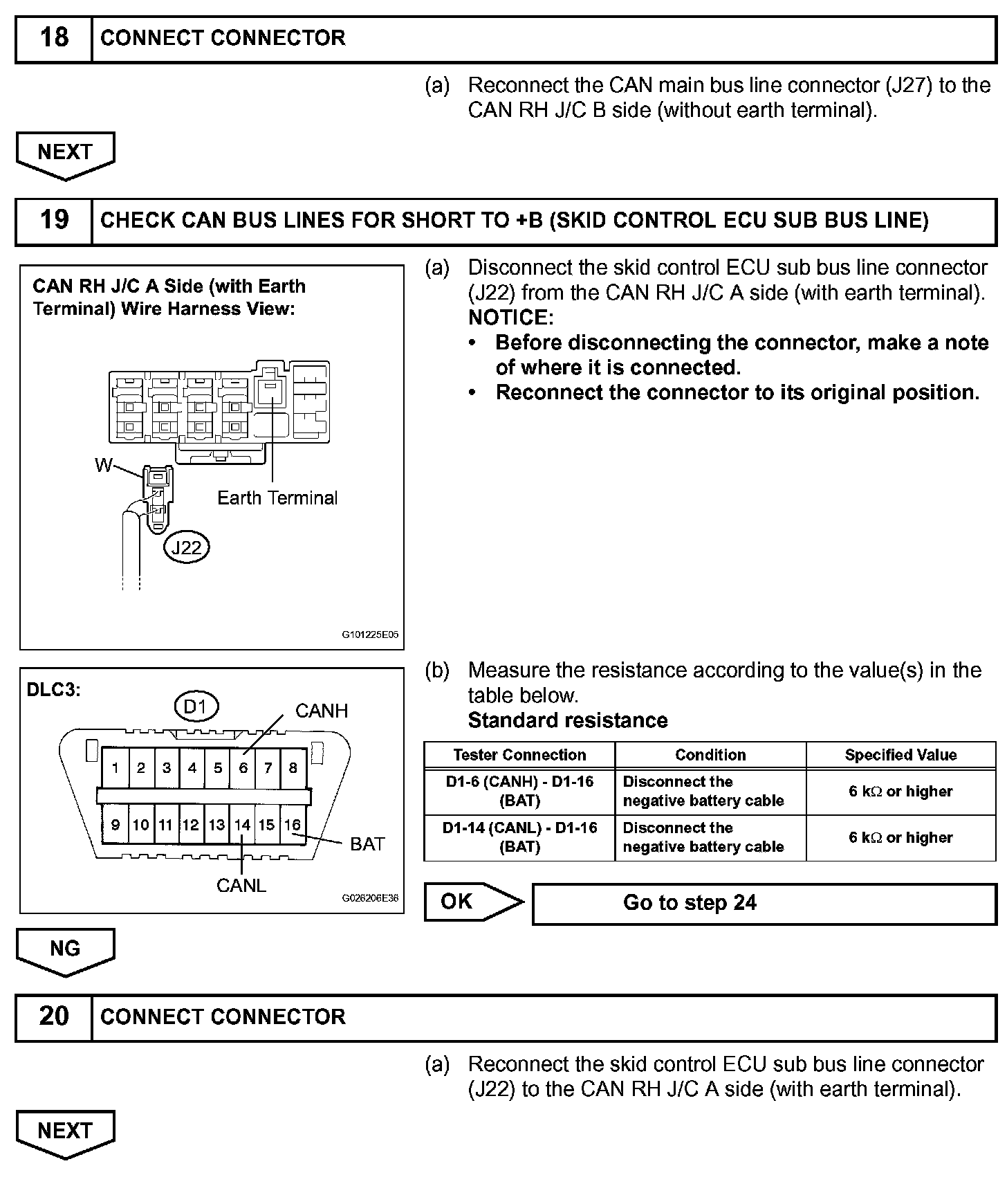

Step 18-20:

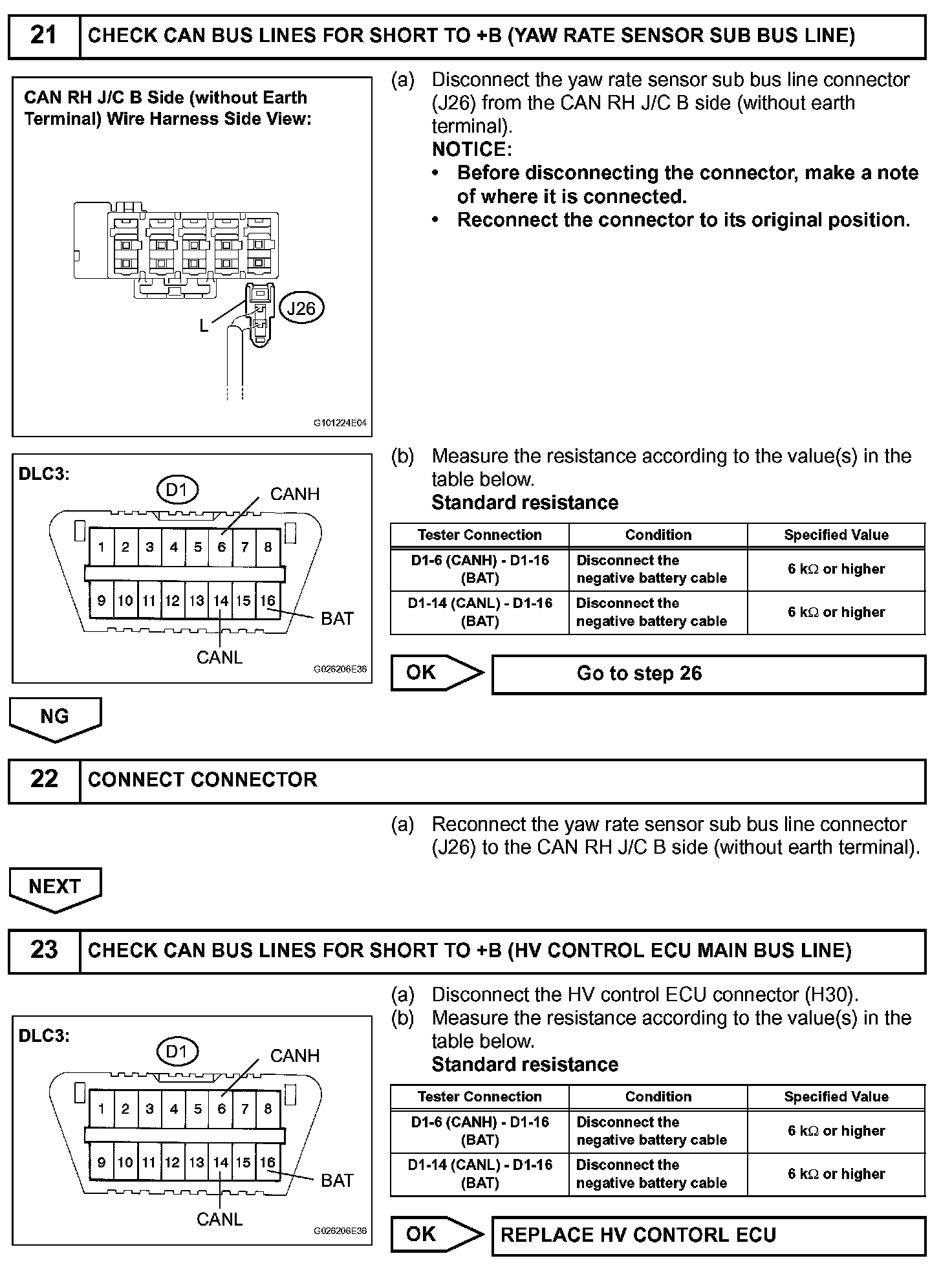

Step 21-23:

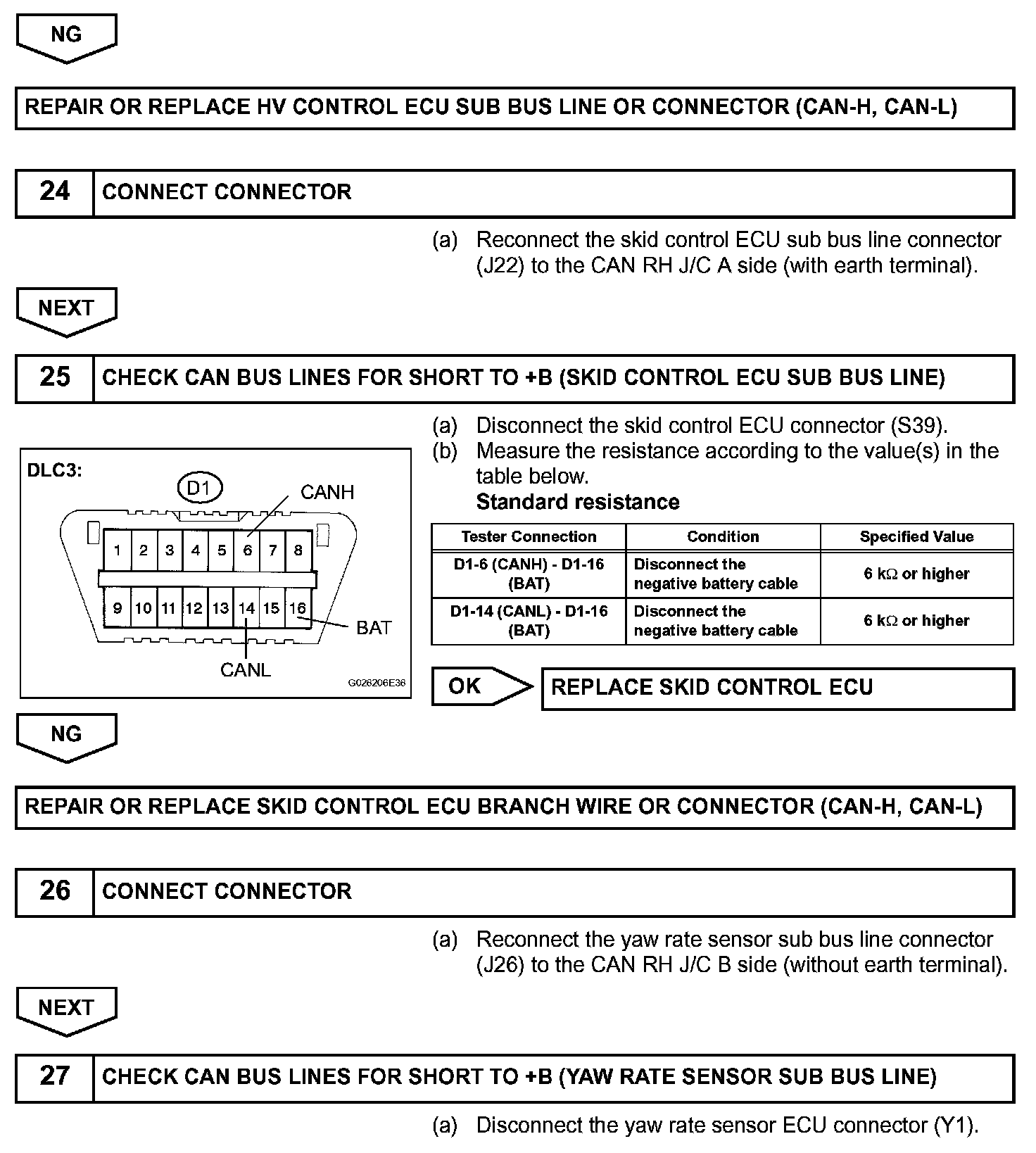

Step 23 (Continued)-27:

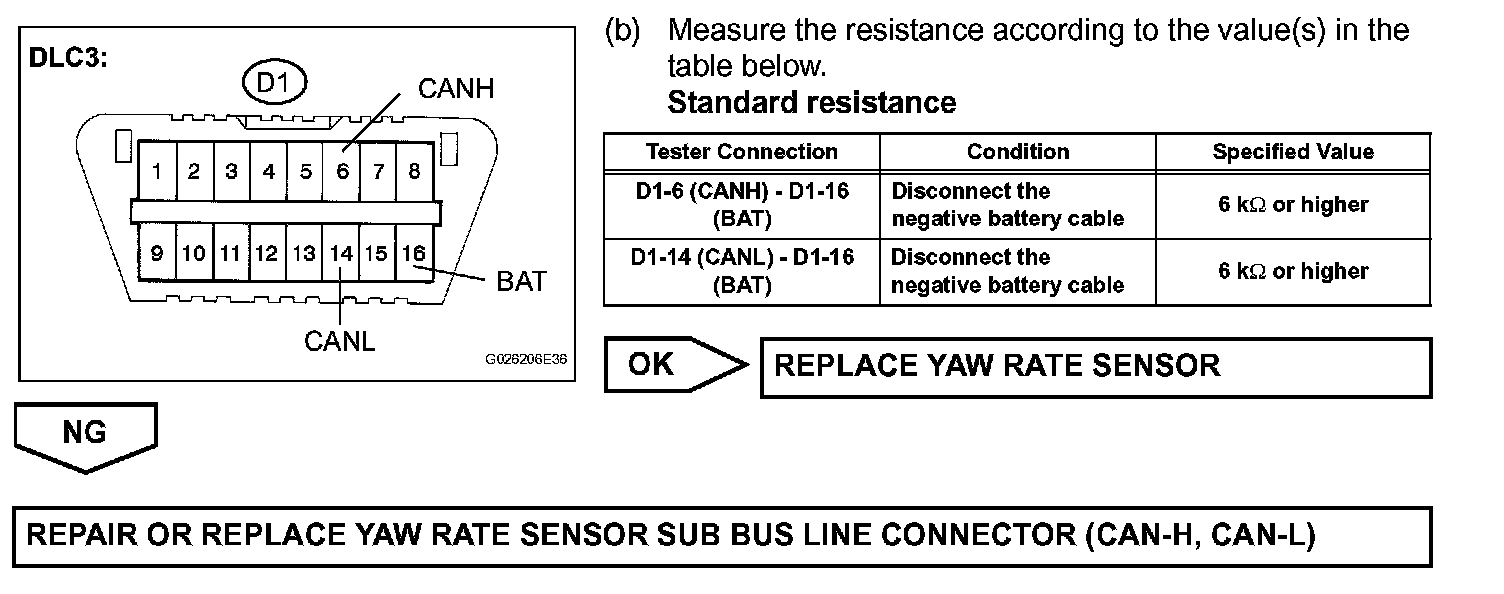

Step 27 (Continued):
INSPECTION PROCEDURE
