Short in CAN Bus Lines
Short in CAN Bus LinesDESCRIPTION

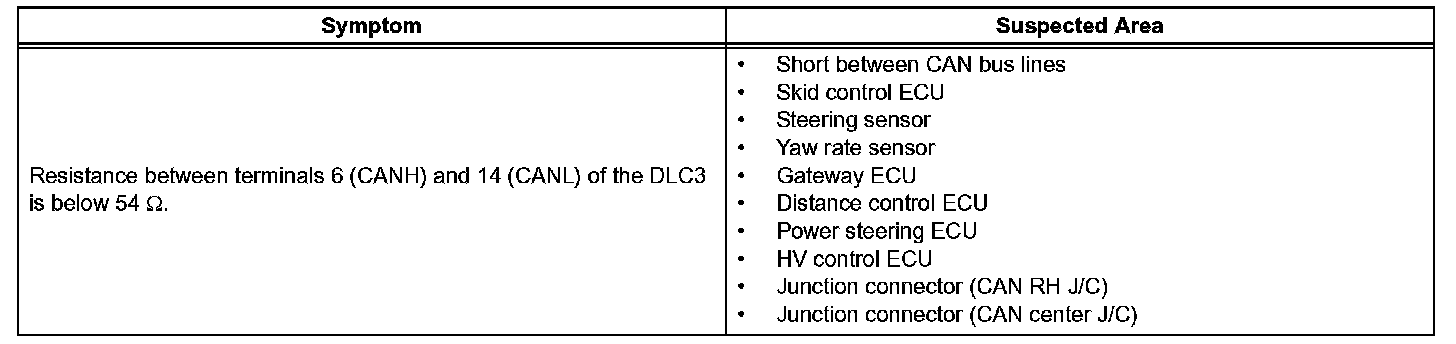

There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 ohms.

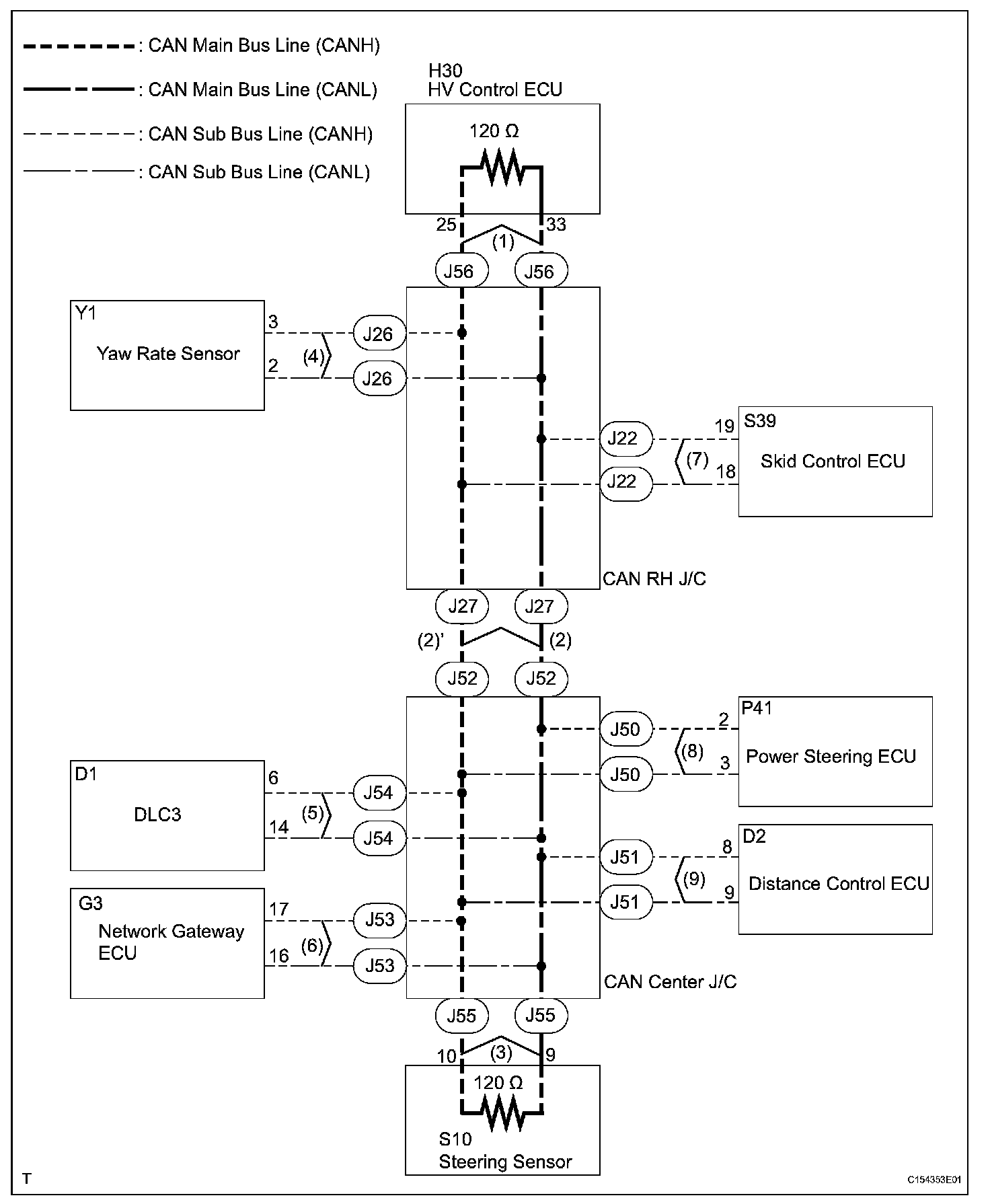

Wiring Diagram:

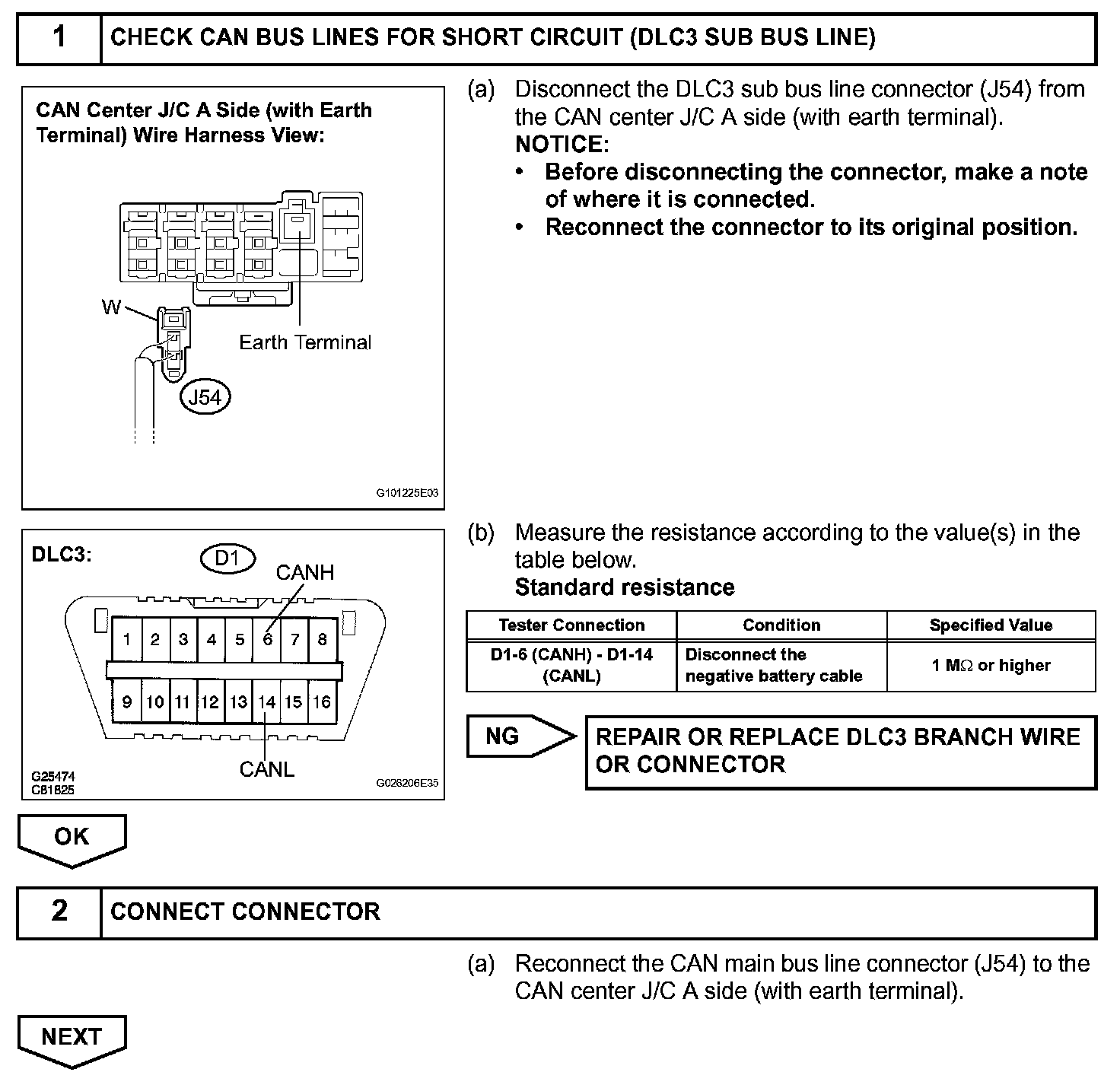

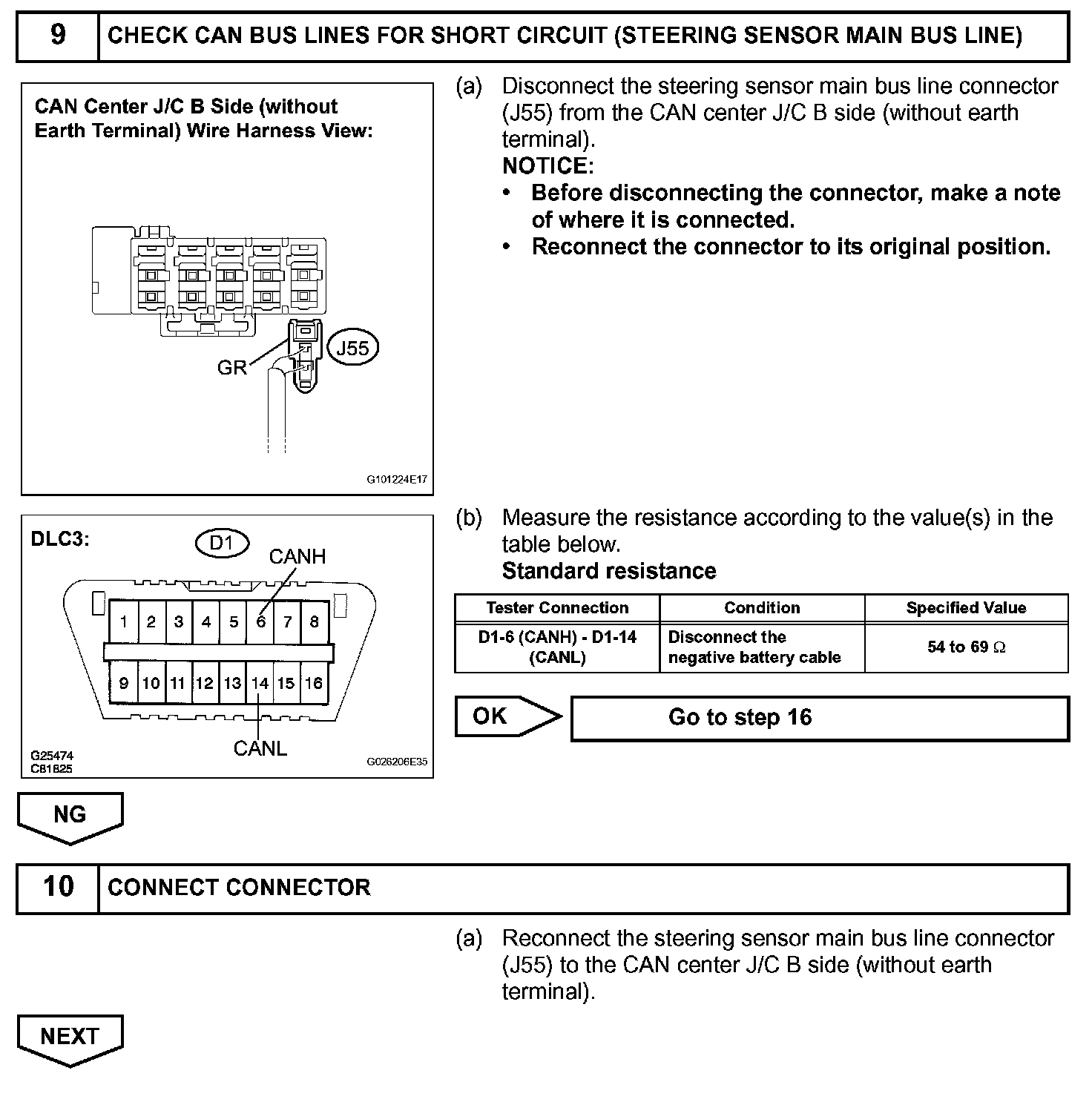

Step 1-2:

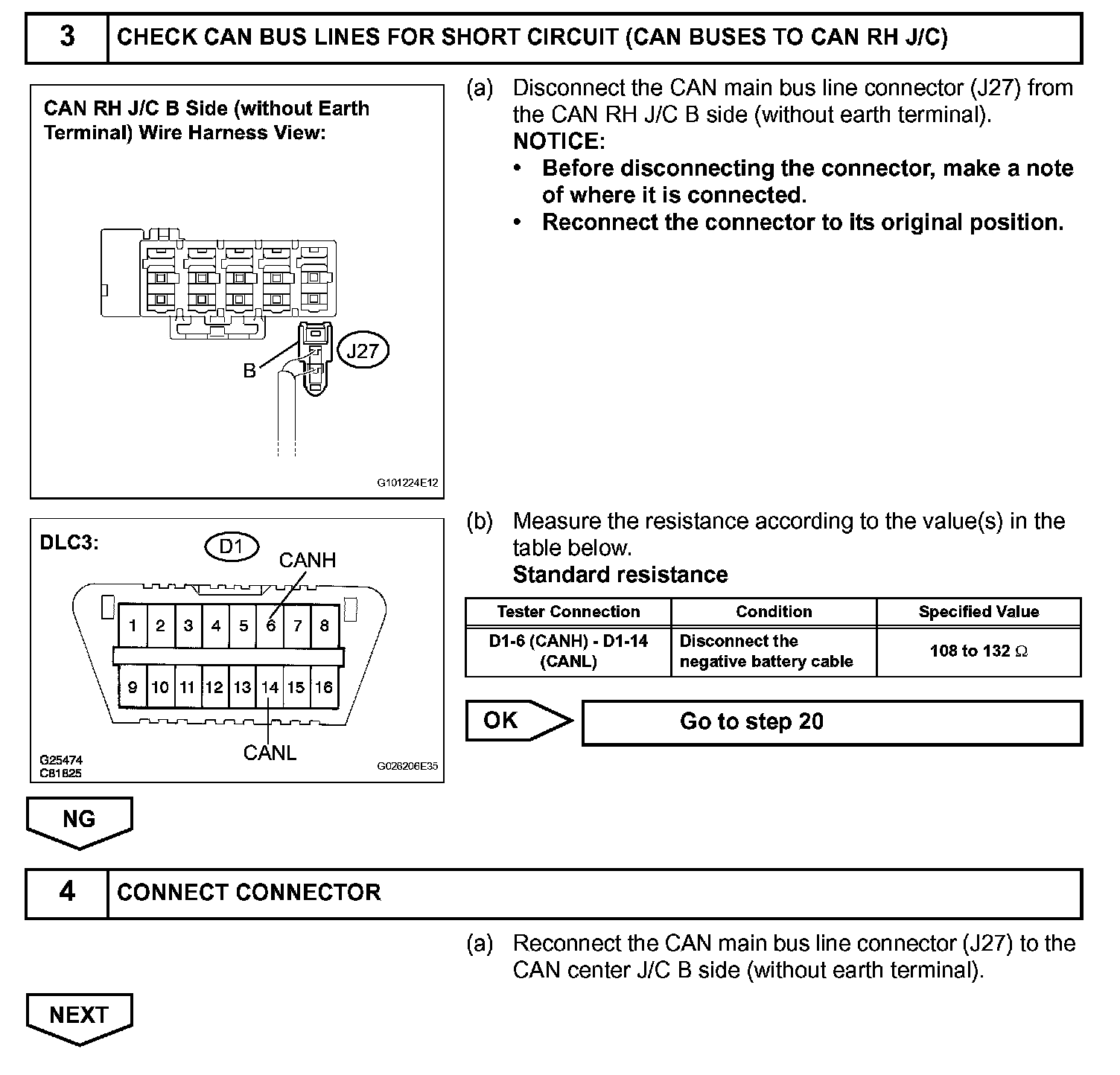

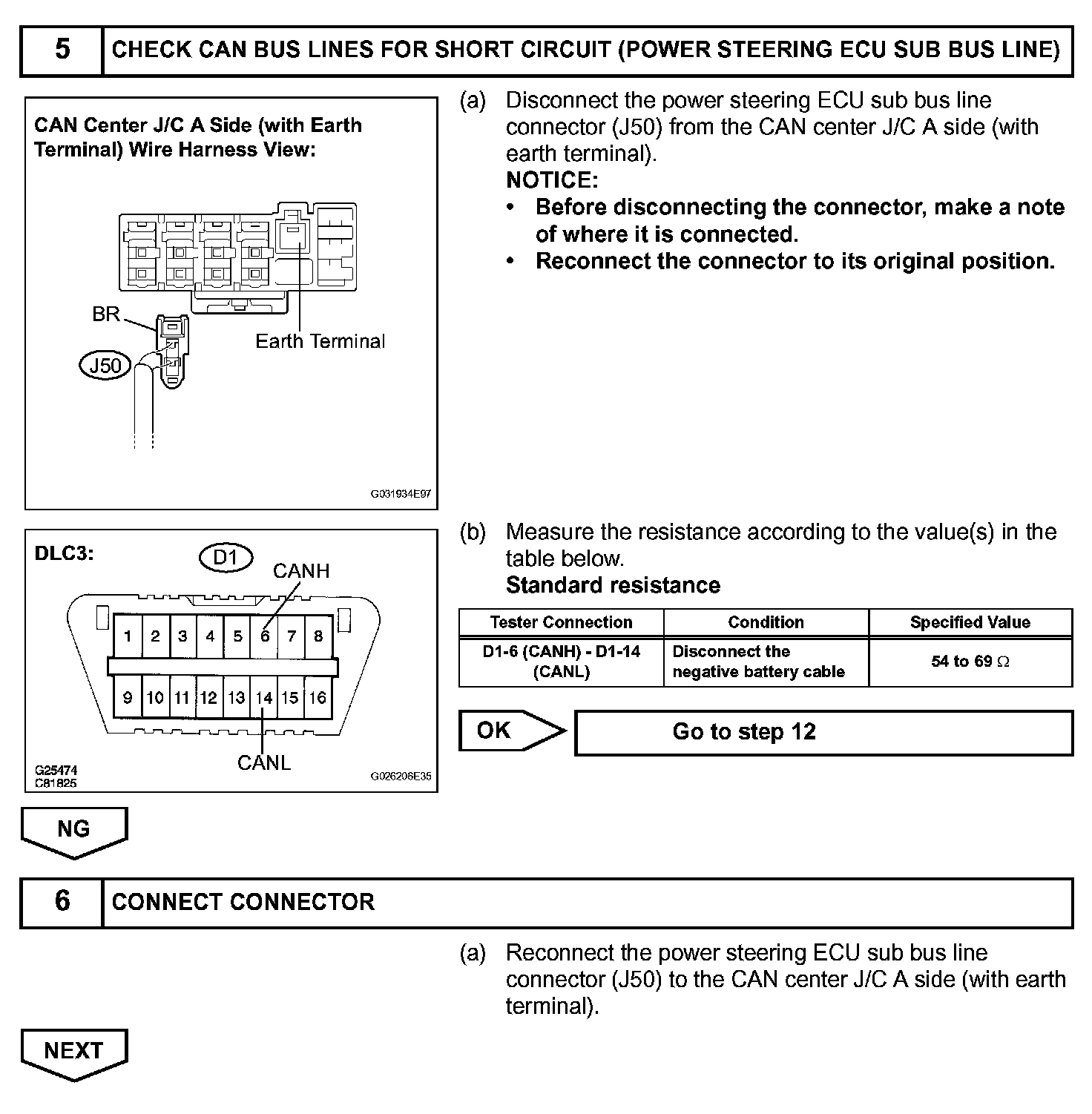

Step 3-4:

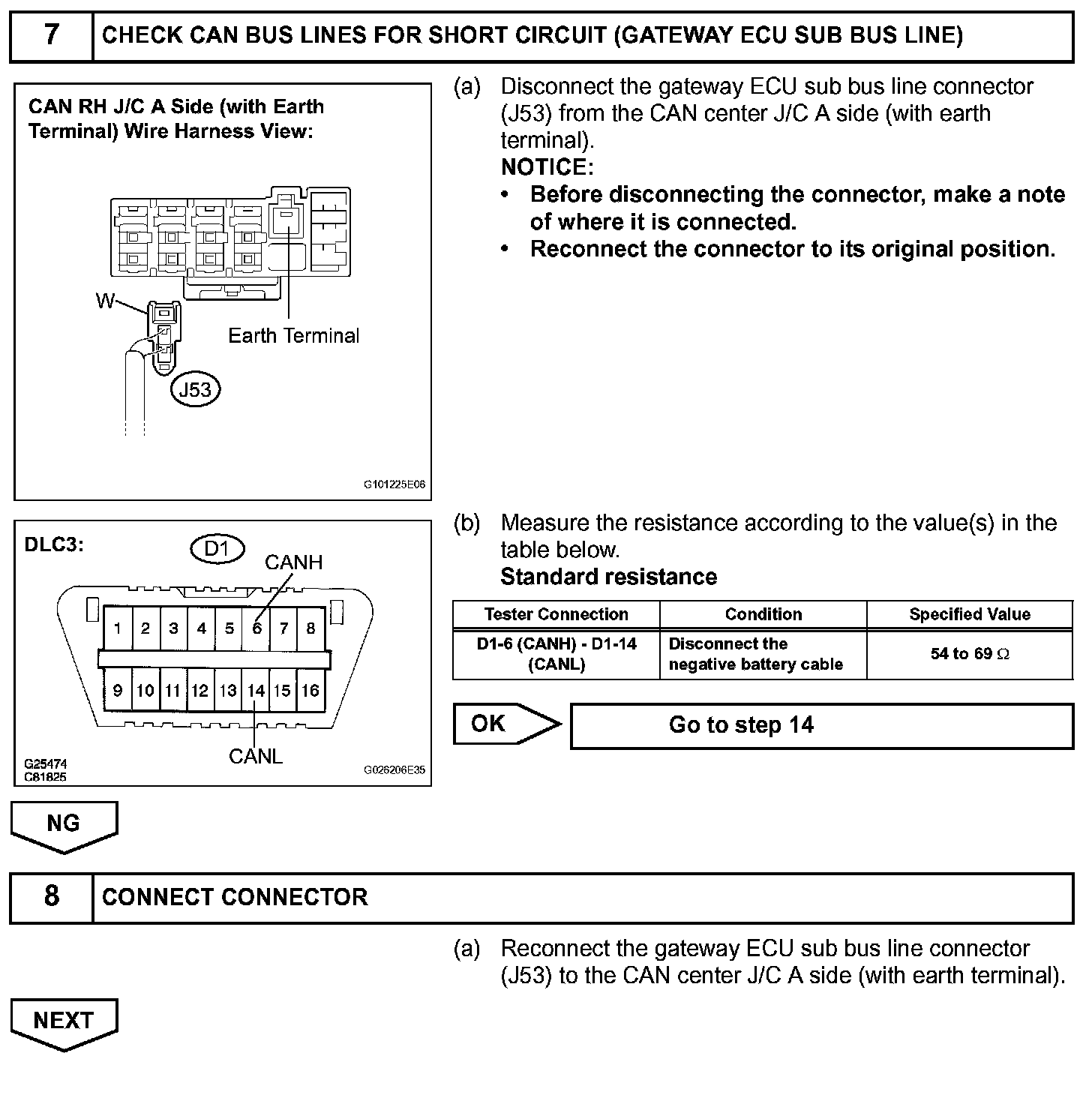

Step 5-6:

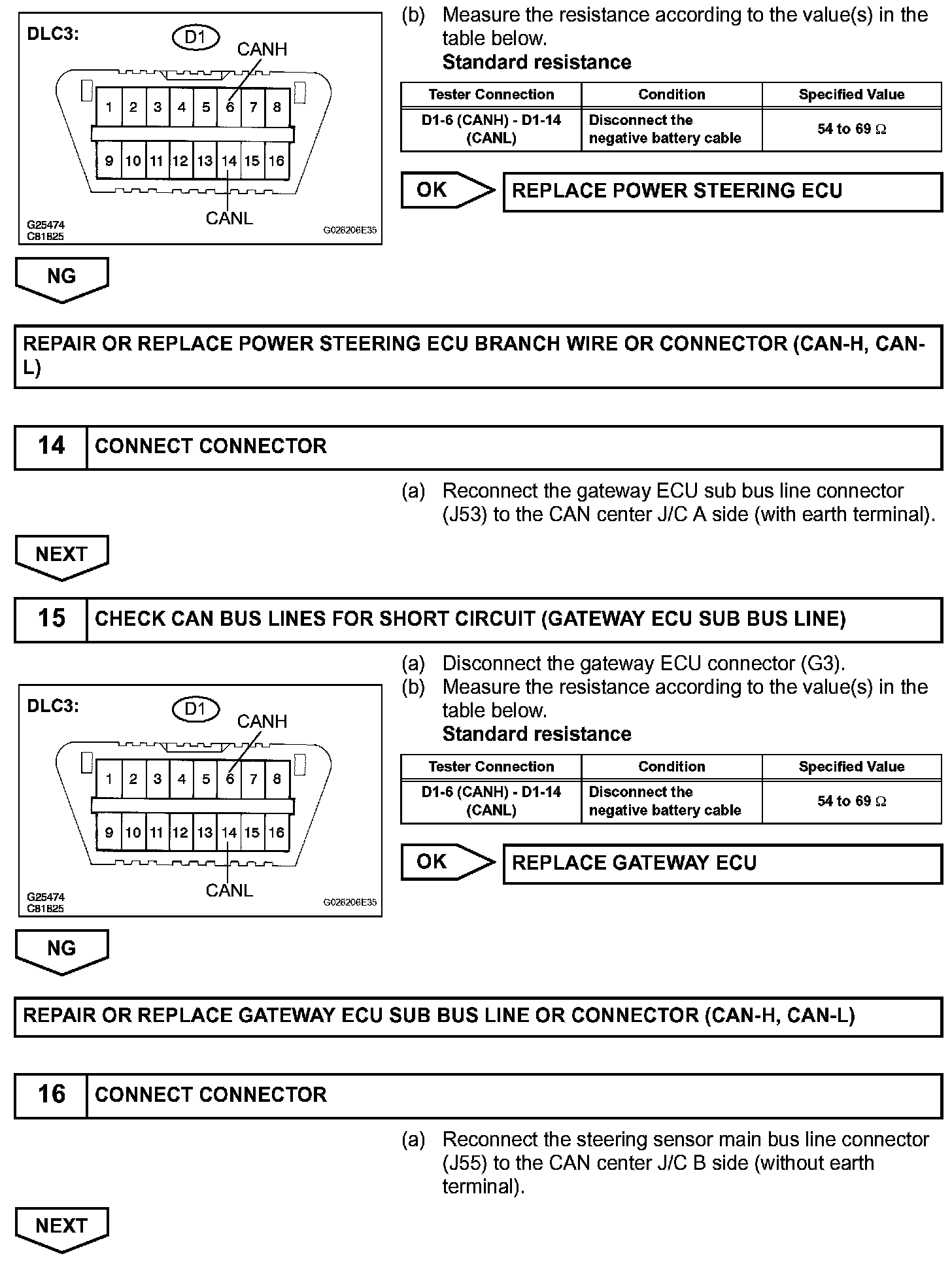

Step 7-8:
Step 9-10:

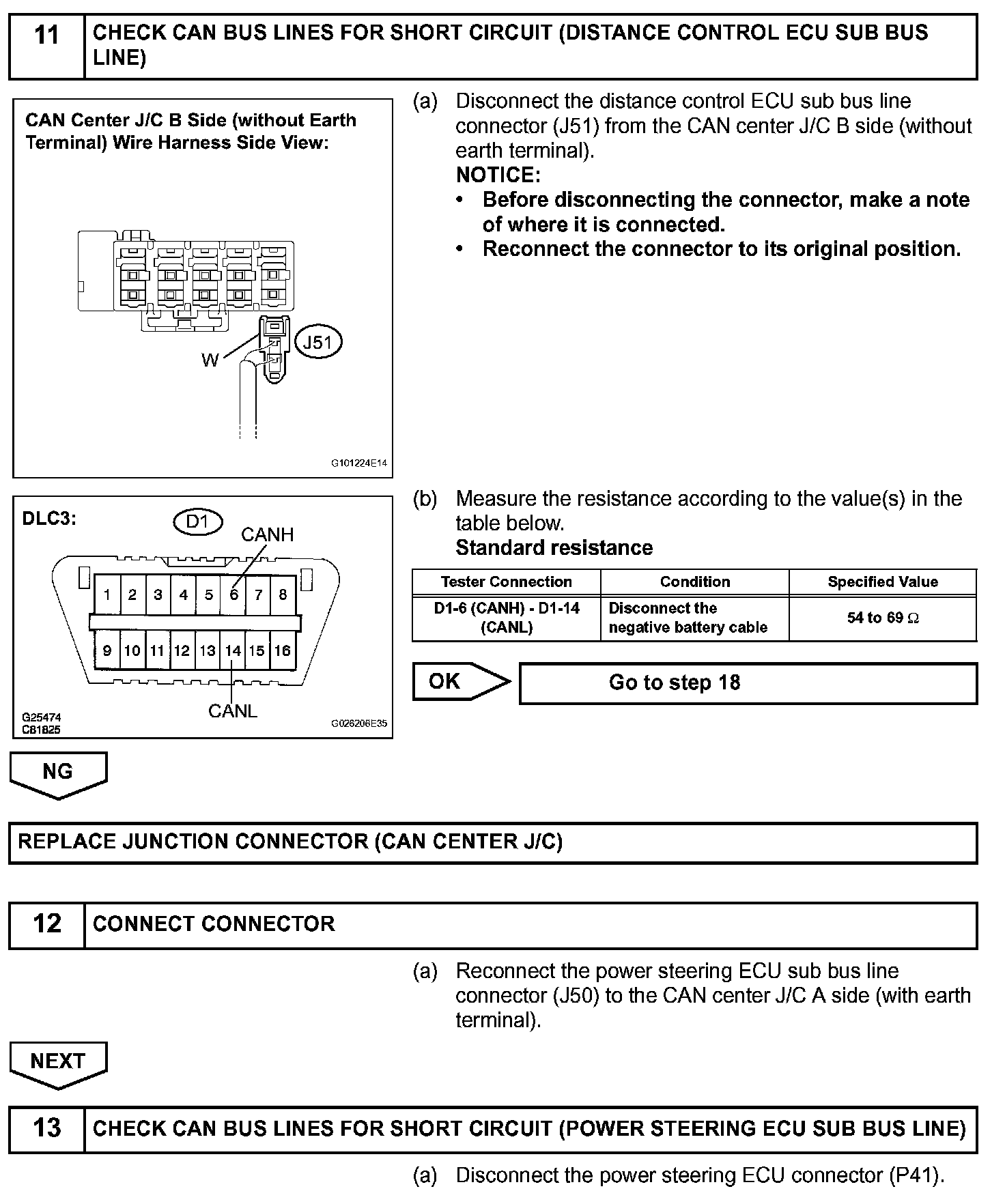

Step 11-13:
Step 13 (Continued)-16:
Step 17-19:

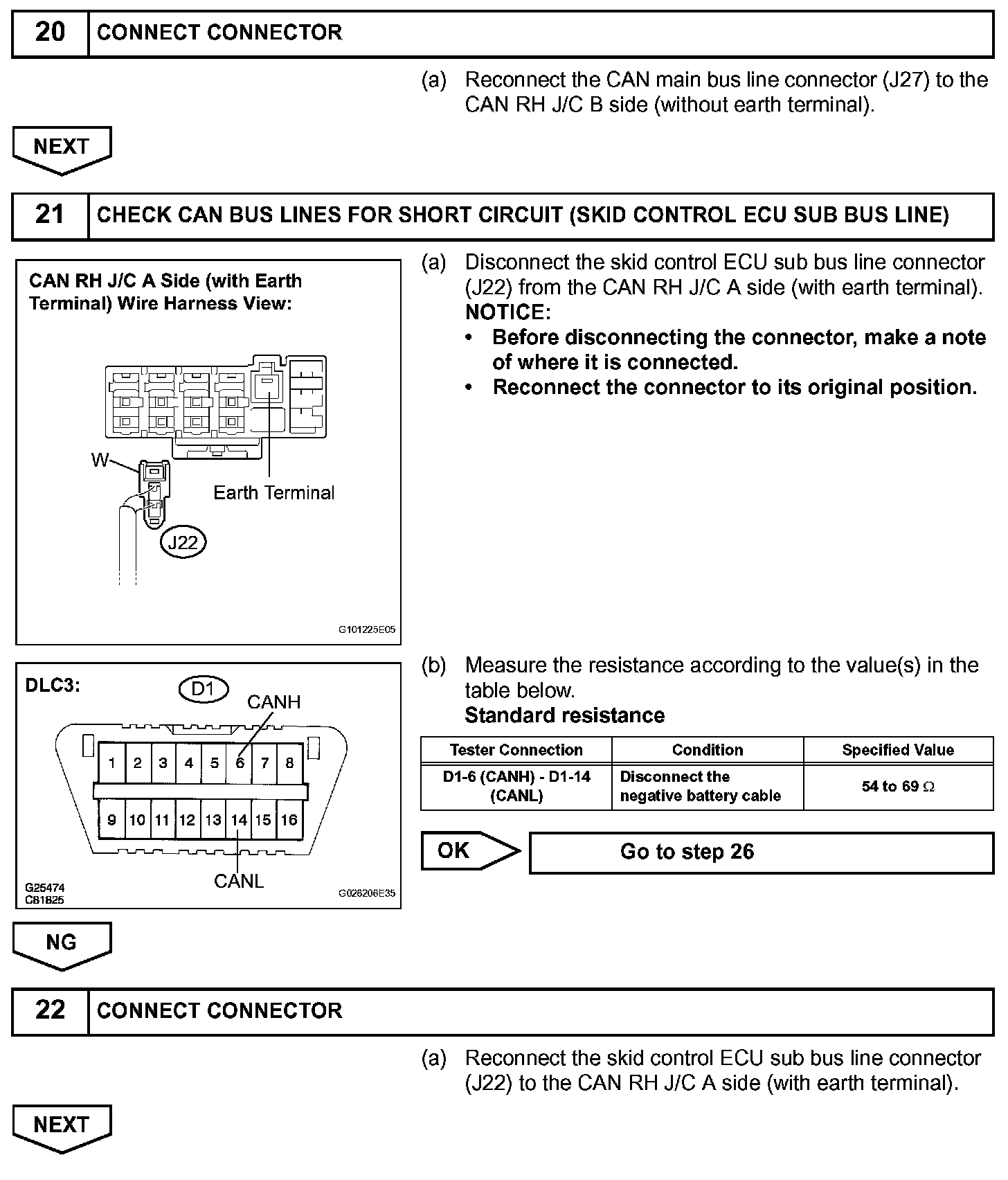

Step 20-22:

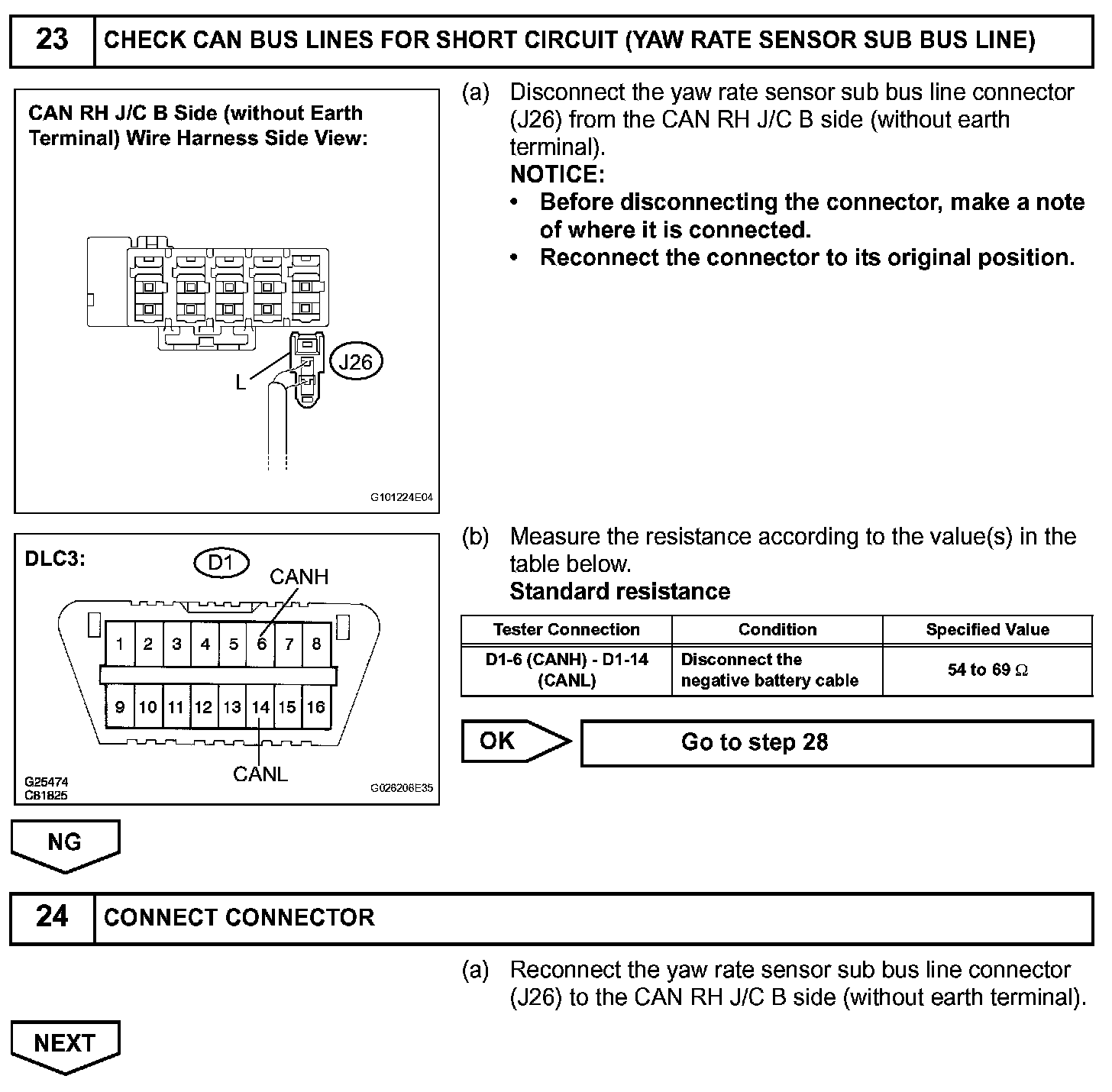

Step 23-24:

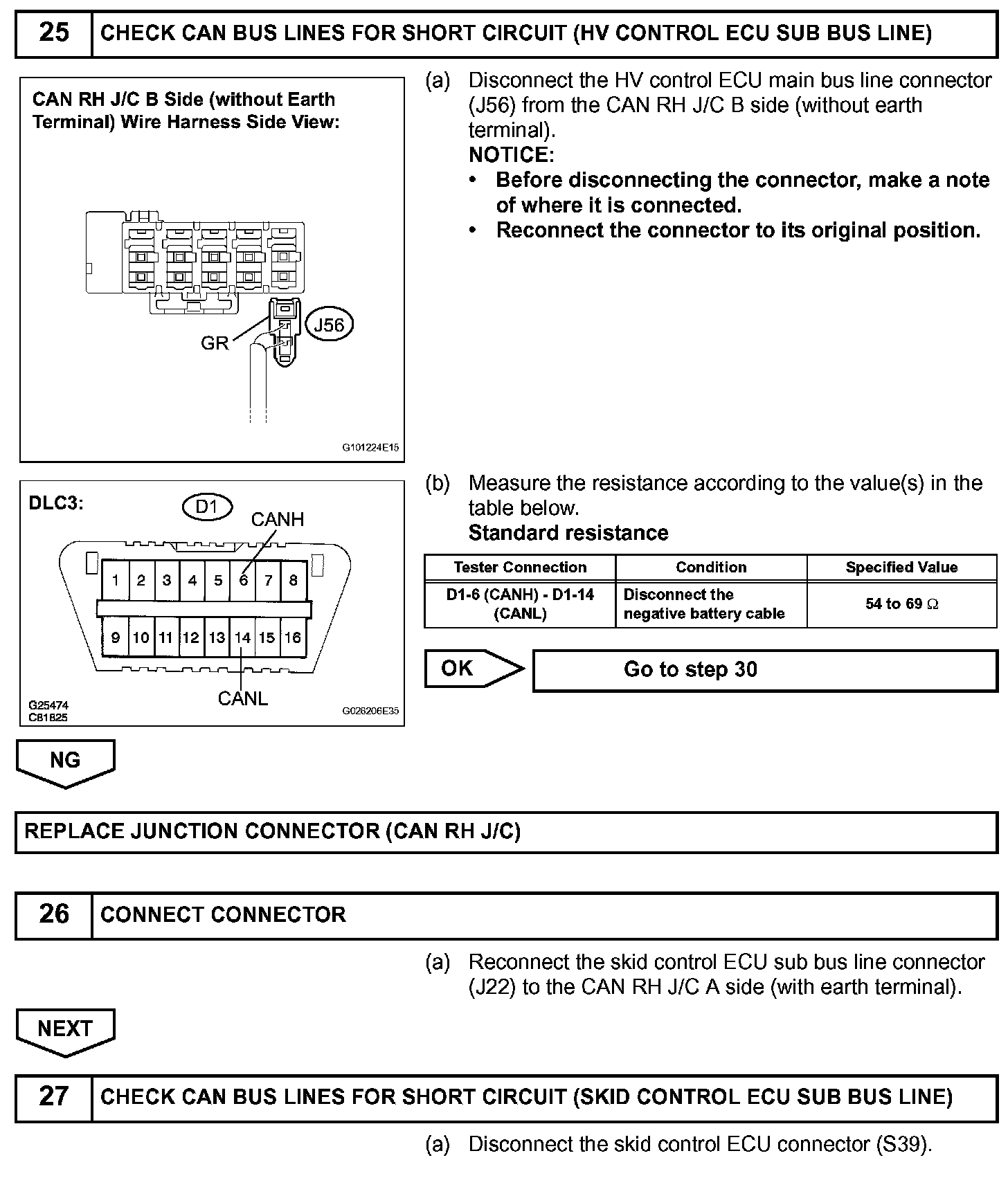

Step 25-27:

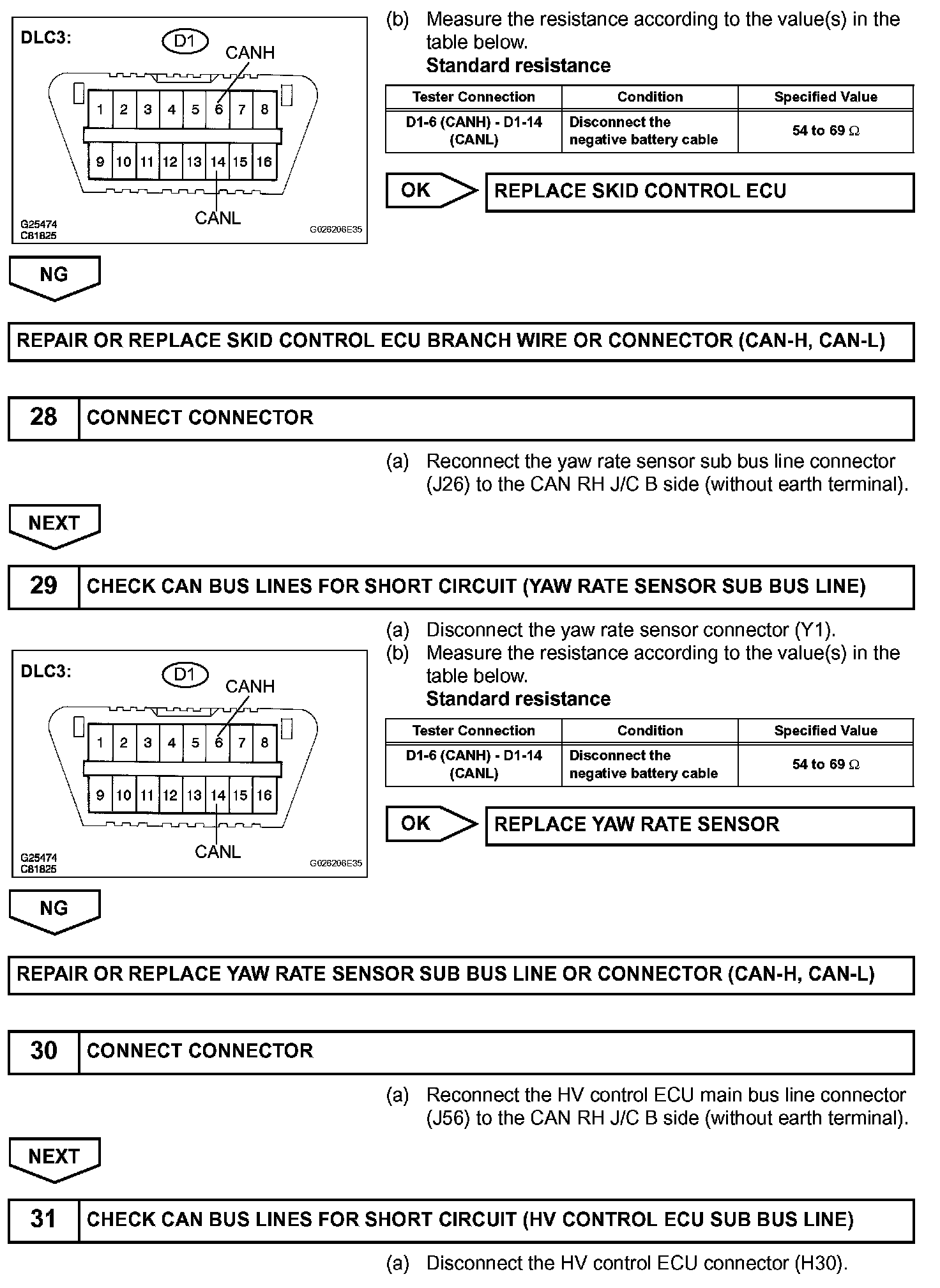

Step 27 (Continued)-31:

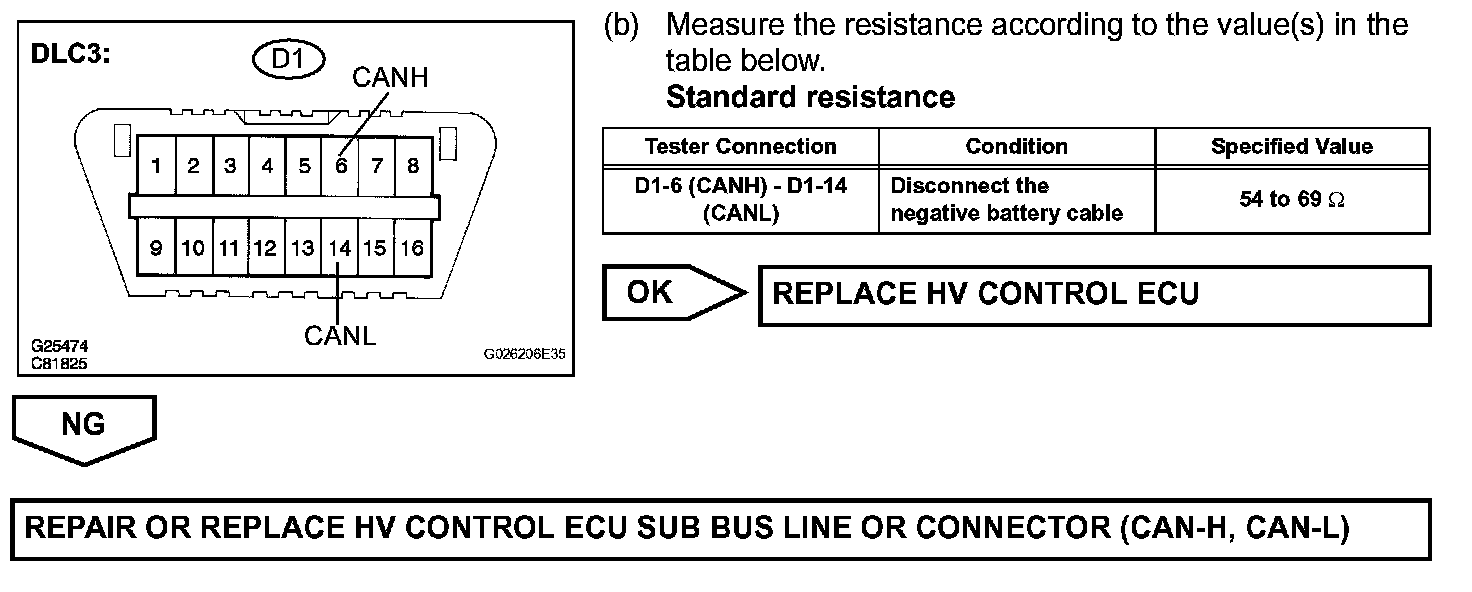

Step 31 (Continued):
INSPECTION PROCEDURE
