Fuse Boxes

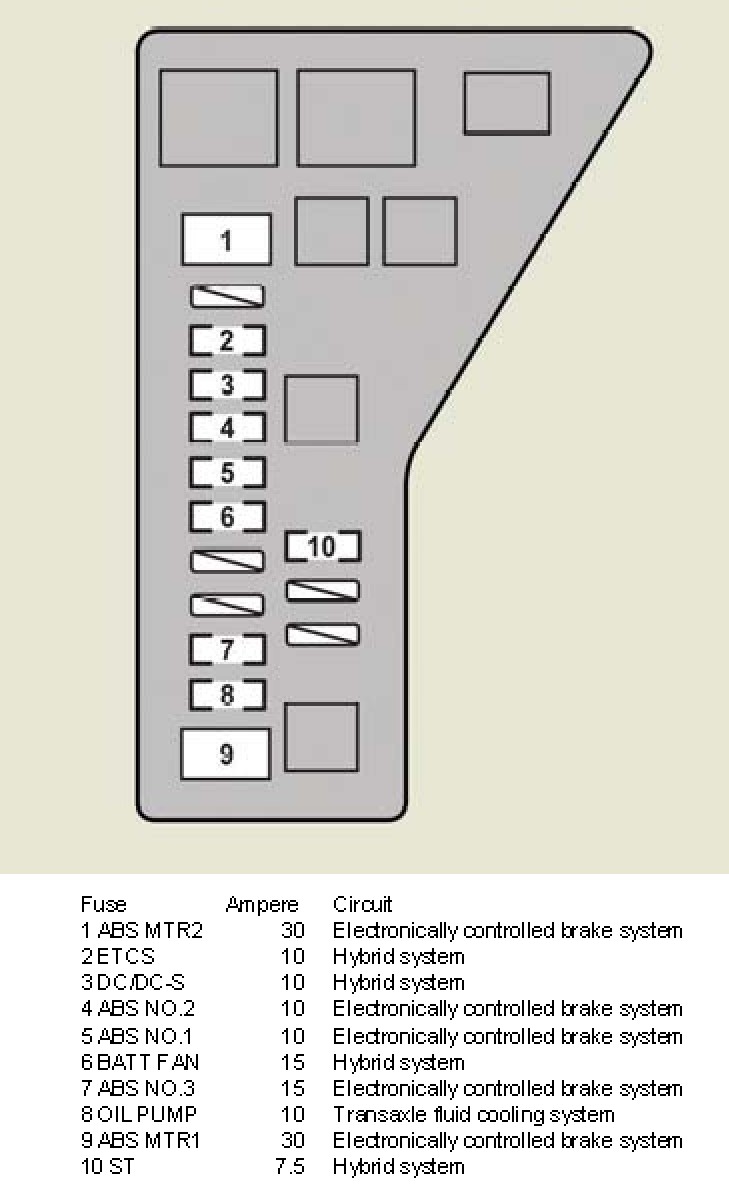

Engine Compartment (Type A):

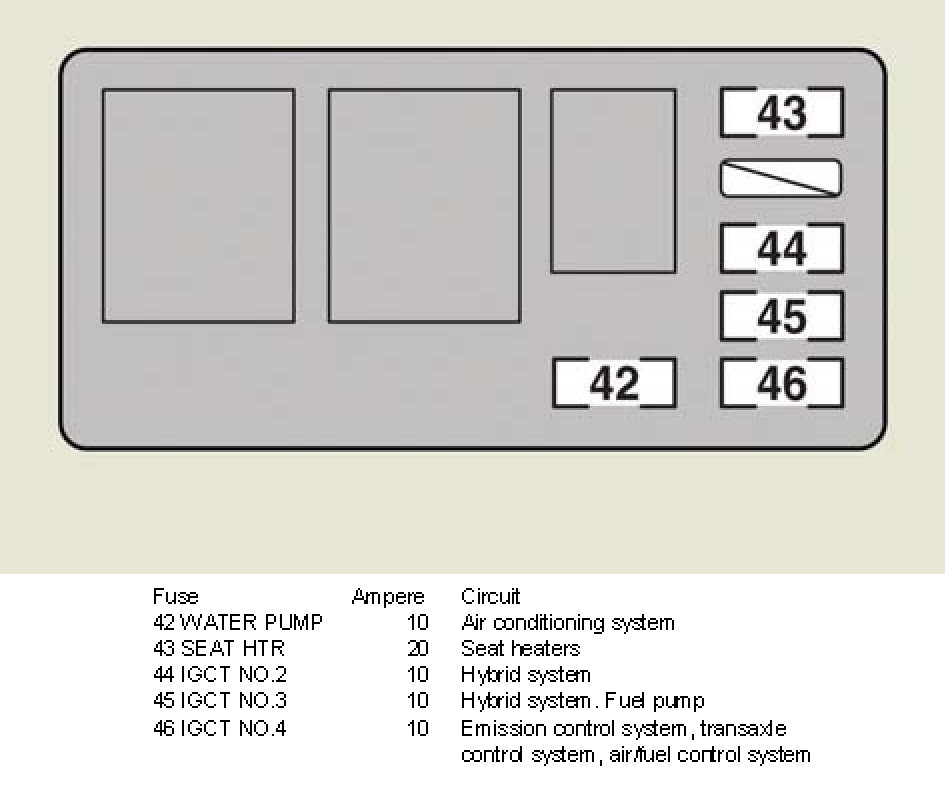

Engine Compartment (Type B):






Engine Compartment (Type C):

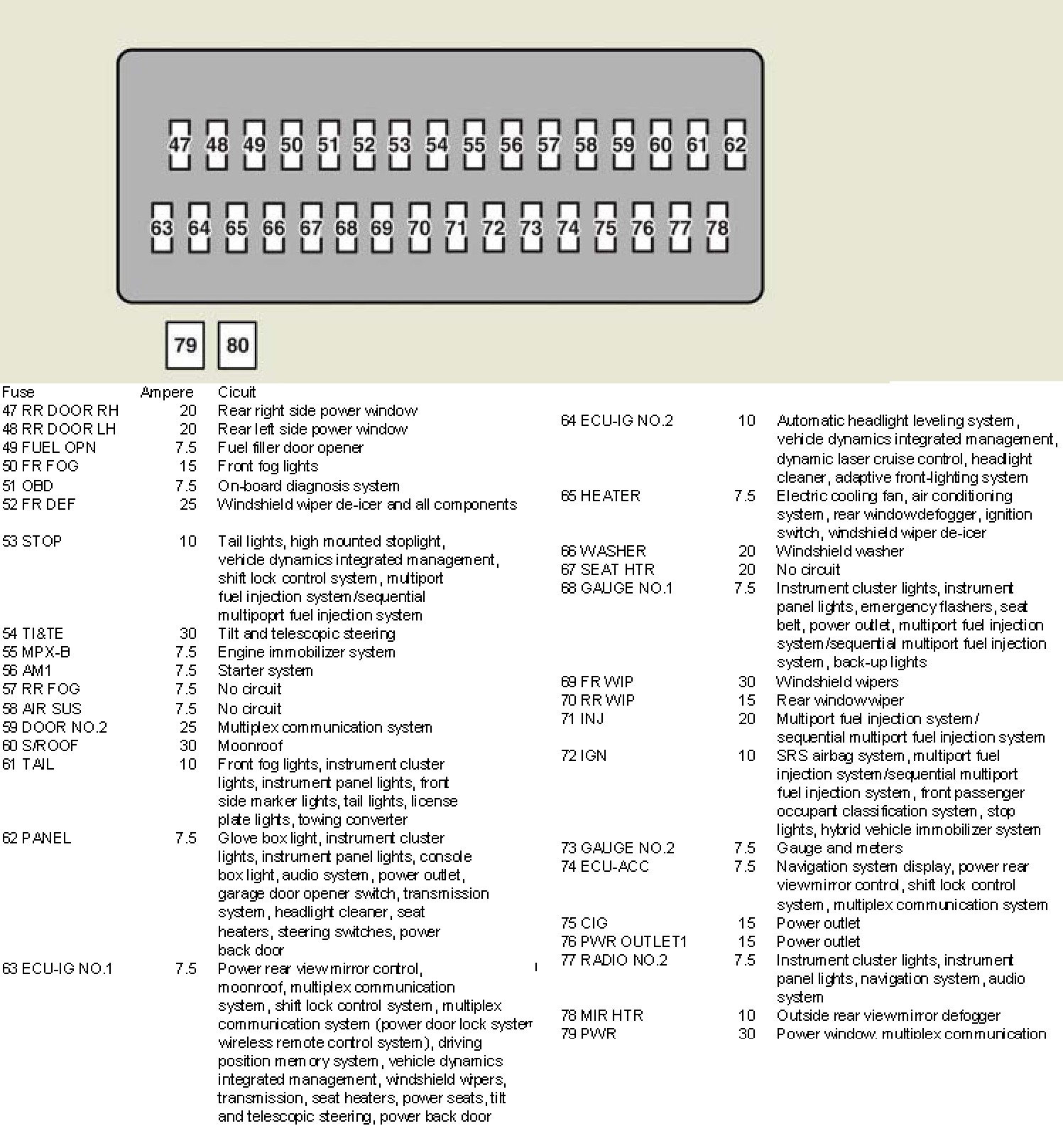

Driver's Side Instrumental Panel:
