Lexus Truck
>>
2007
>>
RX 400h FWD V6-3.3L (3MZ-FE) Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>

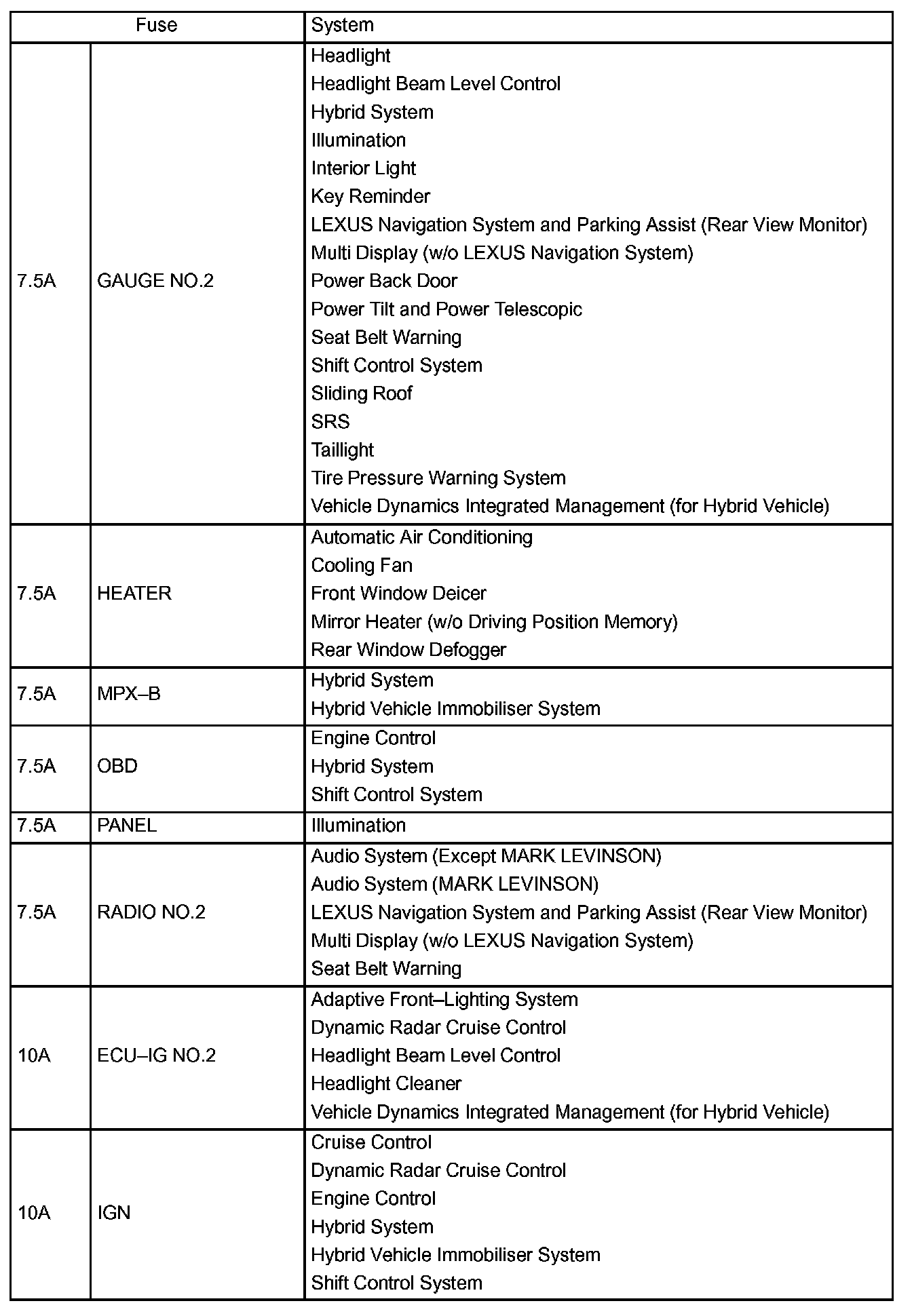

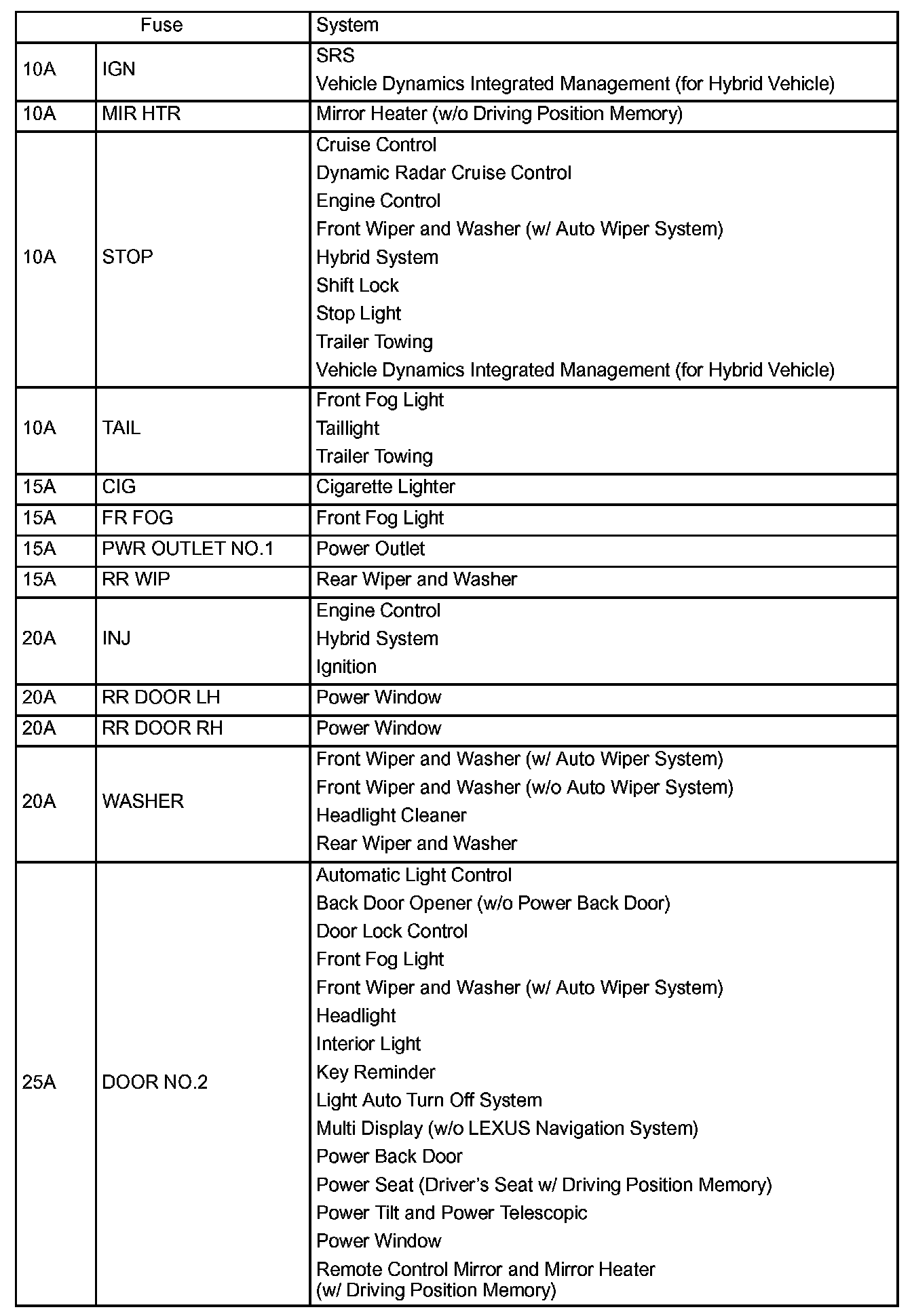

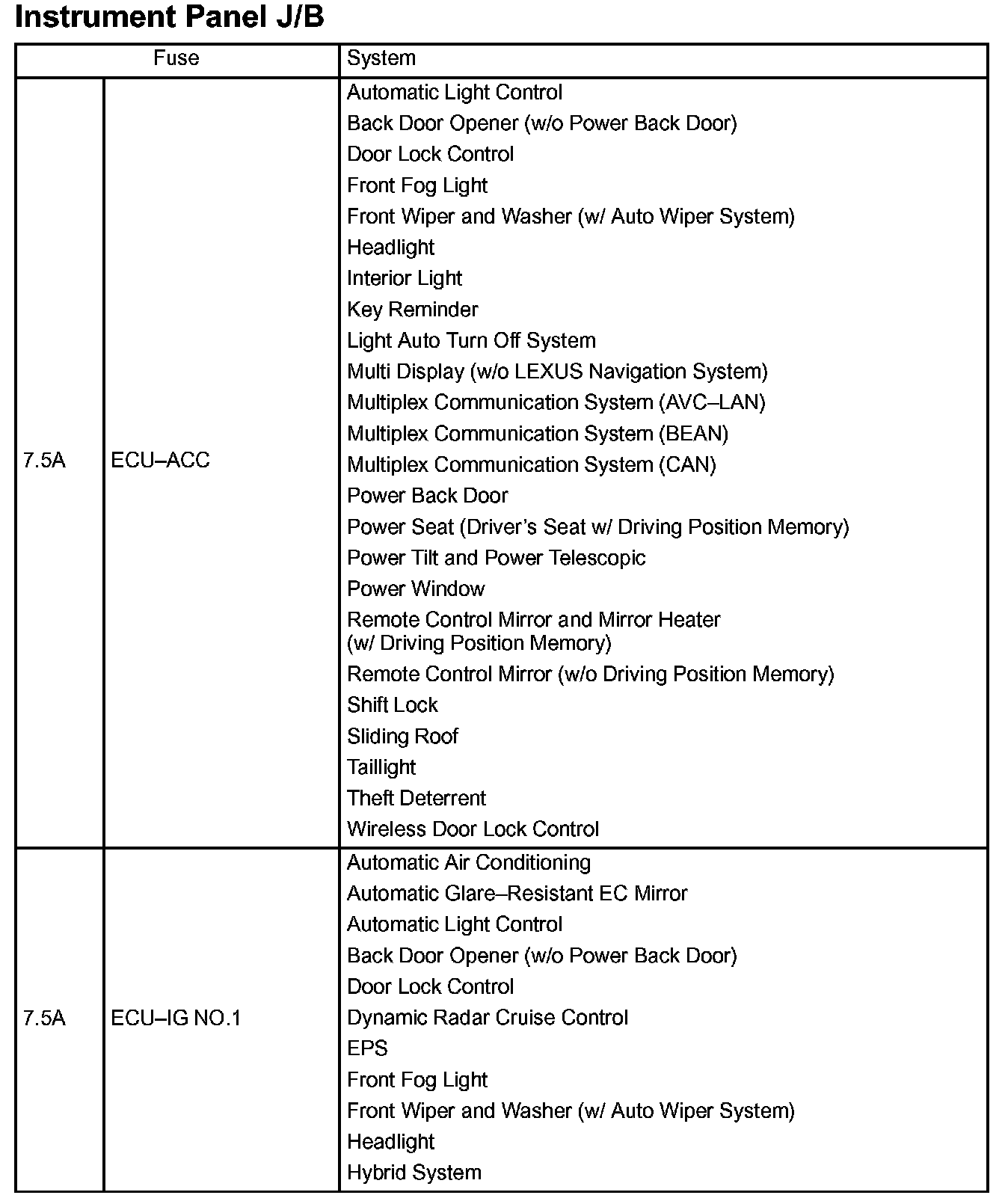

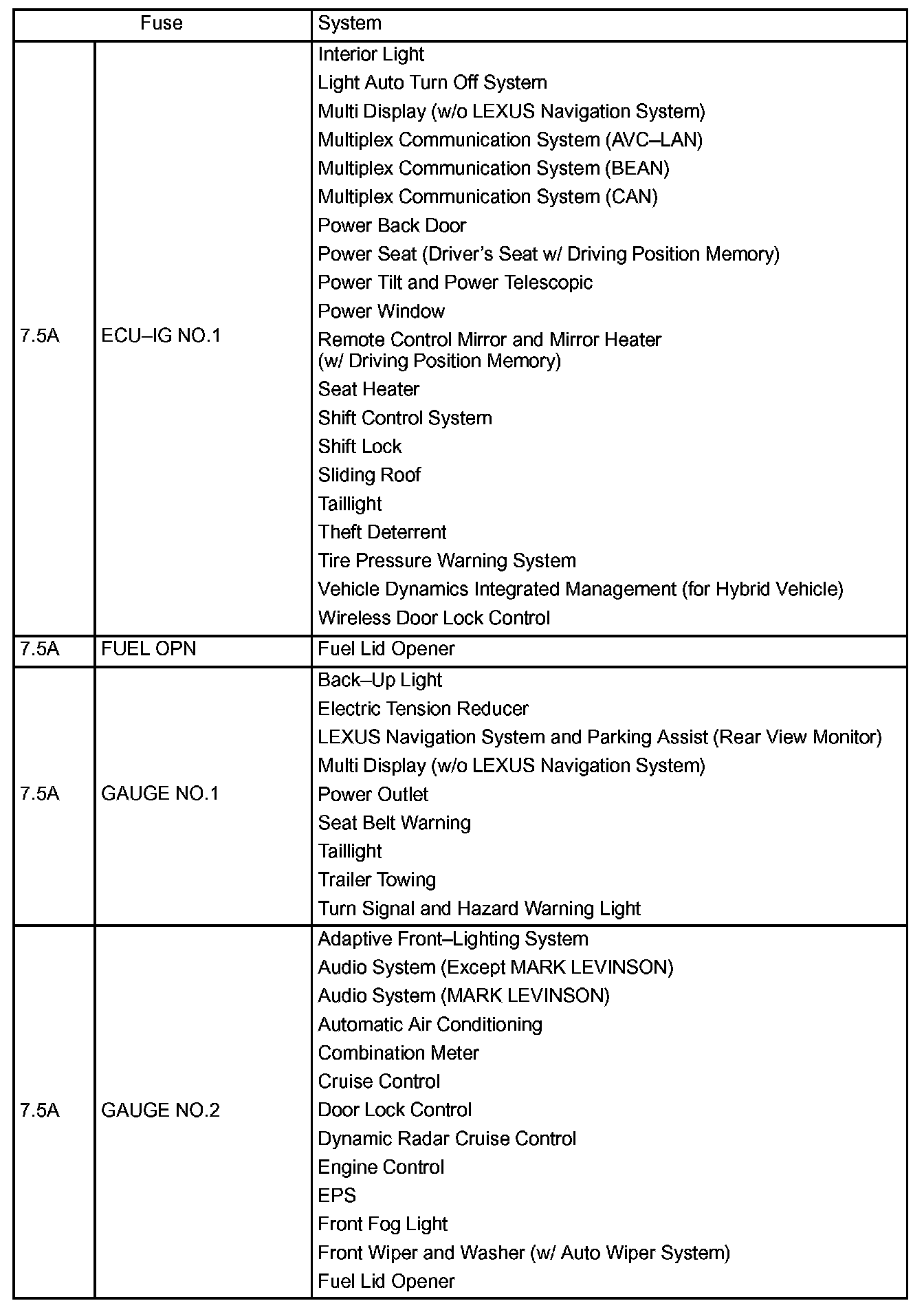

Instrument Panel J/B
Instrument Panel J/B
Instrument Panel J/B Part 1:
Instrument Panel J/B Part 2:
Instrument Panel J/B Part 3:
Instrument Panel J/B Part 4:
Instrument Panel J/B Part 5:
