Lexus Truck
>>
2007
>>
RX 400h FWD V6-3.3L (3MZ-FE) Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Fusible Link Block
Fusible Link Block

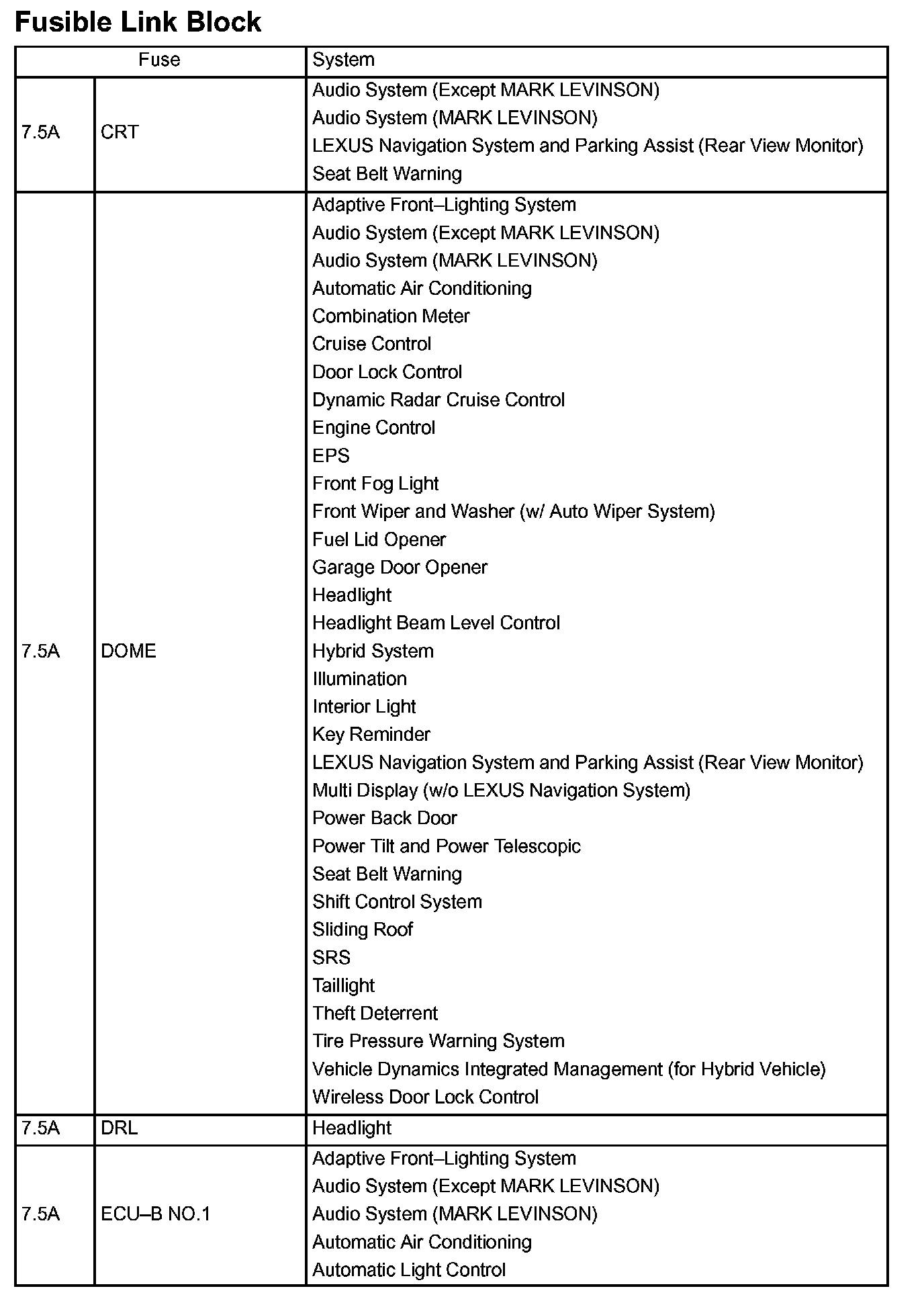

Fusible Link Block Part 1:

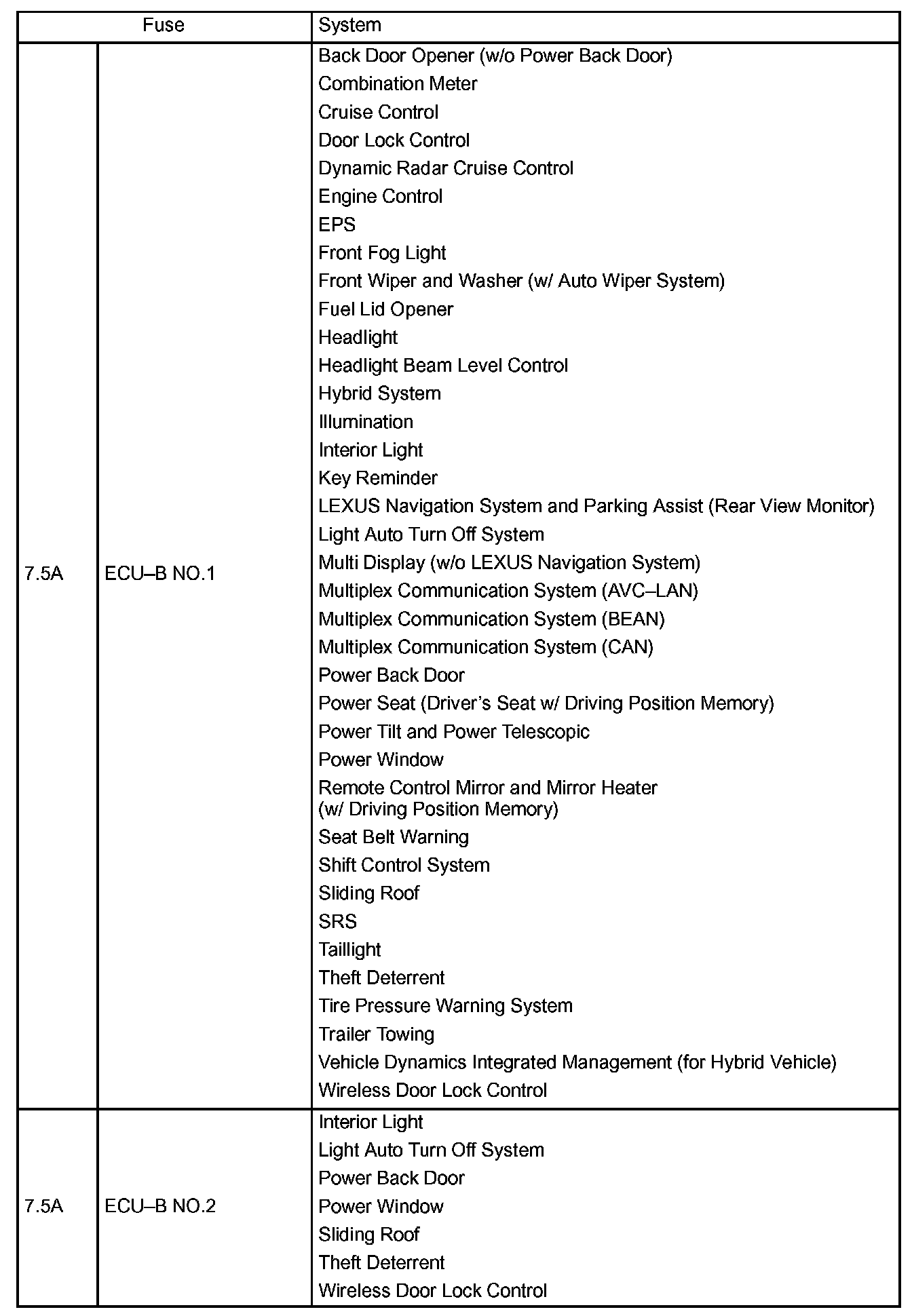

Fusible Link Block Part 2:

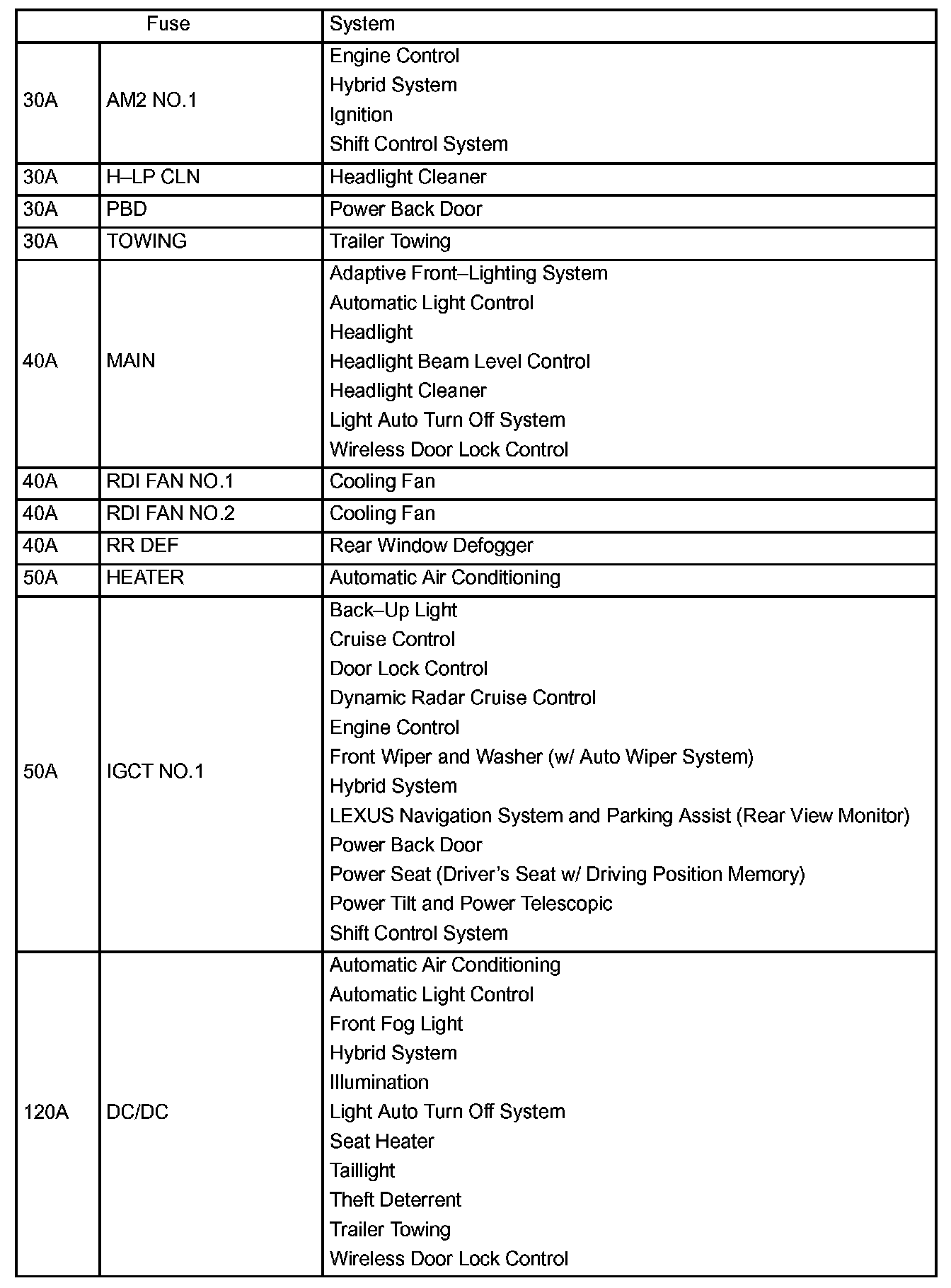

Fusible Link Block Part 3:

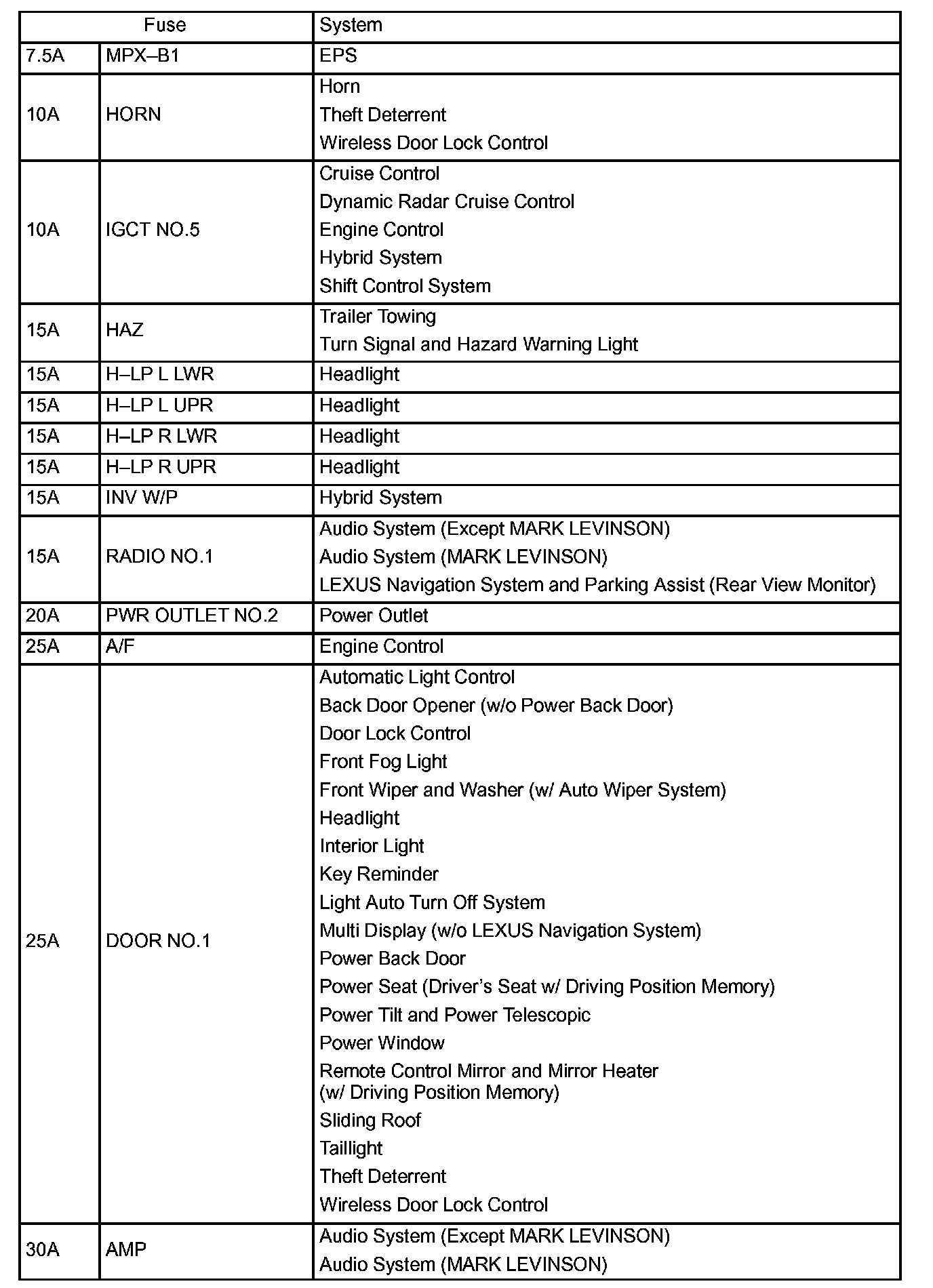

Fusible Link Block Part 4:
