Rear Circuit Breaker Sensor

INSPECTION

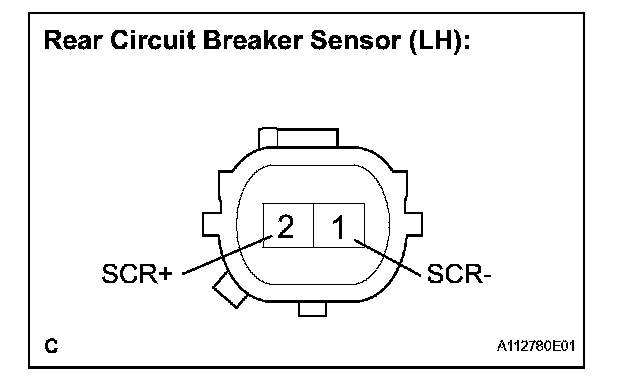

1. INSPECT REAR CIRCUIT BREAKER SENSOR LH

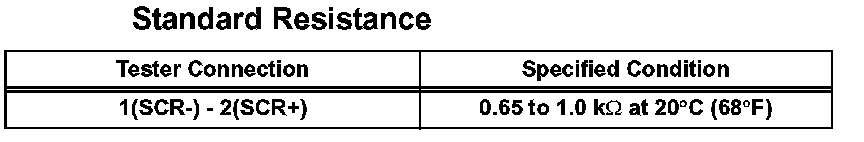

a. Measure the resistance according to the value in the table.

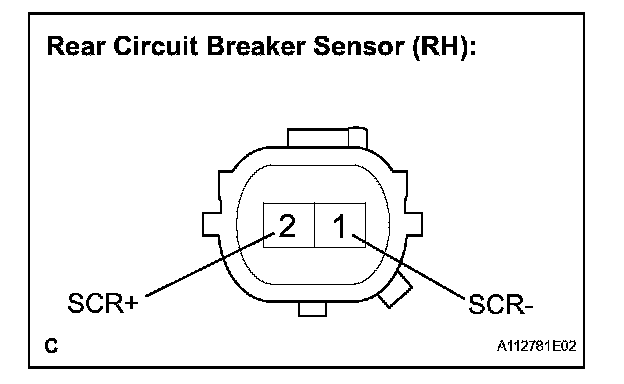

2. INSPECT REAR CIRCUIT BREAKER SENSOR RH

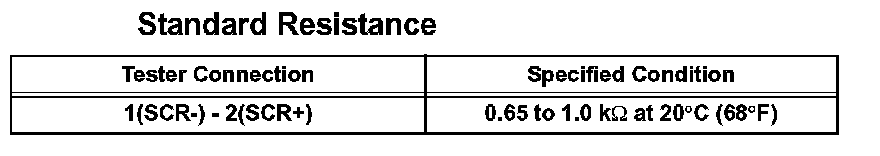

a. Measure the resistance according to the value in the table.
