Hybrid - MIL ON, DTC P0AA6 With Info. Code 612 Set
L-SB-0009-12February 6, 2012
MIL "ON" DTC P0AA6/612 after Liquid Spilled in Back Seat Area
Service Category
Engine/Hybrid System
Section
Hybrid/Battery Control System
Market
USA

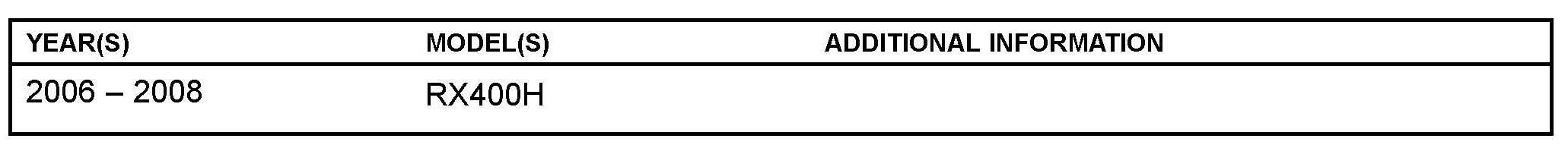

Applicability
Introduction
Some 2006 - 2008 RX 400h vehicles may exhibit a MIL "ON" condition with DTC P0AA6 (Hybrid Battery Voltage System Isolation Fault) with information code 612 set after liquid is spilled in the back seat area of the vehicle. This TSIB contains instructions for repair and adding additional protection to the HV Battery Assembly to address this condition.
Warranty Information

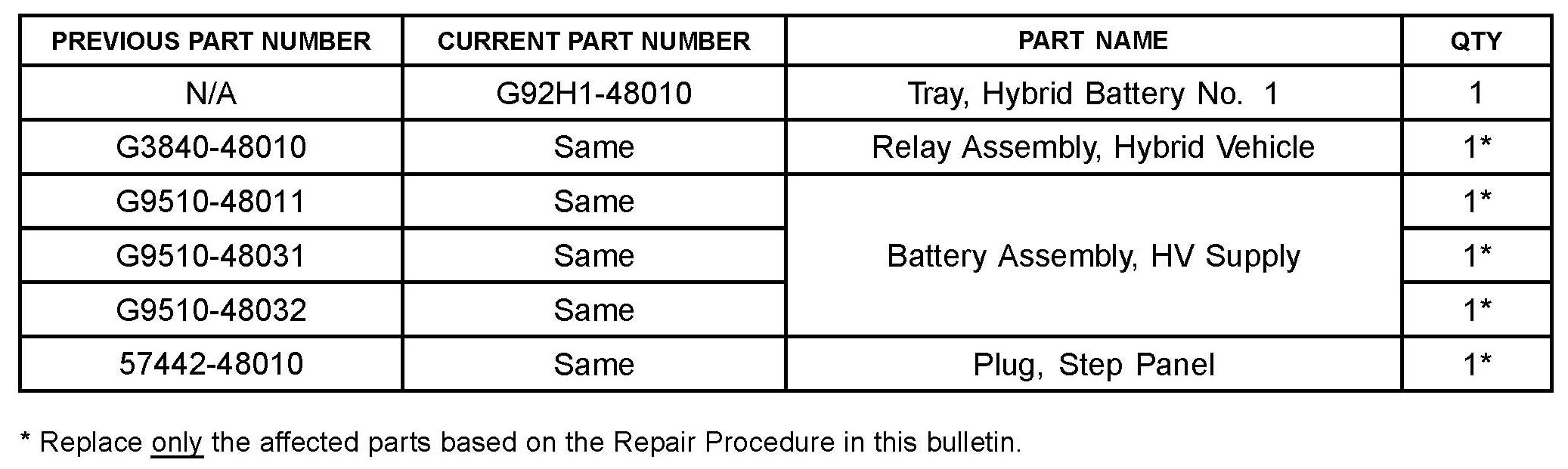

Parts Information

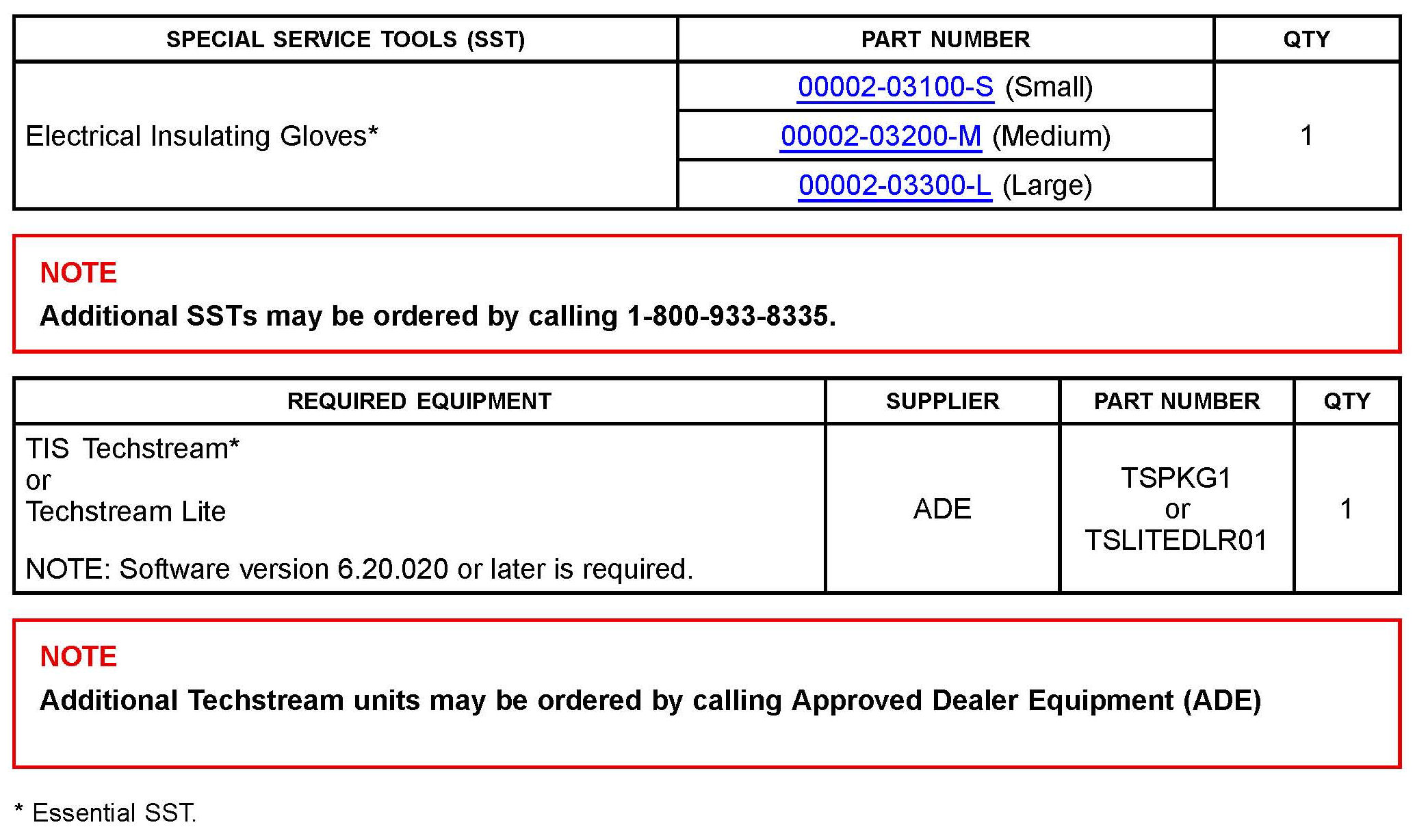

Required Tools & Equipment
Repair Procedure
NOTE
This TSIB only applies if DTC POAA6 with information code 612 is present AND a liquid spill in the back seat area has been confirmed.
CAUTION
Follow all safety precautions as outlined in the Repair Manual when inspecting and servicing high voltage components.
1. Remove the HV Battery upper cover and inspect the HV Battery area for liquid intrusion.
For instructions on how to remove the HV Battery upper cover follow the Repair Manual procedure up to the point of cover removal (steps 1-16 do NOT remove Battery Smart Unit or HV Battery at this time).
Refer to the Technical Information System (TIS) applicable model year RX 400h Repair Manual:
^ 2006 / 2007 / 2008 RX 400h:
Engine/Hybrid System - Hybrid/Battery Control System - "P310 Hybrid Battery Control: HV Battery: Removal"
2. If evidence of liquid intrusion is found in the HV Battery area inspect the System Main Relay Assembly and the rubber drain plug located below the battery assembly.
3. If the System Main Relay Assembly is wet or shows signs of liquid intrusion then replace the assembly.
Refer to TIS applicable model year RX 400h Repair Manual:
^ 2006 / 2007 / 2008 RX 400h:
Engine/Hybrid System - Hybrid/Battery Control System - "R310 Hybrid Battery Control: HV Relay Assembly: Removal"
4. Remove the HV Battery Assembly and inspect the rubber drain plug in the floor pan below the battery. Follow the Repair Manual procedure below to remove the Battery Smart Unit and HV Battery (steps 17-25).
Refer to TIS applicable model year RX 400h Repair Manual:
^ 2006 / 2007 / 2008 RX 400h:
Engine/Hybrid System - Hybrid/Battery Control System - "R310 Hybrid Battery Control: HV Battery: Removal"
If the rubber drain plug is wet or shows signs of liquid intrusion then replace the drain plug.
5. Clean any remaining liquid from the HV Battery area and allow the HV Battery to air dry.
6. Inspect all HV Battery module terminals for corrosion. If corroded replace the HV Battery.
7. Reinstall the HV Battery Smart Unit and HV Battery upper cover. Refer to TIS applicable model year RX 400h Repair Manual:
^ RX 400h:
Engine/Hybrid System - Hybrid/Battery Control System - "R310 Hybrid Battery Control: HV Battery: Installation"
8. Test fit the Hybrid Battery Tray No.1 (P/N G92H1-48010) on top of the HV Battery Assembly.

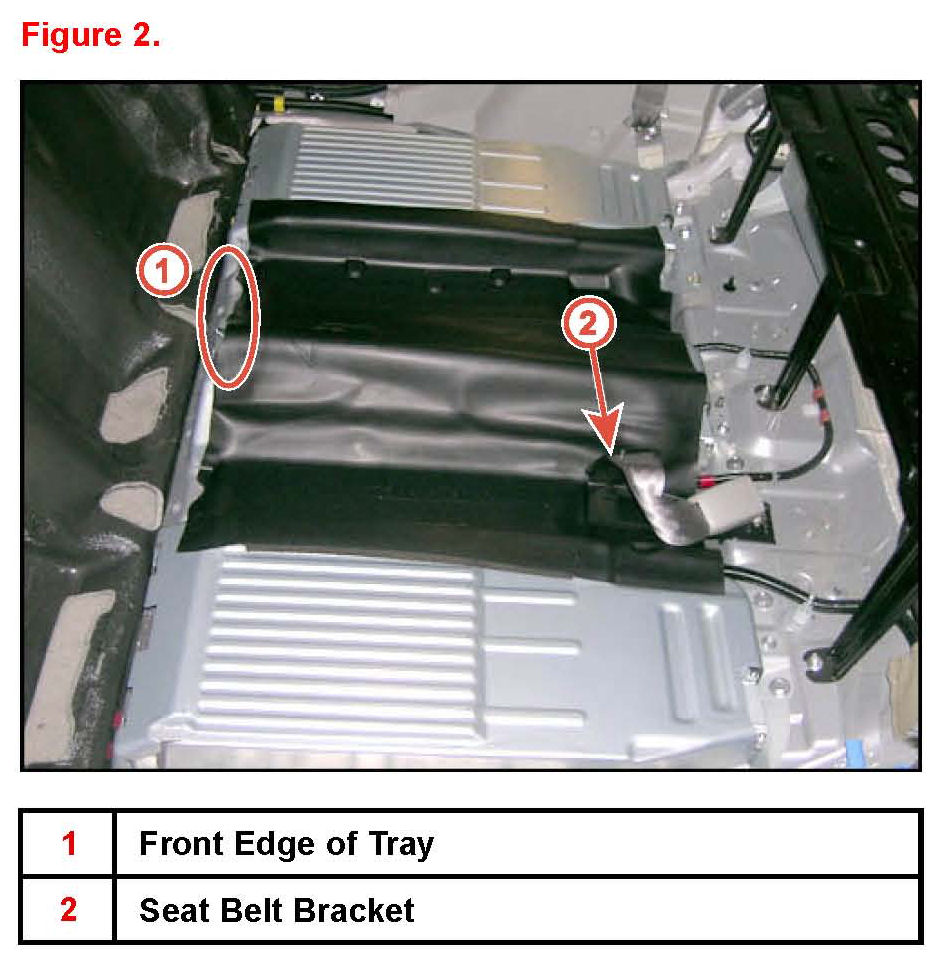

A. Slide the tray under the center seat belt bracket and ensure that the front edge of the tray is properly aligned with the HV Battery Upper Cover.

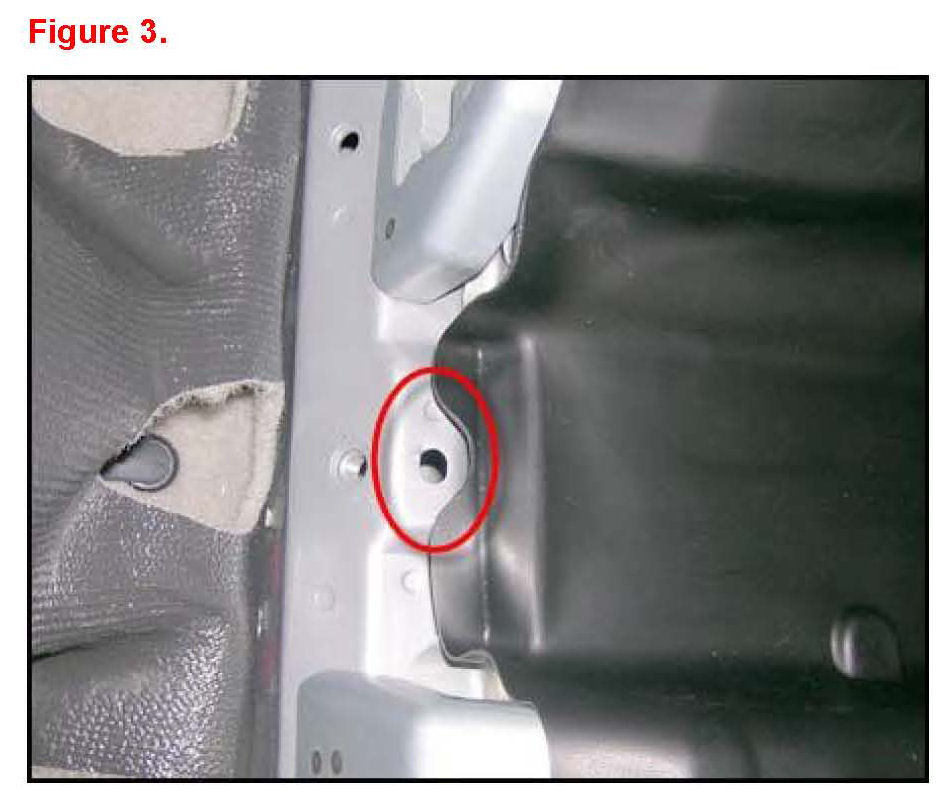

B. Be sure that the tray does not cover the rear seat alignment pin holes.
9. Once proper alignment is confirmed use the 4 double-sided tape strips provided on the tray to attach the tray to the HV Battery case.
10. Complete interior reassembly in reverse order of disassembly.
