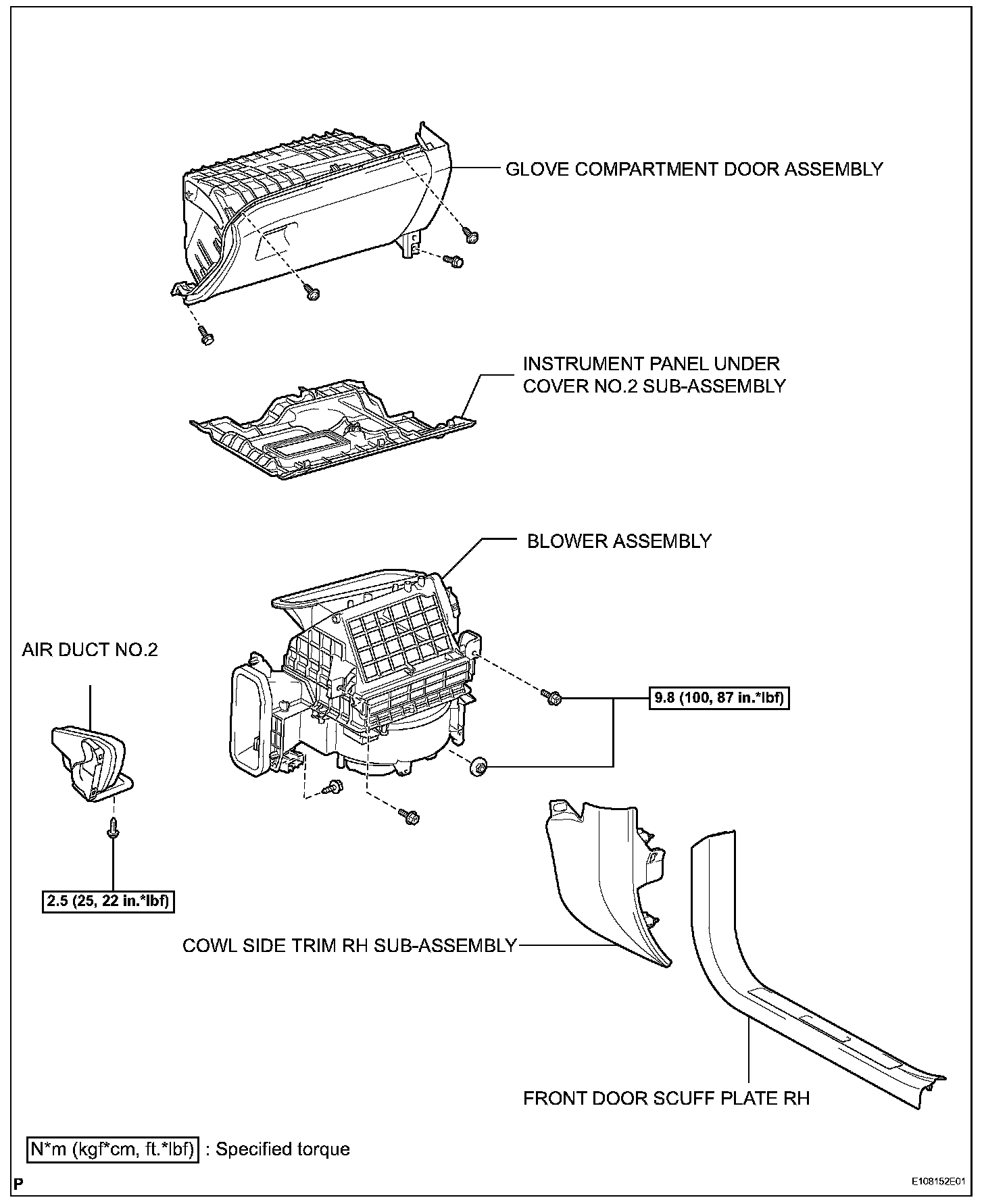

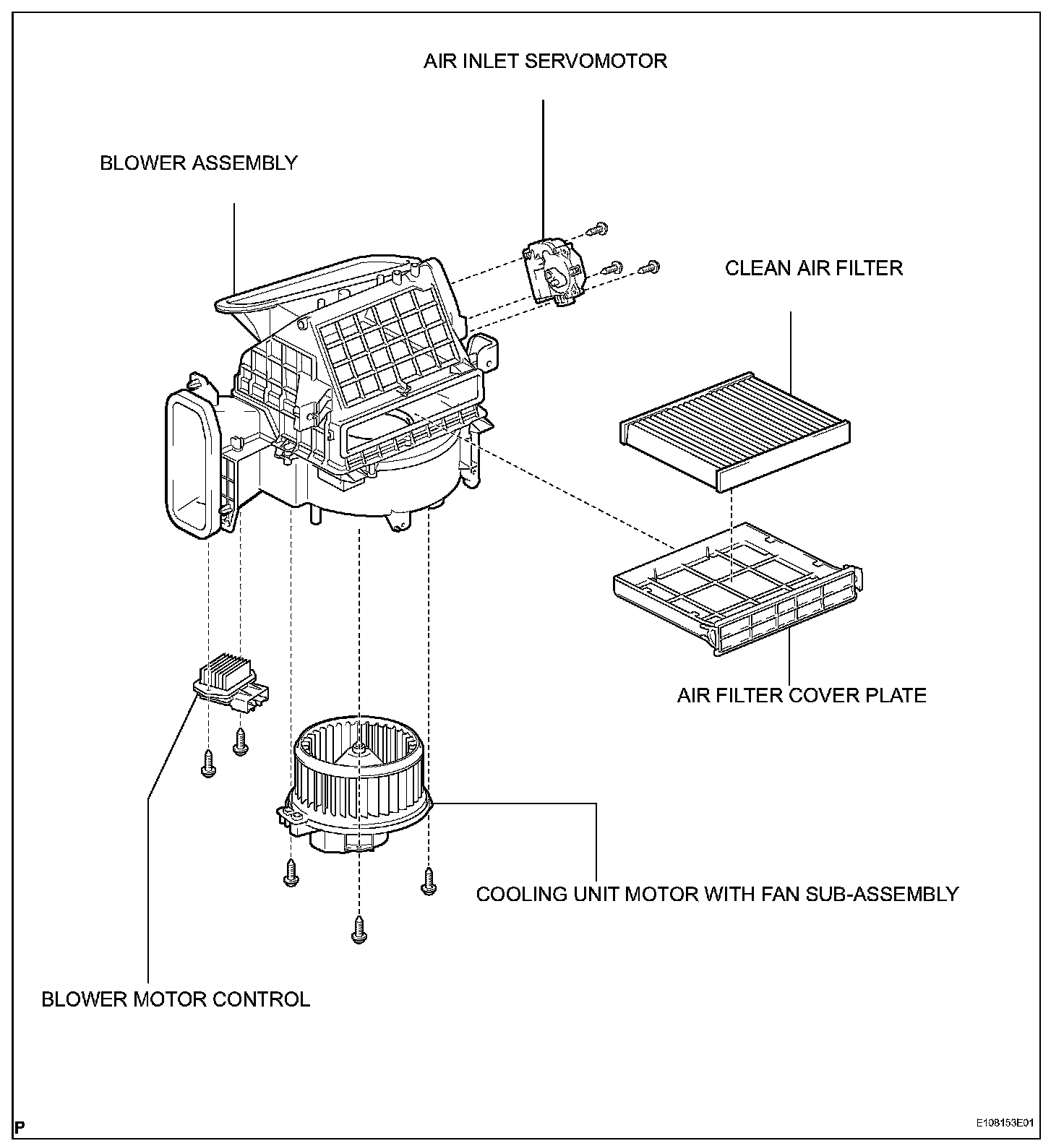

BLOWER UNIT

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE COWL SIDE TRIM RH SUB-ASSEMBLY
4. REMOVE INSTRUMENT PANEL UNDER COVER NO.2 SUB-ASSEMBLY
5. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
6. REMOVE HYBRID VEHICLE CONTROL ECU

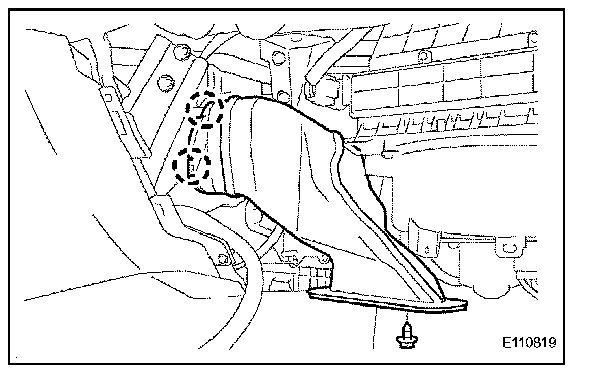

7. REMOVE AIR DUCT NO.2

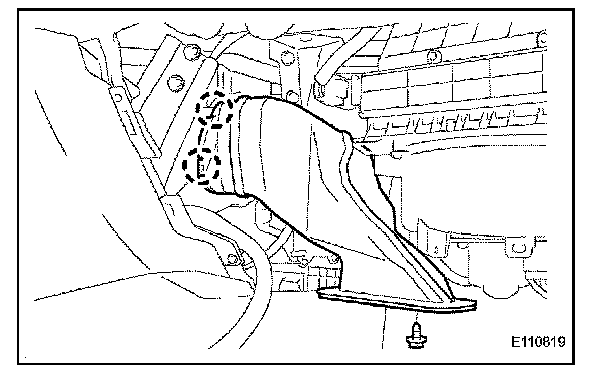

a. Remove the screw.
b. Release the 2 claws and remove the air duct No.2.

8. DISCONNECT WIRING AIR INDICATOR HARNESS NO.2 SUB-ASSEMBLY

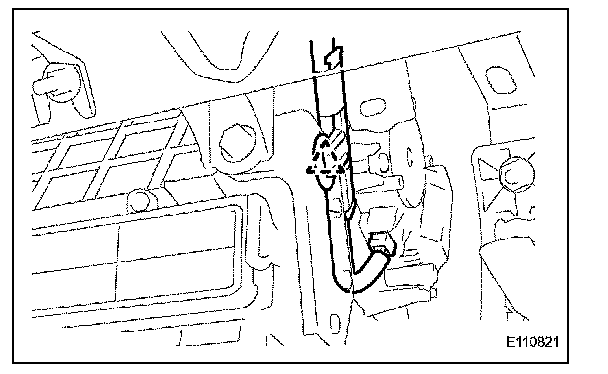

a. Remove the clamp and disconnect the 2 connectors.

9. REMOVE BLOWER ASSEMBLY

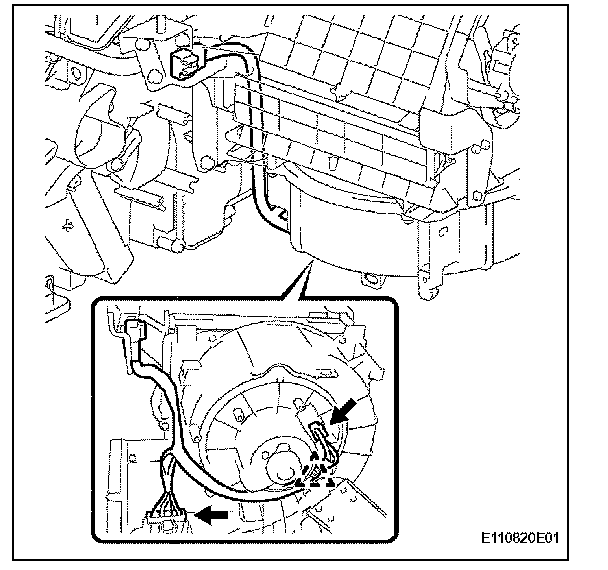

a. Remove the clamp and disconnect the connectors.

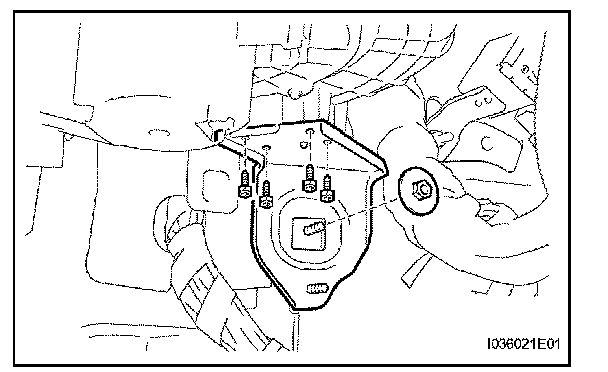

b. Remove the 4 screws and the nut, and then the bracket.

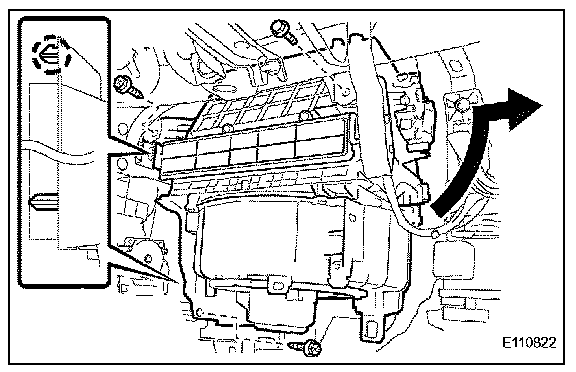

c. Remove the bolt and 2 screws.
d. Release the claw and remove the blower assembly.

INSTALLATION

1. INSTALL BLOWER ASSEMBLY

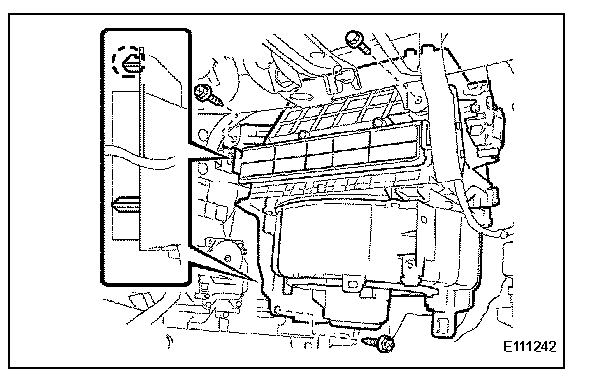

a. Install the blower assembly with the claw.
b. Install the bolt and 2 screws.

Torque: BOLT 9.8 N.m (100 kgf.cm, 87 in.lbf)




c. Install the bracket with the 4 screws and nut.

Torque: NUT 9.8 N.m (100 kgf.cm, 87 in.lbf)




d. Install the clamp and connect the connectors.

2. INSTALL WIRING AIR INDICATOR HARNESS NO.2 SUB-ASSEMBLY

3. INSTALL AIR DUCT NO.2




a. Install the air duct No.2 with the screw.

Torque: 2.5 N.m (25 kgf.cm, 22 in.lbf)

4. INSTALL HYBRID VEHICLE CONTROL ECU
5. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
6. INSTALL INSTRUMENT PANEL UNDER COVER NO.2 SUB-ASSEMBLY
7. INSTALL COWL SIDE TRIM RH SUB-ASSEMBLY
8. INSTALL FRONT DOOR SCUFF PLATE RH
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. PERFORM INITIALIZATION

NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.
