Blower Unit

DISASSEMBLY

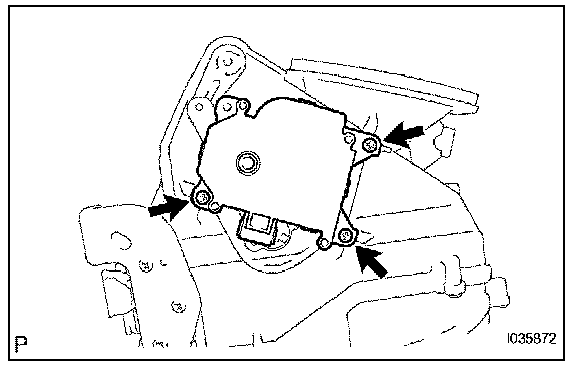

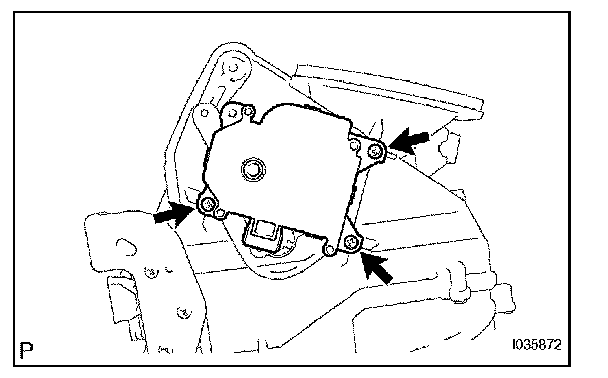

1. REMOVE AIR INLET SERVO MOTOR




a. Remove the 3 screws and air inlet servomotor.

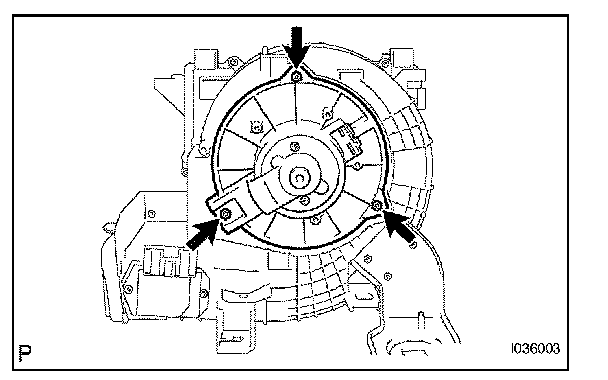

2. REMOVE COOLING UNIT MOTOR WITH FAN SUB-ASSEMBLY




a. Remove the 3 screws and cooling unit motor with fan sub-assembly.

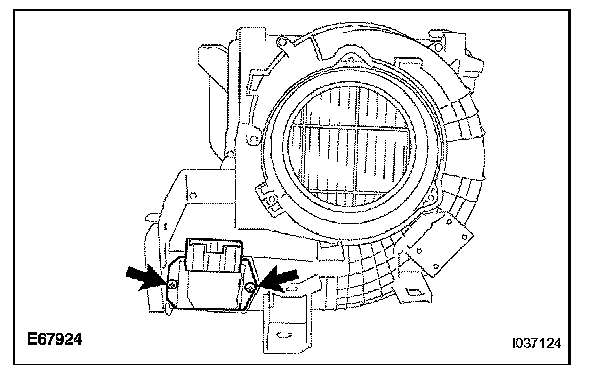

3. REMOVE BLOWER MOTOR CONTROL




a. Remove the 2 screws and blower motor control.

4. REMOVE CLEAN AIR FILTER

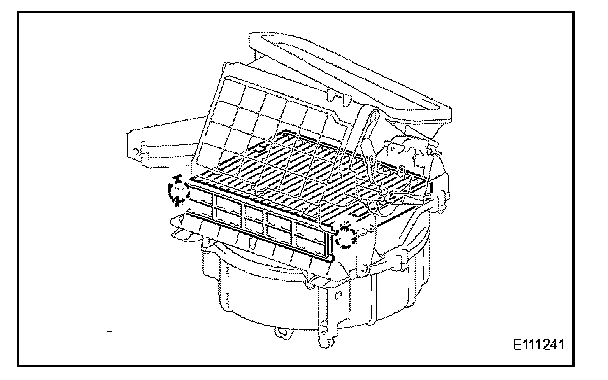

a. Release the 2 claws and remove the air filter sub-assembly.

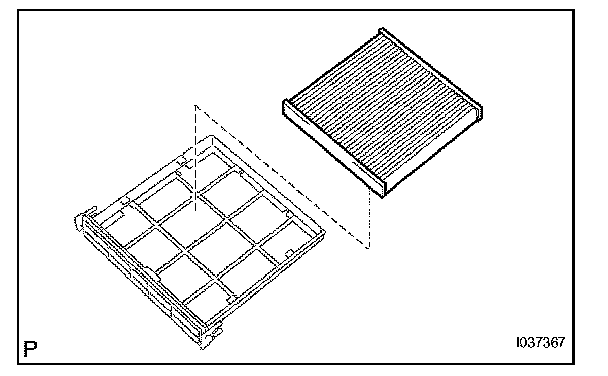

b. Remove the air refiner element from the air filter cover plate.

REASSEMBLY

1. INSTALL CLEAN AIR FILTER

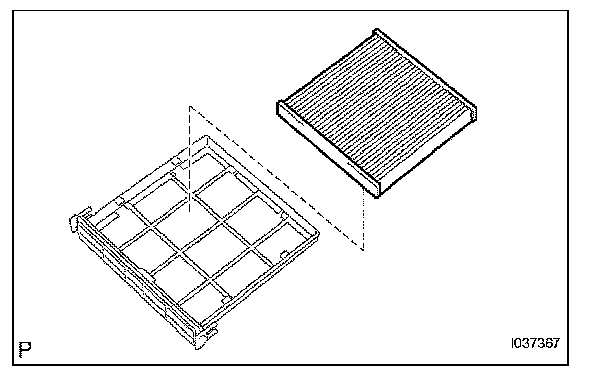

a. Install the clean air filter.
b. Engage the 2 claws to install the air filter sub-assembly.

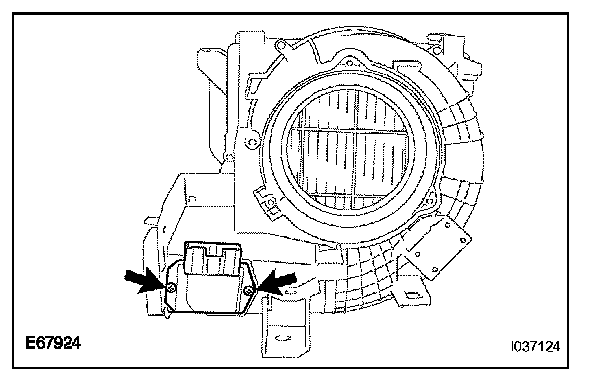

2. INSTALL BLOWER MOTOR CONTROL




a. Install the blower motor control with the 2 screws.

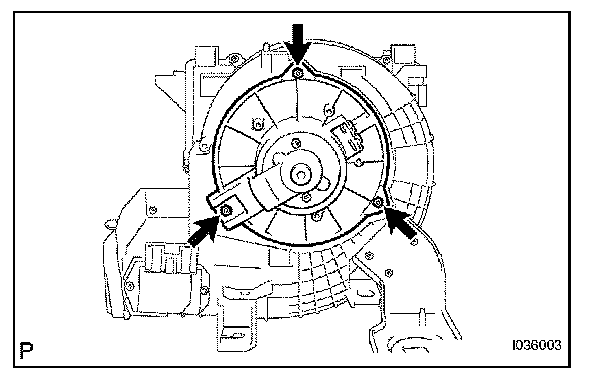

3. INSTALL COOLING UNIT MOTOR WITH FAN SUB-ASSEMBLY




a. Install the cooling unit motor with fan sub-assembly with the 3 screws.

4. INSTALL AIR INLET SERVO MOTOR




a. Install the air inlet servomotor with the 3 screws.
