Skid Control Sensor (For 2WD)

INSPECTION

1. INSPECT SKID CONTROL SENSOR

a. Inspect the skid control sensor. If any of the following occurs, replace with a new skid control sensor:
- The surface of the skid control sensor is cracked, dented, or chipped off.
- The connector is scratched, cracked, or damaged.
- The skid control sensor has been dropped.

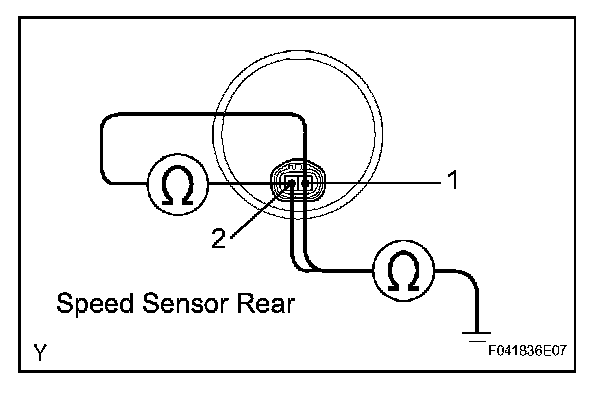

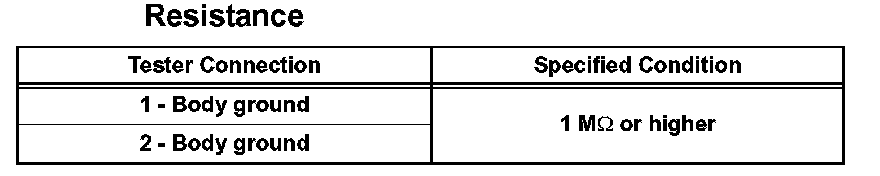

b. Measure the resistance according to the value(s) in the table.

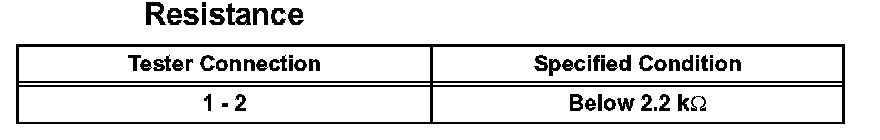

c. Measure the resistance according to the value(s) in the table.
