Front Speed Sensor

INSPECTION

1. INSPECT FRONT SPEED SENSOR

a. Inspect the front speed sensor. If any of the following occurs, replace the front speed sensor with a new one:
- The surface of the front speed sensor is cracked, dented, or chipped off.
- The connector or wire harness is scratched, cracked, or damaged.
- The front speed sensor has been dropped.

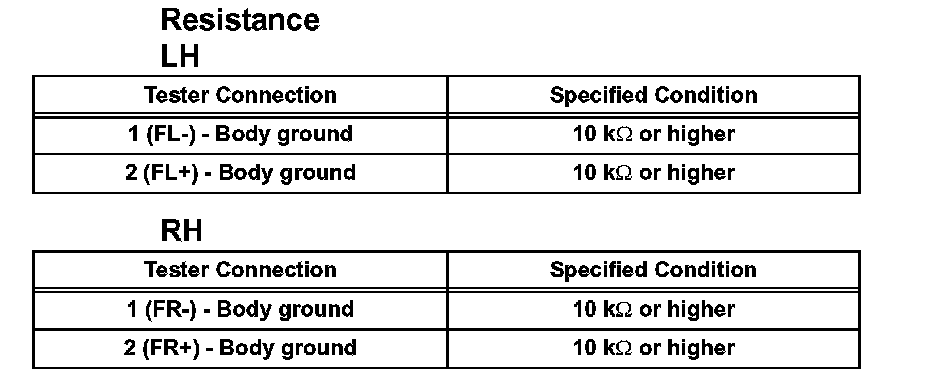

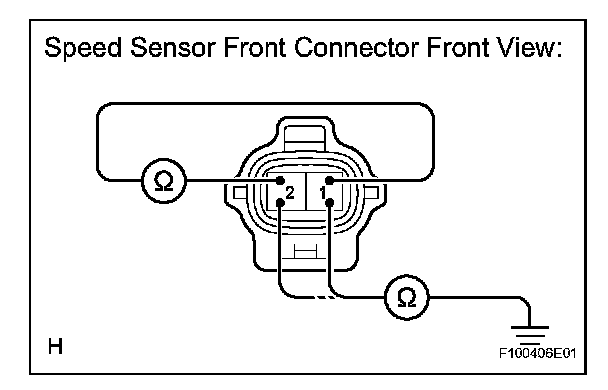

b. Measure the resistance according to the value(s) in the table.

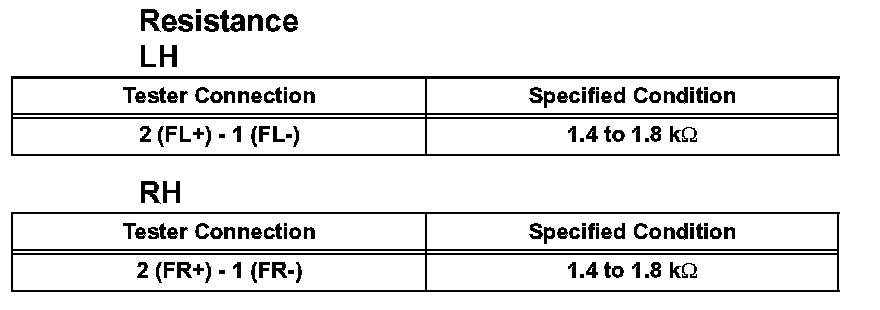

c. Measure the resistance according to the value(s) in the table.
