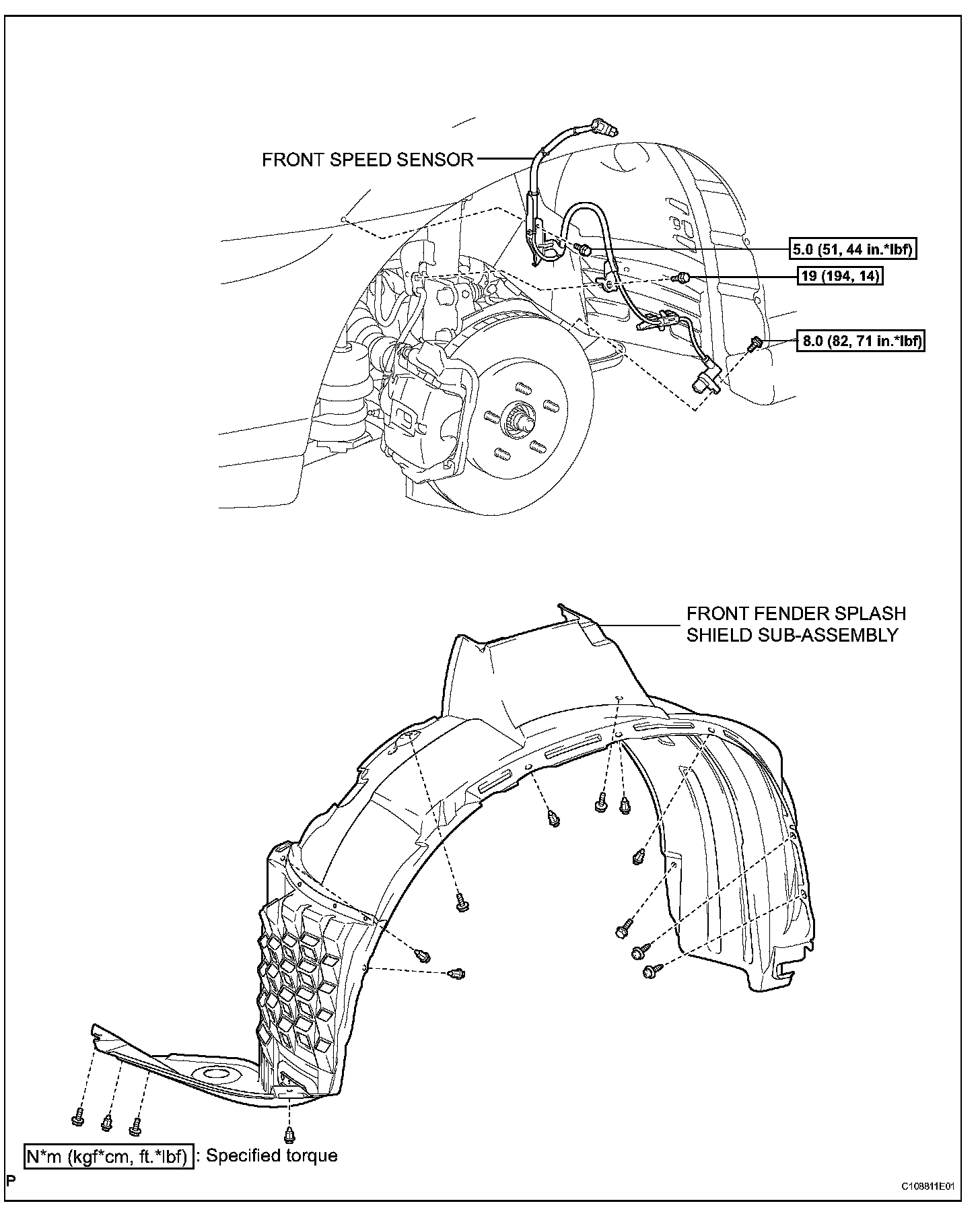

Front Speed Sensor

Front Speed Sensor:

REMOVAL

1. REMOVE FRONT WHEEL

2. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY
a. Remove the bolts, screws, clips and front fender splash shield sub-assembly.

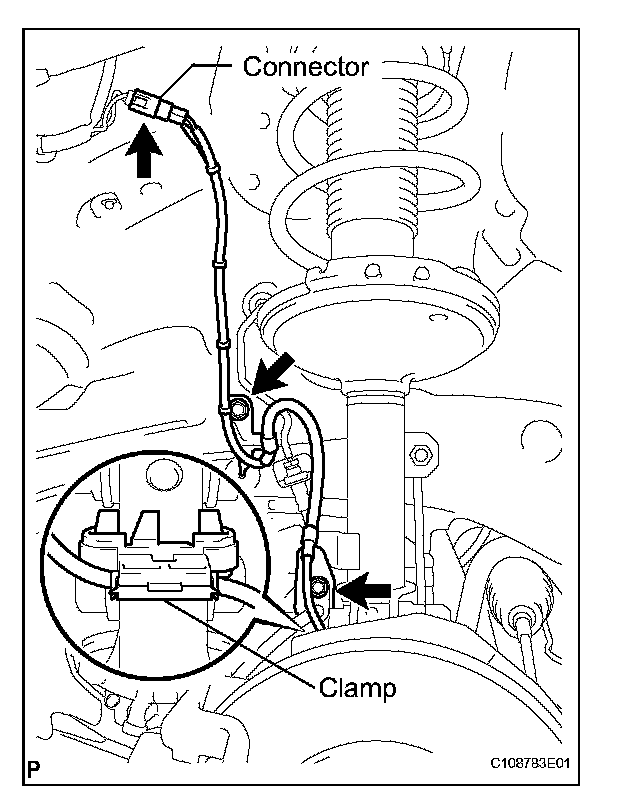

3. REMOVE FRONT SPEED SENSOR




a. Disconnect the front speed sensor connector.
b. Remove the 2 bolts from the body and the shock absorber assembly.
c. Remove the clamp from the steering knuckle.

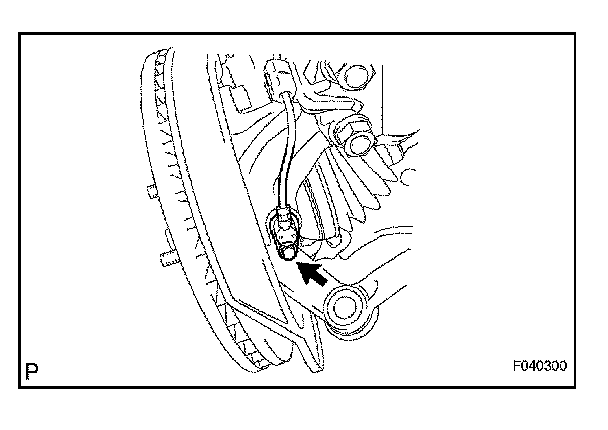

d. Remove the bolt and the front speed sensor.

NOTE:
- Prevent foreign matter from attaching to the sensor tip.
- Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.

INSTALLATION

1. INSTALL FRONT SPEED SENSOR

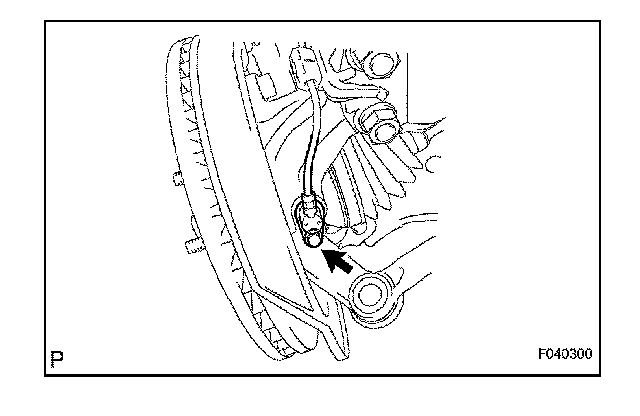

a. Install the front speed sensor with the bolt.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

NOTE: Prevent foreign matter from attaching to the sensor tip.

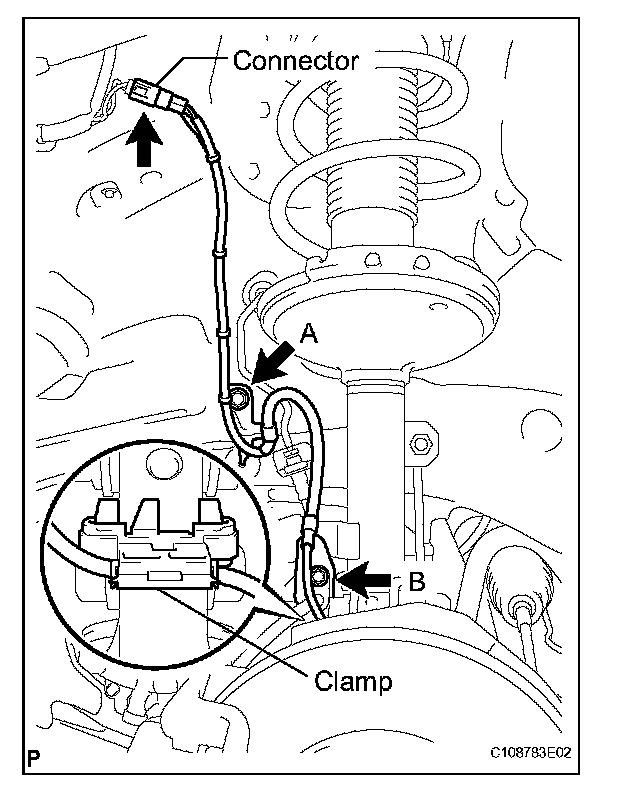

b. Install the front speed sensor with the 2 bolts and the clamp.

Torque:
Bolt A 5.0 N.m (51 kgf.cm, 44 in.lbf)
Bolt B 19 N.m (194 kgf.cm, 14 ft.lbf)

NOTE: Do not twist the wire harness for the front speed sensor when installing the speed sensor.

c. Connect the front speed sensor connector.

2. INSTALL FRONT FENDER SPLASH SHIELD SUBASSEMBLY
a. Install the front fender splash shield sub-assembly with the bolts, screws, and clips.

3. INSTALL FRONT WHEEL

Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

4. CHECK SPEED SENSOR SIGNAL
