Brake Control Warning Light Remains On

Brake Control Warning Light Remains ON

DESCRIPTION

If the ECU stores a DTC, the brake control warning light comes on in the combination meter.

The skid control ECU is connected to the combination meter via CAN and multiplex communications.

Wiring Diagram:

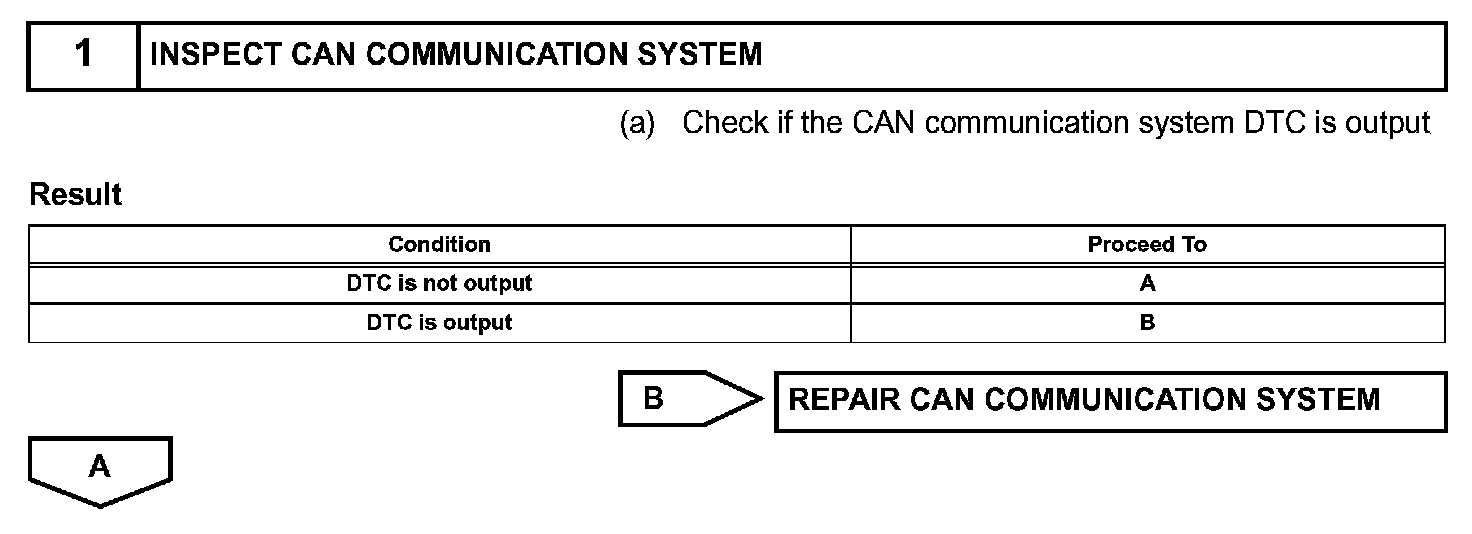

Step 1:

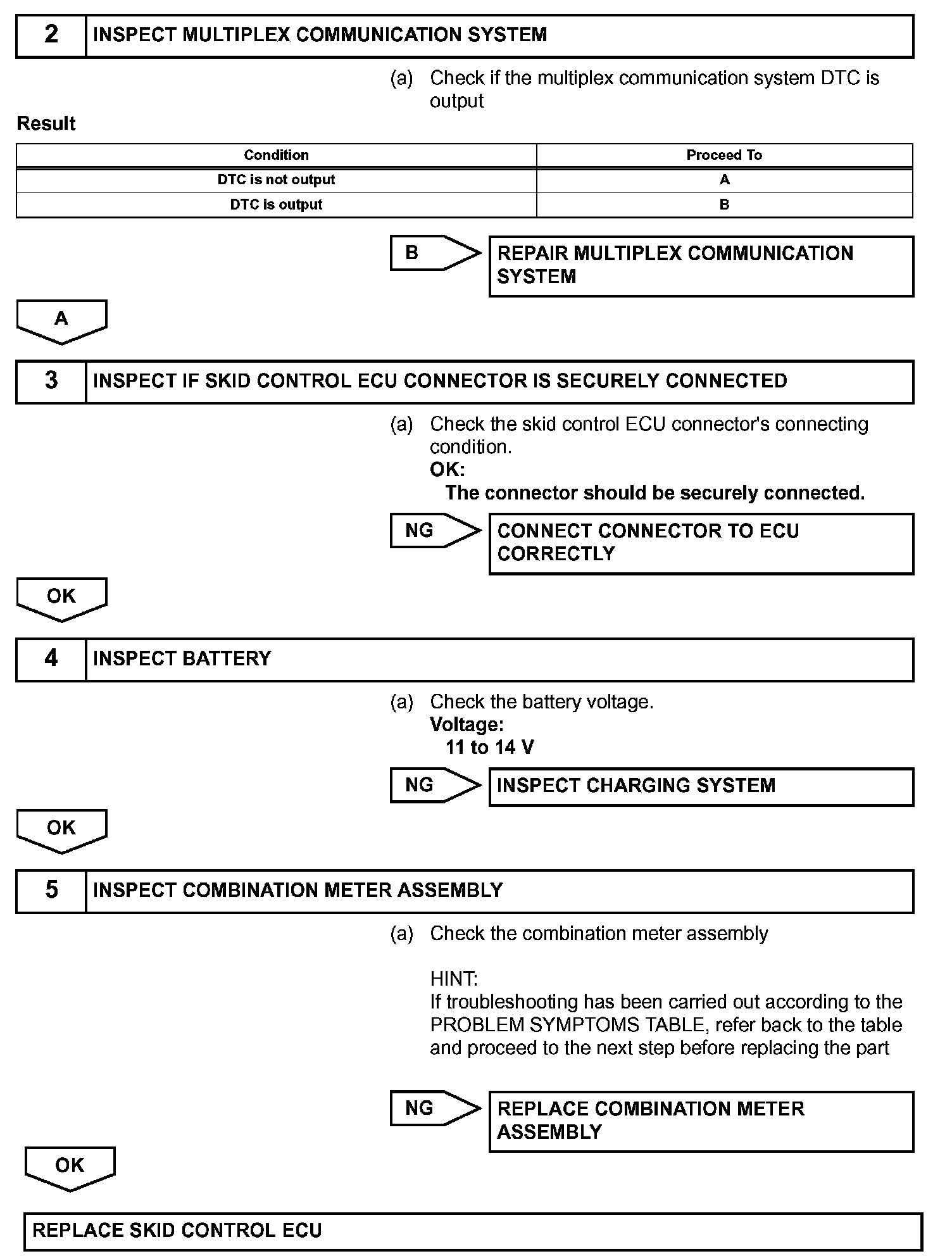

Step 2-5:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Initialization
