Steering Angle Sensor: Service and Repair

Steering Angle Sensor:

REMOVAL

1. PRECAUTION
Refer to Restraint Systems; Service Precautions.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE STEERING WHEEL NO.2 COVER LOWER
5. REMOVE STEERING WHEEL NO.3 COVER LOWER
6. REMOVE STEERING PAD
7. REMOVE STEERING WHEEL ASSEMBLY
8. REMOVE STEERING COLUMN COVER (for Manual Tilt)
9. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)

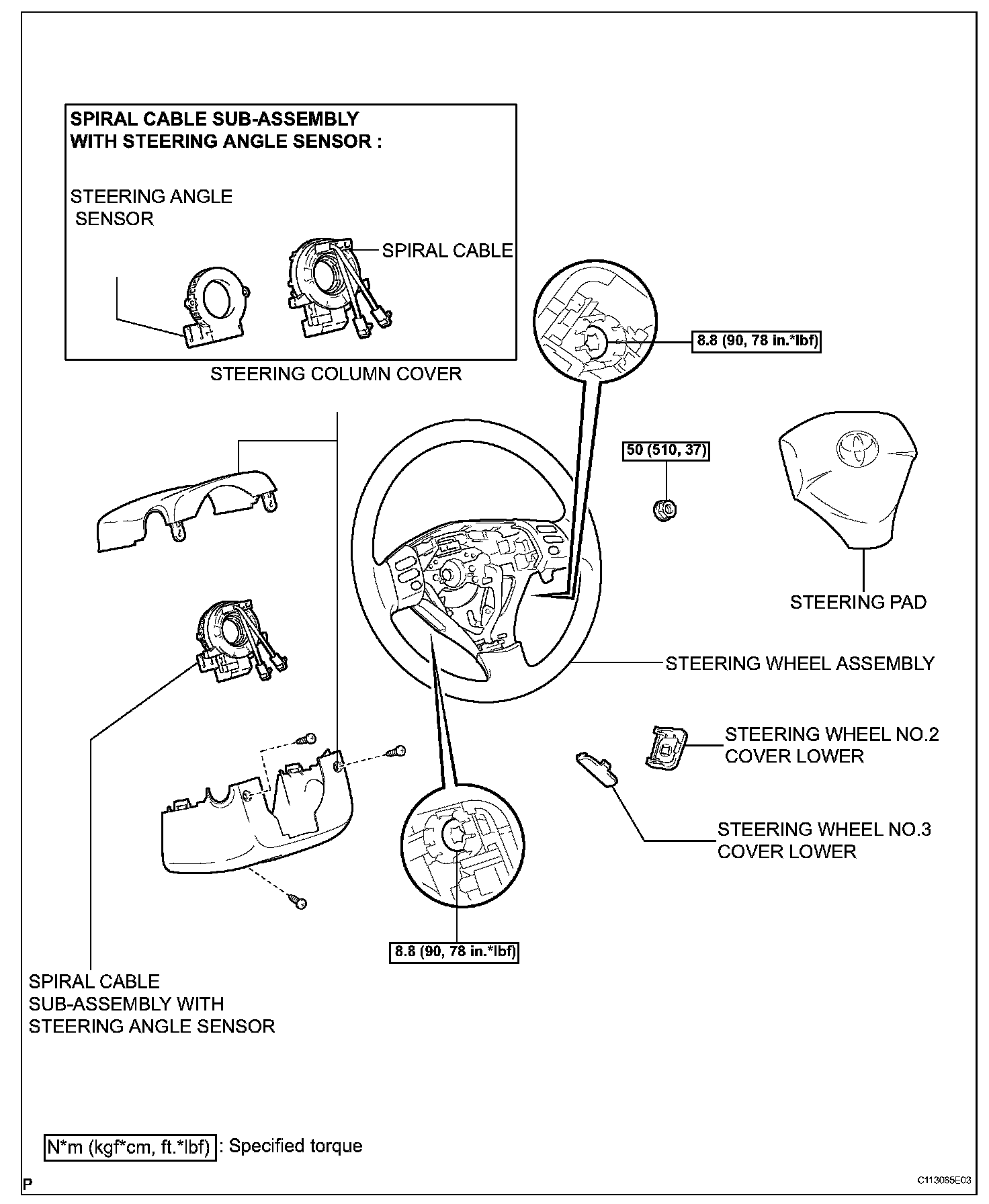

10. REMOVE SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR

11. REMOVE STEERING ANGLE SENSOR




a. Disengage the 6 claws and remove the steering angle sensor from the spiral cable sub-assembly.

INSTALLATION

1. INSTALL STEERING ANGLE SENSOR




a. Install the steering angle sensor to the spiral cable sub-assembly.

NOTE:
- Engage the claws securely.
- Do not damage the claws.

2. INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR
3. POINT FRONT WHEELS FACING STRAIGHT AHEAD
4. INSTALL STEERING COLUMN COVER (for Manual Tilt)
5. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
6. CENTER SPIRAL CABLE
7. INSTALL STEERING WHEEL ASSEMBLY
8. INSTALL STEERING PAD
9. INSTALL STEERING WHEEL NO.2 COVER LOWER
10. INSTALL STEERING WHEEL NO.3 COVER LOWER
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. INSPECT SRS WARNING LIGHT
13. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the negative battery cable.
