Antilock Brakes / Traction Control Systems: Service and Repair

Brake Control Power Supply:

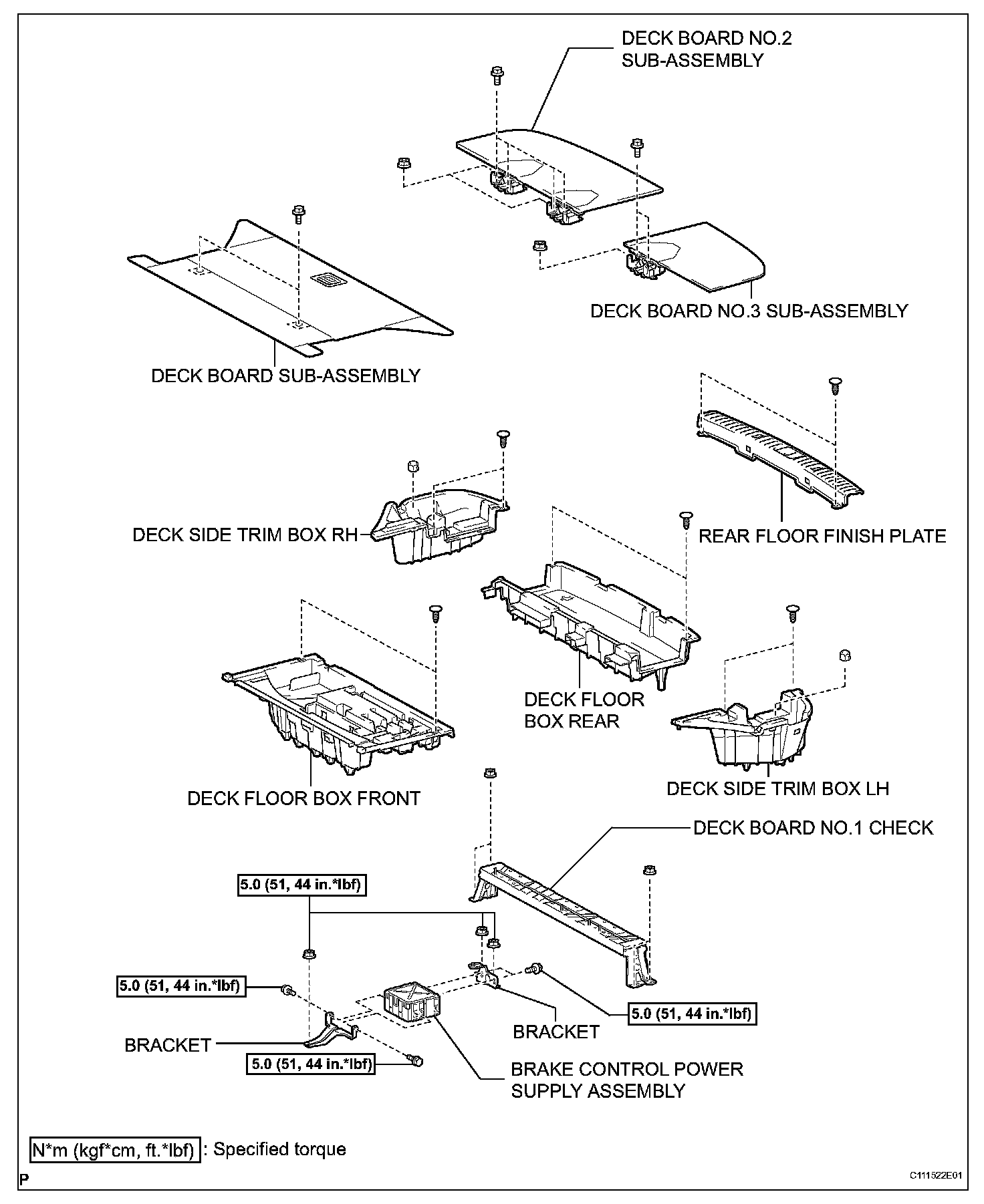

REMOVAL

1. REMOVE DECK BOARD SUB-ASSEMBLY
2. REMOVE DECK FLOOR BOX FRONT
3. REMOVE DECK FLOOR BOX REAR
4. REMOVE DECK NO.2 BOARD SUB-ASSEMBLY
5. REMOVE DECK NO.3 BOARD SUB-ASSEMBLY
6. REMOVE REAR FLOOR FINISH PLATE
7. REMOVE DECK SIDE TRIM BOX RH
8. REMOVE DECK SIDE TRIM BOX LH

9. REMOVE DECK BOARD NO.1 CHECK
a. Remove the 4 nuts and deck board No.1 check.

10. REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY

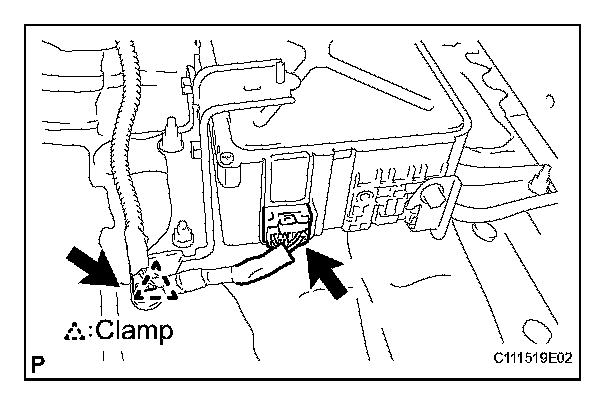

a. Disconnect the brake control power supply assembly connector and separate the clamp.

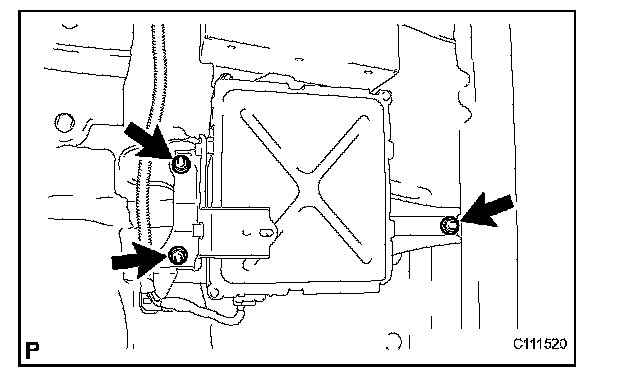

b. Remove the 3 nuts and the brake control power supply assembly.

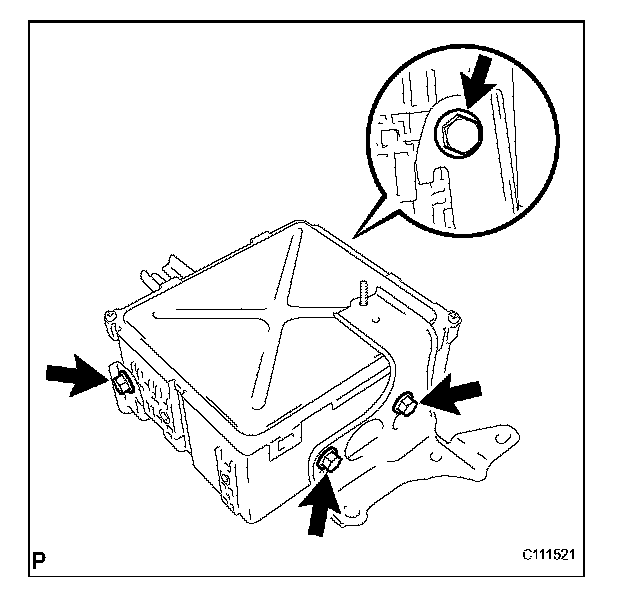

c. Remove the 4 bolts and 2 brackets.

INSTALLATION

1. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY

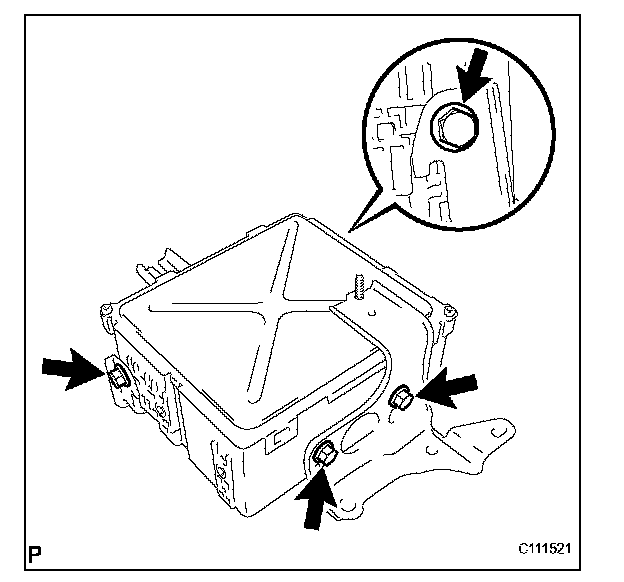

a. Install the 2 brackets with the 4 bolts.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

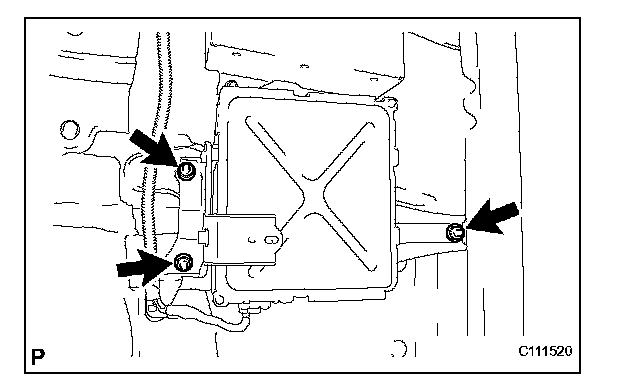

b. Install the brake control power supply assembly with the 3 nuts.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

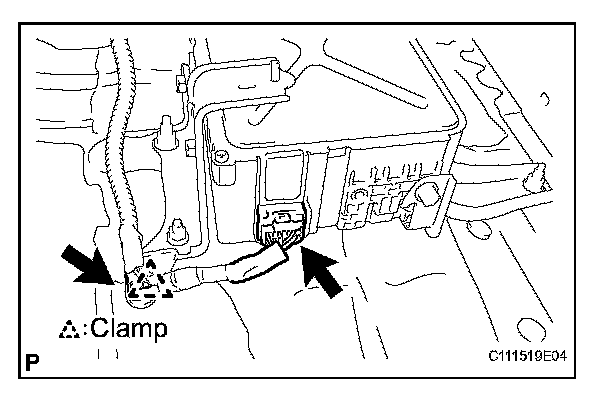

c. Connect the brake control power supply assembly connector and install the clamp.

2. INSTALL DECK BOARD NO.1 CHECK
a. Install the deck board No.1 check with the 4 nuts.

3. INSTALL DECK SIDE TRIM BOX RH
4. INSTALL DECK SIDE TRIM BOX LH
5. INSTALL REAR FLOOR FINISH PLATE
6. INSTALL DECK NO.2 BOARD SUB-ASSEMBLY
7. INSTALL DECK NO.3 BOARD SUB-ASSEMBLY
8. INSTALL DECK FLOOR BOX REAR
9. INSTALL DECK FLOOR BOX FRONT
10. INSTALL DECK BOARD SUB-ASSEMBLY
11. CHECK AND CLEAR DTC

12. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal.
