Brake Fluid Pump Relay: Testing and Inspection

INSPECTION

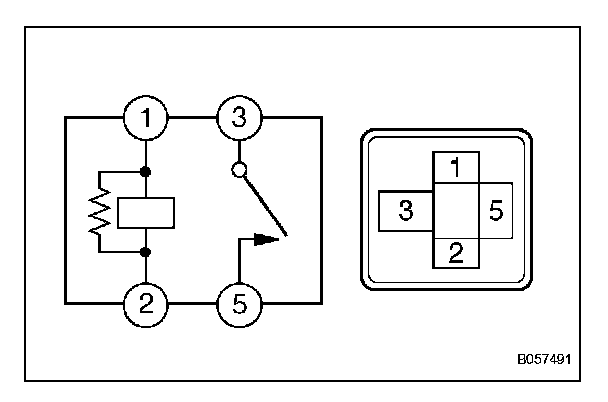

1. INSPECT ABS MOTOR RELAY (ABS MTR1 RELAY, ABS MTR 2 RELAY)

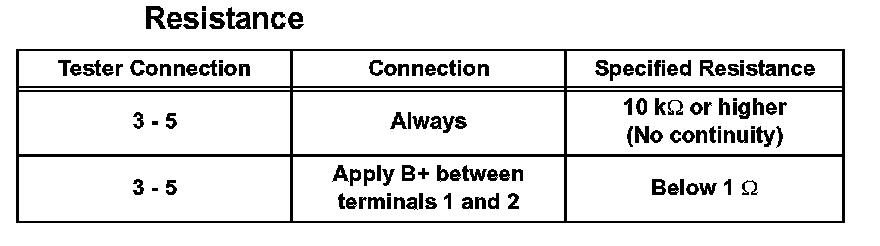

a. Measure the resistance according to the value(s) in the table.
