ABS Main Relay: Testing and Inspection

INSPECTION

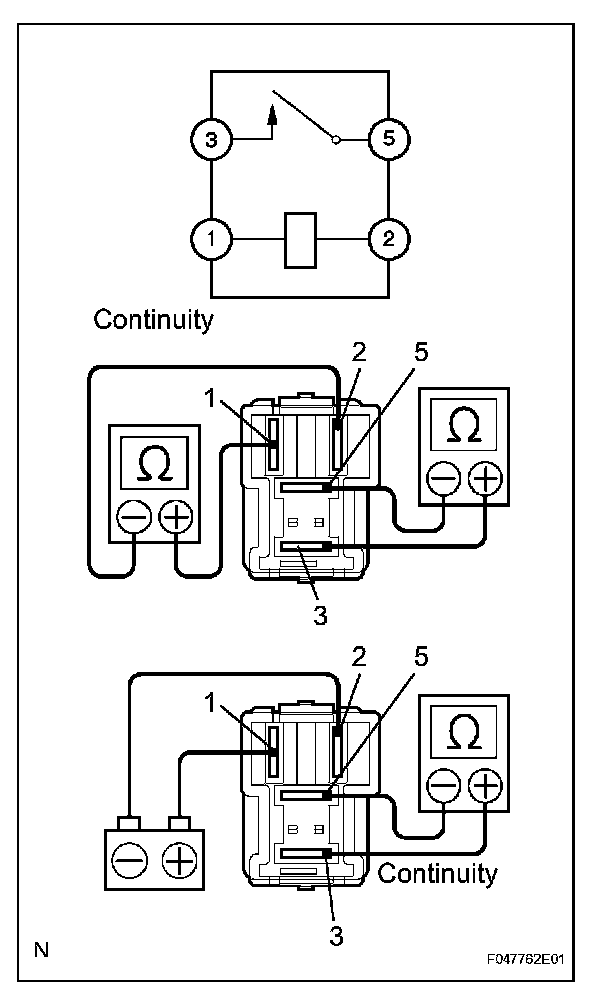

1. INSPECT ABS MAIN RELAY (ABS NO.1 RELAY, ABS NO.2 RELAY)

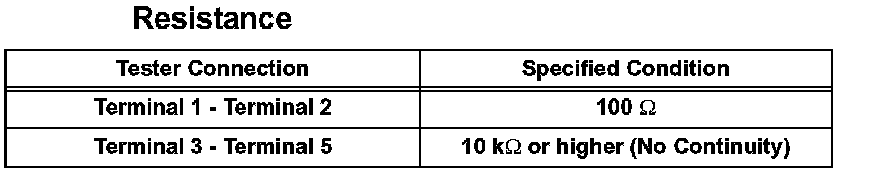

a. Measure the resistance according to the value(s) in the table.
b. Apply battery voltage between terminals 1 and 2.

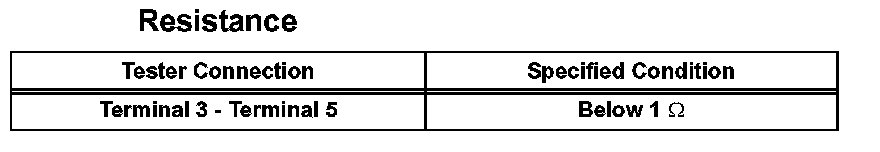

c. Measure the resistance according to the value(s) in the table.
